The automotive steering system is fundamental to vehicle control, allowing drivers to direct a vehicle's movement by converting rotational input from the steering wheel into the lateral movement of wheels. As vehicle technology advances, steering systems have evolved from purely mechanical systems to sophisticated electronic and power-assisted configurations that enhance safety, efficiency, and driving experience.
Fundamentals of Steering Systems
A steering system comprises a series of devices used to change or maintain a vehicle's direction during driving or reversing. The primary function is to convert the driver's rotational movement of the steering wheel into a lateral movement of the wheels, allowing directional control. Beyond simply changing direction, steering systems must ensure proper tire contact with the road surface, maximize tire life by maintaining proper wheel angles, and provide road feel feedback to the driver.
Steering Principles and Operation
The fundamental operation of a steering system involves several sequential steps. When the driver turns the steering wheel, this rotational movement is transmitted through the steering column to the steering gear. The gear mechanism then converts this rotation into a pushing-pulling motion that changes the direction of the tires. In modern vehicles, hydraulic or electric power assists this process to reduce driver effort.
The basic steering operation, exemplified by an electric power steering system, follows this sequence:
The steering wheel is turned by the driver
A torque sensor detects the steering input and sends signals to the Electronic Control Unit (ECU)
The ECU adds electric current to the motor based on torque signal and vehicle speed
Motor rotating torque is increased by the reduction gear and transmitted to the pinion
The rotating torque is converted to rack axial force to change tire direction
Components of Automotive Steering Systems
Primary Components
A typical steering system consists of several key components working in concert:
Steering Wheel and Column: The steering wheel serves as the driver's interface, while the column is a shaft that transmits motion from the wheel to the steering mechanism. The steering column often contains joints to handle misalignment between the wheel and mechanical components.
Steering Gear: This mechanism converts the rotational motion from the steering wheel into the lateral movement needed to turn the wheels. The most common types are rack-and-pinion or recirculating ball gearing systems.

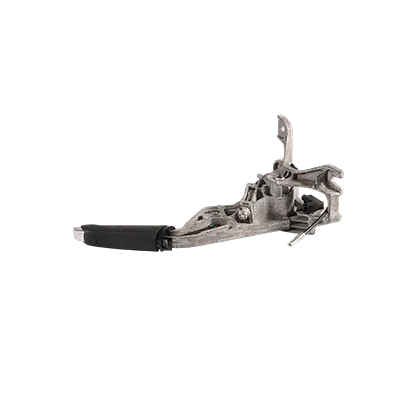

Tie Rods: These components link the steering gear to the steering knuckles, maintaining wheel alignment and absorbing shocks during driving.
Steering Knuckles: These attach the wheels to the suspension system and pivot when steering input is applied, allowing the wheels to change direction.
Sensors and Electronic Control Units: In modern power steering systems, torque sensors detect steering input while ECUs process this information and control power assistance.
Component Integration
In a functional steering system, these components work together in a coordinated manner. The steering column transfers the driver's input to the steering gear, which then moves the tie rods. The tie rods, connected to the steering knuckles through ball joints, ultimately control wheel direction. This integration requires precise manufacturing and assembly to ensure smooth operation, stability, and proper feedback to the driver.
Types of Steering Systems
1. Mechanical Steering Systems
Rack and Pinion Steering:
The rack and pinion steering system is the most common type in modern vehicles. Converts the steering wheel's rotational motion into linear motion to turn the wheels.
Features precise control, efficiency, and easy maintenance, making it ideal for passenger cars.
Recirculating Ball Steering:
Uses ball bearings to reduce friction and wear, suitable for larger vehicles like trucks and SUVs.
While less precise than rack and pinion systems, recirculating ball steering offers greater durability and the ability to handle heavier loads.
2. Power-Assisted Steering Systems
Hydraulic Power Steering (HPS)
Hydraulic power steering utilizes hydraulic fluid pressure generated by a pump connected to the engine to assist steering. The system includes a pump, hoses, and a power steering gear. HPS provides consistent assistance but is less fuel-efficient compared to newer systems because the pump draws power from the engine continuously.
Electric Power Steering (EPS)
Electric power steering uses an electric motor to assist steering, drawing power from the vehicle's electrical system rather than the engine. The system consists of a steering column, sensors, electronic control unit, and electric motor. EPS offers several advantages, including improved fuel efficiency, variable assistance based on driving conditions, and easier integration with advanced driver assistance systems (ADAS).
Types of EPS:
Column-assist EPS (C-EPS): Compact design, motor, and ECU inside the cabin.
Rack-assist EPS (R-EPS): Motor attached to the steering rack, offering enhanced performance for larger vehicles.
Pinion-assist EPS (P-EPS): Motor located at the pinion gear level for efficient steering support.
Electro-Hydraulic Power Steering (EHPS):
Combines hydraulic and electric systems with an electric pump for hydraulic assist.
Offers a balance of efficiency and the consistent steering feel of hydraulic systems.
Advanced Steering Technologies
Steer-by-Wire (SbW)
Steer-by-Wire represents a revolutionary approach to steering by eliminating the mechanical connection between the steering wheel and the road wheels, replacing it with electronic signals, algorithms, and actuators. This system consists of three main components:
Handwheel Actuator (HWA): Receives driver steering input and converts it to digital commands
Roadwheel Actuator (RWA): Receives steering commands and moves the road wheels accordingly
Systems Software & Integration: Enables communication within the system and with other vehicle systems
SbW technology enables advanced features not possible with traditional systems, enhances safety and performance, and offers greater vehicle packaging flexibility. It also emulates road feel through feedback mechanisms while allowing for variable steering ratios and driving modes.
Four-Wheel Steering
In four-wheel steering systems, both the front and rear wheels can turn, improving stability, maneuverability, and handling at various speeds. This technology is typically found in high-performance and luxury vehicles, providing enhanced cornering ability and reduced turning radius.
Vehicle-Specific Applications
Different vehicle types require tailored steering solutions:
Compact Passenger Vehicles: Typically use column-assist EPS due to its simplicity and space efficiency
Medium to Large Cars: Often employ rack-assist EPS for better steering performance
Trucks and SUVs: Traditionally used recirculating ball systems, though modern designs increasingly incorporate specialized EPS systems
Performance Vehicles: May utilize advanced systems like variable-ratio steering or four-wheel steering for enhanced handling
Steering System Symptoms and Maintenance
Common Symptoms of Steering System Issues:
1. Difficulty Turning the Steering Wheel:
Experiencing stiffness or resistance when turning may indicate low power steering fluid, a failing power steering pump, or worn steering components.
2. Unusual Noises During Steering:
Knocking, whining, or squealing sounds when turning can signal worn tie rod ends, a failing power steering pump, or air trapped in the power steering system.
3. Steering Wheel Vibrations:
Noticeable vibrations, especially during acceleration or turns, might result from issues like unbalanced tires, misaligned wheels, or problems within the steering linkage.
4. Steering Wheel Play or Looseness:
Excessive free movement in the steering wheel before the vehicle responds can be due to worn steering rack mounts, tie rods, or other steering linkage components.
5. Vehicle Pulling to One Side:
If the vehicle drifts left or right without steering input, it could indicate misaligned wheels, uneven tire pressure, or malfunctioning steering components.
Essential Steering System Maintenance
1. Regular Inspection of Steering Components:
Periodically check tie rods, ball joints, and steering rack mounts for signs of wear or damage. Early detection can prevent more severe issues.
2. Maintain Proper Power Steering Fluid Levels:
Consistently monitor and top up power steering fluid as needed. Low fluid levels can lead to increased steering effort and potential system damage.
3. Ensure Correct Tire Pressure and Alignment:
Regularly verify that tires are inflated to the manufacturer's recommended pressure and have proper wheel alignment to ensure responsive steering and even tire wear.
4. Inspect and Replace Drive Belts:
Worn or loose drive belts can affect the power steering pump's performance. Regular inspections and timely replacements are essential.
5. Keep Steering Linkages Lubricated:
Proper lubrication of steering linkages reduces friction and prevents premature wear, ensuring smooth steering operation.
6. Monitor for Power Steering Fluid Leaks:
Regularly check for leaks in the power steering system, as fluid loss can lead to increased steering effort and potential system damage.
