Air Conditioner Bearing

Bearing Applications in Air Conditioning Systems

Bearings serve essential functions in various components of air conditioning systems, each with specific requirements based on their location and purpose.

Compressor Bearings

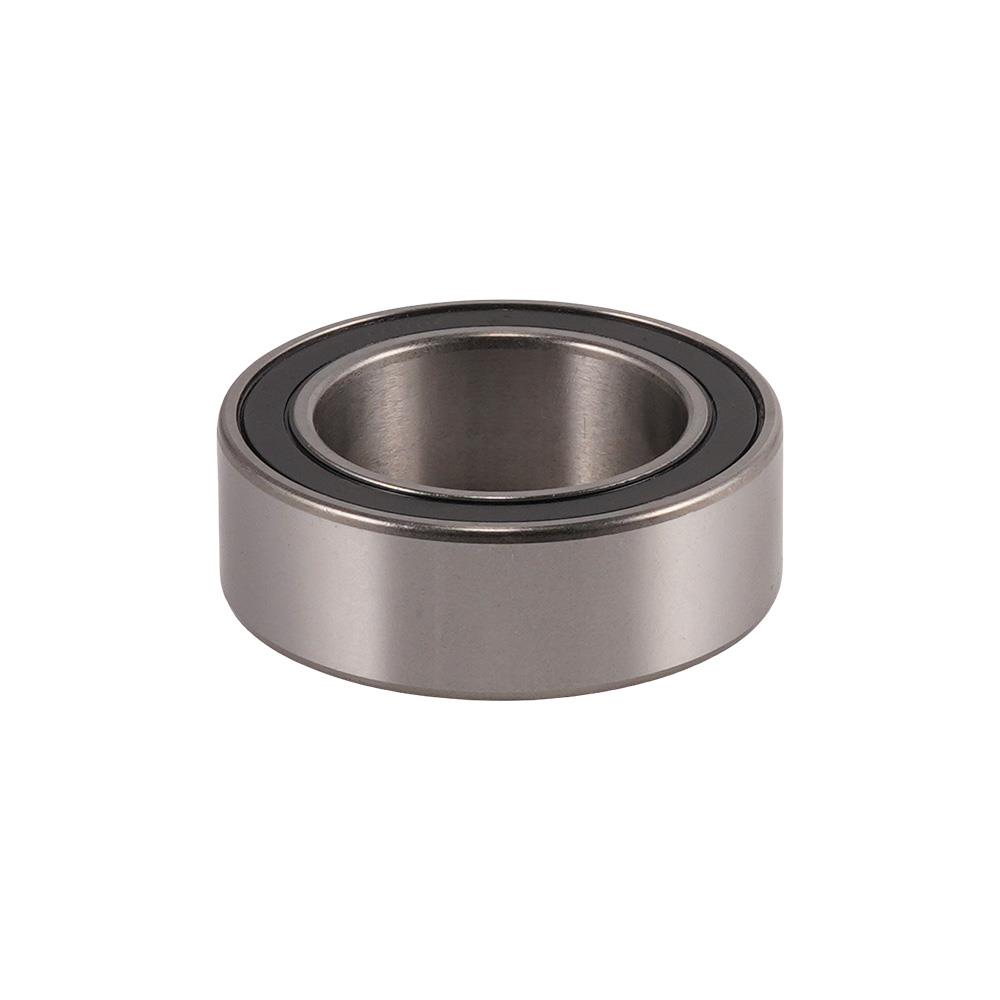

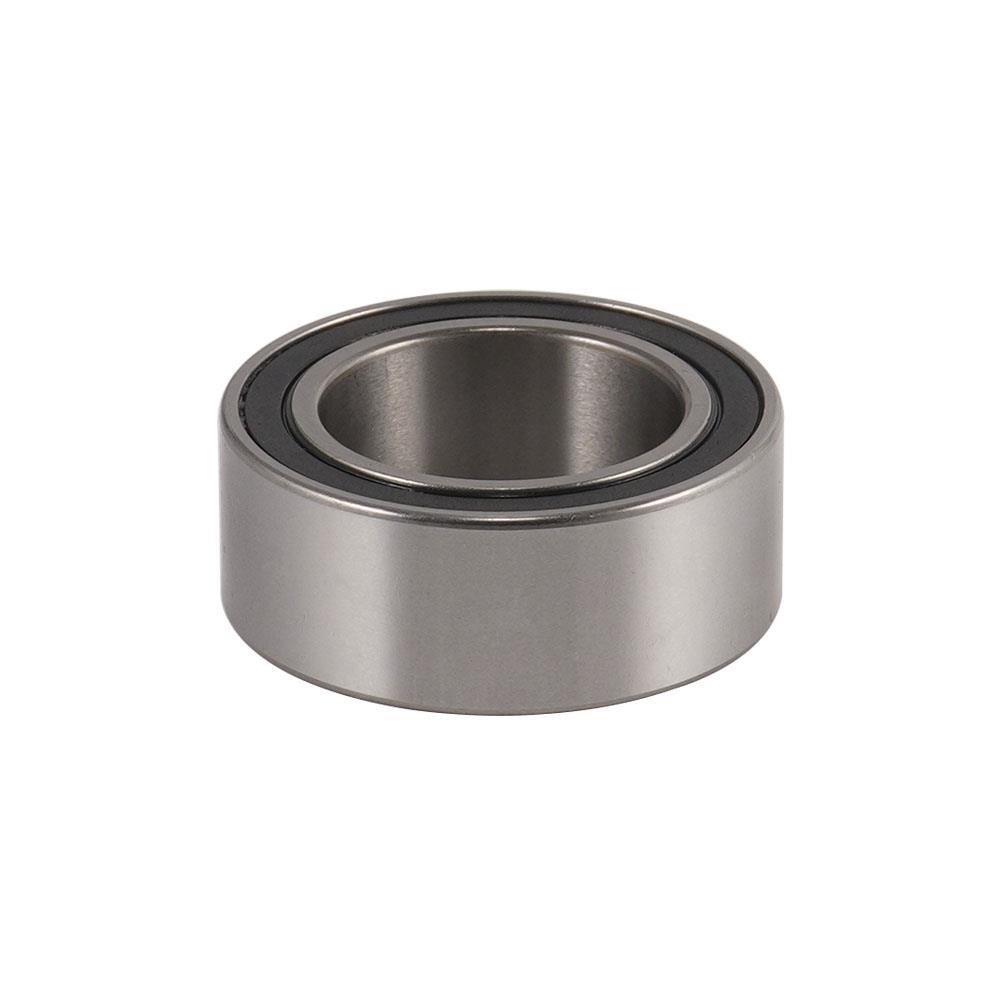

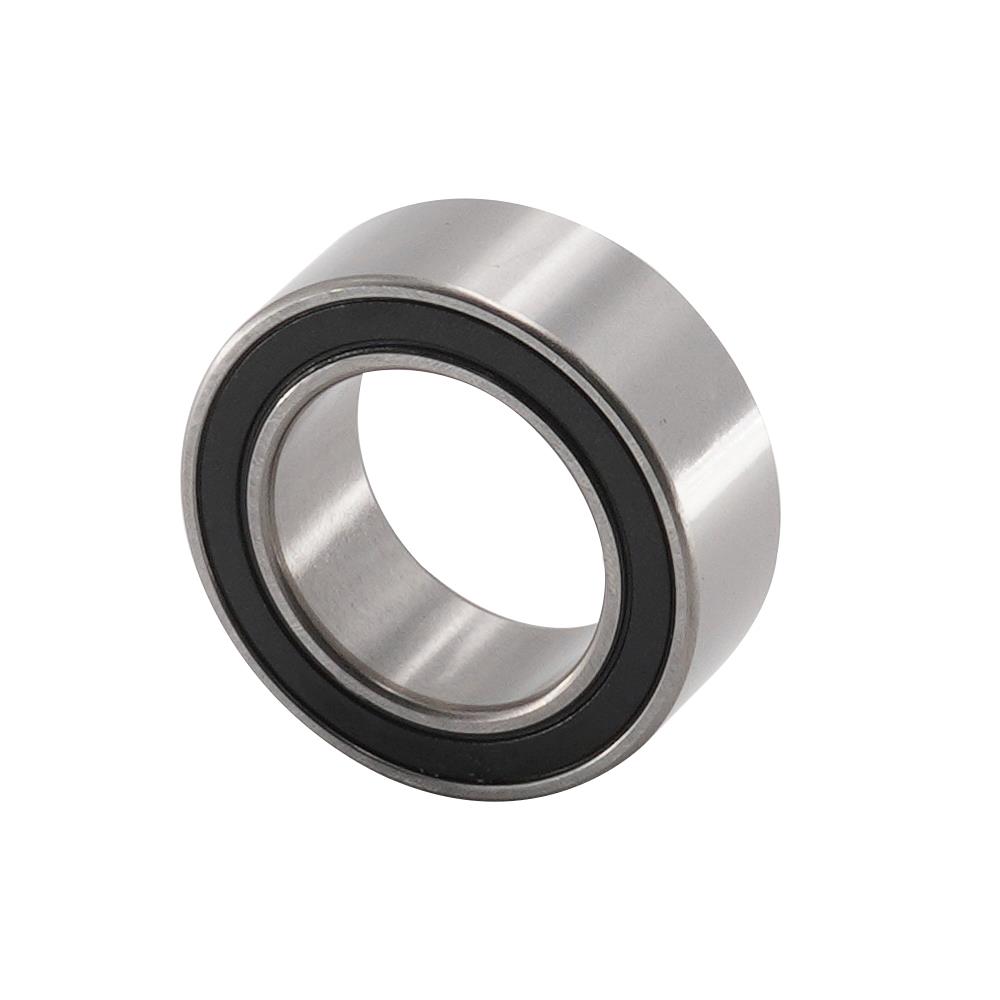

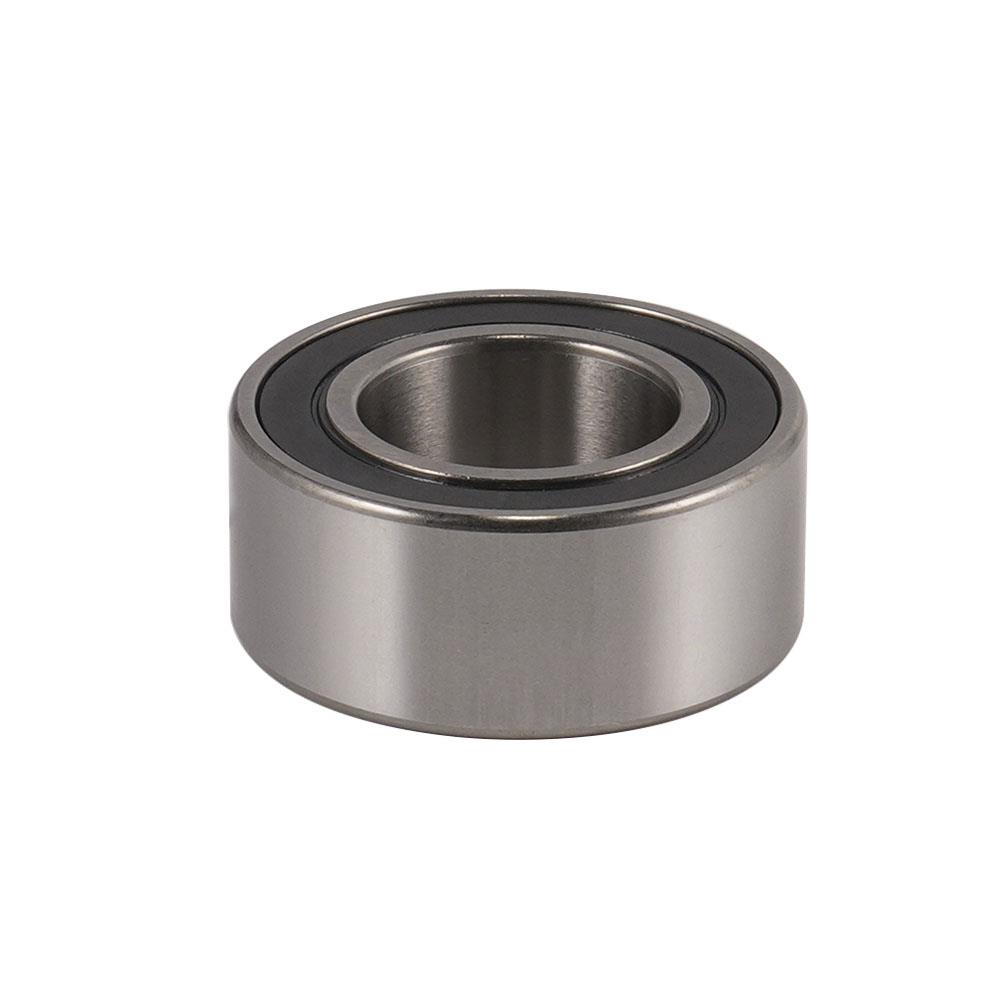

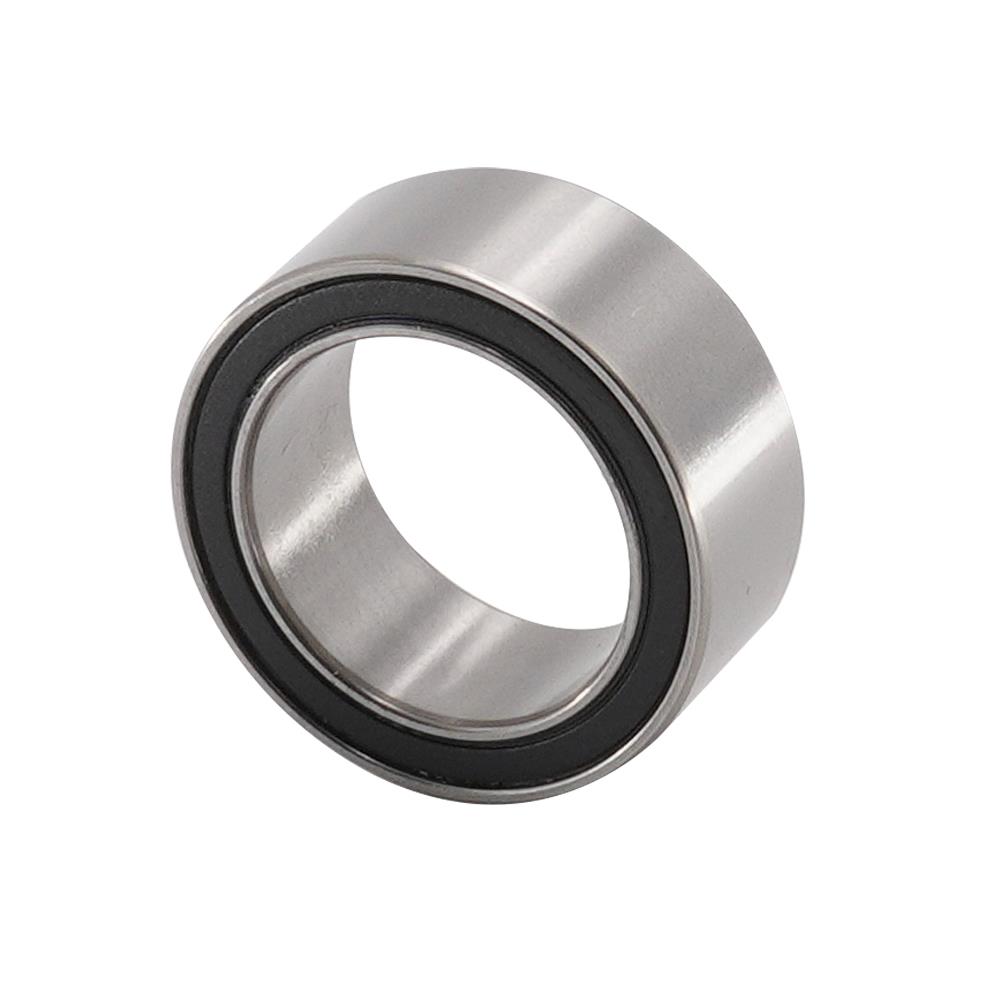

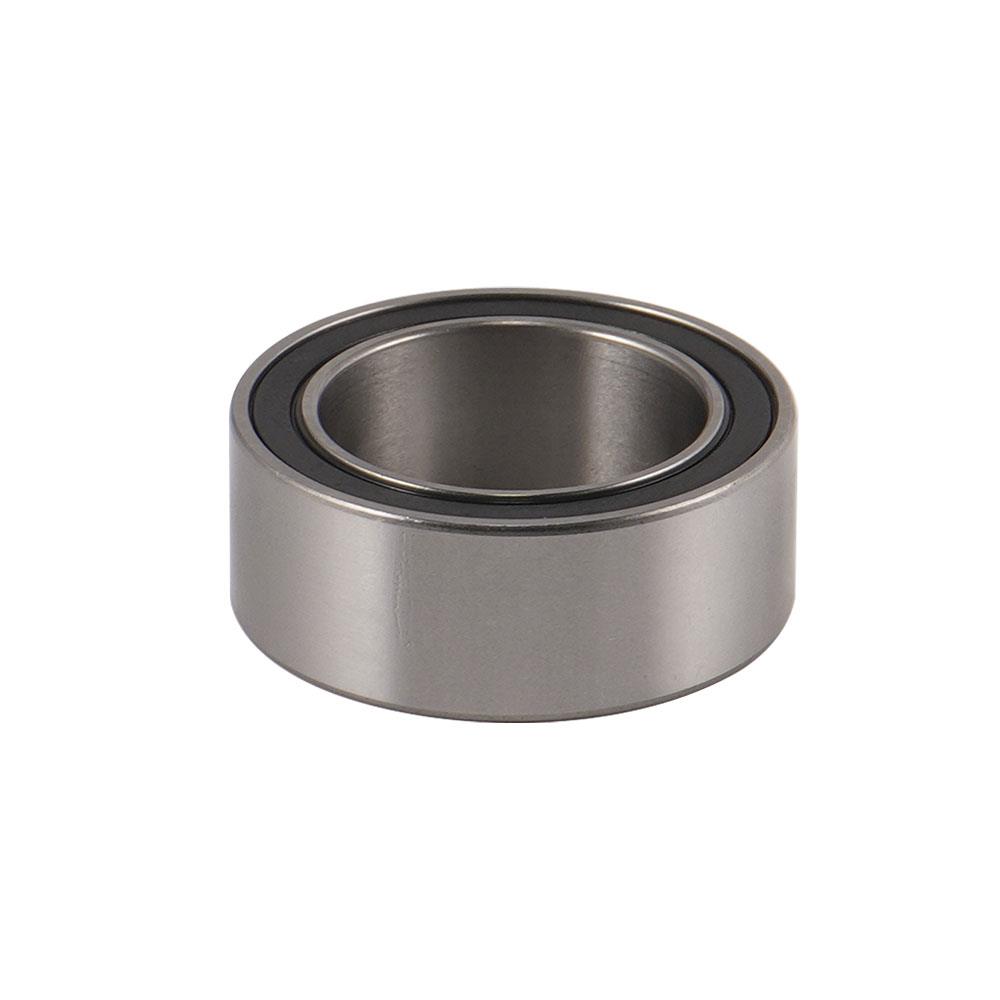

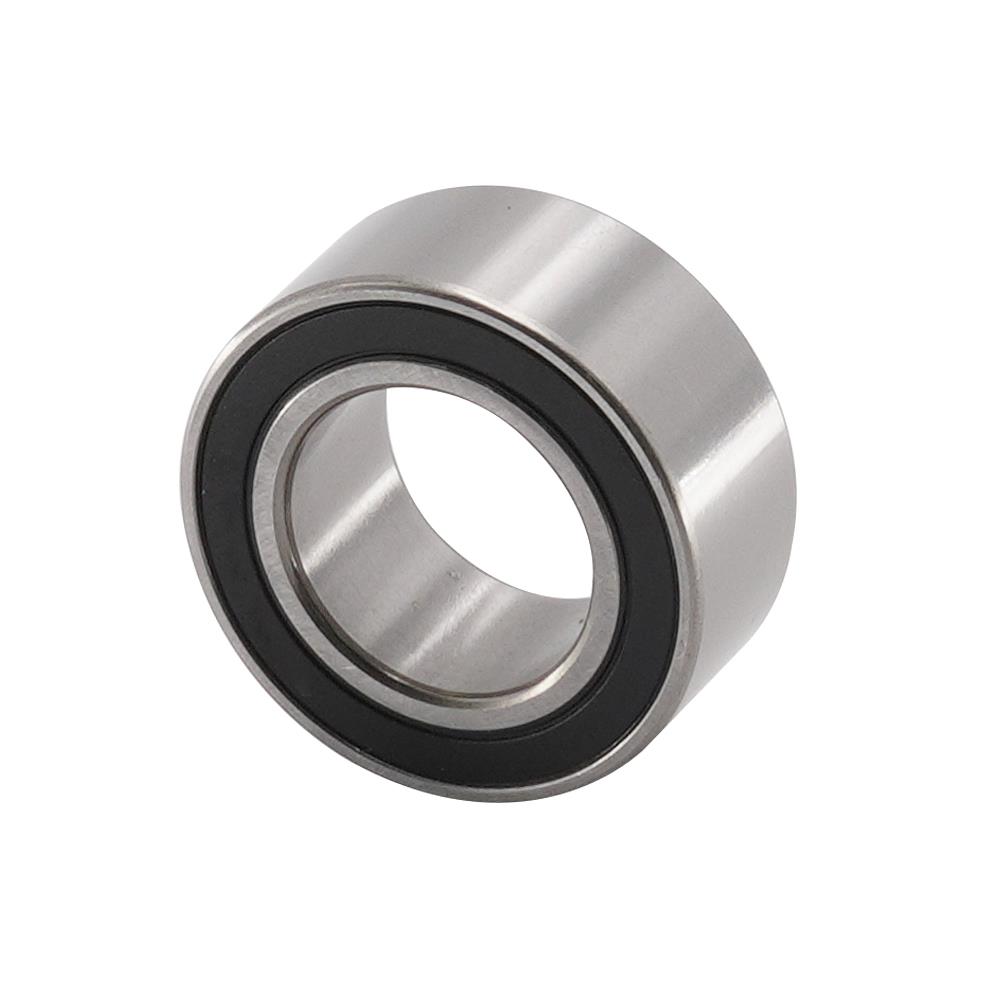

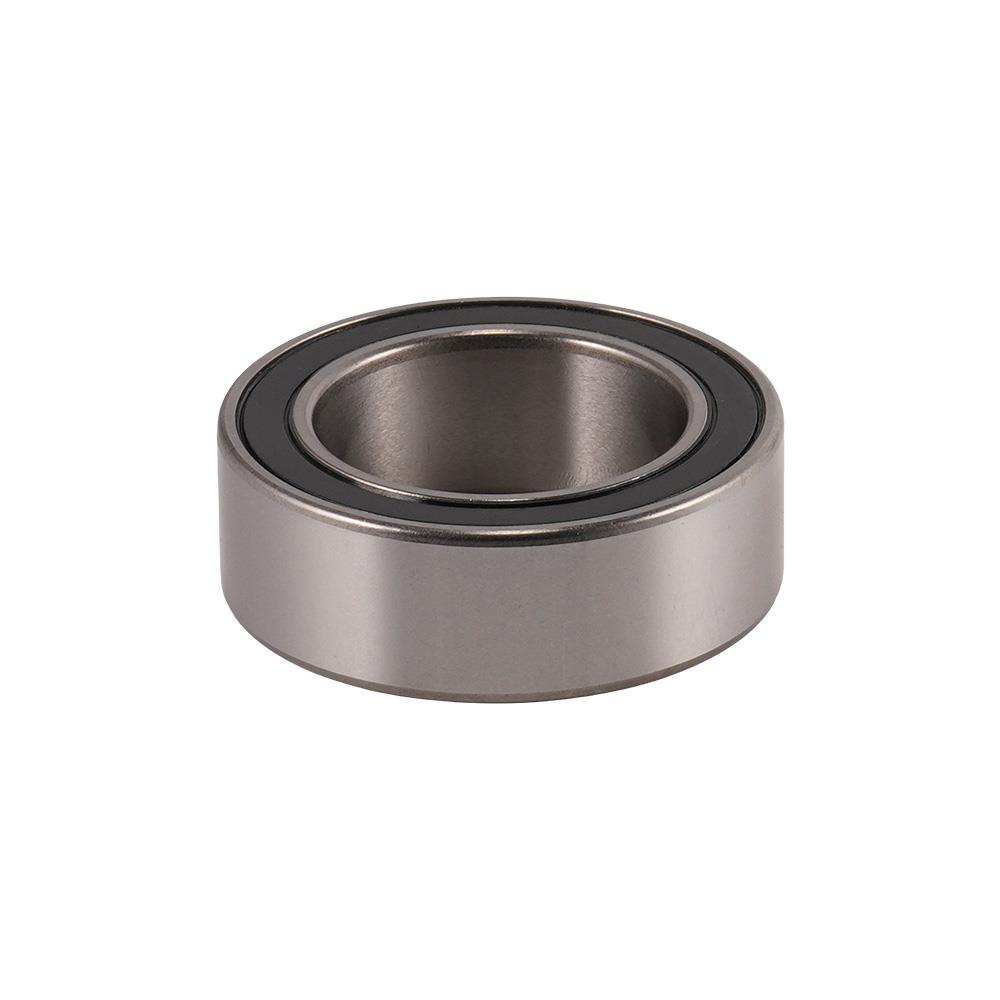

Compressors represent one of the most critical applications for bearings in air conditioning systems. Compressor clutch bearings are typically double-row ball bearings that are rubber-sealed on both sides and pre-lubricated with high-speed grease. These components must withstand significant stress while maintaining precise alignment.

In twin screw compressors, bearings face particularly challenging conditions. They must provide accurate radial and axial positioning of the rotors while supporting rotor loads reliably with low friction and noise generation. The bearing size is constrained by the fixed center distance between the two rotors, requiring high positioning accuracy and small clearances for optimal efficiency.

Compressor bearings must handle various loads, including:

· Gas pressure on rotors

· Gear forces from input and timing gears

· Rotor forces from torque transmission

· Induced loads from rotor inertia at startup

· Electric motor rotor weight and magnetic force (in semi-hermetic compressors)

· Loads from incompressible fluids trapped between rotors

· Induced loads from centrifugal forces

Blower Motor Bearings

Blower motors in air conditioning systems rely on bearings to facilitate smooth operation. These bearings enable the blower to force air over the evaporator coil and through the ductwork. When blower motor bearings begin to wear, the system typically produces unusual noises such as screeching, squealing, or grinding sounds, alongside excessive vibrations.

Condenser Fan Bearings

Modern condenser fans predominantly utilize direct-drive motors that incorporate bearings crucial to their operation. Unlike older belt-driven models, these direct-drive fans depend entirely on their bearings for efficient performance. As with blower motors, worn condenser fan bearings manifest through unusual noises and vibrations that can significantly affect system performance.

Types of Bearings Used in Air Conditioning Systems

Air conditioning systems utilize several types of bearings, each with specific advantages for different applications within the system. Understanding these variations helps in selecting the appropriate bearing for specific components.

Ball Bearings

Ball bearings are among the most common types used in air conditioning systems, particularly in compressors. They typically consist of double-row configurations, sealed on both sides, and pre-lubricated with high-speed grease. Ball bearings offer a good balance of durability and performance, with life cycles averaging around 40,000 hours.

These bearings are particularly valued in AC applications because they don't present concerns about oil leakage that might happen with other bearing types. However, ball bearings tend to produce higher operational noise compared to alternatives like sleeve bearings. For compressor clutches, ball bearings are manufactured with specific dimensions that correspond to particular compressor models rather than vehicle types.

Sleeve Bearings

Sleeve bearings represent the most economical option for air conditioning fans and are widely used despite having the shortest lifespan. With an average life expectancy of approximately 15,000 hours, these bearings rely on grease oil for lubrication. Over time, this lubricant dries out, causing bearing abrasion that leads to increased noise and decreased fan speed.

The primary advantage of sleeve bearings is their low cost and relatively quiet operation during their functional lifespan. However, they present potential environmental concerns due to possible oil leakage as they age.

Hybrid Ceramic Bearings

For applications requiring superior performance and longevity, hybrid ceramic bearings offer significant advantages. These specialized bearings incorporate ceramic balls in their construction, providing exceptional stability even under challenging operating conditions.

With an impressive life cycle of approximately 60,000 hours, hybrid ceramic bearings significantly outperform both ball and sleeve bearings in terms of durability. They excel in high-speed operations and environments with substantial temperature fluctuations. Additionally, they resist galvanic corrosion, making them ideal for demanding industrial applications.

Tapered Roller Bearings

Tapered roller bearings are specifically utilized in twin screw compressors, where they manage both radial and axial loads. These bearings are typically arranged face-to-face, with the inboard bearing handling both radial and axial loads while the outboard bearing controls axial clearance and serves as a reverse thrust bearing.

The selection of appropriate contact angles for tapered roller bearings is crucial, as it ensures proper seating toward the suction end of the compressor. For male rotors, larger contact angles are typically recommended, while female rotors generally require smaller contact angles.

Common Bearing Failures and Causes

Understanding the typical failure modes of air conditioner bearings provides valuable insights for preventive maintenance and troubleshooting.

Improper Lubrication

Inadequate lubrication represents one of the primary causes of premature bearing failure in AC motors. Both excessive and insufficient grease can lead to accelerated deterioration:

· Too much grease creates excess heat and pressure

· Too little grease results in metal-on-metal contact

These lubrication issues can reduce bearing life by up to 50%, significantly impacting the overall system reliability. Insufficient lubrication eventually causes bearings to wear out more quickly and generate excessive heat.

Misalignment Problems

Even slight shaft misalignment forces bearings to handle loads they weren't designed for, dramatically reducing their operational lifespan. Research indicates that a misalignment of just 0.002 inches can reduce bearing life by approximately one-third. Proper alignment during installation and maintenance is therefore essential for maximizing bearing performance.

Contamination Issues

Airborne particles from production processes can infiltrate even well-protected bearings. Once these contaminants breach bearing seals, they create microscopic damage that compounds over time. Dirt can accumulate around bearings in blowers or condenser fans, accelerating wear if not addressed promptly.

Electrical Discharge Damage

Stray currents pose a unique threat to AC motor bearings by creating electrical discharge that arcs through the bearing. This process creates tiny pits in the metal surfaces that multiply rapidly, leading to premature failure. Variable frequency drives often amplify this problem, making proper grounding an important preventive measure.

Bearing Maintenance and Prevention Strategies

Implementing proper maintenance protocols can significantly extend bearing life and prevent costly system failures.

Lubrication Practices

Proper lubrication stands as the cornerstone of effective bearing maintenance. Regular greasing of components like blower motors helps prevent metal-on-metal contact that accelerates wear. However, maintenance technicians must apply the correct amount of lubricant, as both over-greasing and under-greasing can lead to premature failure.

For industrial applications, specific high-performance greases are typically recommended based on the bearing type and operating conditions. Pre-lubricated bearings with proper seals can significantly reduce maintenance requirements while extending service life.

Alignment and Installation Procedures

Precise alignment during installation is critical for optimal bearing performance. Even minor misalignment can dramatically reduce bearing life by creating uneven stress distribution across bearing components. Maintenance personnel should use appropriate tools and techniques to ensure proper alignment during installation and replacement procedures.

Surface Treatments and Protection

Surface anticorrosion treatments represent another approach to extending bearing life in air conditioning systems. These treatments create protective barriers against environmental factors that might otherwise accelerate corrosion and wear. For applications in challenging environments, specialized coatings and materials may provide additional protection.

Early Warning Systems

Some advanced air conditioning systems incorporate early warning apparatus based on acceleration detection to identify potential bearing failures before they cause system shutdown. These monitoring systems track vibration patterns that might indicate bearing wear, allowing for planned maintenance rather than emergency repairs.

Bearing Selection Considerations

Choosing the appropriate bearing for specific air conditioning applications requires careful consideration of several factors.

Performance Requirements

When selecting bearings for industrial AC cooling fans, decision-makers must balance several performance factors:

This comparison illustrates the trade-offs between cost, lifespan, and operational characteristics that influence bearing selection.

Conclusion

Air conditioner bearings represent critical components that significantly impact system reliability, efficiency, and lifespan. From the basic sleeve bearings in simple fan applications to specialized tapered roller bearings in twin screw compressors, the selection and maintenance of appropriate bearings directly influences overall system performance.

The most common bearing failures stem from improper lubrication, misalignment, contamination, and electrical discharge damage. By implementing proper maintenance protocols, including appropriate lubrication practices, alignment procedures, and contamination prevention measures, system operators can significantly extend bearing life and reduce unplanned downtime.
