Wheel hub assemblies are crucial components that connect your vehicle's wheels to the chassis while allowing them to rotate smoothly. Though often overlooked due to their location and relatively small size, these components are essential for safe driving, proper handling, and overall vehicle performance. When functioning correctly, wheel hub assemblies ensure smooth rotation with minimal friction while supporting the vehicle's weight. However, when they begin to fail, they can create numerous problems ranging from annoying noises to potentially catastrophic wheel separation incidents.
Understanding Wheel Hub Assemblies

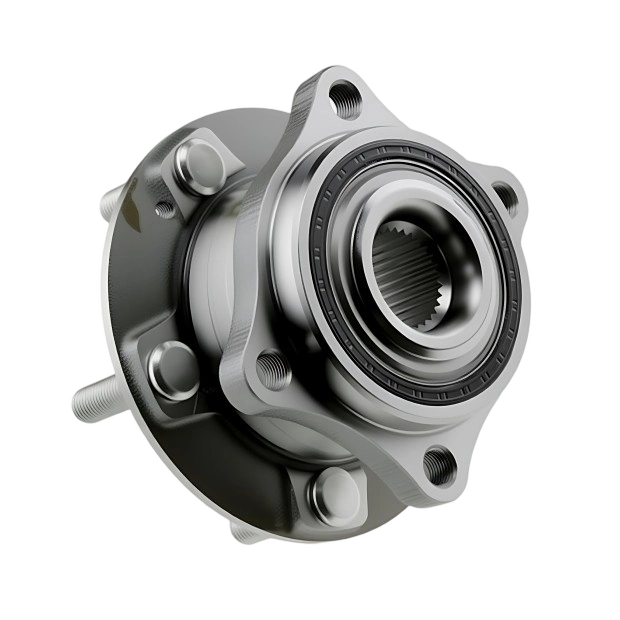

A wheel hub assembly (WHA), also called a hub assembly, wheel hub unit, or wheel hub bearing, is an automotive part used in virtually all passenger vehicles and trucks. This component serves as the crucial connection point between your wheels and the vehicle's suspension system, allowing the wheels to turn while supporting the vehicle's weight.
Components and Construction
The wheel hub assembly consists of several integrated components working together:
1. Hub: The central metal housing that connects the wheel to the axle and contains the bearings. It typically features a disc shape with protruding studs for wheel mounting.

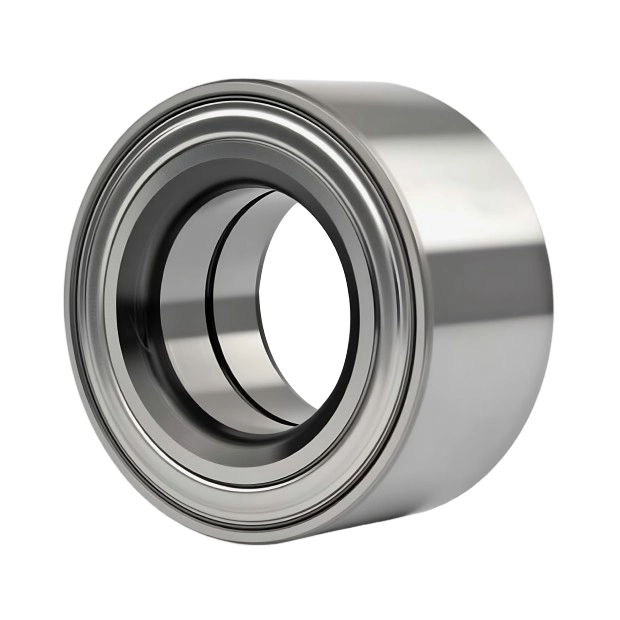

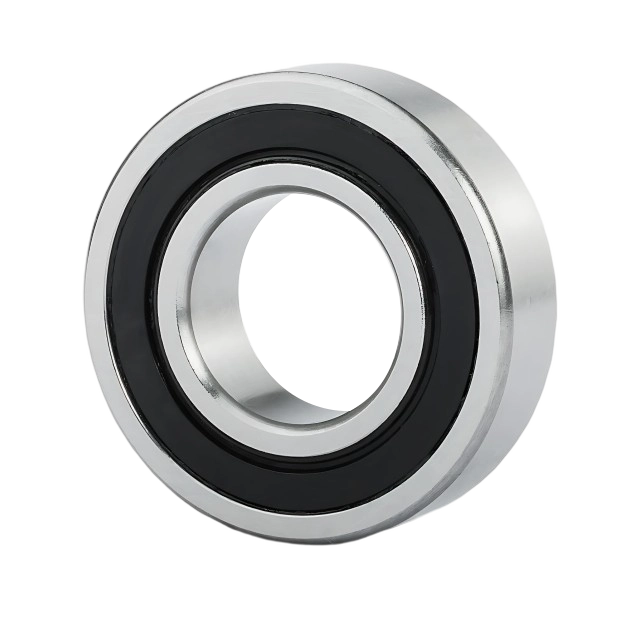

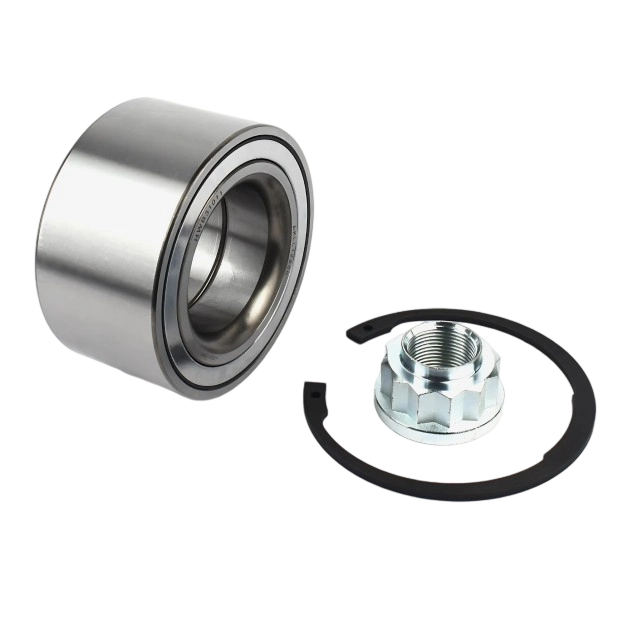

2. Bearings: Sets of steel balls or tapered rollers held together in a metal ring called a race. These reduce friction between moving parts, allowing the wheels to spin freely while supporting the vehicle's weight.
3. Seals: Multiple sealing components that protect the assembly from contaminants like water, dirt, and road debris while keeping lubricating grease inside. Premium hub assemblies like those from MOOG feature multiple sealing layers including:
Quad-Lip Inboard Seal for moisture protection
Primary Outboard Seal to protect against mud and road chemicals
Grime Defense Outboard Seal to prevent contaminant buildup
4. ABS Components: Many modern hub assemblies include integrated ABS (Anti-lock Braking System) sensors that provide wheel speed data to the vehicle's computer systems.

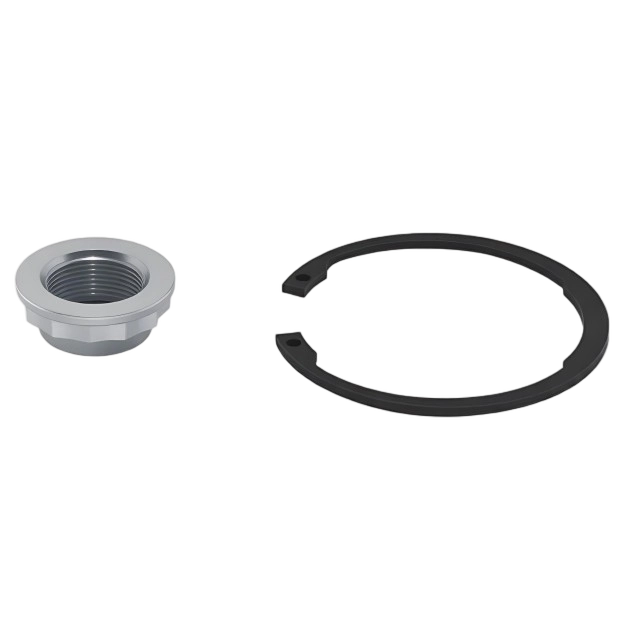

5. Mounting Hardware: Bolts, nuts, and other fasteners that secure the assembly to the vehicle's suspension components.
How Wheel Hubs Function
The wheel hub assembly is positioned between the brake components (drums or discs) and the drive axle. When installed, the wheel is bolted to the hub, and depending on the design, the hub may have splined teeth that mate with corresponding teeth on the axle shaft.
For drive wheels, the hub transmits power from the axle to the wheels, enabling rotation. On non-drive wheels, roller bearings between the hub and axle shaft ensure smooth rotation without power transmission. The bearings within the hub assembly are critical as they:
1. Support the vehicle's entire weight
2. Reduce friction during wheel rotation
3. Handle both radial loads (perpendicular to the axis) and thrust loads (parallel to the axis)
4. Absorb impact forces from rough roads and potholes
In front-wheel bearings of traditional rear-drive vehicles, bearings are used in closely mounted pairs, with one referred to as the inner (inboard) bearing and the other as the outer (outboard) bearing.
Signs of a Failing Wheel Hub Assembly
Recognizing the symptoms of a failing wheel hub assembly is crucial for timely replacement and avoiding dangerous situations. Here are the primary indicators:
Audible Warning Signs
The most common first sign of wheel bearing problems is unusual noise coming from the wheel area:
1. Grinding or Growling: A rough, gritty sound indicates that the bearings are wearing out or have become damaged.
2. Humming or Droning: A constant tone that increases in volume with vehicle speed suggests bearing wear. This sound often changes when turning.
3. Clicking: Particularly noticeable during turns, this can signal a problem with the CV joint, which may be related to hub condition.
To diagnose which wheel bearing is failing, pay attention to when the noise changes. If the noise increases when turning right, the left wheel bearing is likely the culprit, as the vehicle's weight shifts to that side during the turn.
Physical Symptoms
Beyond noise, failing wheel bearings manifest through several physical symptoms:
1. Steering Wheel Vibrations: A bad wheel bearing often creates vibrations that can be felt through the steering wheel, becoming more pronounced at higher speeds.
2. Loose Steering: If the wheel bearing wears out, it creates excessive play in the affected wheel, making the steering wheel feel loose, especially when turning or driving over rough surfaces.
3. Vehicle Pulling: A compromised wheel hub can cause the vehicle to pull to one side, typically the side with the failing bearing.
4. Wheel Wobble: In advanced stages of failure, you may notice the wheel appears to wobble or feels loose when manually checked.
Visual Indicators and System Warnings
Other indicators that may signal wheel hub assembly problems include:
1. ABS Light Illumination: Since many modern vehicles have ABS sensors integrated into the wheel hub assembly, a malfunctioning hub can trigger ABS warning lights on the dashboard.
2. Uneven Tire Wear: A failing wheel hub may cause the wheel to sit at a slight angle, resulting in uneven tire wear patterns.
3. Excessive Heat: Heat buildup around the wheel area can indicate bearing failure due to increased friction.
To perform a basic check for wheel bearing issues, jack up the vehicle so the wheel is off the ground, then grip the tire at the top and bottom and try to rock it. Any noticeable movement may indicate a worn bearing.
