Subframe Bushings

What Are Subframe Bushings?

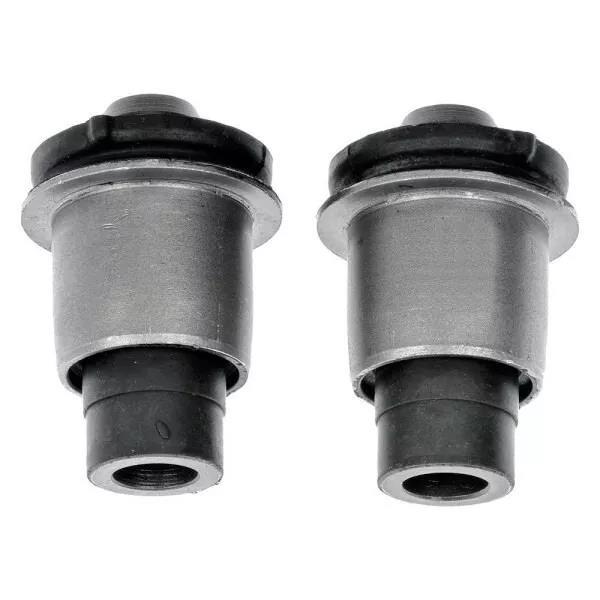

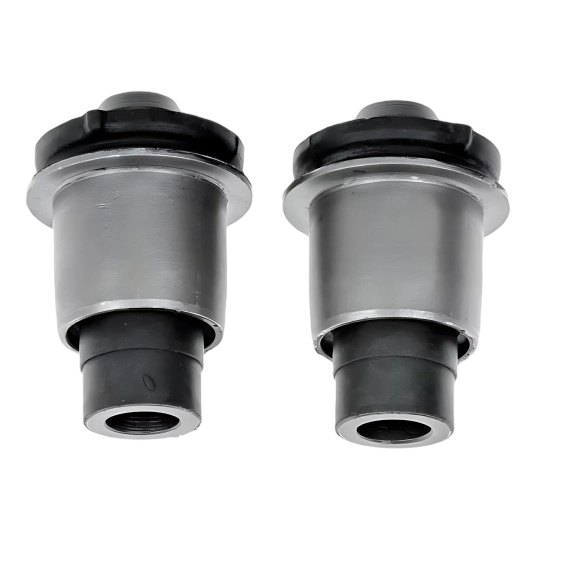

Subframe bushings are parts of your car's suspension system. They connect the subframe—a structure supporting the engine, steering, and suspension—to the chassis. Usually made of rubber or polyurethane, they act like cushions to absorb bumps and reduce noise, helping your car handle better on the road.

How Do They Work?

These bushings prevent the subframe and chassis from rubbing directly, which reduces vibration and noise. They support the weight of engine parts while letting the suspension move, making your ride smoother and safer, especially on rough roads.

Signs of Wear and Replacement

If they're worn, you might hear loud clunks, notice the car pulling to one side, feel steering issues, or see uneven tire wear. When this happens, it's probably time to replace them, which can cost between $30 and $300. For better performance, some choose solid metal bushings, but these might need extra chassis support.

Performance Options

For enthusiasts, upgrading to polyurethane or solid metal bushings can improve handling and stability. However, solid options might increase noise and vibration, and could require additional modifications to prevent damage.

Definition and Components

Subframe bushings are critical components of a vehicle's suspension system, located between the subframe and the chassis. The subframe is a structural component that supports the engine, steering, and suspension components, essentially acting as a smaller frame within the main chassis to isolate these parts and provide mounting points. Subframe bushings, typically made of rubber or polyurethane, serve as flexible cushions that allow for controlled movement between the subframe and chassis while providing support and dampening vibrations.

A vehicle may have 2 to 8 subframe bushings, depending on the design and complexity of the suspension system. Key components of subframe bushings include:

• Bushing Material: Usually rubber for OEM applications, offering flexibility, or polyurethane for aftermarket upgrades, providing greater durability.
• Attachment Points: They connect the subframe to the chassis, ensuring stability while allowing necessary movement for suspension travel.

Function and Role in Vehicle Dynamics

Subframe bushings play a vital role in maintaining vehicle stability, comfort, and handling. Their primary functions include:

1. Vibration Isolation: By absorbing vibrations from the road and engine, they prevent these from being transmitted to the chassis and cabin, reducing noise, vibration, and harshness (NVH). This enhances ride comfort, especially on rough surfaces.
2. Handling Enhancement: They maintain proper alignment of the suspension components, which is crucial for stable handling during cornering, braking, and acceleration. This ensures the vehicle responds predictably to driver inputs.
3. Load Bearing: They support the weight of the engine and other components mounted on the subframe, while allowing for the necessary vertical and lateral movement of the suspension.
4. Friction Reduction: By acting as a buffer between metal parts, they minimize friction and wear, extending the life of both the subframe and chassis.

For performance applications, solid subframe bushings can further enhance these functions:

• Eliminate bushing deflection under torque, improving throttle response and driver feedback.
• Maintain constant suspension geometry under torsional and lateral forces, enhancing stability and control.
• Increase chassis rigidity by combining the subframe and chassis into a single structure, reducing body roll and wheel hop.

Types of Subframe Bushings

Subframe bushings come in several types, each with distinct characteristics:

1. Rubber Bushings: The standard OEM choice, offering a soft, flexible material that provides good ride comfort and noise isolation. However, they can wear out faster, especially under heavy loads or harsh conditions, and are prone to cracking.
2. Polyurethane Bushings: Stiffer and more durable than rubber, these are popular for aftermarket upgrades. They provide better handling and longevity, making them ideal for performance driving. However, they can transmit more NVH into the cabin, potentially reducing comfort.
3. Solid Metal Bushings: These eliminate any flex between the subframe and chassis, offering maximum rigidity. They are used in high-performance or racing applications to improve handling and stability significantly. However, they can increase NVH and may cause fatigue-related cracking in the chassis under impulse loads, necessitating additional reinforcements like chassis rail plates.

The choice between these types depends on the driver's needs, with rubber bushings suited for daily comfort, polyurethane for a balance of performance and durability, and solid metal for maximum handling in performance scenarios.

Signs of Failure and Symptoms

Subframe bushings can deteriorate over time due to factors such as frequent movement, heavy loads, exposure to extreme temperatures, salt, and oil. Common signs of worn or damaged subframe bushings include:

1. Loud Noises: Clunking or banging sounds when driving over bumps or during turns, often indicating worn or cracked bushings.
2. Alignment Issues: The vehicle may pull to one side, or the steering wheel may not return to center, suggesting misalignment caused by bushing wear.
3. Steering Problems: Vague or imprecise steering feel, making the vehicle harder to control, especially at higher speeds.
4. Uneven Tire Wear: Misalignment from worn bushings can lead to uneven tire wear, reducing tire life and affecting handling.

Maintenance and Replacement

There is no fixed mileage interval for replacing subframe bushings, as their lifespan depends on driving conditions, vehicle load, and maintenance history. However, they should be inspected during regular suspension maintenance or if any of the above symptoms are noticed. Replacement is typically recommended:

• When symptoms appear, such as noises or handling issues.
• During a larger suspension overhaul, to minimize labor costs and ensure balanced performance.

The replacement process involves removing the old bushings and pressing in new ones, which may require specialized tools and can take a few hours, depending on access and vehicle design. It is advisable to replace both bushings on the same axle to maintain symmetry and handling.

For performance upgrades, solid subframe bushings can offer significant benefits, such as reduced body roll and increased rear wheel grip, by altering the roll center. However, they may require adjustable camber arms if the vehicle is lowered by ~13mm (1/2”) or more, and additional reinforcements to prevent chassis fatigue.

Additional Considerations

1. Driving Conditions: Factors like frequent off-road use, heavy loads, or harsh weather can accelerate wear, necessitating more frequent inspections.
2. Safety: Properly functioning subframe bushings are essential for vehicle safety, as they directly impact handling, stability, and braking. Neglecting worn bushings can lead to accidents, especially at high speeds or during emergency maneuvers.
3. Performance Trade-offs: While solid bushings offer superior handling, they can increase NVH, which may be undesirable for daily drivers. Polyurethane bushings offer a middle ground, balancing comfort and performance.

In conclusion, subframe bushings are vital for maintaining vehicle stability, comfort, and handling. Regular inspection, timely replacement, and choosing the right type based on driving needs are key to ensuring optimal performance and safety, enhancing both the driving experience and vehicle longevity.
