Control Arm

What is a Control Arm?

A control arm, also known as an A-arm or wishbone, is a crucial part of your car's suspension system. It connects the wheel hub or steering knuckle to the frame, letting the wheel move up and down while staying aligned. This helps keep your ride smooth and your car stable, especially on bumpy roads.

Function and Importance

This component likely supports your car's weight and absorbs shocks from the road. It also seems to help with steering by allowing the wheels to turn. Research suggests it keeps your wheels aligned, which is key for safe handling.

Types

There are mainly two types:

• Double Wishbone (A-Arm): Uses upper and lower arms, often in performance cars for better control.
• MacPherson Strut: Usually has a lower arm, with the strut acting as the upper part, common in many modern vehicles.

Signs of Issues and Maintenance

If it's worn, you might notice vibrations, a wandering steering wheel, or uneven tire wear.

Definition and Components

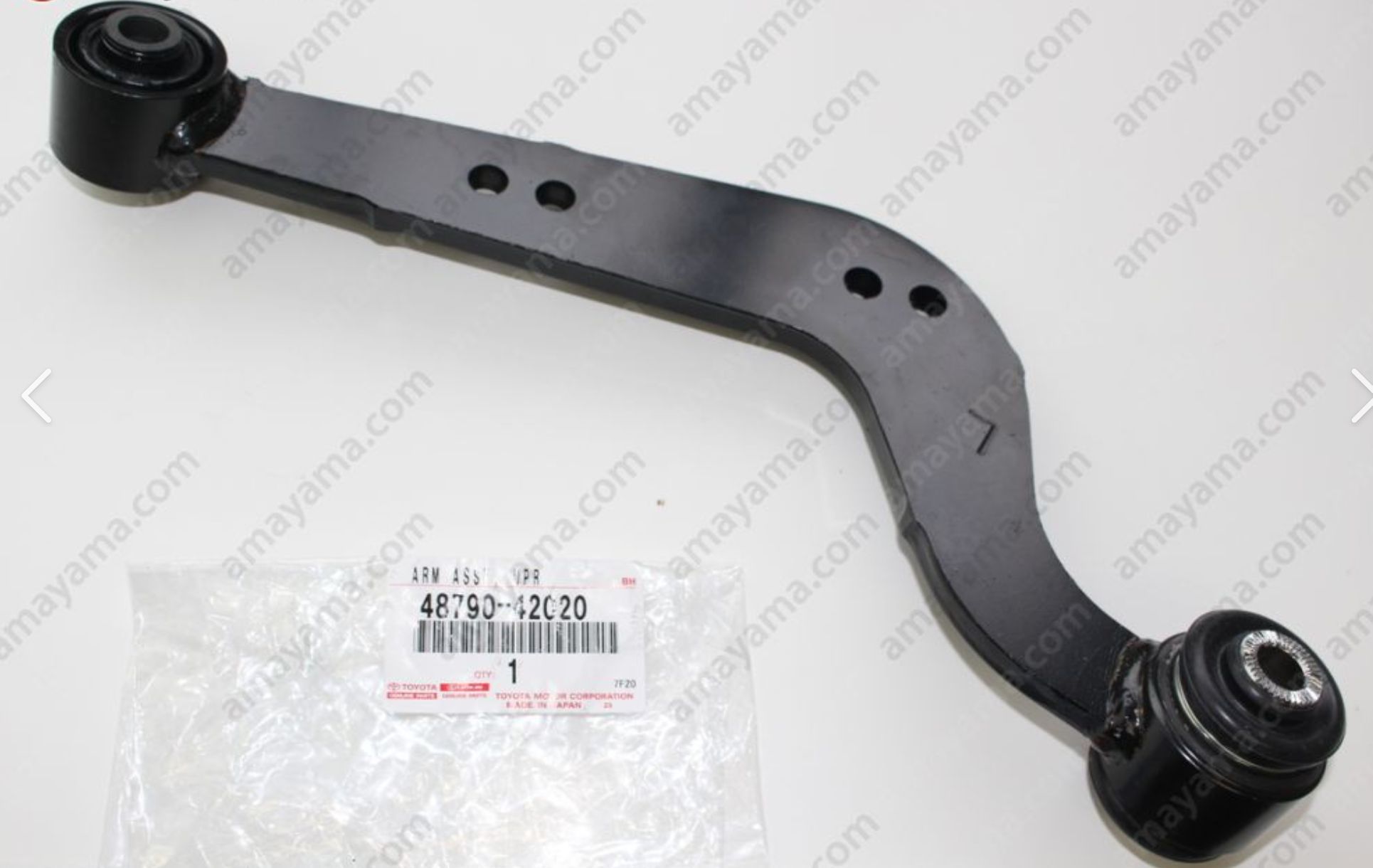

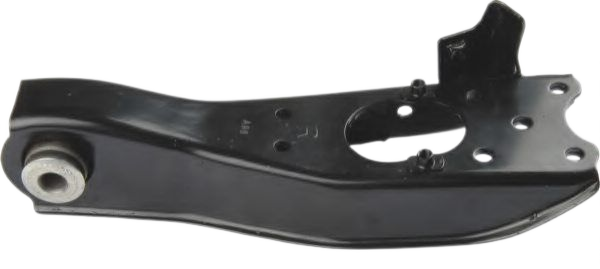

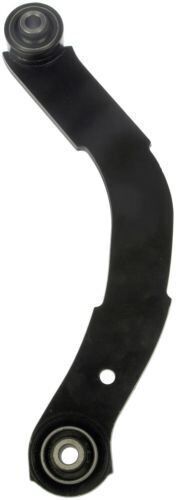

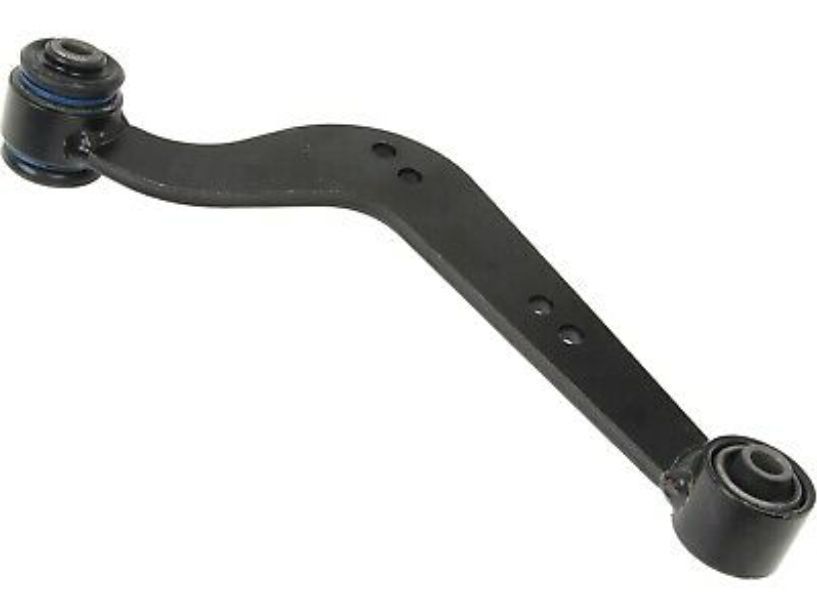

A control arm, also referred to as an A-arm or wishbone, is a vital component of a vehicle's suspension system. It serves as a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel. In simple terms, it connects the wheel hub or steering knuckle to the vehicle's frame or body, allowing the wheel to move up and down while maintaining its position relative to the body. Control arms are typically found in the front suspension of most vehicles, though some larger or heavy-duty vehicles, like trucks, may also have them in the rear axle.

Key components of a control arm include:

• Arm Body: The main structural component, typically constructed from stamped steel, cast iron, or cast aluminum for strength and durability.
• Bushings: Located at the frame end, these flexible components allow the control arm to move up and down while reducing noise and vibration by preventing metal-to-metal contact.

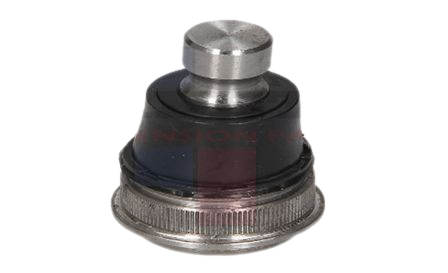

• Ball Joints: Located at the wheel end, these enable pivoting movement for steering and suspension travel.

Function and Role in Vehicle Dynamics

Control arms are integral to a vehicle's suspension system, which includes shocks, springs, and linkages that connect the chassis to the wheels. Their primary functions include:

1. Supporting Weight: They help support the vehicle's weight and any additional load, ensuring the chassis remains stable.
2. Absorbing Shocks: By allowing vertical wheel movement, they help absorb shocks and vibrations from road irregularities, contributing to a smoother ride.
3. Maintaining Alignment: They ensure the wheels remain aligned with the vehicle's body, which is critical for safe and predictable handling, especially during cornering.
4. Enabling Steering: They work with steering components, such as the steering knuckle, to allow the wheels to turn, facilitating directional control.

For example, in a front-wheel-drive vehicle, the control arms connect the front wheels to the frame, enabling smooth steering and suspension movement. In rear suspensions with independent rear suspension (IRS), control arms provide similar stability and movement control, particularly in larger vehicles like SUVs or trucks.

Types of Control Arm Suspensions

Control arms are used in various suspension designs, each with specific advantages:

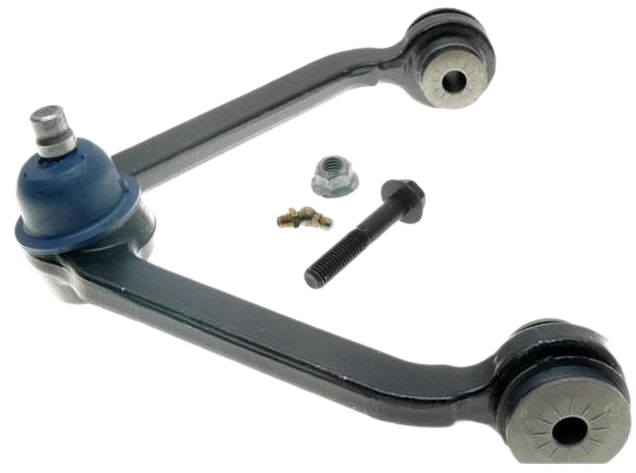

• Double Wishbone (A-Arm) Suspension: This design features both upper and lower control arms, offering excellent wheel control and handling. It is commonly used in high-performance vehicles, such as sports cars, for superior wheel motion control. The double wishbone setup allows for better camber and caster adjustments, enhancing cornering stability.
• MacPherson Strut Suspension: This design typically includes a lower control arm, with the strut serving as the upper control arm. It is space-efficient and widely used in modern cars due to its simplicity and cost-effectiveness. In this design, the strut often handles both the spring and shock absorber functions, with the lower control arm providing the necessary lateral support.

Additional variations include:

• Wishbone Design: A triangular control arm with two inboard bearings, controlling two degrees of freedom without additional links, often seen in classic or performance vehicles.
• Strut Type Design: Has a lower control arm but no upper control arm, with the strut acting as the upper link, commonly found in compact and economy cars.

Signs of Failure and Symptoms

Control arms can wear out over time, especially the bushings and ball joints, due to factors like road conditions, vehicle load, and age. Common signs of failing control arms include:

1. Vehicle Vibration: Excessive shaking or vibration, particularly noticeable at higher speeds, indicating misalignment or worn bushings.
2. Wandering Steering Wheel: Difficulty keeping the steering wheel straight, as the control arms may no longer maintain proper wheel alignment.
3. Misalignment: The vehicle may pull to one side or feel unstable, often due to damaged control arms affecting wheel geometry.
4. Wobbly Wheels: Noticeable play or movement in the wheels, suggesting worn ball joints or bushings.
5. Unusual Grinding Noises: Noises when driving over bumps or during turns, often from loose or damaged components.
6. Fluctuations in Braking: Inconsistent braking performance, as misalignment can affect brake pad contact with the rotor.
7. Uneven Tire Wear: Tires wearing unevenly due to improper wheel alignment, a direct result of failing control arms.

These symptoms can compromise vehicle safety and handling, making timely inspection and replacement crucial.

Material and Durability

Control arms are typically made of:

1. Stamped Steel: Common in cars, lightweight but susceptible to rust in damp environments.
2. Cast Iron: More durable, often used in heavy-duty applications, but heavier.
3. Cast Aluminum: Lighter than steel, used in performance vehicles for weight reduction, but may be less durable under extreme loads.

The choice of material affects longevity, with steel being prone to corrosion and aluminum offering better corrosion resistance but potentially less strength.
