Body Mount

What Are Body Mounts?

Body mounts, also known as cab mounts or body bushings, are components that secure a vehicle’s body (cab or passenger compartment) to its frame or chassis. Typically made of rubber or polyurethane with metal bolts or plates, they act as cushions to reduce vibrations and noise while supporting the vehicle’s structure.

Purpose and Function

They likely absorb road and engine vibrations, minimize cabin noise, and maintain alignment between the body and frame. This seems to improve ride comfort and ensure structural integrity, especially in trucks, SUVs, or vehicles with separate body-on-frame construction.

Signs of Wear and Maintenance

Worn body mounts may cause excessive vibrations, clunking sounds, body misalignment, or noticeable movement during driving, potentially impacting handling. Replacement is probably needed when these symptoms occur, with costs ranging from $20 to $150 per mount. Installation can be complex, often requiring a lift and specialized tools, so professional help is typically advised.

Performance Options

For enthusiasts, upgrading to polyurethane mounts can enhance durability and responsiveness but may increase cabin noise. Solid metal mounts, used in performance or off-road setups, offer maximum rigidity but could amplify vibrations, requiring careful consideration.

Definition and Components

Body mounts are critical components in vehicles, particularly those with body-on-frame construction (e.g., trucks, SUVs, and some older cars), where the body (cab or passenger compartment) is separate from the chassis or frame. They secure the body to the frame, providing a cushioned connection that supports the vehicle’s weight while isolating vibrations and noise. In unibody vehicles, where the body and frame are integrated, similar components may be referred to as chassis mounts or subframe mounts, but they serve a comparable purpose.

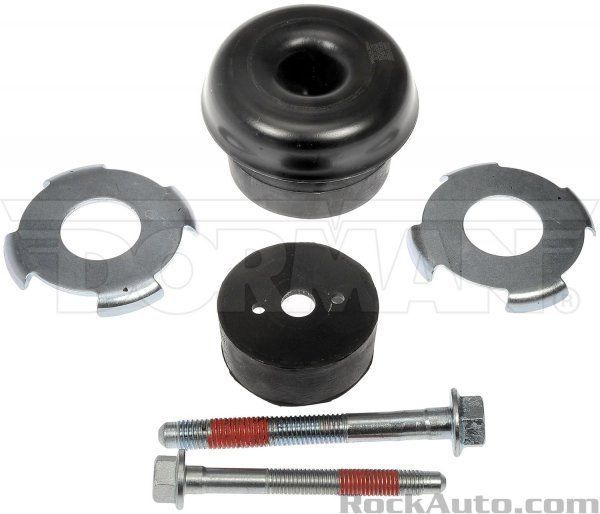

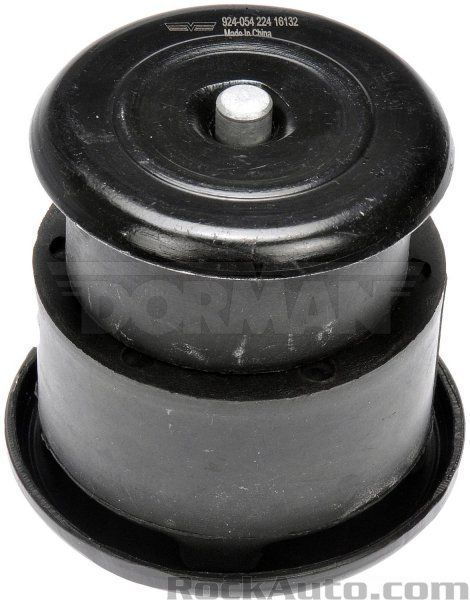

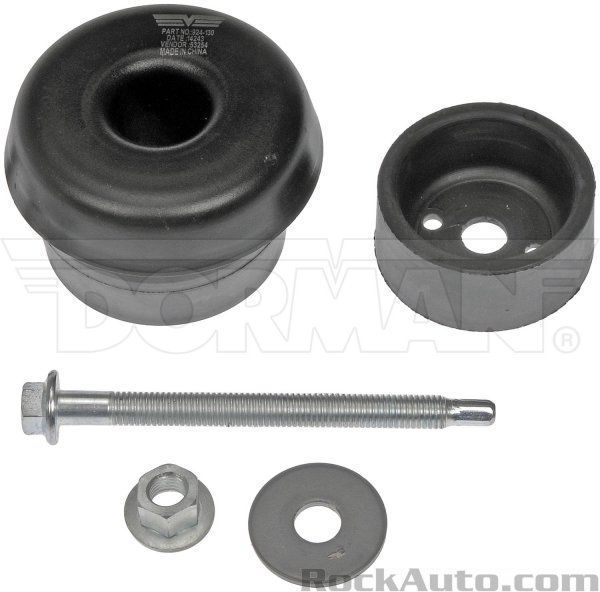

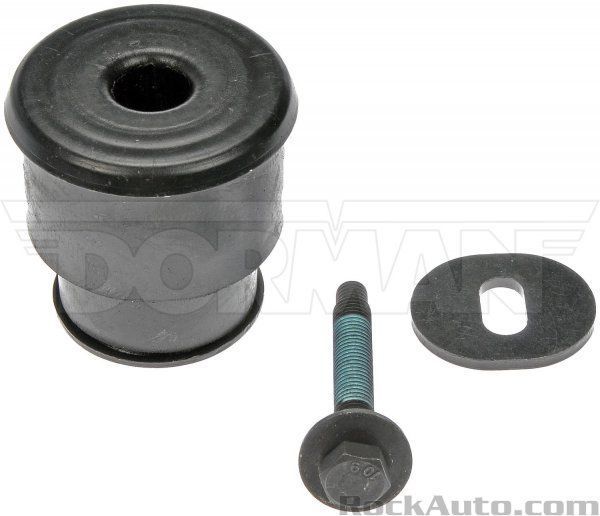

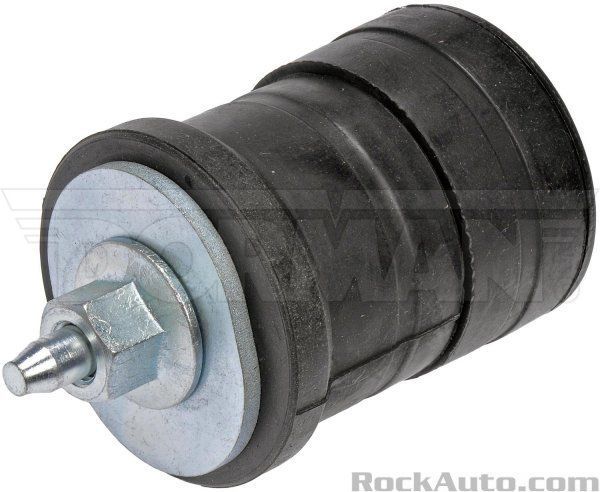

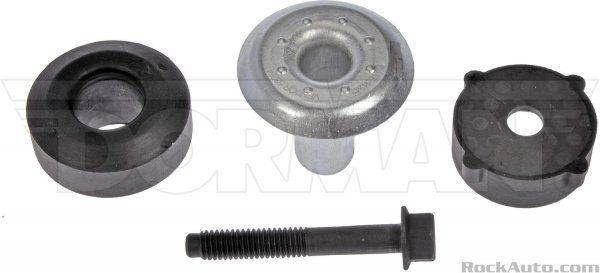

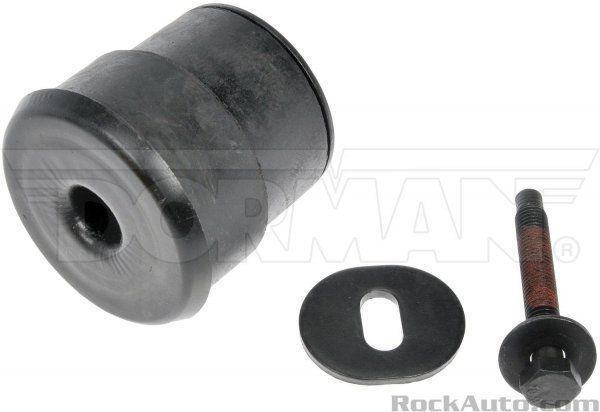

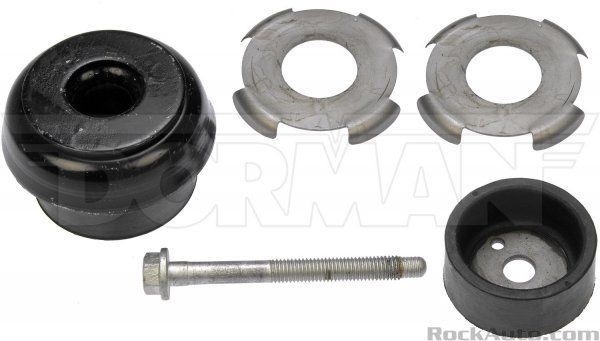

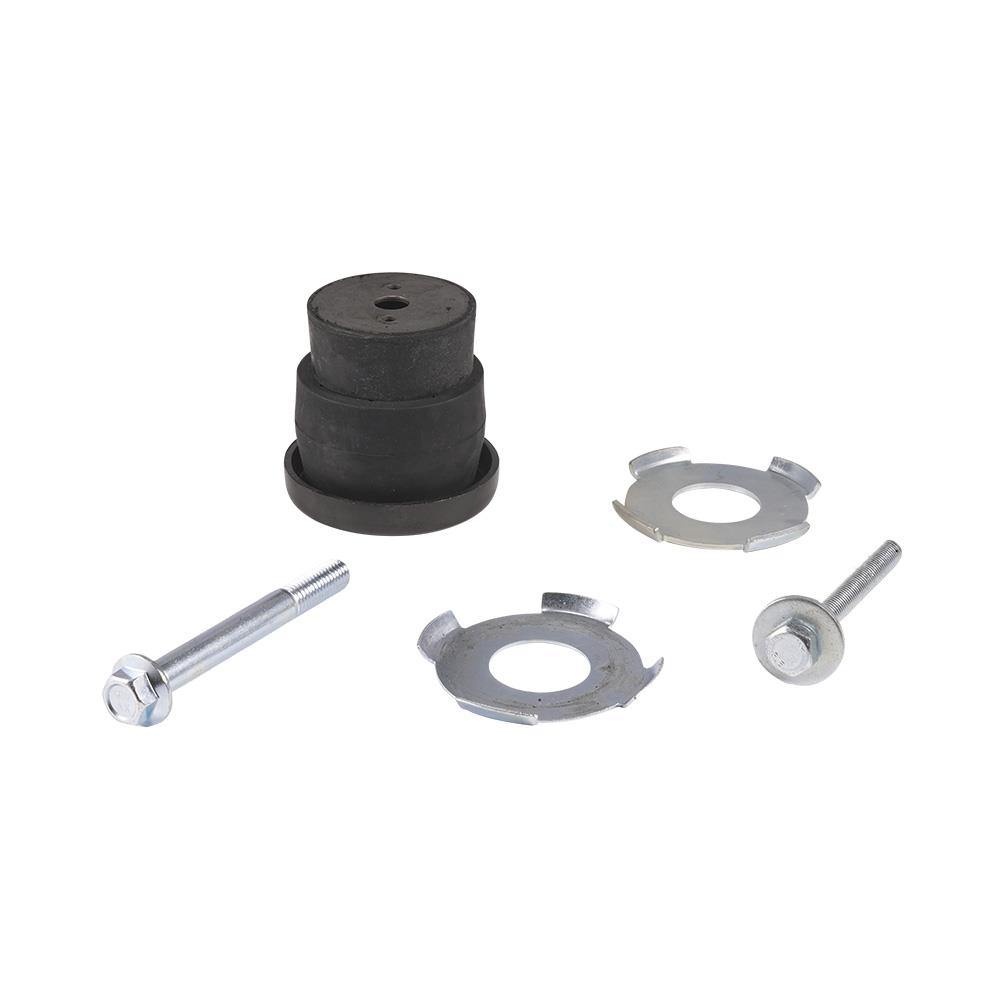

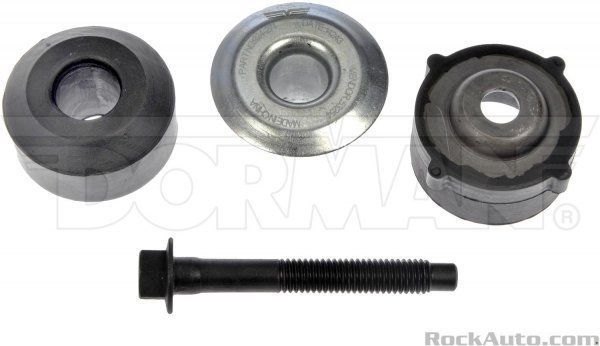

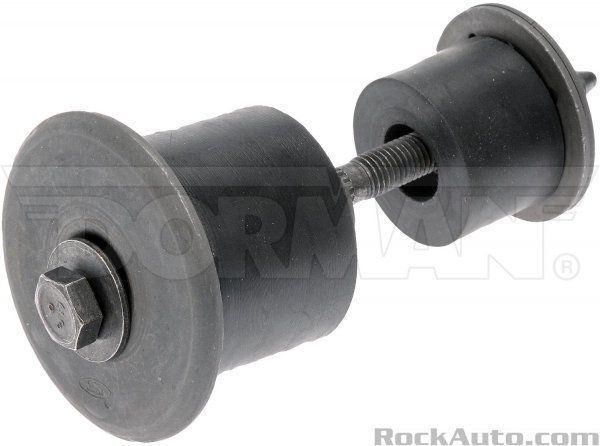

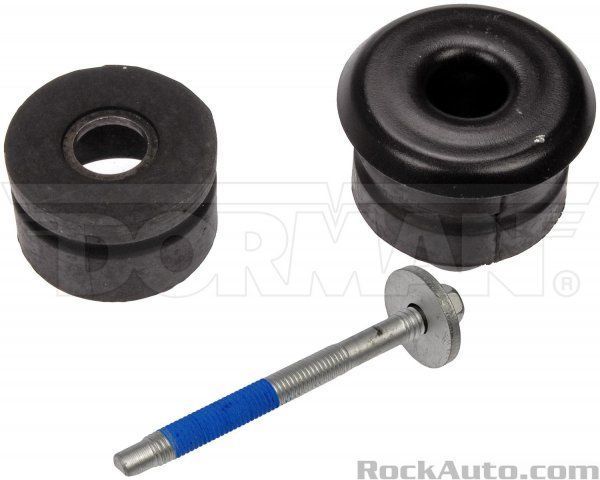

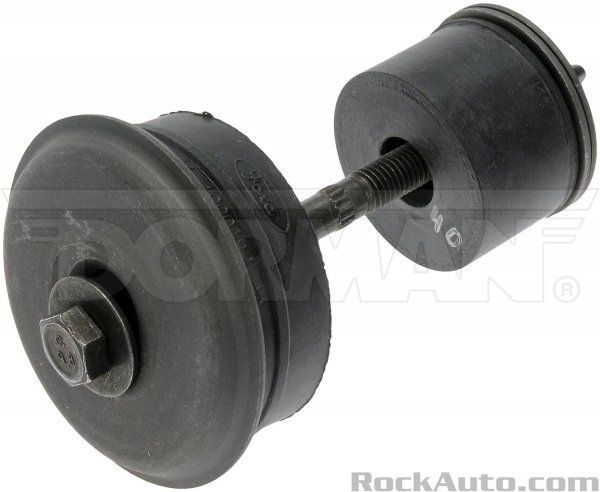

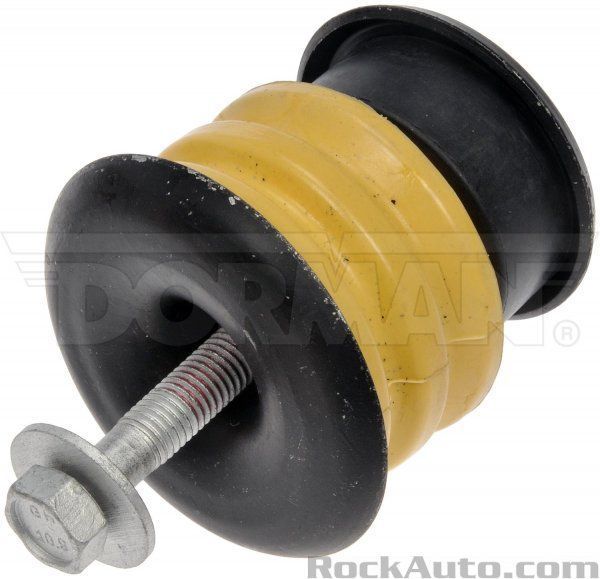

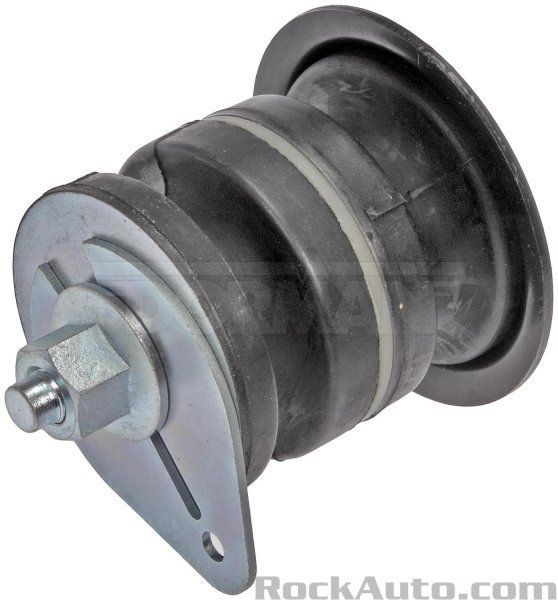

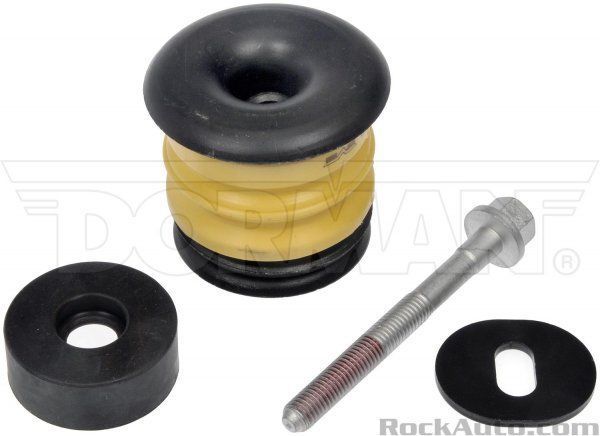

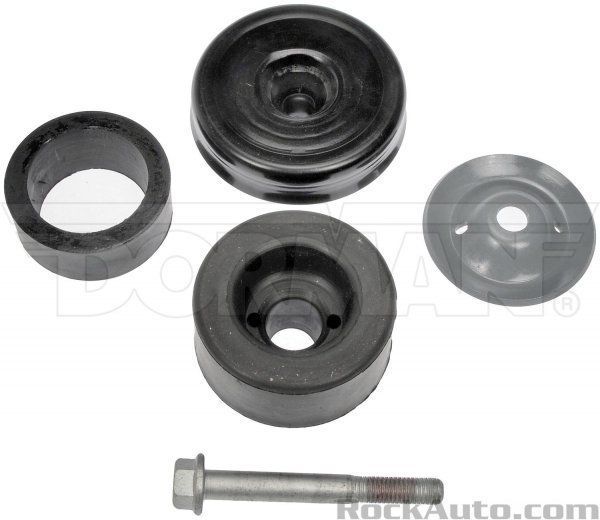

A typical body mount consists of:

1. Bushing Material: Usually rubber for OEM applications, providing flexibility and vibration dampening, or polyurethane for aftermarket upgrades, offering greater durability.
2. Metal Components: Bolts, washers, or plates that secure the bushing to the frame and body, ensuring structural integrity.
3. Mounting Points: Located at multiple points along the frame (typically 4–12 mounts, depending on the vehicle), often under the cab, bed, or core support areas.

Function and Role in Vehicle Dynamics

Body mounts serve several critical functions:

1. Vibration and Noise Isolation: They absorb and dampen vibrations from the engine, drivetrain, and road, preventing them from transferring to the cabin. This reduces noise, vibration, and harshness (NVH), enhancing ride comfort.
2. Structural Support: They securely attach the body to the frame, supporting the weight of the cab, passengers, and cargo while maintaining alignment between the body and chassis.
3. Impact Absorption: By allowing slight flex, they help absorb minor impacts and stresses, protecting the body and frame from damage during rough driving conditions.
4. Alignment Maintenance: They ensure the body remains properly aligned with the frame, which is crucial for door and hood fitment, as well as overall vehicle stability.

For example, in a pickup truck, body mounts under the cab and bed ensure the body remains stable while the frame flexes during off-road driving, maintaining a smooth ride and preventing structural damage.

Types of Body Mounts

Body mounts vary based on material and application:

1. Rubber Mounts: Standard in most OEM setups, offering excellent vibration isolation and comfort. They are cost-effective but may wear out faster, especially under heavy loads or harsh conditions, leading to cracking or compression.

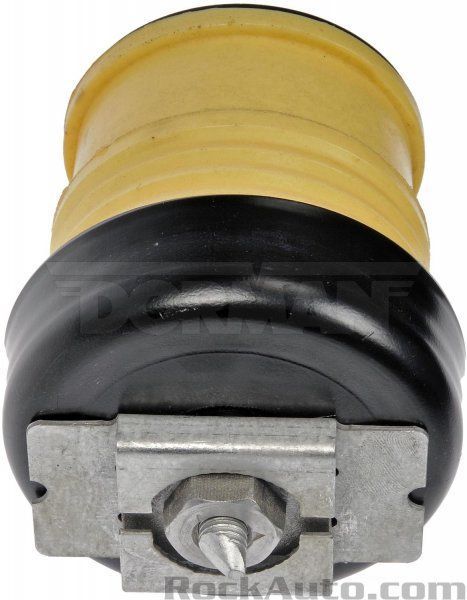

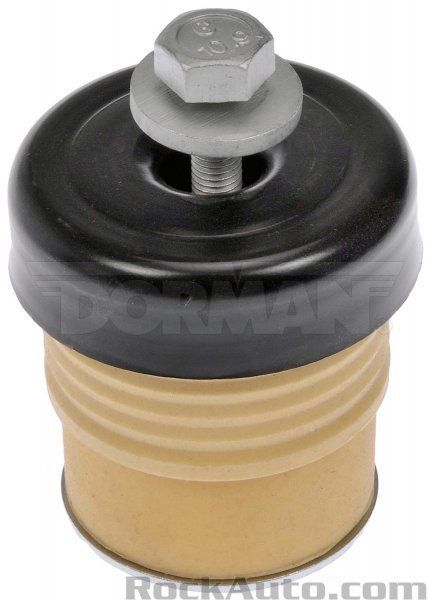

2. Polyurethane Mounts: Stiffer and more durable than rubber, these are popular for aftermarket upgrades, particularly in performance or off-road vehicles. They provide better responsiveness and longevity but may transmit more NVH to the cabin.
3. Solid Metal Mounts: Used in high-performance or racing applications, these eliminate flex for maximum rigidity and handling precision. However, they significantly increase NVH and may cause chassis fatigue under high stress, requiring reinforcements like frame stiffeners.

The choice of mount depends on the vehicle’s use, with rubber suitable for daily drivers, polyurethane for a balance of durability and performance, and solid mounts for extreme applications like racing or heavy off-roading.

Signs of Failure and Symptoms

Body mounts can deteriorate over time due to factors like age, exposure to moisture, salt, oil, or heavy loads. Common signs of worn or damaged body mounts include:

1. Excessive Vibrations: Increased shaking or rattling felt in the cabin, especially at idle or during acceleration, indicating degraded bushings.
2. Clunking or Banging Noises: Sounds when driving over bumps or during turns, often due to loose or cracked mounts allowing metal-to-metal contact.
3. Body Misalignment: Visible gaps or uneven fitment between the body and frame, such as misaligned doors, hoods, or tailgates, which can affect functionality.
4. Excessive Body Movement: Noticeable shifting of the cab or bed during cornering or braking, compromising handling and safety.
5. Steering or Handling Issues: Misalignment can affect suspension geometry, leading to vague steering or pulling to one side.
6. Uneven Tire Wear: Resulting from misalignment caused by worn mounts, reducing tire life and affecting handling.
