Ball Joint

What Are Ball Joints?

Ball joints are spherical bearings in a vehicle’s suspension system that connect the control arm to the steering knuckle, allowing the wheels to pivot for steering and move up and down with the suspension. Typically made of steel with a lubricated socket, they support the vehicle’s weight and ensure smooth handling.

Purpose and Function

They likely allow the wheels to turn left or right for steering and absorb road shocks by enabling vertical suspension movement. This seems critical for maintaining alignment, stability, and a comfortable ride, especially during cornering or on uneven roads.

Signs of Wear and Maintenance

Worn ball joints may cause clunking noises, loose or wandering steering, vibrations, or uneven tire wear. Replacement is probably needed when these symptoms occur, with costs ranging from $20 to $150 per joint. Installation often requires specialized tools and alignment afterward, so professional help is typically advised.

Definition and Components

Ball joints are critical suspension components that act as pivot points between the control arm and the steering knuckle (or wheel hub assembly) in a vehicle’s suspension system. They allow for controlled movement in multiple directions, enabling the wheels to turn for steering and move vertically with the suspension while maintaining alignment. Ball joints are commonly found in the front suspension of most vehicles, though some vehicles with independent rear suspension may also use them in the rear.

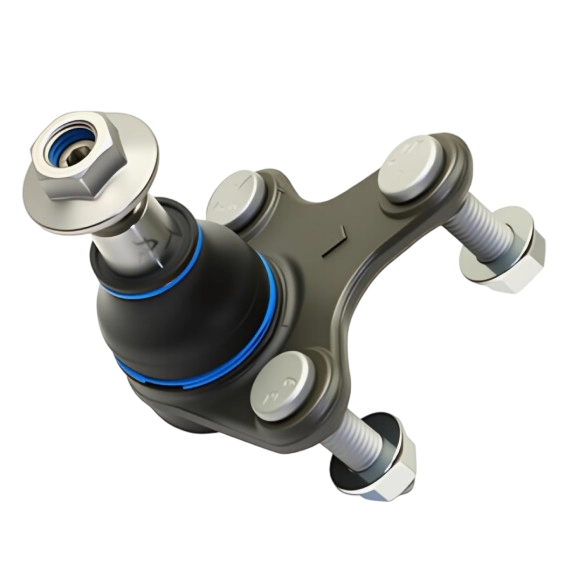

A typical ball joint consists of:

1. Ball and Socket: A spherical steel bearing (the ball) housed in a lubricated socket, allowing rotational and angular movement.
2. Housing: A durable steel casing that integrates with the control arm or steering knuckle, often secured with bolts or pressed into place.
3. Boot: A rubber or polyurethane cover that protects the joint from dirt, moisture, and debris, retaining lubrication.
4. Grease Fitting (optional): Found on greasable ball joints, allowing for periodic lubrication to extend lifespan.

Function and Role in Vehicle Dynamics

Ball joints serve several critical functions in the suspension system:

1. Pivoting for Steering: They allow the wheels to turn left or right by enabling the steering knuckle to pivot relative to the control arm, ensuring precise steering response.
2. Suspension Movement: They permit vertical wheel movement to absorb road shocks and maintain tire contact with the road, contributing to a smooth ride and stable handling.
3. Load Bearing: They support the vehicle’s weight, including the chassis, passengers, and cargo, transferring loads from the wheels to the suspension and frame.
4. Maintaining Alignment: By keeping the control arm and steering knuckle properly aligned, they ensure consistent wheel geometry, which is crucial for handling, tire wear, and safety.

For example, in a double wishbone suspension, upper and lower ball joints connect the control arms to the steering knuckle, allowing precise control during cornering. In a MacPherson strut suspension, a single lower ball joint typically suffices, with the strut handling upper support.

Types of Ball Joints

Ball joints vary based on design and application:

1. Upper and Lower Ball Joints: Used in double wishbone or multi-link suspensions, where both upper and lower control arms require pivot points. Upper joints typically carry less load than lower ones.
2. Load-Bearing (Lower) Ball Joints: Support the vehicle’s weight, commonly found in MacPherson strut setups, where they bear the load of the spring and vehicle.
3. Follower (Upper) Ball Joints: Guide wheel movement without bearing significant weight, often used in double wishbone systems.
4. Greasable Ball Joints: Feature a grease fitting for periodic lubrication, extending lifespan and reducing wear, ideal for heavy-duty or off-road vehicles.
5. Sealed Ball Joints: Pre-lubricated and maintenance-free, common in modern vehicles for convenience but with a finite lifespan.
6. Pressed vs. Bolted: Pressed ball joints are integrated into the control arm and require a press for replacement, while bolted joints are easier to replace with basic tools.

The choice depends on the vehicle’s suspension design and intended use, with greasable joints preferred for rugged applications and sealed joints for low-maintenance daily drivers.

Signs of Failure and Symptoms

Ball joints can wear out due to factors like heavy loads, rough road conditions, lack of lubrication (in greasable joints), or exposure to moisture and debris. Common signs of worn or damaged ball joints include:

1. Clunking or Knocking Noises: Sounds from the front suspension, especially over bumps or during turns, indicating loose or worn joints.
2. Loose or Wandering Steering: A vague or imprecise steering feel, where the vehicle may drift or require constant correction, suggesting worn ball joints affecting alignment.
3. Vibrations: Shaking felt through the steering wheel or chassis, particularly at higher speeds, due to play in the joint.
4. Uneven Tire Wear: Premature or uneven tire wear, often on the inner or outer edges, caused by misalignment from worn ball joints.
5. Visible Damage: Cracked or torn boots, leaking grease, or visible play when inspecting the joint, indicating the need for replacement.

These symptoms can compromise vehicle safety, as worn ball joints may lead to loss of steering control or, in extreme cases, wheel detachment. Failing ball joints are a safety hazard and should be addressed immediately.
