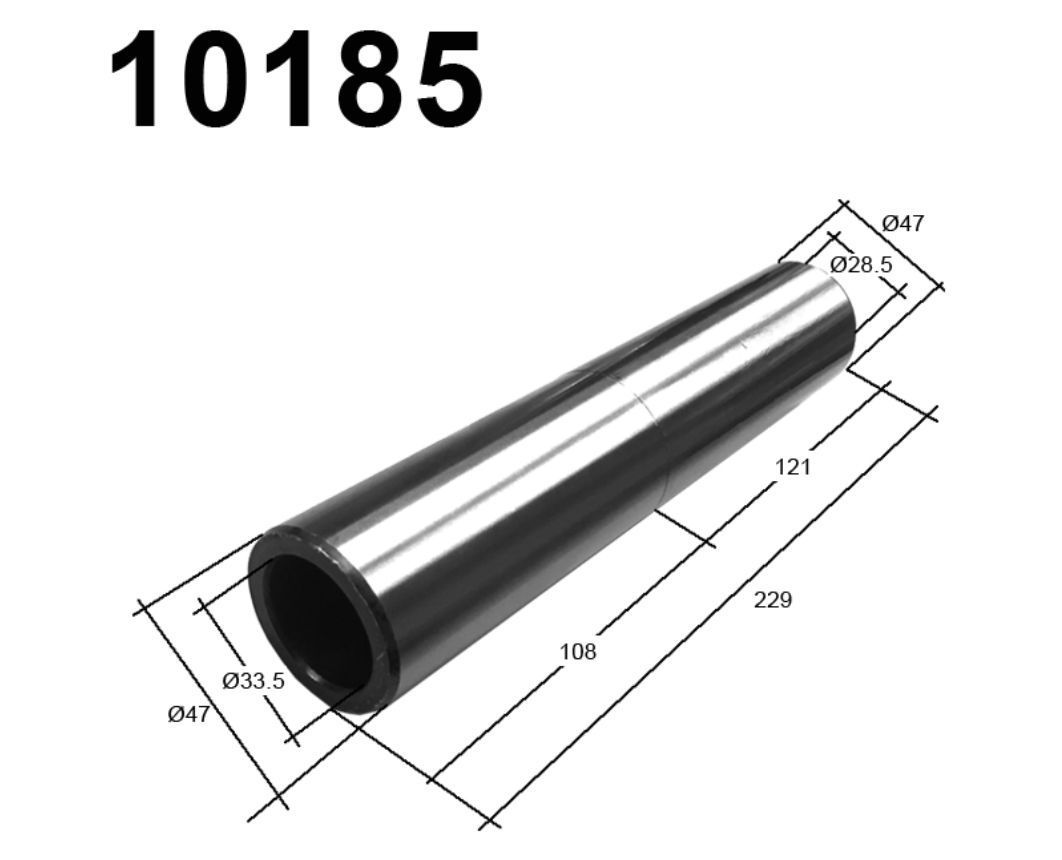

Beam Axle Shaft

Definition

A beam axle shaft is a part of a beam axle, a dependent suspension system where a single beam or shaft connects the two wheels on an axle. In live axles, it transmits power from the differential to the wheels, enabling vehicle movement.

Function and Use

The shaft transfers rotational force from the transmission to the wheels, crucial for vehicle motion. Beam axles are often used in rear-wheel drive vehicles, especially trucks, SUVs, and off-road vehicles, due to their ruggedness and simplicity.

Background and Definition

A beam axle, also known as a rigid axle or solid axle, is a dependent suspension design where a set of wheels is connected laterally by a single beam or shaft. The beam axle shaft, in this context, refers to the central component that facilitates this connection. According to Wikipedia: Beam axle, it can be a live axle, which transmits power to the wheels, or a dead axle, which does not. The axle shaft itself is described by Avon Machining: What is an Axle Shaft? as a heavy-duty, load-bearing component that transfers rotational force from the transmission to the wheels, connecting the vehicle's drivetrain to the wheels.

Function and Operational Mechanics

The primary function of the beam axle shaft is to transmit torque and power, ensuring the wheels rotate to move the vehicle. In live axles, the shaft is integral to the powertrain, linking the differential to the wheels. The browse page result from Wikipedia highlights that beam axles maintain a fixed camber angle, which simplifies alignment but can affect handling. The Avon Machining page further details that every axle shaft includes a differential between two half axles and two universal joints, facilitating controlled wheel movement.

Types and Variations

Beam axle shafts come in various forms, depending on the vehicle's design. The Avon Machining page outlines three types:

1. Semi-Floating Axle Shafts: Flange faces on both outer ends attach directly to the wheels.
2. Fully Floating Axle Shafts: Hubs and roller bearings handle vehicle weight, with bearings tapered and facing opposing directions.
3. Three-Quarter Floating Axle Shafts: Bearings are positioned between the axle casing and hub, protecting against shearing or bending forces.

These variations cater to different load-bearing needs, with fully floating axles often used in heavy-duty applications like trucks.

Historical and Modern Usage

Historically, beam axles were common at the rear wheels of vehicles, as noted in the Wikipedia page, but have also been used as front axles in four-wheel-drive vehicles. Modern automobiles increasingly favor independent front (IFS) and rear (IRS) suspensions, but beam axles remain prevalent in trucks, SUVs, vans, and off-road vehicles due to their robustness. The ZF page on driven solid beam axles (Driven Solid Beam Axle - ZF) emphasizes their use in pick-up trucks and light commercial vehicles (LCVs), where they also serve chassis functions.

Advantages and Disadvantages

Beam axles offer several advantages, as detailed in the Wikipedia browse page:

1. Simplicity and Cost: They are simple in design, rugged, and inexpensive to manufacture, requiring only one universal joint or constant-velocity joint (CV) per steered and driven wheel, reducing maintenance costs.
2. Durability: Their ruggedness makes them ideal for off-road applications, with no rubber CV boots that could be damaged, enhancing space efficiency for better articulation.
3. Fixed Geometry: The fixed camber and toe simplify alignment, beneficial for heavy-duty vehicles.
4. However, there are notable disadvantages:
5. Handling: They do not allow independent wheel movement, leading to worse handling, especially in turns where adverse camber can reduce grip.
6. Ride Quality: High unsprung weight can hurt ride quality, and torque loads may cause wheel hop.
7. Ground Clearance: The differential housing reduces ground clearance, and front axles can be sensitive to hub/wheel concentricity, potentially causing "death wobble" at speeds of 40–50 mph.

Recent Developments and Innovations

Recent innovations include electric beam axles, such as Magna’s eBeam™ (eBeam™- A Smart, Practical Solution for Electrifying Trucks), which integrates an electric motor and gearbox into the axle center, offering a drop-in replacement for traditional beam axles in electrifying trucks, SUVs, and light commercial vehicles. Schaeffler’s Rigid Beam 3in1 E-Axle (Rigid Beam 3in1 E-Axle | Schaeffler Group USA Inc.) is designed for heavy-duty applications with high torque capability, up to 27,000 Nm and 290 kW, suitable for electric vehicles.

Comparative Analysis with Independent Suspensions

Compared to independent suspensions, beam axles have higher unsprung weight, which can negatively impact ride quality. The Capital One Auto Navigator notes that vehicles with independent suspensions generally ride better, as each wheel can move independently, improving comfort and handling. However, beam axles excel in off-road scenarios, where their fixed geometry and durability are advantageous.
