Axle beams serve as the backbone of vehicle suspension systems, providing critical support for vehicle weight while maintaining wheel alignment and stability. These components, though seemingly simple, represent sophisticated engineering solutions that balance strength, weight, durability, and performance characteristics.
Understanding Axle Beam Fundamentals
Definition and Basic Structure
Axle beams are fundamental components in vehicle suspension systems that connect wheels laterally and support the vehicle's weight. A beam axle, also referred to as a rigid axle or solid axle, is a dependent suspension design in which a set of wheels is connected by a single beam or shaft. This design creates a fixed relationship between the wheels on opposite sides of the vehicle, meaning that movement of one wheel directly affects the other. Axle beams provide structural stability and serve as mounting points for other suspension components.
The basic structure of an axle system typically includes four key components: the axle beam itself, wheel hubs, suspension components, and hanger hardware. The axle beam forms the central structural element around which the other components are organized. While historically common in most vehicles, beam axles have been increasingly replaced by independent suspension systems in many modern automobiles, though they remain prevalent in specific applications where their characteristics are advantageous.
Types of Axle Beams
Axle beams can be categorized into several distinct types based on their design and function. One primary classification distinguishes between live axles and dead axles. Live axles transmit power to the wheels in addition to providing structural support, while dead axles serve only a supportive function without power transmission. This distinction greatly affects the complexity, weight, and application of the axle system.

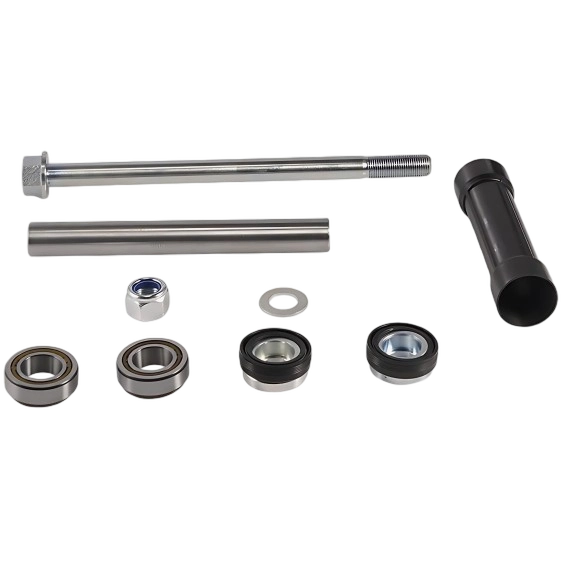

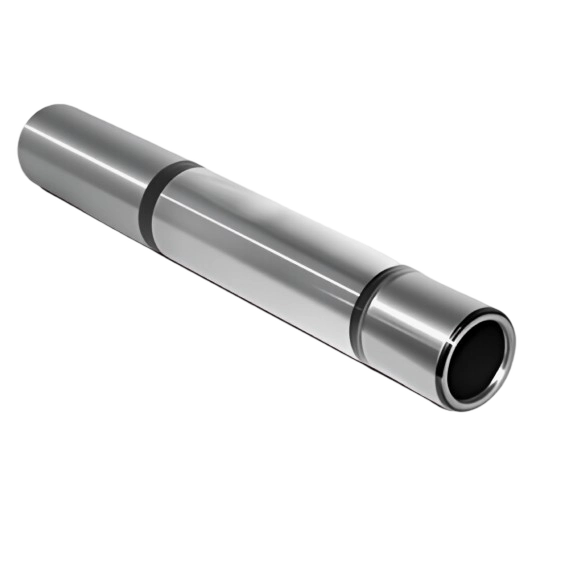

Another important classification is based on the beam's physical construction. Solid axle beams provide maximum strength but at the cost of increased weight. In contrast, hollow axle beams utilize a tubular design that significantly reduces weight while maintaining adequate structural integrity. According to some manufacturers, hollow axles can be up to 75% lighter than their solid counterparts, making the trailer easier to handle and optimizing weight capacity for heavier loads.
Specialized designs have also emerged for specific applications. For instance, BPW manufactures square hollow axle beams consisting of two specially rolled, high-quality half axle tubes (U-profiles) welded together both internally and externally. This construction concentrates material at stress points while minimizing it elsewhere, optimizing the strength-to-weight ratio.
Vehicle Applications and Implementation
Beam axles find application across a wide range of vehicle types, though their use varies based on performance requirements, cost considerations, and design philosophy. In modern automotive design, beam axles are most commonly found in trucks, SUVs, and off-road vehicles, particularly as rear axles. Driven solid beam axles are preferably used as rear axles in pick-up trucks, vans, and other light commercial vehicles (LCVs), where their robust design also takes over chassis functions in addition to transmitting torque.
Several contemporary production vehicles still utilize solid front axles, particularly those designed for serious off-road capability. Examples include the Jeep Wrangler, Jeep Gladiator, Toyota Land Cruiser 70 Series, Ineos Grenadier, Ford Super Duty, and Ram Heavy Duty. These vehicles leverage the beam axle's durability and articulation advantages in challenging terrain.
For trailers, axle beams form the foundation of the suspension system, connecting the wheels and providing stability during towing. The selection of an appropriate axle beam depends on the trailer's weight, tow load, and intended operating conditions. Manufacturers emphasize that choosing the correct capacity beam is critical for towing safety, and simply selecting a higher-capacity beam beyond what is needed for day-to-day towing is not necessarily the best solution.
Technical Advantages and Limitations
Benefits of Beam Axle Designs
Beam axles offer several significant advantages that ensure their continued use in specific applications despite the industry trend toward independent suspension systems. Their simple design makes them rugged, durable, and relatively inexpensive to manufacture compared to more complex suspension systems. This simplicity also translates to maintenance benefits, as fewer universal joints or constant velocity (CV) joints are required, reducing potential failure points and service costs.
For driven wheels, the CV joints in beam axle systems are located in metal enclosures attached to the axle housings, protecting them from damage during off-road driving, unlike the vulnerable rubber CV boots found in independent suspension systems. This design attribute contributes to the beam axle's reputation for superior durability in demanding conditions.
Beam axles provide excellent space efficiency, particularly beneficial for off-road applications where maximum articulation is desired. The fixed geometry ensures consistent camber and toe settings regardless of suspension compression, resulting in predictable handling characteristics and simplified wheel alignment procedures. This consistency also helps maintain reliable traction, braking, and tire wear characteristics during suspension movement—significant benefits for vehicles that carry heavy loads.
Limitations and Design Challenges
Despite their advantages, beam axles present several inherent limitations that have driven the industry toward independent suspension in many applications. The primary disadvantage is that a beam axle does not allow each wheel to move independently in response to uneven surfaces, resulting in potentially compromised handling compared to more sophisticated suspension designs. When one wheel encounters an obstacle, the connected wheel is affected, potentially reducing stability and comfort.
During cornering, the outside wheel on a beam axle may experience adverse camber angles if the inside wheel hits a bump, which can suddenly reduce cornering grip and destabilize the vehicle. On rough terrain, if one wheel slips off an incline or is displaced by an obstacle at high speed, the connected wheel follows the same motion due to the rigid connection, potentially causing handling unpredictability.
A significant disadvantage from a ride quality perspective is that the mass of the beam contributes to the vehicle's unsprung weight, negatively affecting ride comfort. Additional components required for lateral location, such as Panhard rods or Watt's linkages, add further unsprung weight, partially offsetting the beam axle's advantages in simplicity.
In vehicles with conventional Hotchkiss drive, the entire axle may twist in its mounts in reaction to torque loads, potentially reducing traction and inducing wheel hop during hard acceleration. Additionally, the bulky differential housing common in live axle designs can reduce ground clearance, limiting off-road capability in some situations.
Conclusion
Axle beams remain vital components in vehicle suspension systems despite the industry trend toward independent suspensions in many applications. Their continued relevance stems from their unique combination of strength, simplicity, and durability, particularly valuable in heavy-duty, off-road, and commercial vehicle applications. The fundamental design principles of axle beams have remained relatively consistent, but manufacturing processes, materials, and integrated technologies continue to evolve.
The future of axle beam design will likely be shaped by several key factors, including the ongoing push for vehicle weight reduction to improve fuel efficiency and reduce emissions, growing consumer expectations for refined ride and handling characteristics, and the rapid acceleration of vehicle electrification. These pressures will drive further innovation in materials, manufacturing processes, and integrated technologies, potentially leading to hybrid designs that combine the best attributes of beam axles and independent suspensions.
As the automotive industry continues its technological evolution, axle beam design will undoubtedly adapt to meet new challenges and requirements. The principles that have made beam axles enduring components—strength, durability, and simplicity—will remain relevant, even as their implementation evolves to incorporate new materials, manufacturing techniques, and integrated systems. This balance of traditional engineering principles with innovative approaches ensures that axle beams will continue to play an important role in vehicle suspension systems for the foreseeable future.
