Suspension systems are a critical component of vehicle design, serving as the essential interface between the road and the vehicle itself. These systems significantly impact vehicle handling, comfort, safety, and overall performance by managing the complex dynamics between wheels and road surfaces. Modern suspension technologies range from traditional passive systems to sophisticated computer-controlled active systems that can adapt to changing road conditions in milliseconds.
Fundamentals of Suspension Systems
Car suspension systems refer to the comprehensive assembly of tires, springs, shock absorbers, and linkages that connect a vehicle to its wheels. The primary purpose of these systems is twofold: first, to ensure the car's tires maintain optimal contact with the road for proper traction; and second, to isolate the vehicle's occupants from road irregularities, providing comfort during travel.
The suspension system performs several critical functions beyond simply connecting wheels to the chassis. It absorbs road shocks, ensures even weight distribution, enhances braking effect, improves handling and steering response, adapts to varying road conditions, and ultimately improves the overall driving experience by promoting comfort. Without effective suspension, vehicles would be virtually undrivable on anything but perfectly smooth surfaces, as every road imperfection would transfer directly to the vehicle's frame and occupants.
Core Components of Suspension Systems
1. Springs
Springs are the primary load-bearing components that support the vehicle's weight and absorb road shocks. Several types of springs are used in modern suspension systems:
Leaf Springs: Composed of several layers of metal strips bound together, these traditional springs are commonly used in heavy-duty vehicles and trucks due to their high load-bearing capacity.
Coil Springs: These helical springs compress under load and are widely used in modern passenger vehicles for their good ride quality and space efficiency.
Torsion Bars: Steel bars that twist to provide spring action, often used in compact suspension designs.
Air Springs: Using compressed air to support the vehicle's weight, these are found in luxury vehicles and adjustable suspension systems, offering variable spring rates depending on load and driving conditions.
2. Shock Absorbers and Dampers
While springs absorb impacts, shock absorbers control the resulting spring oscillations by damping their movement. Without dampers, springs would bounce uncontrollably after encountering bumps, creating an uncomfortable and potentially dangerous driving experience.
Shock absorbers are hydraulic devices that convert the kinetic energy generated by the springs into heat energy, dissipating it into the surrounding environment. The force produced by dampers depends on how fast the suspension is being compressed or elongated, opposing the movement to maintain stability and control.
3. Struts

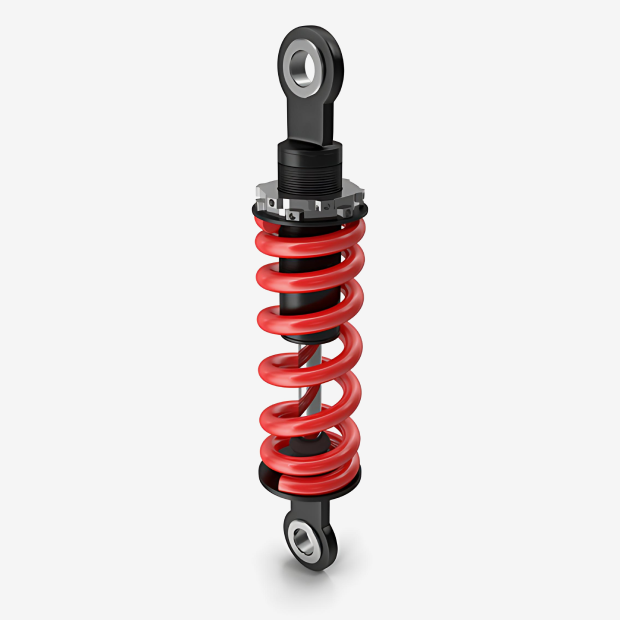

Struts combine shock absorbers and springs into a single structural unit that provides both damping functions and structural support. They're particularly common in front suspensions of front-wheel-drive vehicles, where they serve as pivotal points for steering while also supporting the vehicle's weight and absorbing road shocks.
4. Control Arms and Ball Joints
Control arms connect the vehicle's frame to the wheel assemblies, allowing vertical wheel movement while maintaining proper alignment. These components move up and down alongside springs when a car traverses uneven terrain, helping to ensure that tires maintain consistent contact with the road surface.
Ball joints function as flexible pivots that enable wheels to turn for steering while simultaneously allowing the control arms to move vertically. These components are critical for maintaining wheel alignment during suspension movement and steering operations.
5. Anti-Roll Bars
Also known as stabilizer bars, these components connect the suspension of wheels on opposite sides of the vehicle to reduce body roll during cornering. They effectively transfer some of the force applied to one wheel to the opposite wheel, improving stability during turns while having minimal effect during straight-line driving over bumps.
Classification of Suspension Systems
Suspension systems can be broadly categorized into three main types based on how wheels on opposite sides interact with each other.
1. Dependent Suspension
In dependent suspension systems, also known as solid axle systems, a rigid axle connects the wheels on opposite sides of the vehicle. This design means that the movement of one wheel directly affects the opposite wheel – when one wheel moves upward, the other tends to tilt in the opposite direction.
Dependent suspensions are particularly effective for heavy-load vehicles and perform well on rough terrain because the wheels share friction and load distribution. Common applications include:
Trucks and commercial vehicles, Off-road vehicles, Rear suspensions of some passenger cars
The main advantages include durability, simplicity, and good load-carrying capacity, though they typically offer less refined ride quality than independent systems.
2. Independent Suspension
Independent suspension systems allow each wheel to move vertically without affecting the opposite wheel, providing a smoother ride and better handling characteristics. This design has become the standard for modern passenger vehicles due to its superior ride comfort and road-holding capabilities.
Major types of independent suspension include:
MacPherson Strut: Widely used in smaller vehicles and front-wheel-drive cars due to its simplicity, cost-effectiveness, and space efficiency. It consists of a single strut assembly combining a shock absorber and coil spring, with the bottom of the strut connected to the wheel hub and providing both vertical support and steering control.
Double Wishbone: Also known as A-arm suspension, this design uses two wishbone-shaped control arms connected to the wheel assembly. It's commonly found in performance and luxury vehicles as it provides better handling and stability, though at the cost of greater complexity and space requirements.

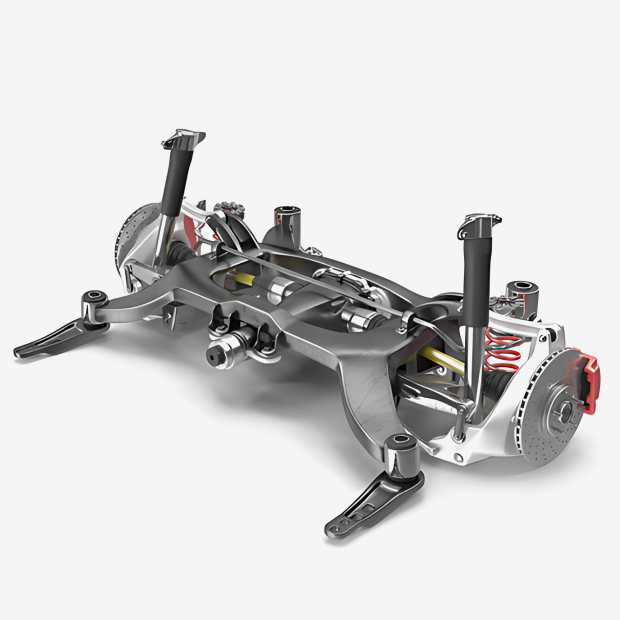

Multi-Link: A sophisticated form of independent suspension using multiple control arms for each wheel, allowing precise control of wheel movement in all directions for optimal handling and ride comfort.
Trailing Arm: Often used for rear suspensions, where the wheel is mounted on an arm that pivots at the front, allowing primarily vertical movement.
3. Semi-Dependent Suspension
Semi-dependent suspension represents a middle ground between dependent and independent systems. In this design, the motion of one wheel does affect the position of the other, but they are not rigidly attached. The twist-beam rear suspension is a common example, allowing limited independent movement while maintaining some structural connection between the wheels.
Advanced Suspension Technologies
As automotive technology has evolved, so too have suspension systems, moving beyond simple mechanical components to incorporate electronics, hydraulics, and sophisticated control algorithms.
1. Active Suspension Systems
Active suspension systems use an onboard control system to control the vertical movement of the vehicle's wheels relative to the chassis. Unlike passive systems that rely solely on mechanical components, active suspensions utilize actuators to raise and lower the chassis independently at each wheel.
These systems constantly monitor body movement and vehicle ride level through various sensors, processing this data to operate hydraulic servos or other actuators mounted beside each wheel. Almost instantly, the system generates counterforces to body lean, dive, and squat during driving maneuvers.
Active suspension can be implemented through several means:
Hydraulic or Pneumatic Actuation: Uses hydraulic servos controlled by electronic computing to adjust suspension characteristics in real-time. This technology was pioneered by Citroën with their hydropneumatic suspension in 1954 and later refined by manufacturers like Mercedes-Benz with their Active Body Control system.
Electromagnetic Actuation: Employs linear electromagnetic motors attached to each wheel, providing extremely fast response times and allowing regeneration of power consumed by using the motors as generators. Bose Corporation has demonstrated this technology in proof-of-concept models.
Active suspension systems can make up to 3,000 adjustments every second, virtually eliminating body roll and pitch variation during cornering, accelerating, and braking. However, their complexity, cost, and energy requirements have limited widespread adoption to primarily high-end luxury and performance vehicles.
2. Semi-Active Suspension Systems
Semi-active suspensions represent a middle ground between passive and fully active systems. They can change the damping coefficient of the shock absorber but cannot add energy to the suspension system like fully active setups. These systems typically have a response time of just a few milliseconds and can provide a wide range of damping values based on real-time road conditions and vehicle dynamics.
Two main types exist:
Solenoid/Valve Actuated: The most economical type, consisting of a solenoid valve that alters the flow of hydraulic fluid inside the shock absorber. Toyota introduced the first production car with this technology in 1983 with their Electronic Modulated Suspension, followed by Nissan's Super Sonic Suspension in 1985.
Magnetorheological Fluid-Based: Uses an electromagnetic coil to change the apparent viscosity of a special fluid containing metallic particles. When magnetized, the fluid becomes more viscous, increasing damping force; when demagnetized, damping decreases.
Semi-active systems are less expensive and consume far less energy than fully active suspensions while still providing significant improvements in ride quality and handling. For this reason, they have become increasingly common in mid-range and premium vehicles.
3. Adaptive Suspension Systems
Adaptive suspensions adjust shock absorber firmness to match changing road or dynamic conditions but typically offer fewer control possibilities than semi-active systems. These systems usually provide different riding modes (comfort, normal, sport) that correspond to different damping coefficients selected by the driver.

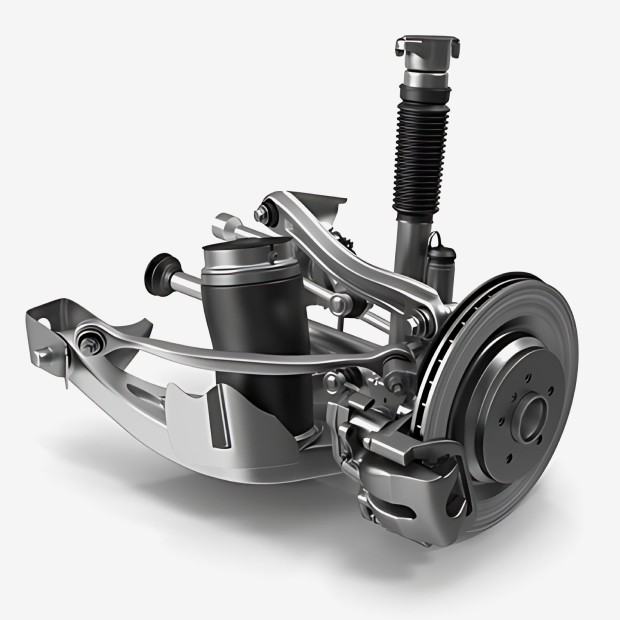

Air suspension systems are a prominent example, using air springs with electronic controls to dynamically adjust a vehicle's ride height and handling characteristics. These systems offer benefits such as:
Improved aerodynamics by automatically lowering the vehicle at speed to reduce drag and enhance fuel efficiency
Ability to raise the vehicle for additional ground clearance when needed
Automatic leveling to compensate for varying loads
Optimization of handling and ride quality through precise control of ride height
