Steering Rack

What is a Steering Rack?

The steering rack is a crucial component in a vehicle's rack-and-pinion steering system, which is standard in most modern cars, trucks, and SUVs. It works by turning the rotational motion of your steering wheel into the linear motion needed to move the wheels, helping you steer the vehicle.

How Does It Work?

When you turn the steering wheel, a pinion gear rotates and moves a rack (a toothed bar) left or right. This motion is then passed to the wheels through tie rods, allowing the car to turn. It typically takes 3-4 full turns of the steering wheel to go from one extreme to the other.

Maintenance Tips

•Check for signs like leaking power steering fluid, stiff or loose steering, and unusual noises when turning.

•Regularly inspect fluid levels and change them every 30,000 to 60,000 miles if you have a hydraulic system.

•If issues arise, consider professional inspection, and always get a wheel alignment after replacing the rack.

Function and Role in Steering Systems

A steering rack is a critical component of a vehicle's rack-and-pinion steering system, which is the most common type of steering mechanism in modern cars, trucks, and SUVs. Its primary function is to convert the rotational motion of the steering wheel into the linear motion needed to turn the wheels, enabling the driver to control the vehicle's direction safely and efficiently.

1. Motion Conversion: The steering rack works by meshing a pinion gear (a small round gear connected to the steering wheel via the steering shaft) with a rack (a straight bar with teeth). When the steering wheel is turned, the pinion gear rotates, causing the rack to move linearly (left or right). This linear motion is then transmitted to the wheels through tie rods, which connect to the steering knuckles.
2. Gear Reduction: The rack-and-pinion system provides a gear reduction, making it easier to turn the wheels. Typically, it takes 3-4 complete revolutions of the steering wheel to move the wheels from lock to lock (from far left to far right), depending on the steering ratio.

The steering rack is essential for maintaining vehicle control, especially at low speeds where manual effort would be significant, and it plays a key role in ensuring stability and responsiveness during turns.

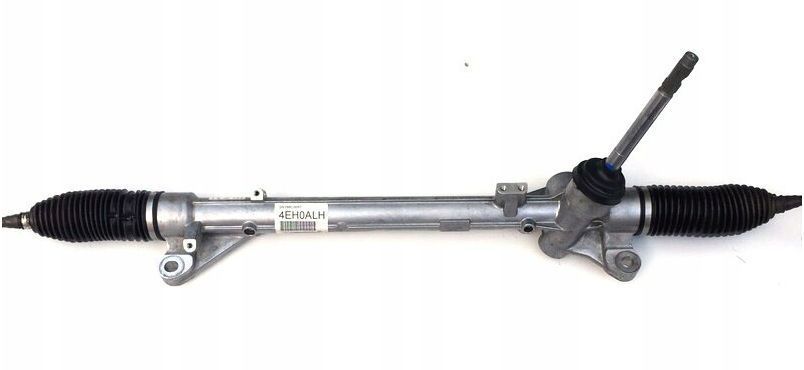

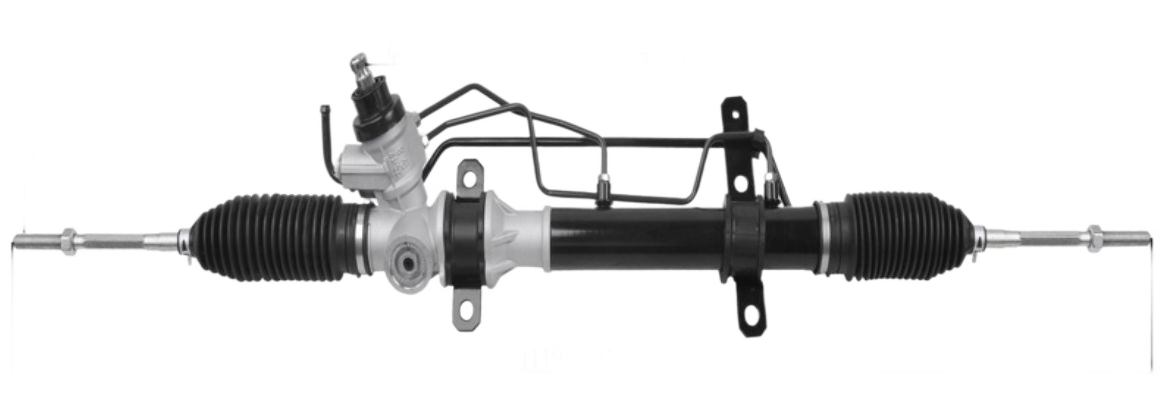

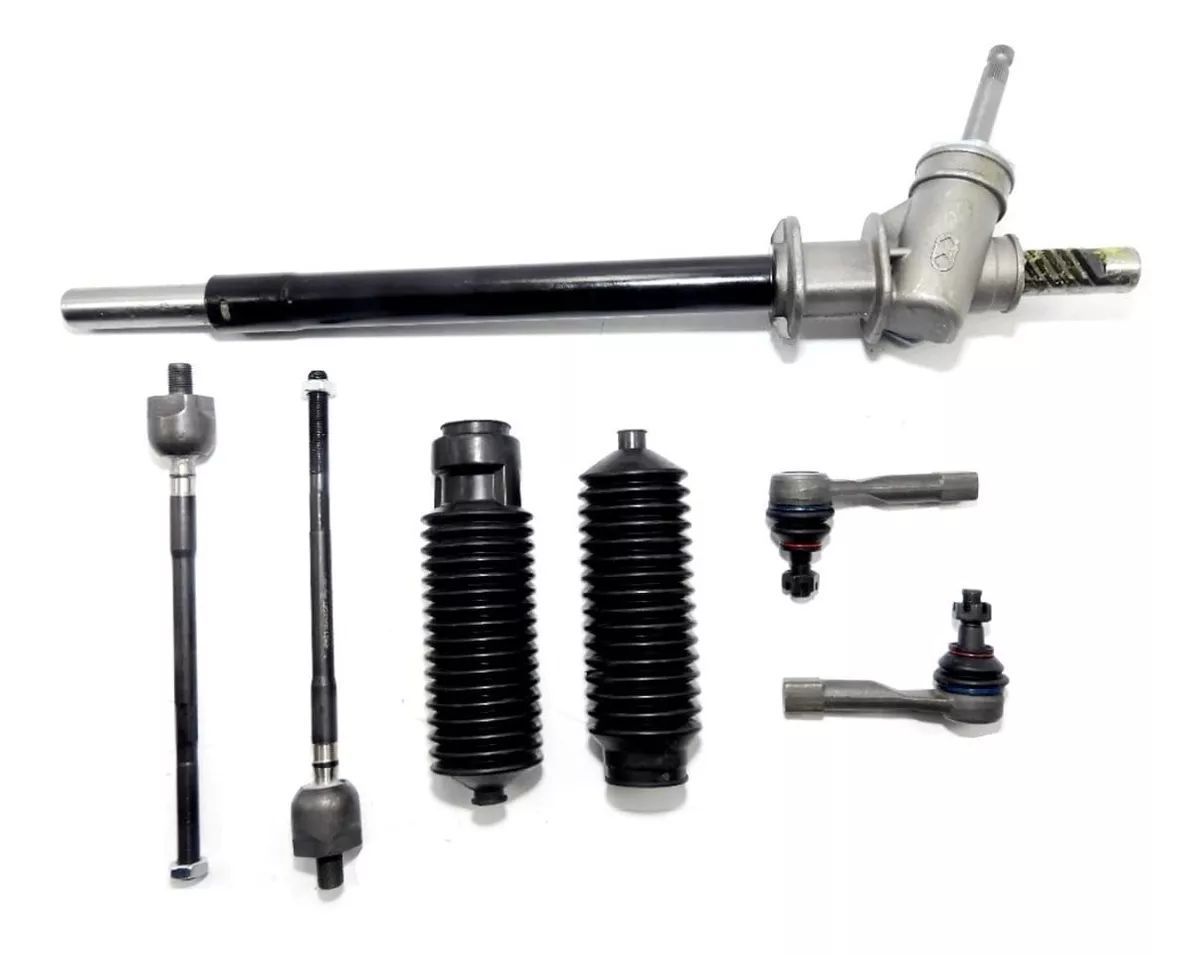

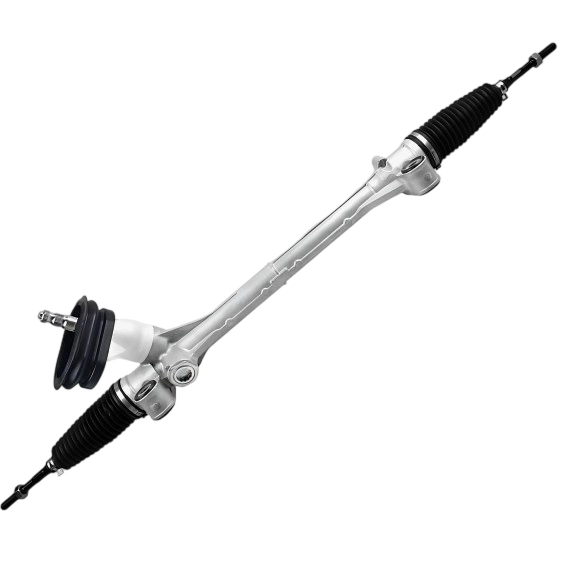

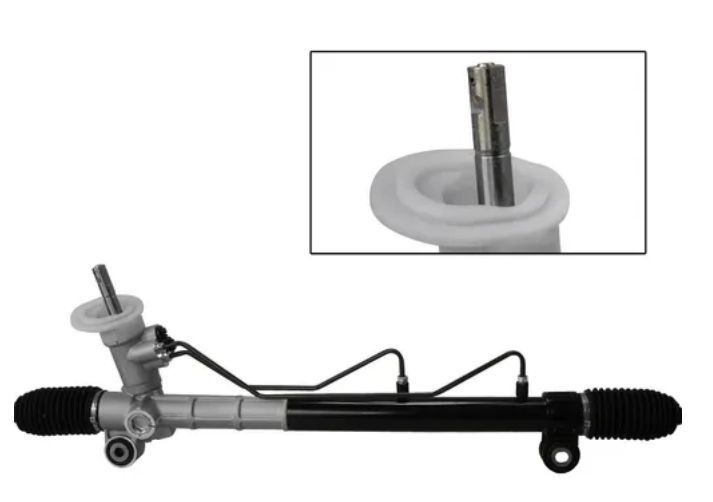

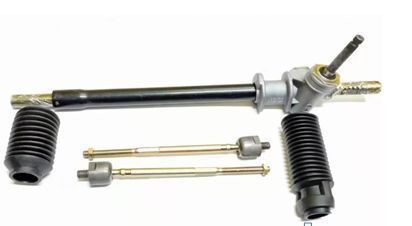

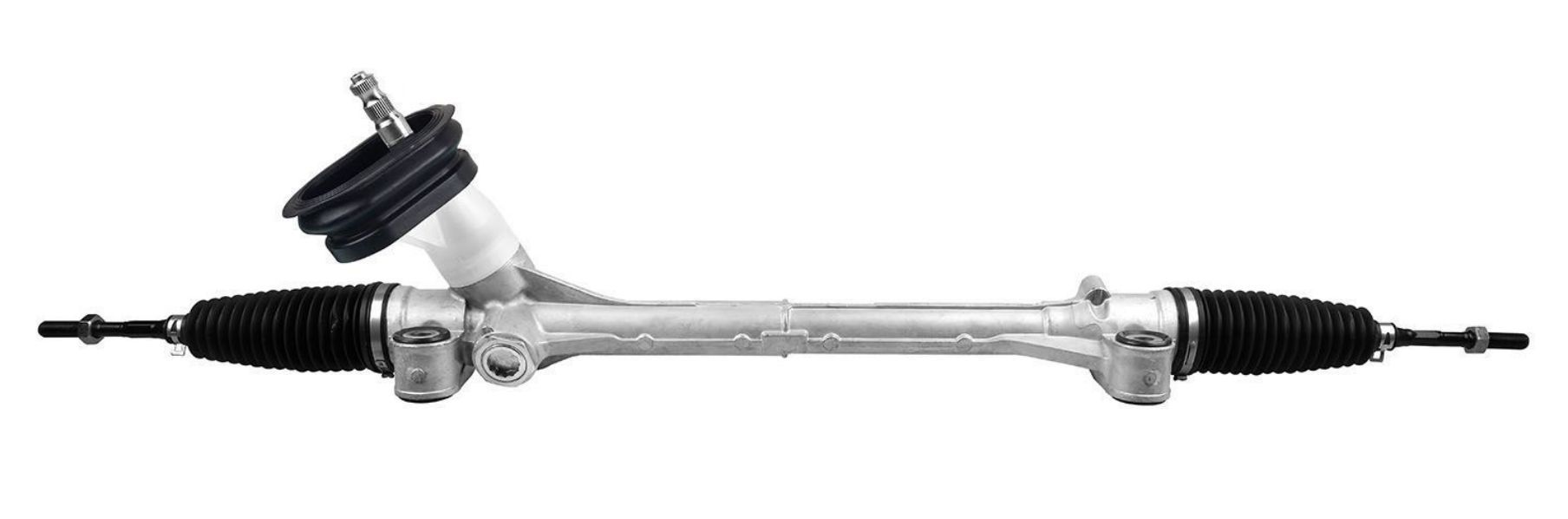

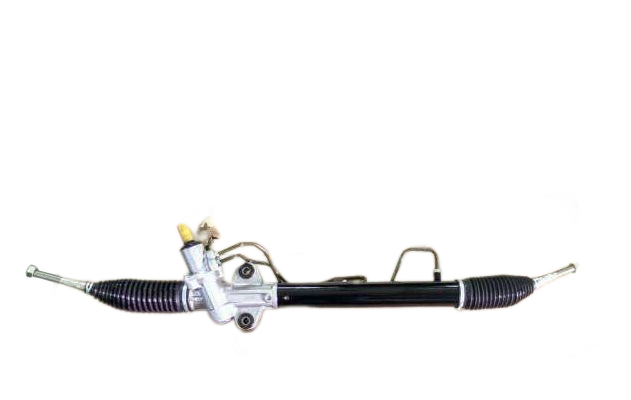

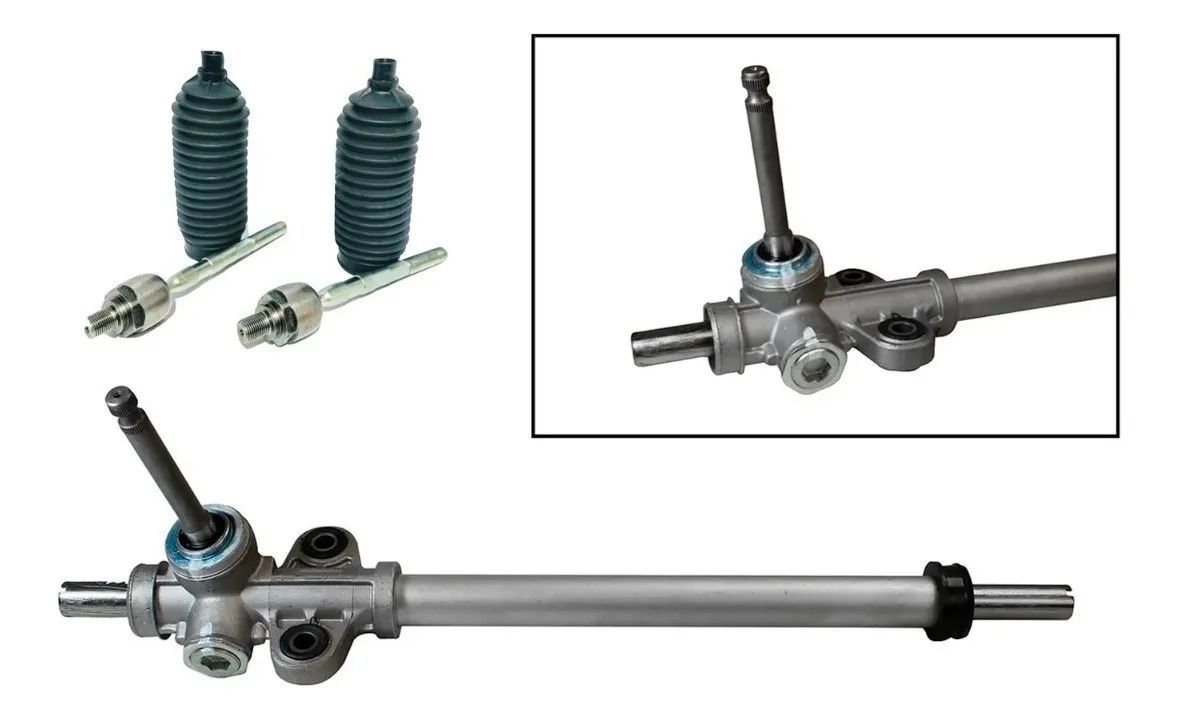

Components and Construction

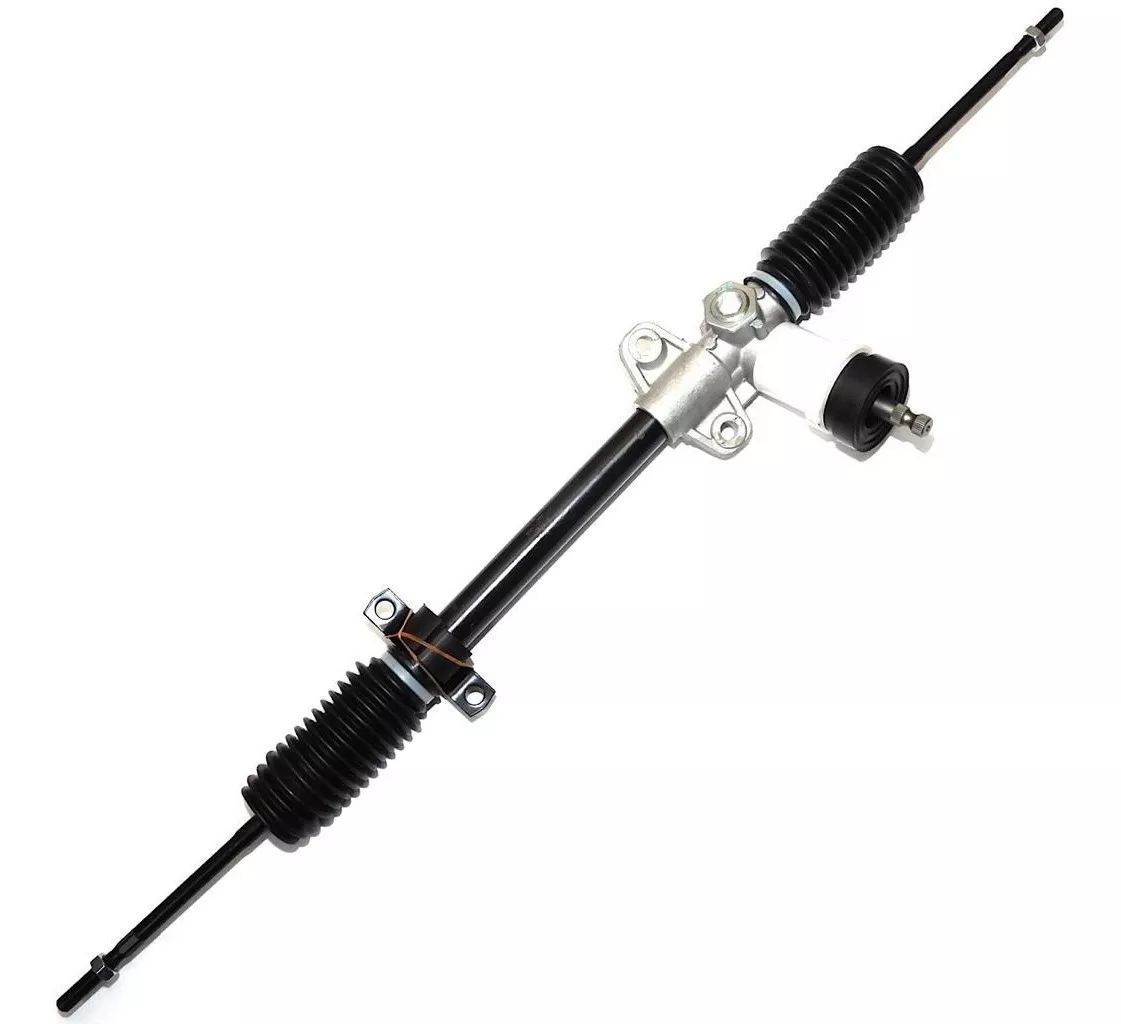

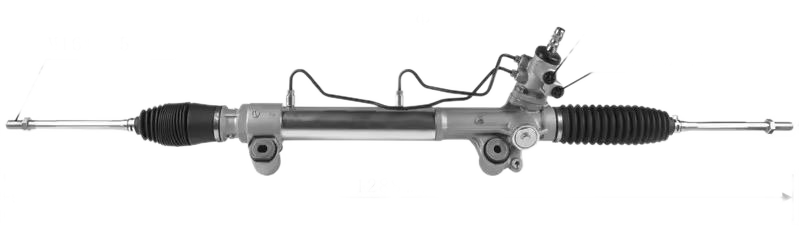

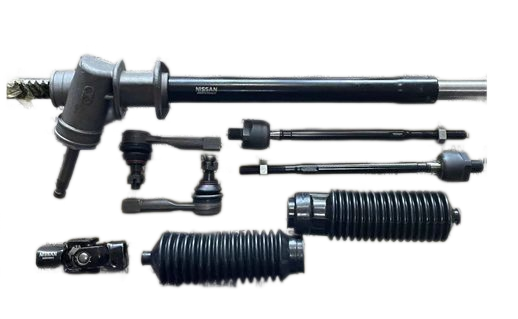

The steering rack system includes several key components, each designed to work together for effective steering:

• Rack: A long bar with teeth along its length, which meshes with the pinion gear. It moves linearly when the pinion rotates, pushing or pulling the tie rods.
• Pinion Gear: A small gear attached to the steering shaft. It rotates when the steering wheel is turned, driving the rack's movement.
• Tie Rods: Rods that connect the ends of the rack to the steering knuckles. They transfer the linear motion from the rack to the wheels, with adjustable length for proper alignment and optimized steering.
• Steering Knuckles: Part of the wheel assembly that connects the steering system to the wheels, allowing the wheels to pivot.
• Power Steering Components (in power-assisted systems):

The construction is typically made of high-strength steel or aluminum for durability, with seals and boots to protect against dirt and moisture, especially in power steering systems.

Types of Steering Systems

While rack-and-pinion steering is the most prevalent, there are different types of steering systems, each with distinct characteristics:

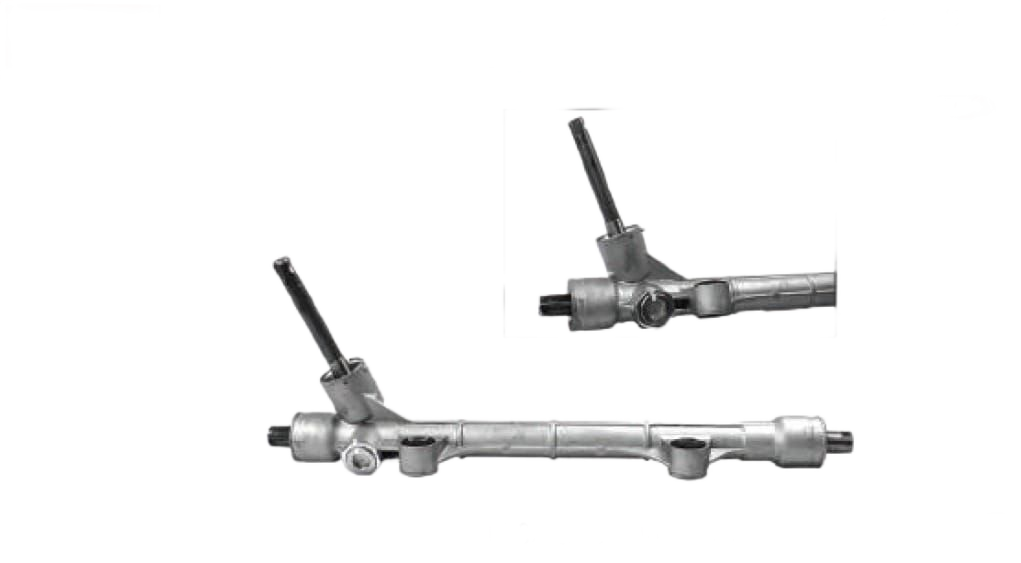

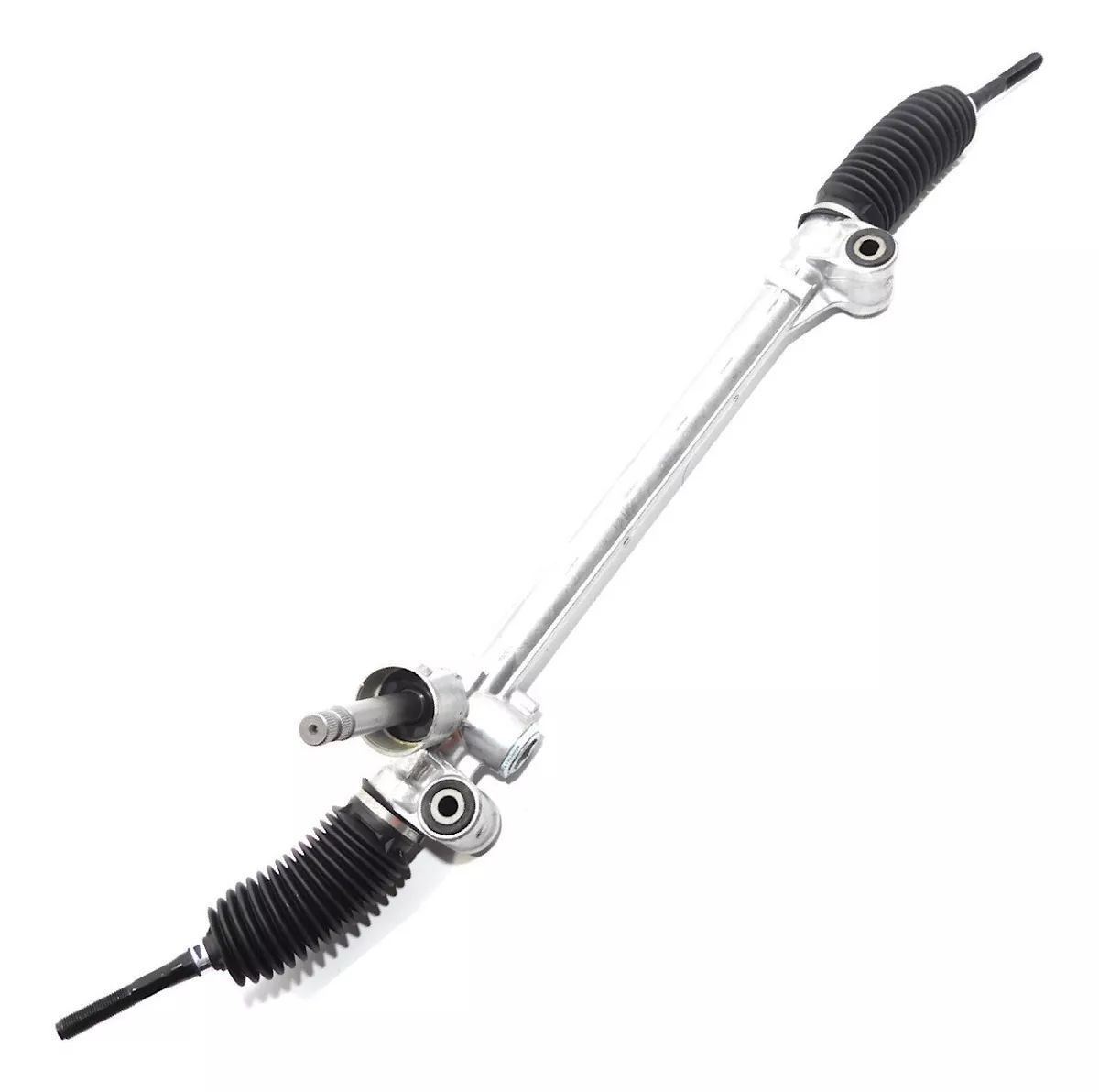

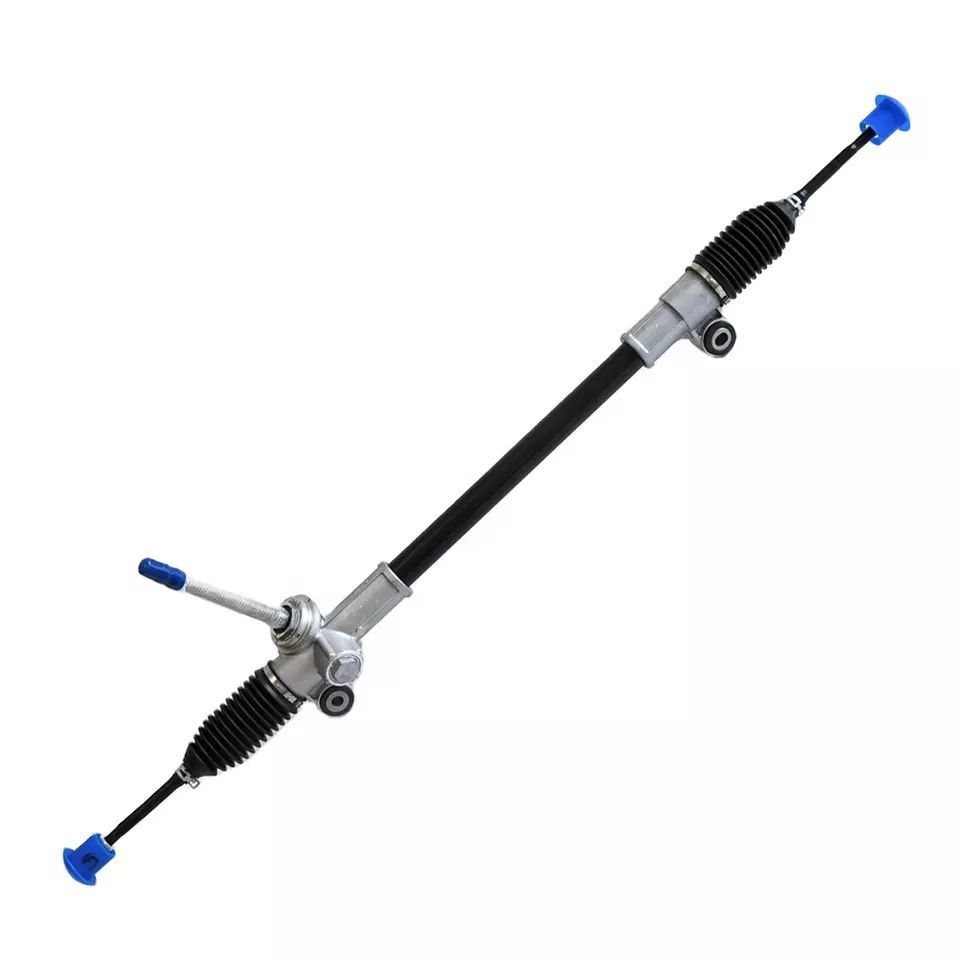

1. Manual Rack-and-Pinion: Relies solely on the driver's physical input to steer the vehicle. It is simple, lightweight, and requires lower maintenance, but it can be harder to steer, especially at low speeds or when parking.
2. Power-Assisted Rack-and-Pinion:
3. Recirculating Ball Steering: An older system used in some larger vehicles and trucks, such as heavy-duty four-wheel-drive vehicles like Jeep Wranglers and Ford Super Duty pickups. It uses a recirculating ball mechanism instead of a rack-and-pinion, offering durability but less responsive feel.

The shift from hydraulic to electric power steering is a notable trend as of 2025, driven by the need for energy efficiency and integration with advanced driver assistance systems (ADAS).

Steering Ratio and Variable-Ratio Steering

1. Steering Ratio: Determined by the ratio between the number of teeth on the pinion gear and the rack length. A higher ratio (e.g., 18:1) means less steering wheel input is needed for wheel movement, providing quicker, more responsive steering (common in sports cars). A lower ratio requires more steering wheel input, resulting in slower, less sensitive steering (common in larger vehicles).
2. Variable-Ratio Steering: Some vehicles use a rack-and-pinion gearset with a different tooth pitch in the center than on the outside. This design provides quicker response when starting a turn (when the rack is near the center) and reduces effort near the wheel's turning limits, enhancing comfort and control, especially at high speeds.

Maintenance and Signs of Wear

Maintaining the steering rack is vital for vehicle safety, with specific recommendations for regular checks and interventions:

Regular Inspections:

Check power steering fluid levels and condition regularly, especially after the car has warmed up, using the reservoir's dipstick or indicator lines (if applicable).

Inspect for leaks around the steering rack, hoses, and connections, as leaks can lead to low fluid levels and potential steering failure.

Listen for unusual noises (e.g., clunking, grinding, whining) when turning the wheel, which may indicate wear or damage.

Signs of Wear or Damage:

Leaking Power Steering Fluid: Red fluid (similar to transmission fluid) under the vehicle or around the rack, indicating a seal failure or damage.

Stiff or Loose Steering: Increased effort to turn the wheel or excessive play in the steering wheel, suggesting internal wear or misalignment.

Vibration in the Steering Wheel: Especially at highway speeds, indicating potential misalignment or worn components.

Unusual Noises: Clunking, knocking, or grinding sounds when turning, suggesting mechanical stress or failure.

Difficulty Maintaining a Straight Path: The vehicle may wander or pull to one side, indicating alignment issues or rack wear.

Fluid Replacement:

Replacement:

Historical Context and Market Trends

• Historical Development: Rack and Pinion Steering was first introduced in the 1930s by BMW, marking a significant advancement in steering technology. In the U.S., Ford was the first major automaker to adopt it in production vehicles, starting with the 1974 Mustang II and Pinto. By the 1980s, other U.S. manufacturers like General Motors and Chrysler began using rack-and-pinion systems, replacing older recirculating ball systems.
• Market Trends: As of 2025, rack-and-pinion steering is standard in most passenger cars, light trucks, and SUVs due to its simplicity, efficiency, and better steering feel. The shift from hydraulic to electric power steering is a primary driver, with EPS systems projected to reach a market value of $51.65 billion by 2033, expanding at a CAGR of 6.3% from 2025 to 2033, driven by demand for fuel-efficient vehicles and integration with ADAS. The North America Electro-Hydraulic Power Steering Market is also growing, with a CAGR of approximately 5% from 2025 to 2033, fueled by technological advancements.
