Steering Column Shaft

What is a Steering Column Shaft?

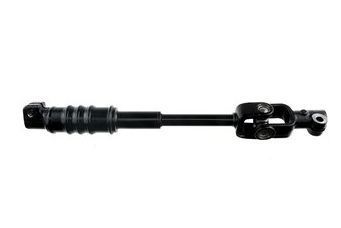

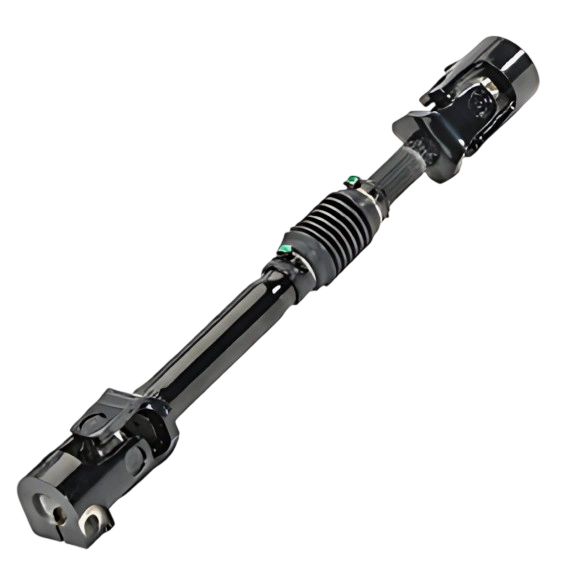

The steering column shaft is a vital part of a vehicle's steering system, linking the steering wheel to the steering gear. It transmits the driver's rotational input to control the vehicle's direction.

Key Features

1. Adjustability: Many shafts allow for adjustable positioning, enhancing driver comfort, especially in race cars to reduce flex and binds.
2. Safety: Modern designs often feature collapsibility, using a tolerance ring to absorb energy in collisions, protecting the driver.
3. Compatibility: Available in various types, including tilt columns, to fit different vehicle models and driver preferences.

Common Issues

If you experience difficulty turning the steering wheel, it may indicate corrosion or wear in the shaft, necessitating immediate attention to ensure safe driving.

Function and Role in Steering Systems

The steering column shaft is a critical component of a vehicle's steering system, connecting the steering wheel to the steering gear. Its primary function is to transmit the rotational motion from the steering wheel to the steering mechanism, enabling the driver to control the vehicle's direction. This connection is essential for both manual and power-assisted steering systems, including rack-and-pinion, recirculating ball, and power steering configurations, each utilizing the shaft differently to interface with the respective steering gear.

1. Motion Transmission: The shaft ensures that the driver's input is accurately translated into wheel movement, crucial for safe navigation, especially at high speeds or during sharp maneuvers.
2. System Integration: It serves as a mount for various devices, such as the multi-function switch, column lock, and column wiring, integrating electrical and mechanical functions like turn signals, headlights, and ignition systems.

The steering column shaft is particularly important in modern vehicles, where steering wheels often have integrated controls, making it a vital link for both safety and convenience features.

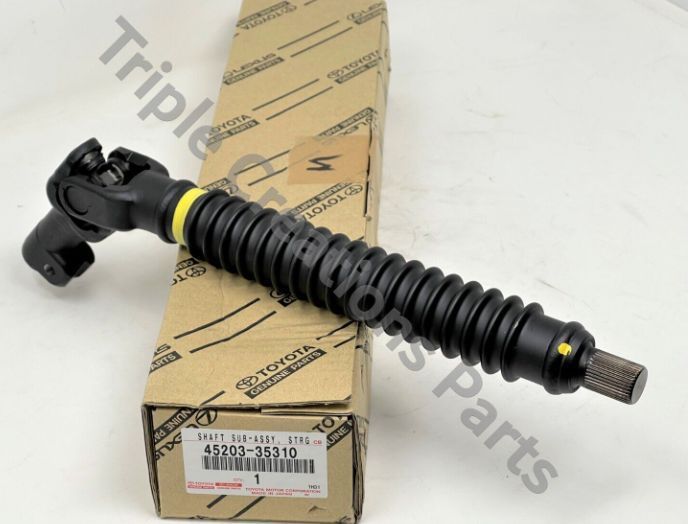

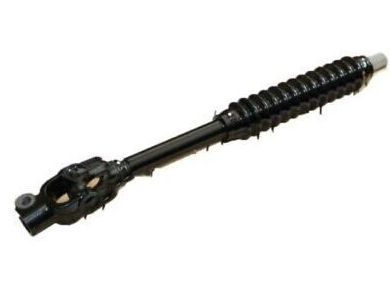

Key Features and Construction

The steering column shaft is typically constructed from high-strength steel or aluminum, designed to withstand mechanical stresses while providing flexibility and durability. Key features include:

1. Adjustability: Many steering columns, including the shaft, are adjustable for driver comfort, especially in race cars. For example, adjustable columns can eliminate flex and binds, with lengths measured from the housing end to the adjustable shaft, offering up to 8 inches of adjustability. These are often paired with brackets and hangers, such as rod end-style or mono-ball style, for secure mounting.

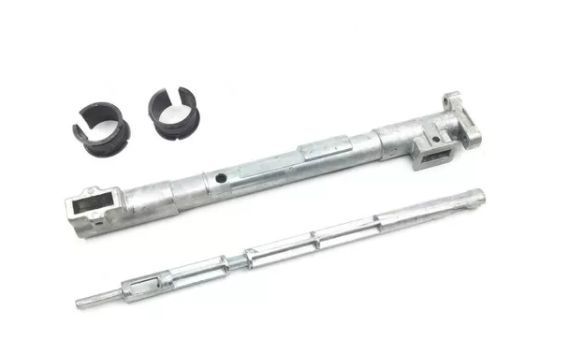

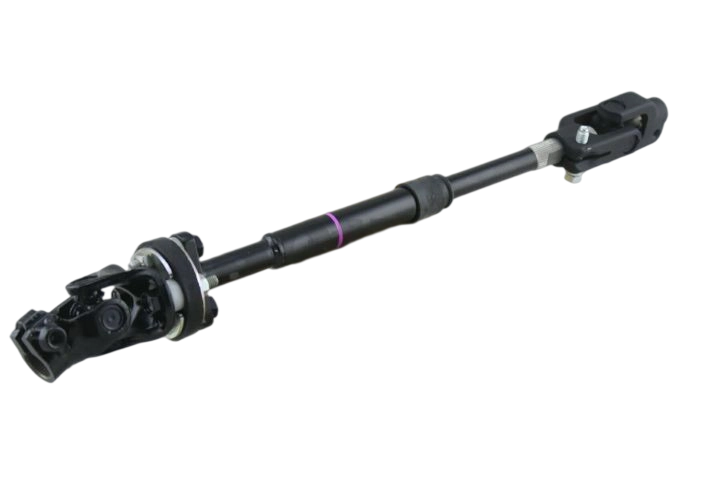

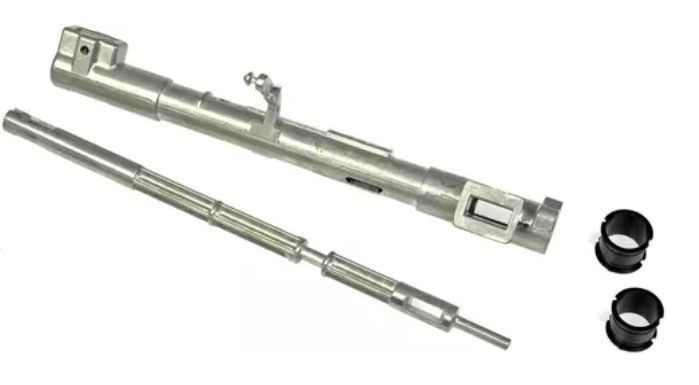

2. Collapsibility: A significant safety feature is the collapsible mechanism, introduced by General Motors in 1967. The inner shaft can collapse in a frontal collision using a tolerance ring, which has wavelike protrusions acting as a spring to hold parts in place under normal conditions. At a specific force level, such as during a collision, the tolerance ring allows the inner shaft to slip inside the housing, absorbing energy and reducing injury risk. This design, with a lattice-mesh outer tube and telescoping inner shaft, first appeared on Chevrolet vehicles and was rolled out globally.

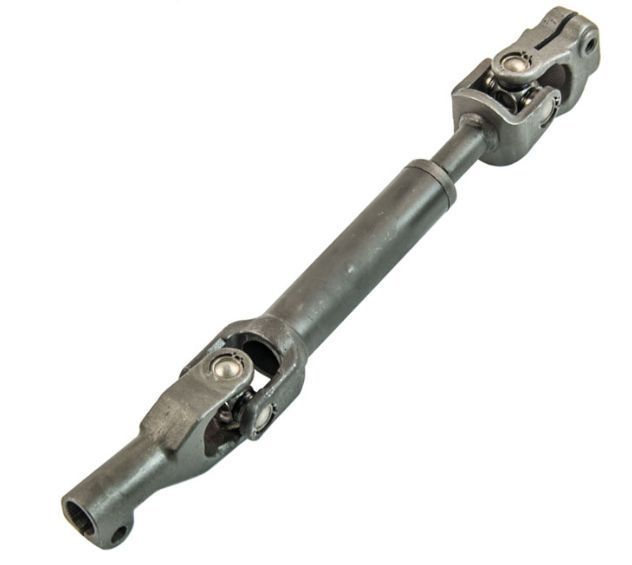

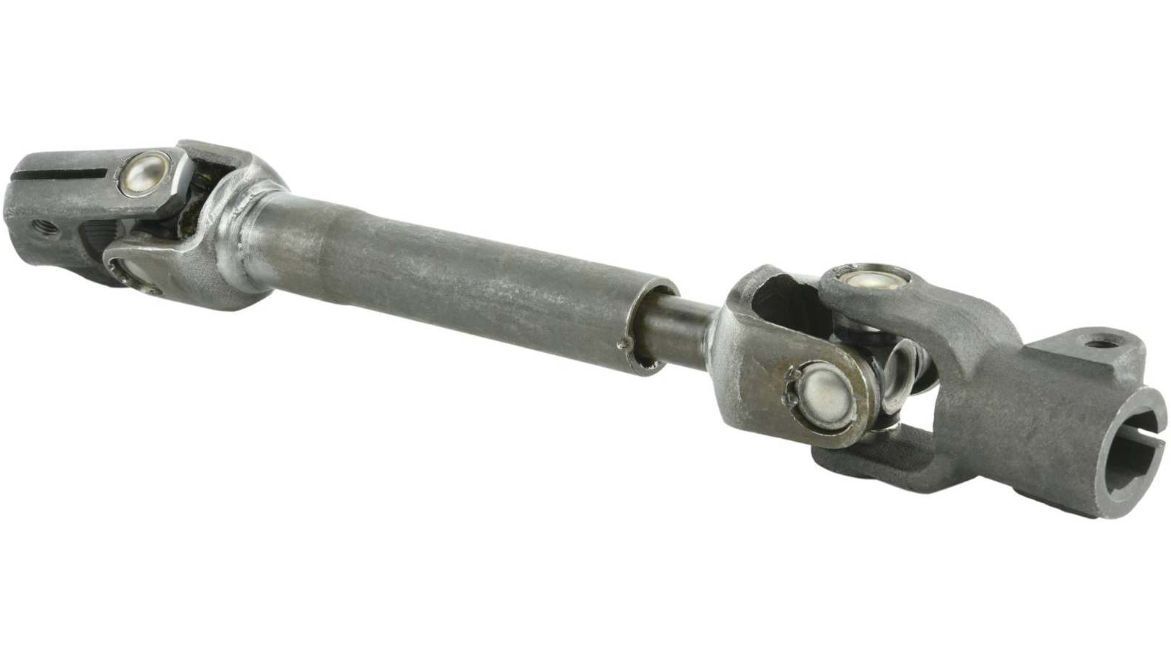

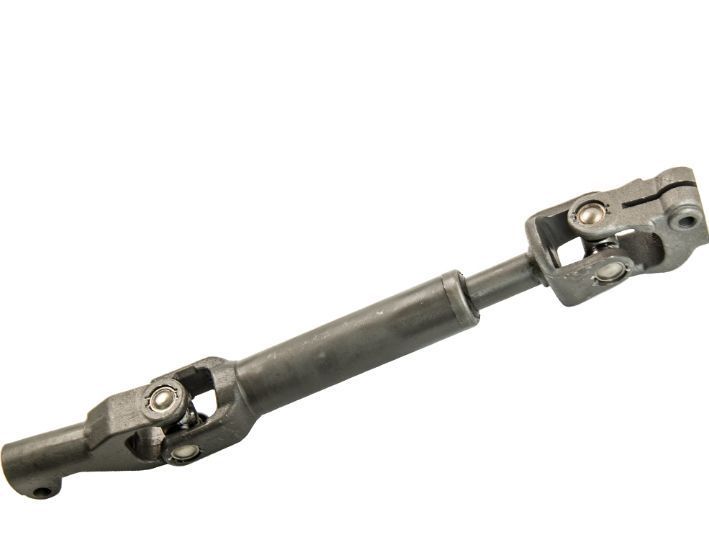

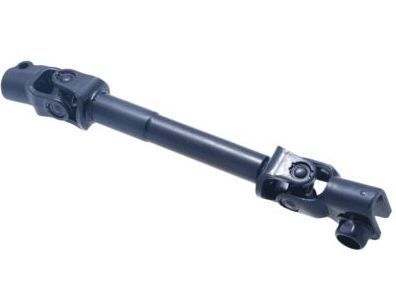

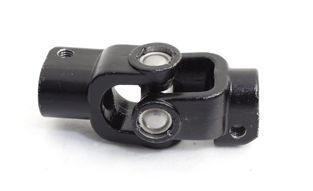

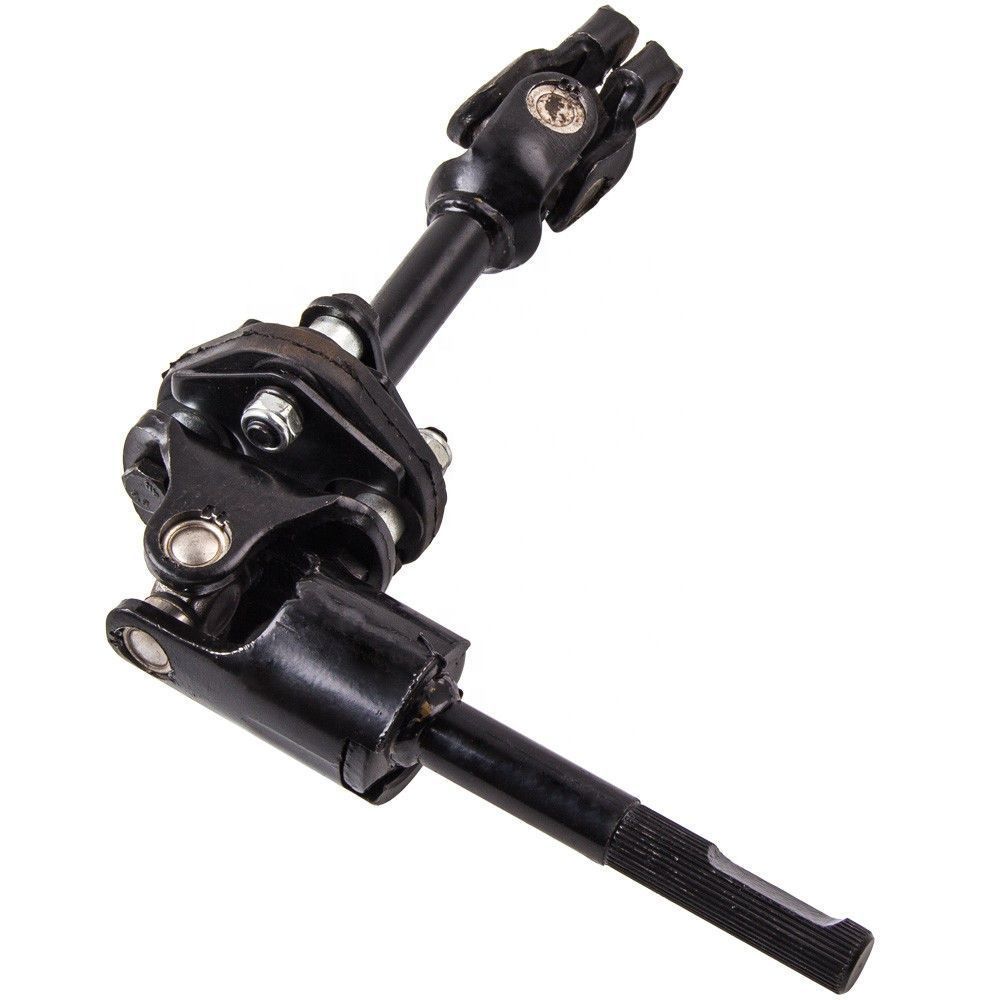

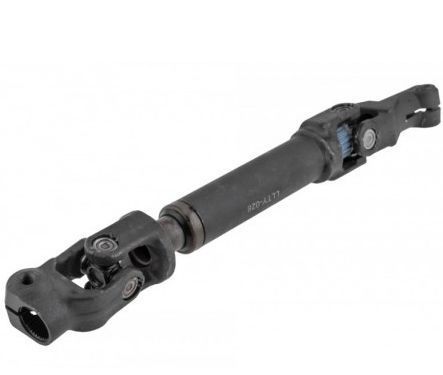

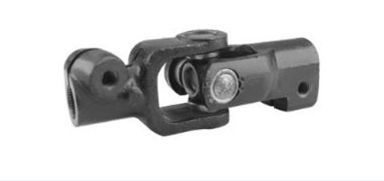

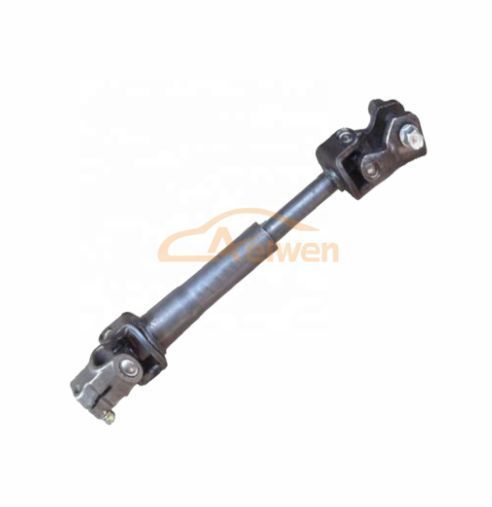

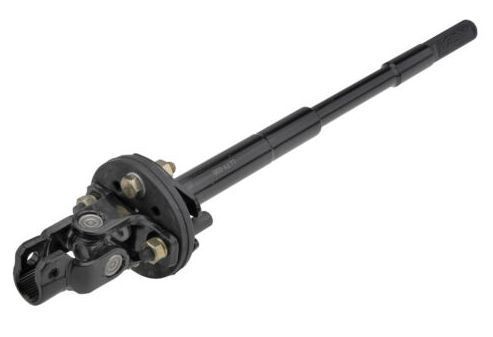

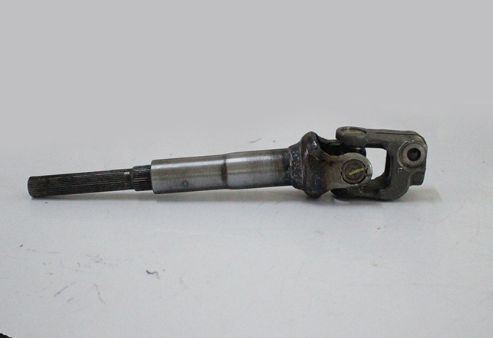

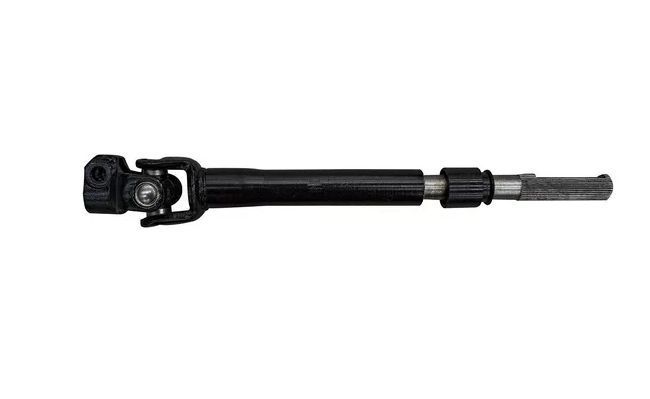

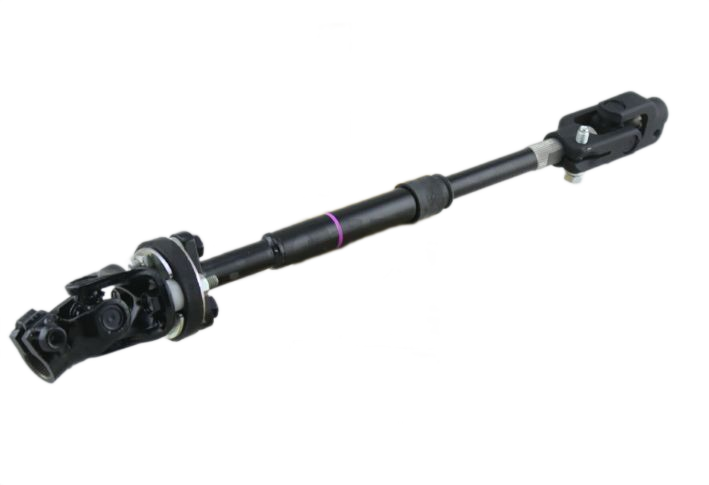

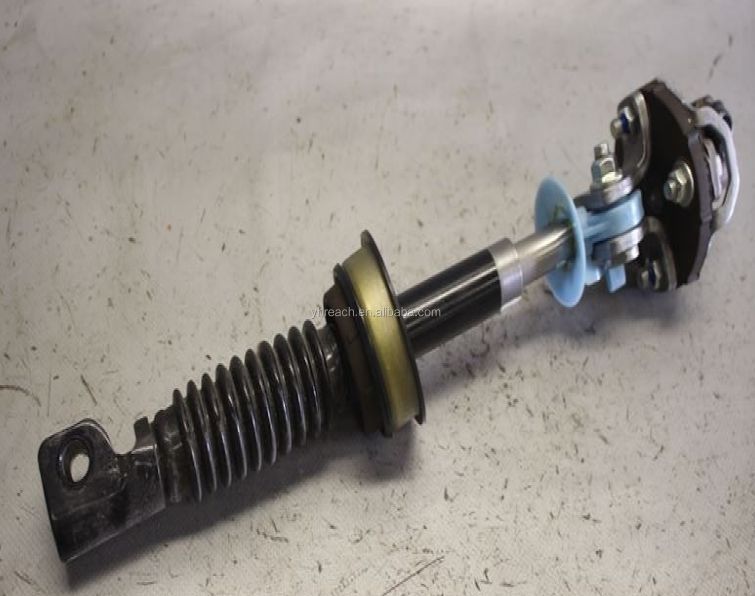

3. Universal Joints: The lower section of the inner shaft is articulated with universal joints, providing movement control during frontal impacts and mounting flexibility for the steering gear, enhancing overall system adaptability.

These features ensure the steering column shaft can handle both everyday driving and extreme conditions, such as racing or accidents, while maintaining driver safety and comfort.

Common Issues and Maintenance

Maintaining the steering column shaft is vital for vehicle safety, with recommendations for regular inspections to catch issues early. The evidence leans toward the following common issues:

1. Difficulty Turning the Wheel: Research suggests that difficulty in turning the steering wheel is a primary symptom, often due to corrosion in the shaft. This can lead to increased effort required for steering, potentially compromising control, especially at low speeds or during parking.
2. Wear and Tear: Over time, the shaft may experience wear, particularly in adjustable or collapsible sections, leading to looseness or binding, which can affect steering responsiveness.
3. Collision Damage: In accidents, the collapsible feature may be compromised, necessitating replacement to restore safety features.

Regular checks during routine maintenance, such as oil changes, can help identify these issues early. If symptoms are observed, it is advisable to have a professional mechanic inspect the steering system, as a faulty shaft can lead to safety hazards, particularly with steering control.

Regulatory and Historical Context

The steering column shaft is subject to stringent regulatory requirements to ensure safety and security:

1. U.S. Regulations: Governed by FMVSS FMVSS 108, 114, and 208 which cover lighting, theft protection, and occupant crash protection, respectively, ensuring the shaft meets safety standards during collisions.
2. Chinese Regulations: Directive GB15740-2006 mandates anti-theft mechanisms, ensuring the steering column, including the shaft, is secure against unauthorized use.
3. EU Regulations: Directive 95/56/EC (1995) requires the steering lock to withstand 100Nm force without failing, enhancing anti-theft measures and driver safety.

Historically, the energy-absorbing steering column, including the shaft, was a significant advancement, with General Motors leading the way in 1967, improving crash safety for drivers worldwide.
