What is a Power Steering Reservoir?
The power steering reservoir is a part of a vehicle's hydraulic power steering system. It holds the hydraulic fluid, which helps make steering easier by assisting the power steering pump in turning the wheels.
How Does It Work?
The reservoir ensures there’s always enough fluid for the pump to pressurize, which then helps move the steering mechanism. It’s maintained by a hose that returns fluid at low pressure, keeping the system ready for use.
Maintenance Tips
- Check the fluid level regularly, especially when the engine is warm, using the reservoir’s dipstick or indicator.
- Look for leaks around the reservoir and hoses to prevent steering issues.
- Change the fluid and filter as recommended, typically every 30,000 to 60,000 miles, and use the right type, like ATF or synthetic hydraulic fluid.
- Watch for signs like whining noises, hard steering, or red fluid leaks, which may need professional attention.
Function and Role in Hydraulic Power Steering Systems
A Power Steering is an integral component of a vehicle's hydraulic power steering (HPS) system, where it plays a crucial role in storing and supplying the hydraulic fluid necessary for steering assistance. The reservoir holds the power steering fluid, which is typically a type of hydraulic oil, often mineral oil or similar to automatic transmission fluid (ATF), to transmit pressure for steering assistance. The fluid is pressurized by the power steering pump, usually a gerotor or rotary vane pump driven by the engine via a belt and pulley system, and delivered to the control valve at the steering gear, assisting in turning the steering wheel. The reservoir ensures a constant supply of fluid, preventing air from entering the system, which could cause cavitation and reduce steering effectiveness.
The Reservoir is maintained by the low side power steering hose, which returns fluid at low pressure, helping to de-aerate and condition the fluid by dissipating kinetic energy and filtering out contaminants. This process is vital for maintaining system pressure, especially at high engine speeds, where a restricting orifice and flow-control valve direct excess pump output back to the reservoir to prevent fast steering operation, and a pressure relief valve prevents dangerous pressure build-up when the hydraulic cylinder's piston reaches the end of its stroke.
Components and Construction
The power steering reservoir typically includes several key features:

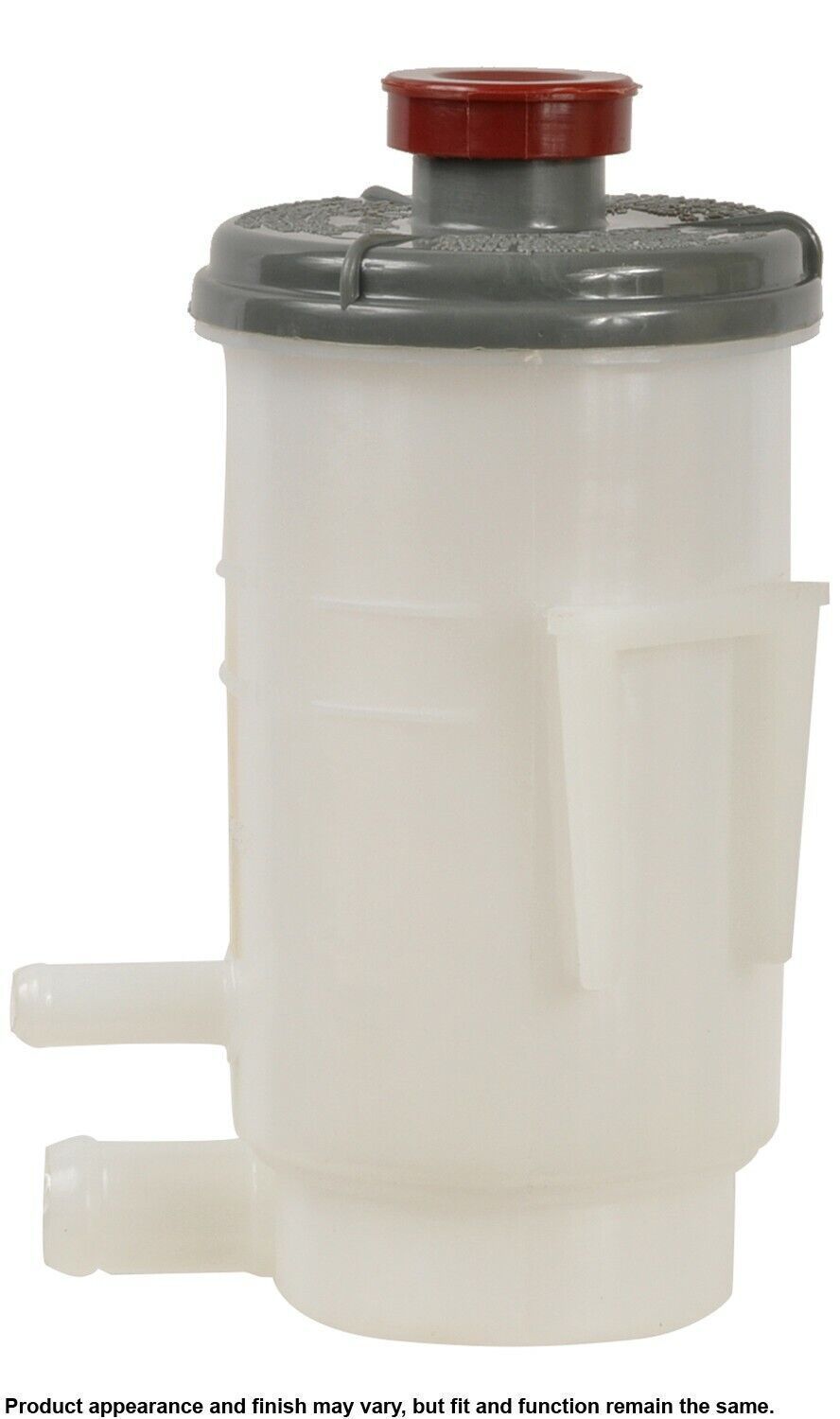

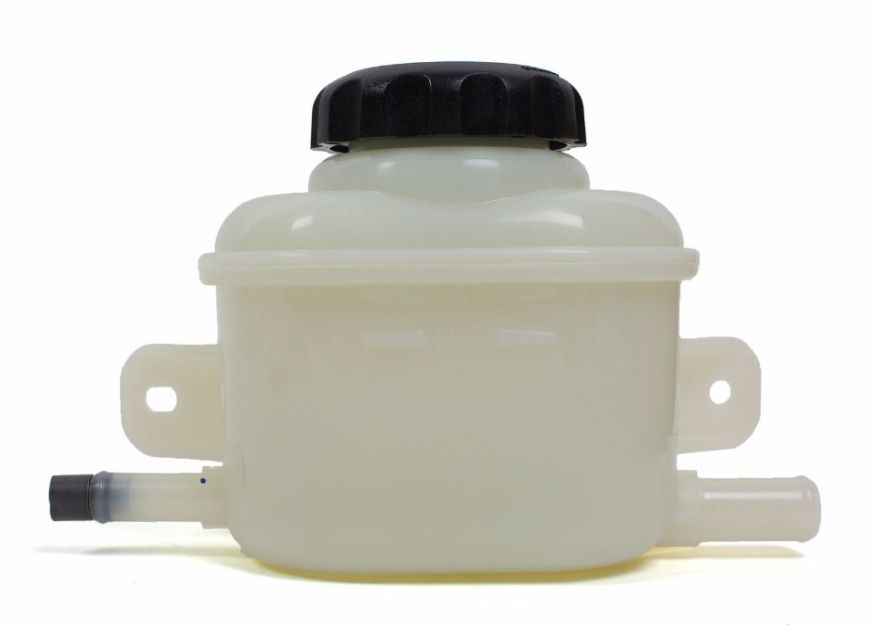

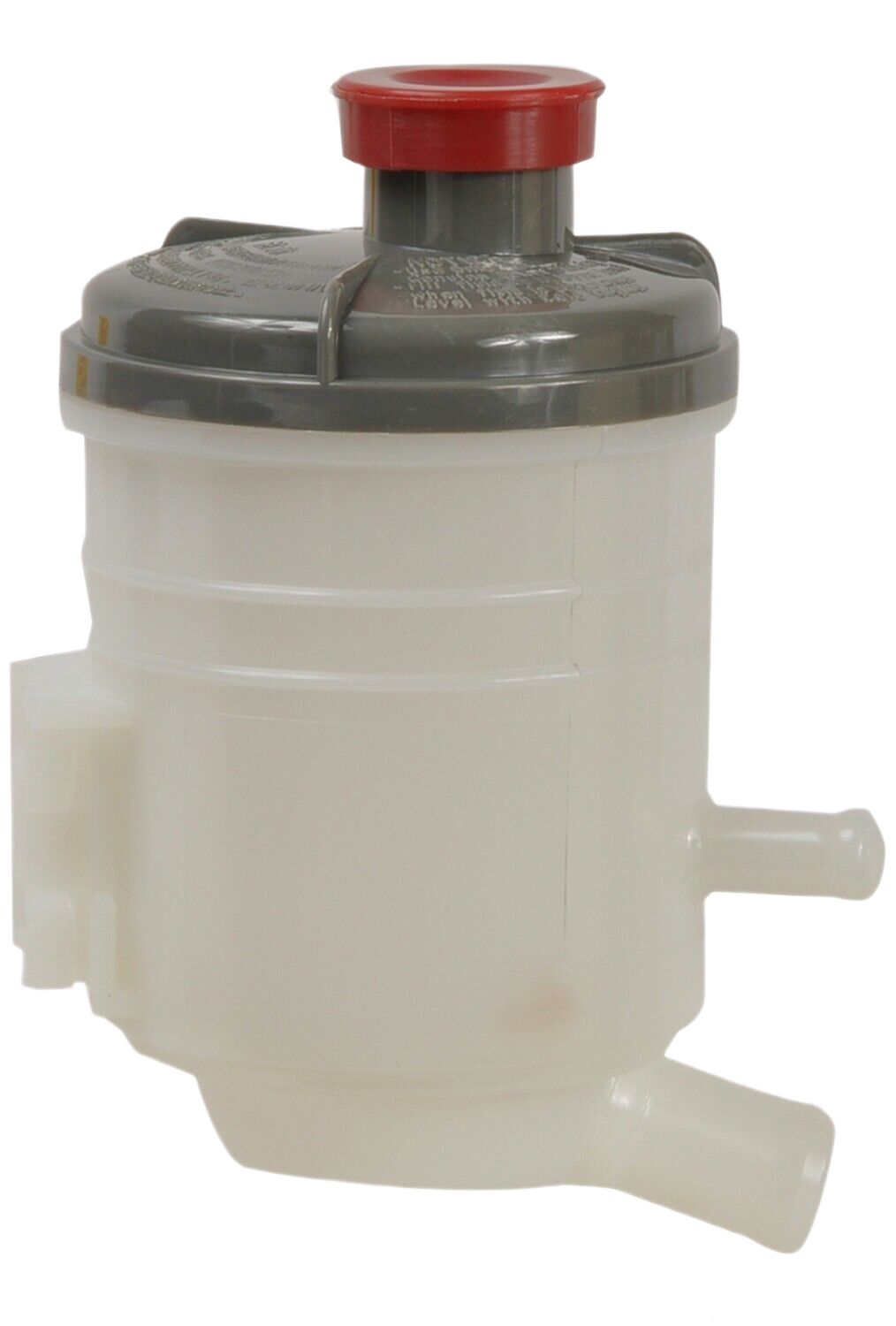

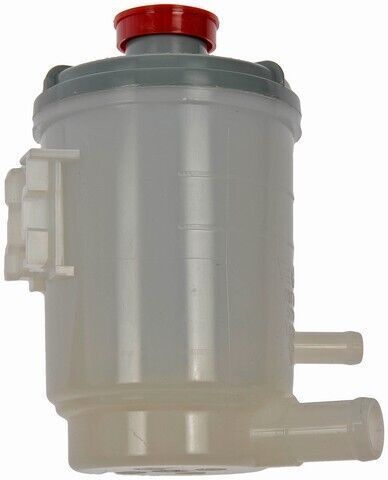

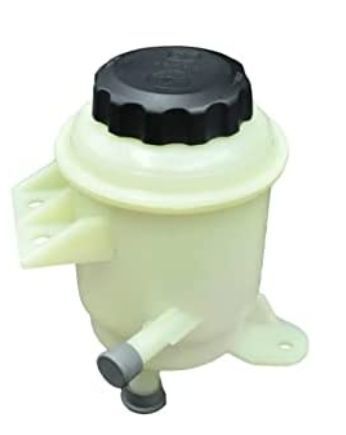

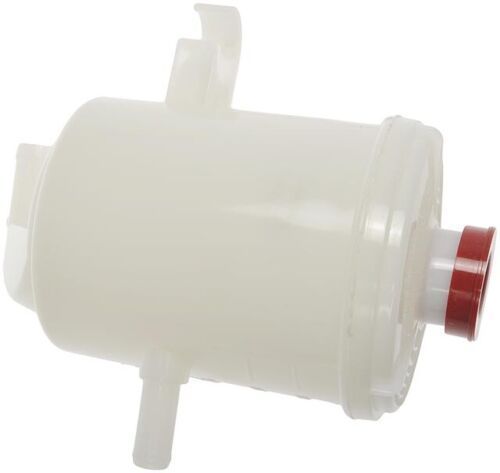

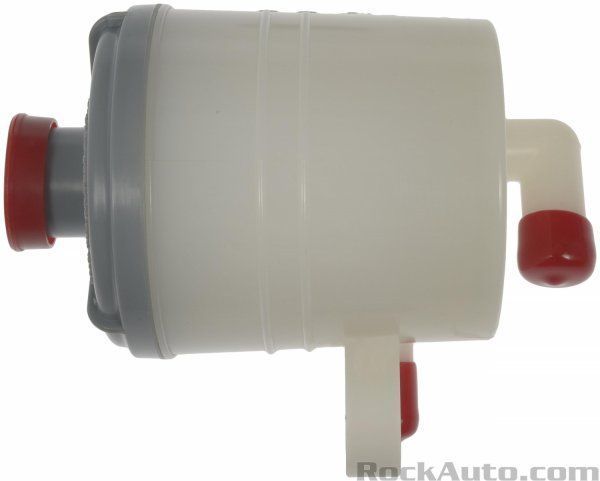

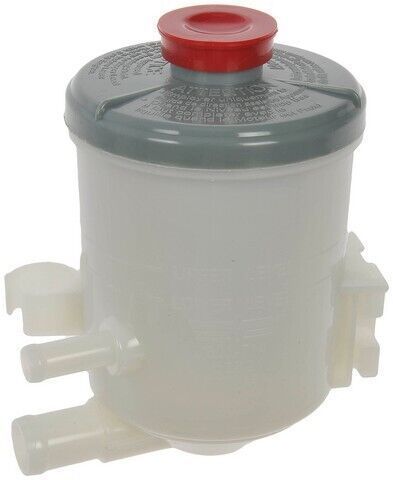

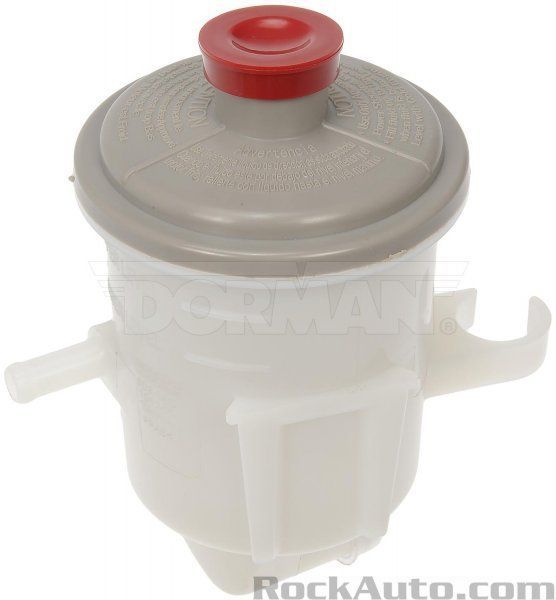

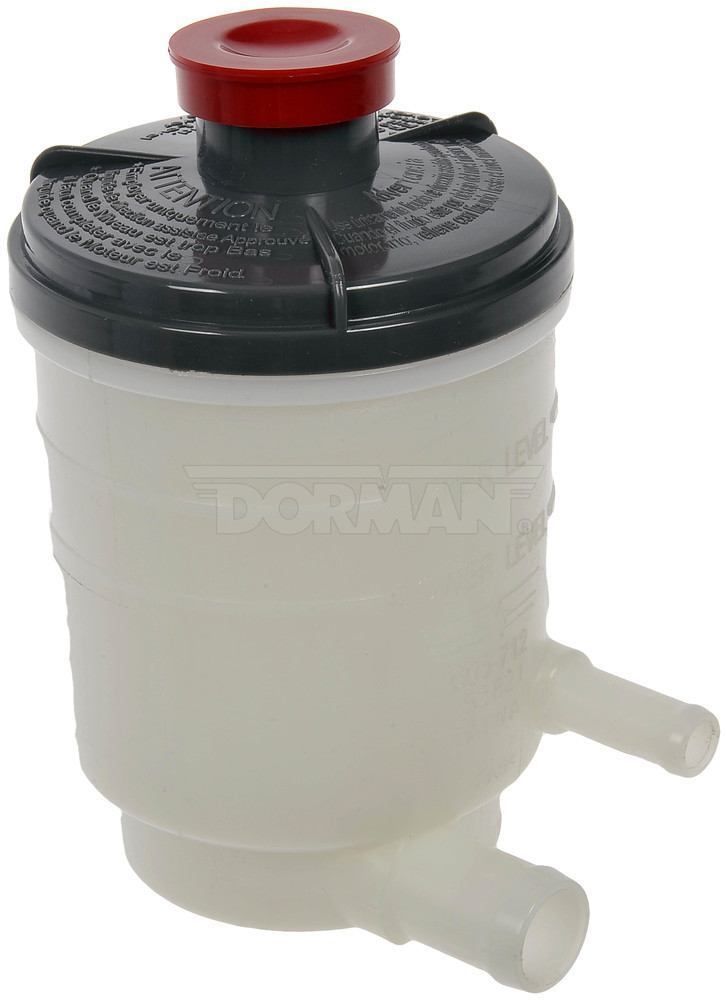

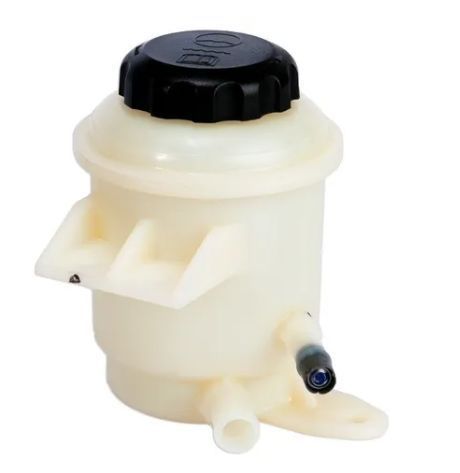

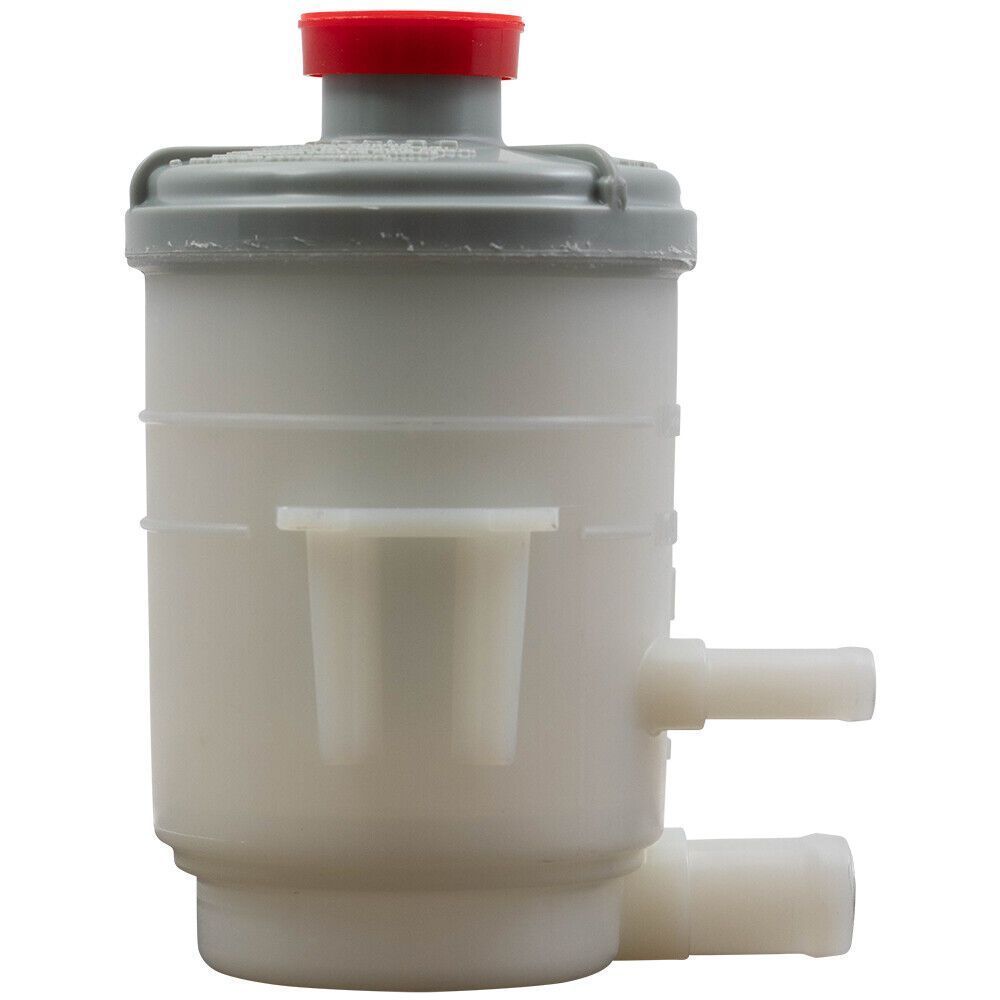

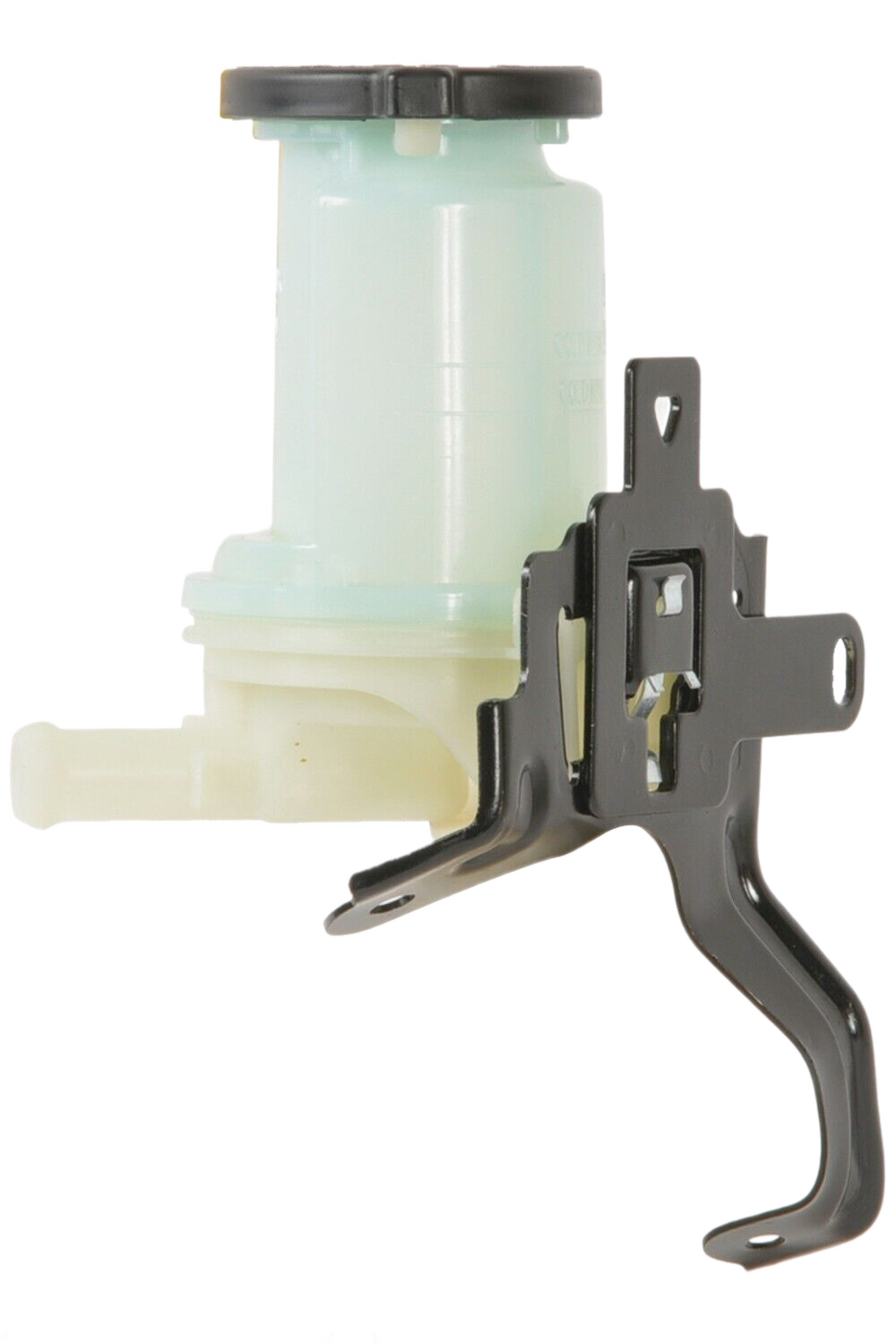

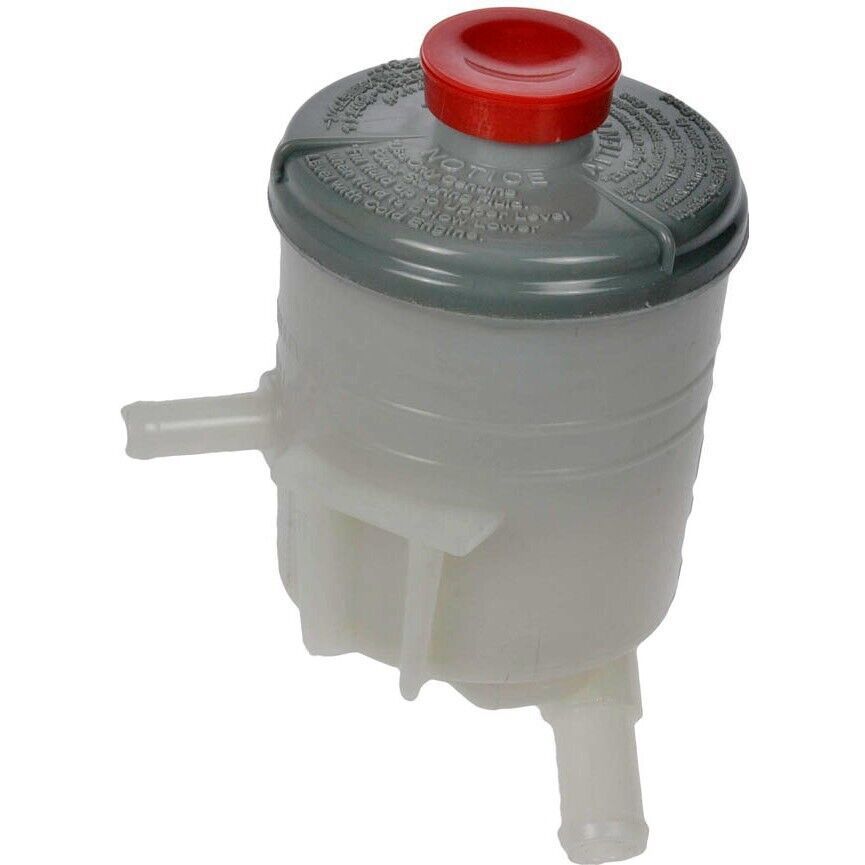

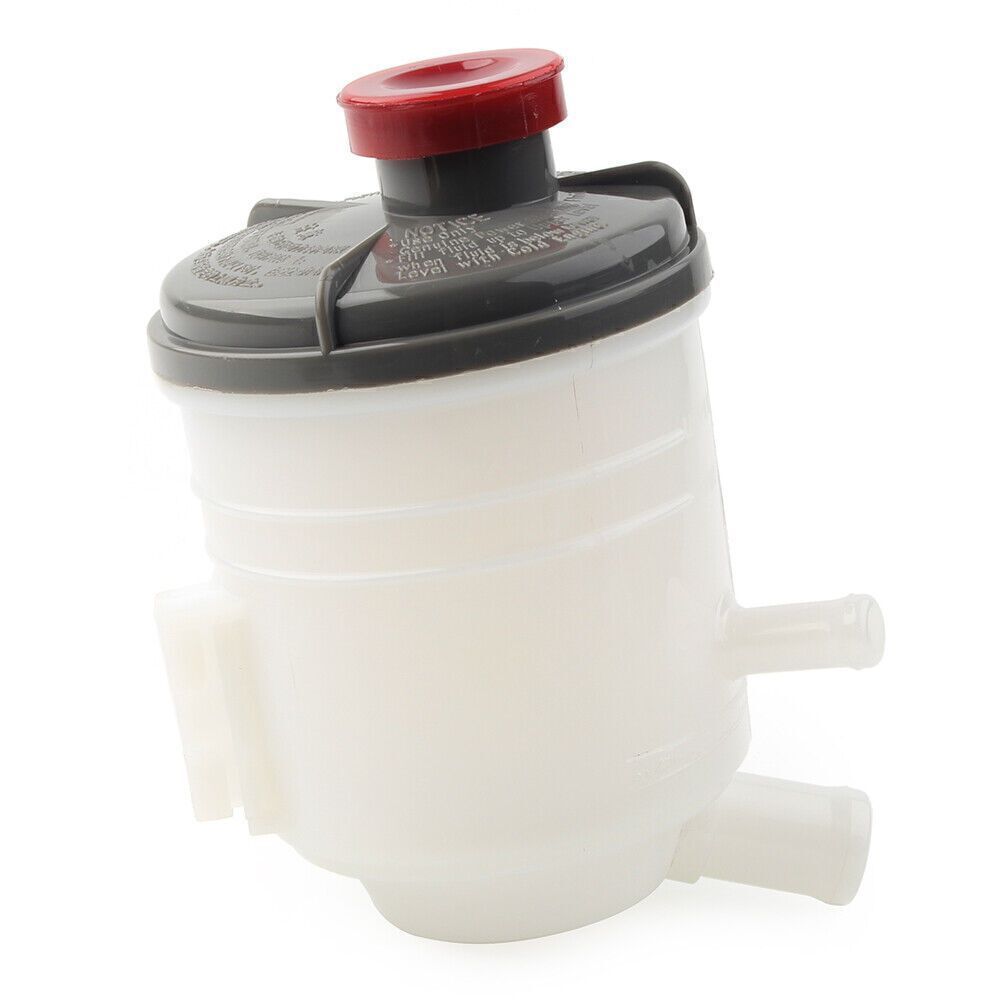

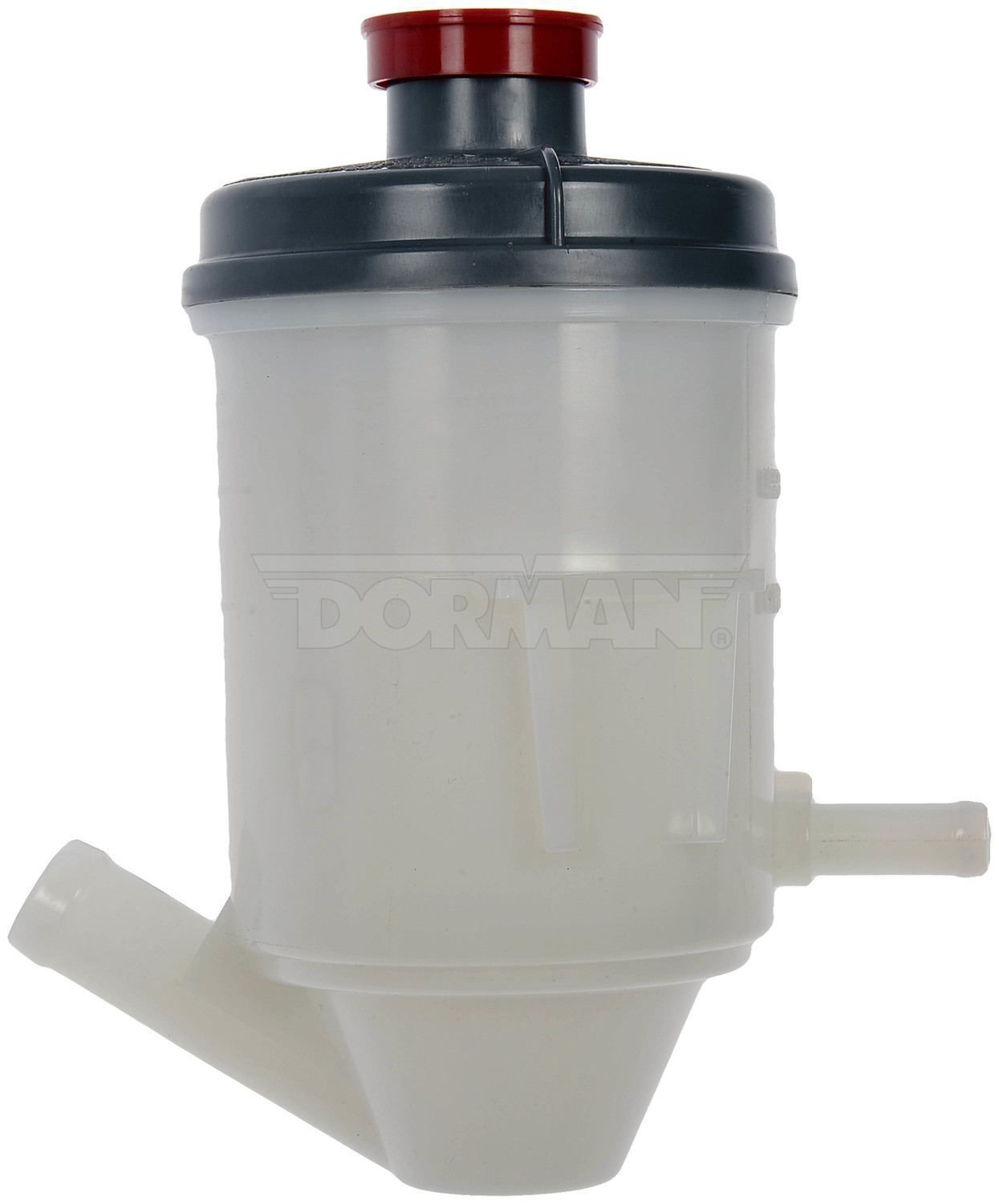

- Reservoir Tank: A container designed to hold a sufficient amount of power steering fluid, often with an opening for refilling and a breathable cap to allow air exchange while preventing fluid leakage.

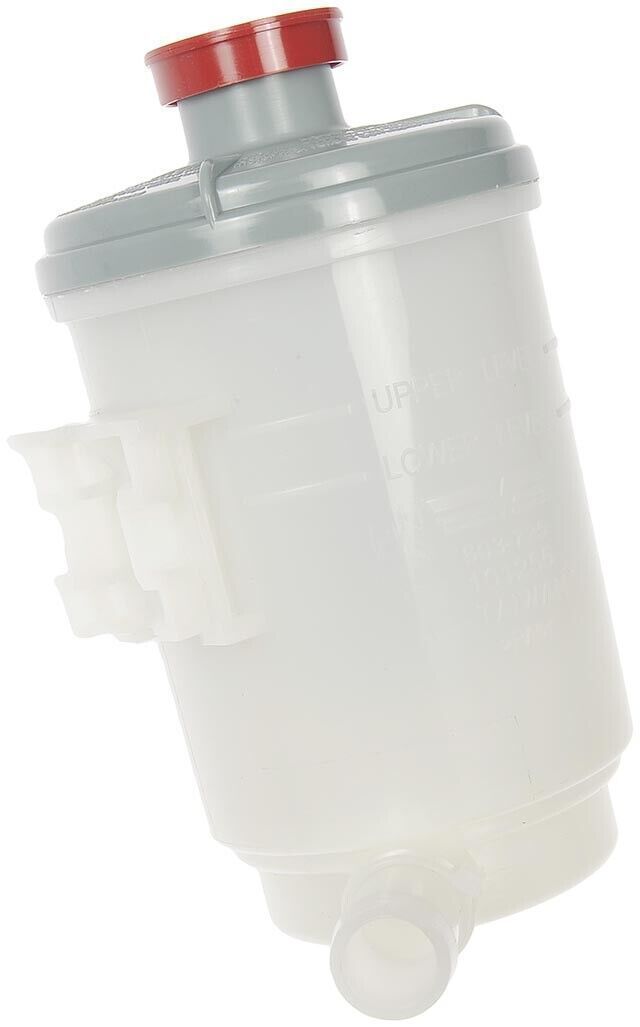

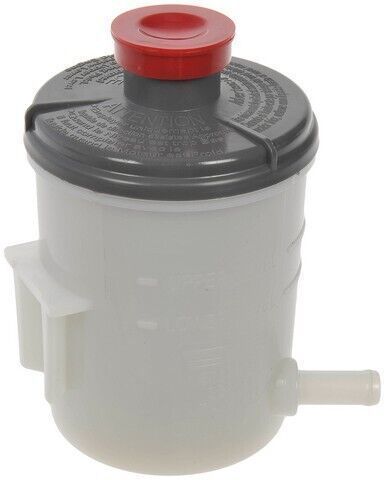

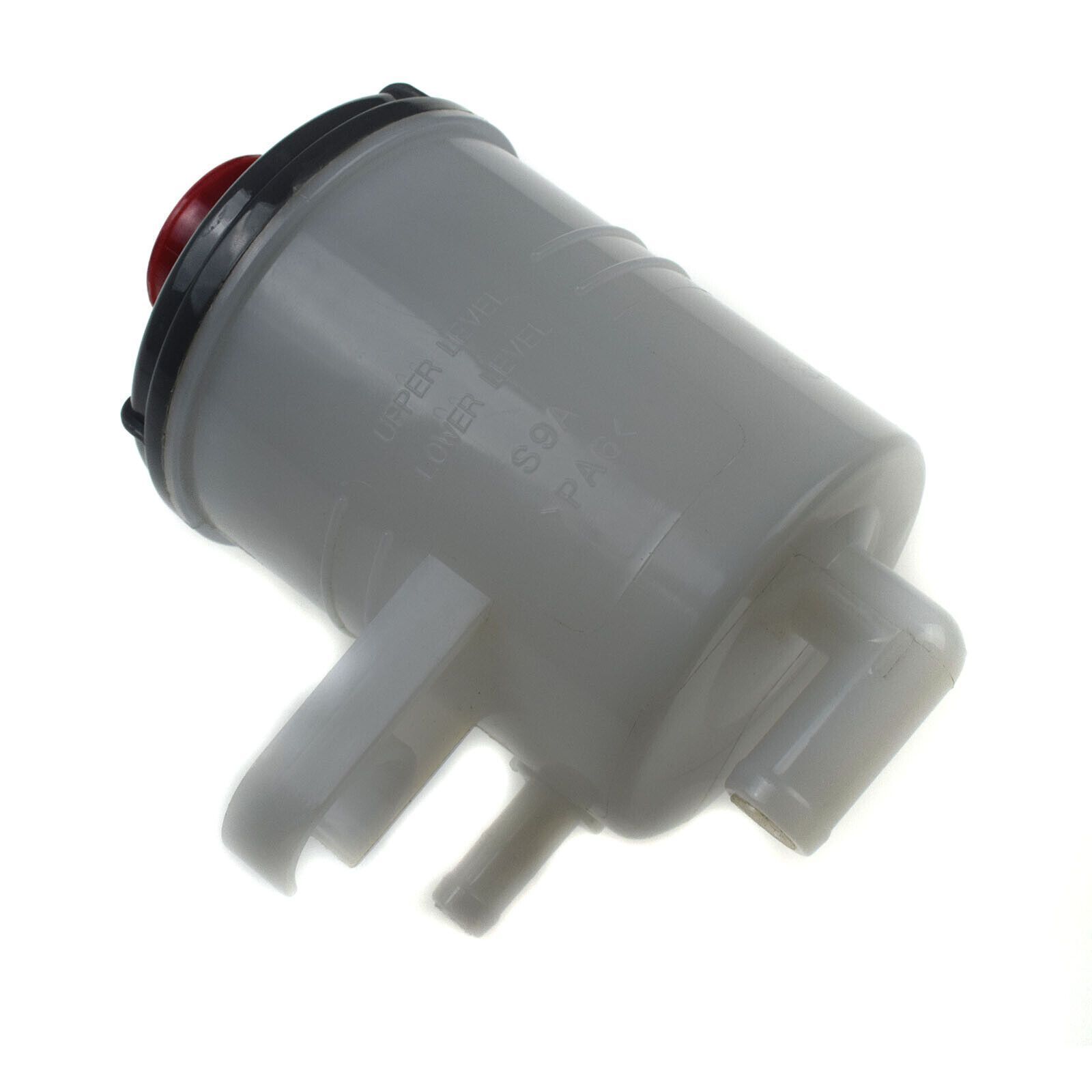

- Fluid Level Indicator: Many reservoirs incorporate a dipstick or transparent window for easy monitoring and maintenance of the fluid level, ensuring owners can check levels without disassembling parts.
- Baffles and Filters: To prevent foaming and aeration, the reservoir often includes baffles or deflectors that help dissipate the kinetic energy of returning fluid, and filters to maintain fluid cleanlines.
These components work together to ensure the hydraulic fluid remains in optimal condition, supporting the system's ability to multiply the force applied to the steering wheel, aiding in steering the road wheels, especially at low speeds where manual effort would be significant.
Summary Table of Key Aspects
| Aspect | Details |
|---|
| Function | Stores and supplies hydraulic fluid for steering assistance, maintained by low pressure return hose. |
| Components | Reservoir tank, fluid level indicator, baffles, filters; holds fluid like mineral oil or ATF. |
| Maintenance | Check fluid levels regularly, inspect for leaks, change fluid/filter every 30,000-60,000 miles, use correct fluid type. |
| Signs of Wear | Whining noises, hard steering, red fluid leaks; requires professional service for complex issues. |
| Recent Trends | Shift to EPS reducing reservoir use, but HPS remains in older/heavy-duty vehicles; focus on maintenance.
|
