Power Steering Pump

What is a Power Steering Pump?

A power steering pump is a component that helps make steering easier by providing hydraulic pressure in traditional systems. It is usually driven by the engine and is essential for vehicles with hydraulic power steering.

How It Works

In hydraulic systems, the pump pressurizes fluid, which then assists in turning the wheels when you steer. For electric systems, an electric motor provides assistance, and there isn't a traditional pump, but hybrid systems may use an electric motor to drive a pump.

Maintenance and Trends

The evidence leans toward regular checks of fluid levels and leaks for hydraulic systems. As of 2025, there is a trend towards electric systems for their fuel efficiency, especially in electric vehicles.

Function and Role in Steering Systems

A Power Steering is typically a component in a vehicle's hydraulic power steering (HPS) system, where it plays a crucial role in assisting the driver in turning the steering wheel. The pump pressurizes hydraulic fluid, which is then used to multiply the force applied to the steering wheel inputs, enabling easier turning of the road wheels, usually the front wheels. This hydraulic pressure is generated by a gerotor or rotary vane pump, driven by the vehicle's engine via a belt and pulley system. The steering wheel operates valves to control the flow of fluid to a cylinder, with more torque applied increasing the fluid flow and thus the steering force. A torque sensor, often a torsion bar, measures the applied torque, controlling the valve to provide assistance; greater twist increases the force applied.

However, in modern vehicles, electric power steering (EPS) systems are increasingly common, which use an electric motor to provide steering assistance directly, eliminating the need for a traditional hydraulic pump. In EPS systems, the assistance is controlled by sensors detecting the driver's input and vehicle speed, adjusting the motor's output accordingly. There are also electro-hydraulic power steering (EHPS) systems, which use an electric motor to drive the hydraulic pump, offering a hybrid approach.

The function of the power steering pump in HPS systems is to ensure that steering remains manageable, especially at low speeds, enhancing driver comfort and safety. For EPS systems, the absence of a pump reduces energy waste, as the motor only activates when assistance is needed, contributing to improved fuel efficiency.

Components and Construction

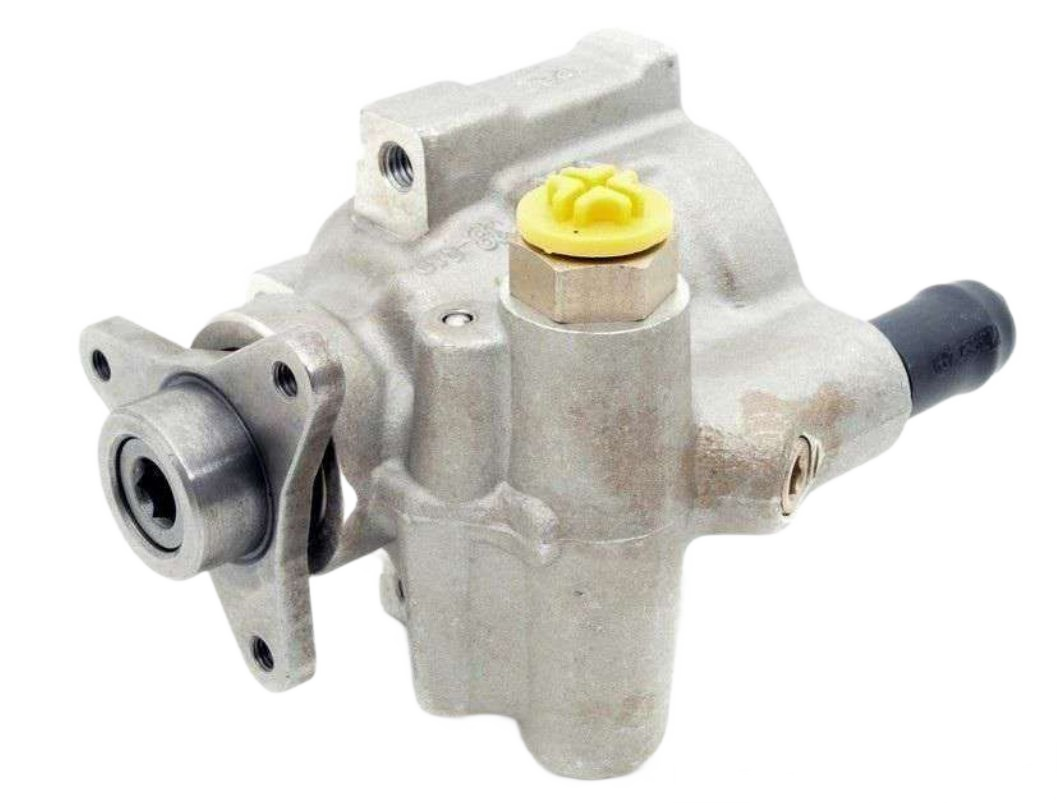

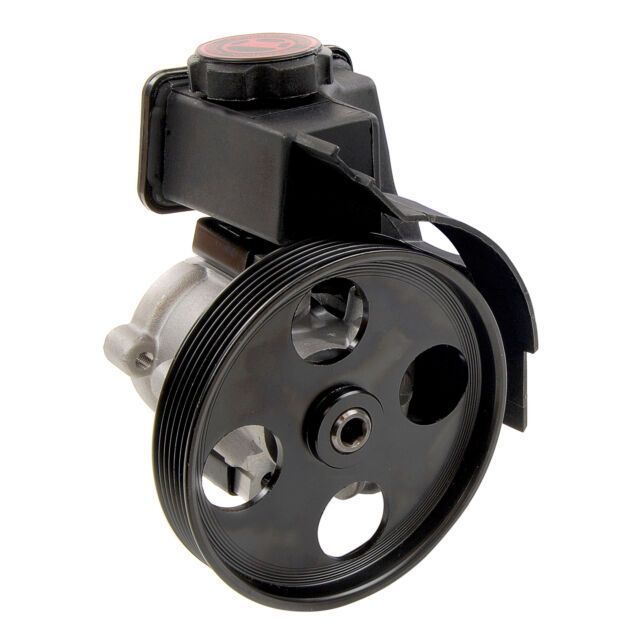

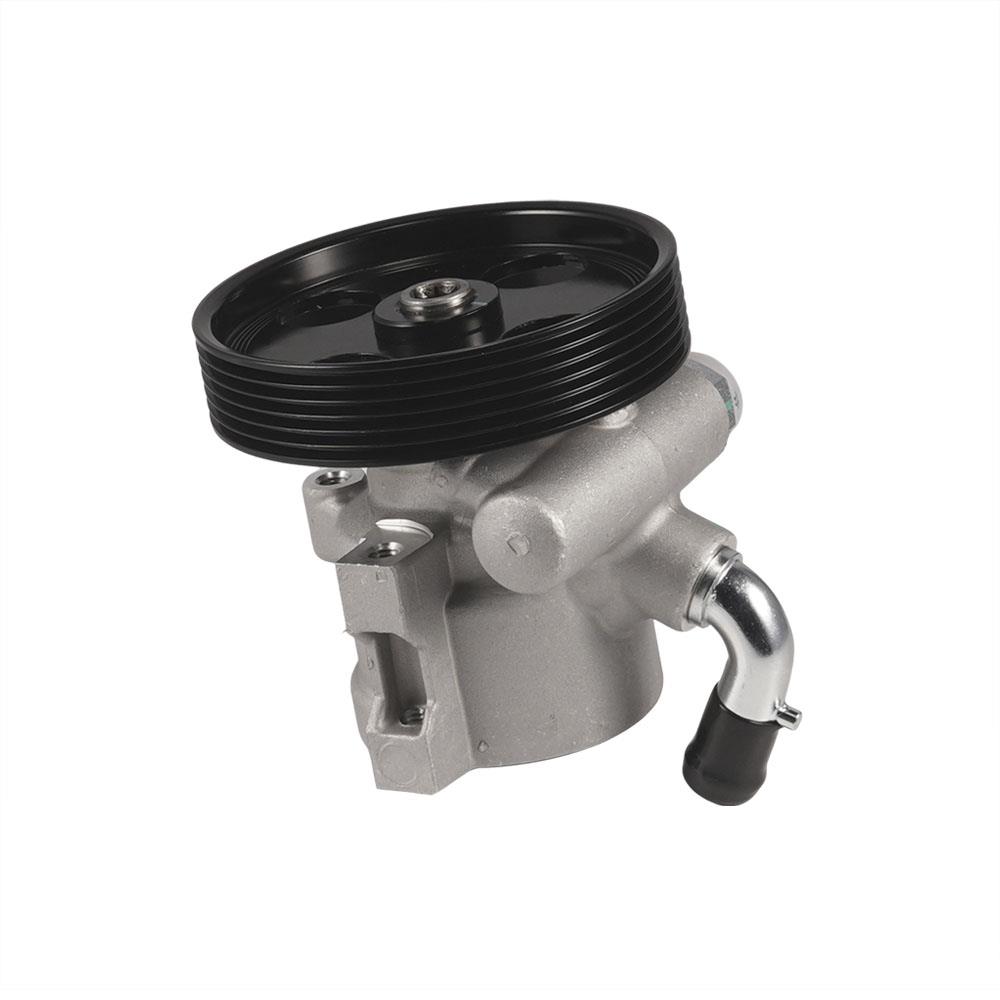

In HPS systems, the power steering pump is typically a rotary-vane or gerotor pump, containing retractable vanes or lobes that spin inside a chamber to pull hydraulic fluid from a return line at low pressure and force it into the outlet at high pressure. The pump is connected to the engine via a serpentine belt or accessory drive, providing the necessary power to pressurize the fluid. The pressurized fluid is then directed to the steering gear, which can be a rack-and-pinion or recirculating ball system, depending on the vehicle design.

For EPS systems, the key components include the steering gear, electric motor, control module, and sensors, with no hydraulic pump involved. The motor can be located at the column, pinion, or rack, depending on the system type (Column Assist, Pinion Assist, or Rack Assist). EHPS systems combine elements of both, with an electric motor driving a hydraulic pump, maintaining the hydraulic assistance but powered electrically rather than by the engine belt.

Types of Power Steering Systems

The automotive industry has evolved to include several types of power steering systems, each with distinct characteristics:

1. Hydraulic Power Steering (HPS): Uses a belt-driven pump to pressurize hydraulic fluid, common in older vehicles but still used for its direct feel and reliability. The pump must be designed to provide adequate flow even at idle, with a pressure-relief valve to prevent over-pressurization at high engine speeds.
2. Electric Power Steering (EPS): Employs an electric motor for assistance, consuming energy only when needed, leading to improved fuel economy and reduced emissions. Types include Column Assist, Single-Pinion Assist, Dual-Pinion Assist, and Rack Assist, each varying by motor location and application.
3. Electro-Hydraulic Power Steering (EHPS): A hybrid system where an electric motor drives the hydraulic pump, offering the benefits of hydraulic assistance with the efficiency of electric power. This system is less common but provides a bridge between HPS and EPS.

The shift from HPS to EPS is driven by the need for energy efficiency, with EPS systems becoming the norm in new vehicles, especially electric vehicles (EVs), due to their compatibility and reduced maintenance needs.

Maintenance and Signs of Wear

Maintaining power steering systems is vital for vehicle safety, with specific considerations for each type:

1. Hydraulic Systems: Regular checks of power steering fluid levels are recommended, typically after the car has warmed up, using the reservoir's dipstick or indicator lines. The fluid should be flushed every 30,000 miles to prevent contamination from dirt and debris, which can cause the pump to work harder and wear out prematurely. Signs of a failing pump include groaning or growling noises, leaks of red power steering fluid (similar to transmission fluid), and decreased steering assistance. Leaks can occur at hose connections, lines, or around the pulley shaft if overfilled, and can be identified by cleaning the system with brake cleaner and running the engine to spot the source.
2. Electric Systems: EPS systems require less maintenance but may need software updates or calibration of steering position sensors, especially after steering system service or alignment. Diagnosing issues may require advanced scan tools and an understanding of CAN buses, with potential for sensor calibration programs at repair shops.

The evidence suggests that driving with a failing power steering pump, especially in HPS systems, can lead to loss of assistance, making steering significantly harder, though still possible manually. Regular inspections, such as during oil changes, are recommended to check for leaks and wear, enhancing safety and longevity.

Recent Advancements and Market Trends

As of 2025, the automotive power steering market is witnessing significant growth, with the EPS market projected to reach $51.65 billion, expanding at a CAGR of 6.3% from 2025 to 2033, driven by demand for fuel-efficient vehicles and integration with ADAS and autonomous driving technologies. The North America Electro-Hydraulic Power Steering Market is also growing, with a CAGR of approximately 5% from 2025 to 2033, fueled by technological advancements and consumer preferences for enhanced safety and comfort .

The shift from hydraulic to electric power steering is a primary driver, with EPS systems consuming energy only when steering assistance is needed, leading to improved fuel efficiency and reduced emissions. The increasing production of electric vehicles (EVs) is further boosting the EPS market, as these systems are crucial for enhancing vehicle performance and safety. Technological disruptions include the development of smart steering systems that integrate with vehicle sensors and control units, offering improved steering precision and safety, particularly in emerging economies with rapid vehicle production growth.

Summary Table of Key Aspects

This table encapsulates the critical information, providing a quick reference for vehicle owners and mechanics.
