King Pin Set

What is a King Pin Set?

A king pin set is a collection of parts, like the king pin, bushings, washers, and nuts, used in the steering system of heavy-duty vehicles such as trucks and trailers. It helps connect the steering knuckle to the axle, allowing the wheels to turn while supporting the vehicle's weight.

How Does It Work?

It enables the wheels to pivot for steering, with the king pin acting as a durable pin and bushings reducing friction. Some sets have features like grooved bushings for better lubrication, holding up to 300% more grease than standard, and self-cleaning to expel debris.

Signs of Wear

Look for shaking in the cab or steering wheel, uneven tire wear, rough handling, unusual noises like clanging, steering pulling to one side, play in the king pin, vibration at specific speeds, and difficulty steering. Regular checks and lubrication are key for safety.

Function and Role in Steering Systems

A king pin set is a critical component in the steering system of certain vehicles, particularly older or heavy-duty trucks, trailers, and some off-road vehicles. It is part of the king pin steering system, which is less common in modern passenger cars but still essential in larger vehicles like semi-trucks, buses, and trailers. The king pin set includes the king pin (a hardened steel pin), bushings, washers, nuts, and sometimes bearings, all working together to connect the steering knuckle to the axle, allowing the wheels to turn while supporting the vehicle's weight.

1. Steering Control: The king pin set enables the wheels to pivot by connecting the steering knuckle to the axle, ensuring smooth and controlled steering. This is crucial for maintaining vehicle direction, especially during turns or on uneven terrain.
2. Weight Support: It supports the vehicle's weight, particularly in heavy-duty applications where the front axle must handle significant loads. The king pin must withstand constant turning and pounding, making durability a key factor.
3. Lubrication and Protection: Modern king pin sets, often include features like grooved, no-ream steel bushings that hold 300% more grease than standard sets, providing optimal lubrication to high-wear areas. Self-cleaning bushings expel debris, reducing premature wear and enhancing longevity.
4. Safety: Properly functioning king pins are essential for maintaining vehicle stability, especially at high speeds or during sharp maneuvers. Failure can lead to loss of steering control, posing significant safety risks.

In heavy-duty vehicles, king pins are crucial for maintaining alignment and ensuring the vehicle can handle heavy loads without compromising steering performance. Unlike ball joints used in smaller vehicles, king pins provide a solid, durable connection that supports the massive weight and demands of heavy trucking.

Components and Construction

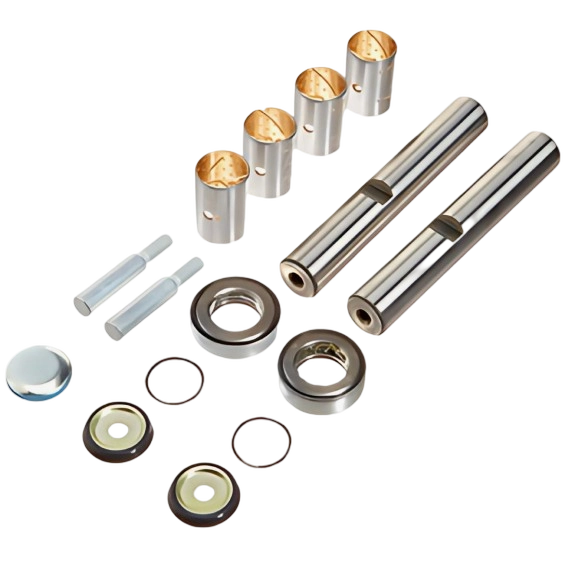

A typical king pin set includes the following components, each designed for durability and performance:

1. King Pin: A hardened steel pin, often made of proprietary high-chrome, high-carbon tool steel, balancing strength and resilience. It connects the steering knuckle to the axle, withstanding constant mechanical stress.
2. Bushings: These are typically made of steel or bronze and are designed to reduce friction between the king pin and the steering knuckle. Modern bushings may be grooved for better lubrication and self-cleaning to expel debris, reducing premature wear. Some sets, like the TRUEFIT PLUS™ series, include bi-metal bronze bushings engineered as a perfect match to the king pin, eliminating the need for reaming.
3. Washers and Nuts: These secure the king pin in place, ensuring it remains tightly fitted and can handle the forces involved in steering.
4. Bearings (in some sets): High-quality bearings, meet or exceed ABMA specifications for bearing life, enhancing the set's durability.
5. Additional Features: Advanced king pin sets may include hardened lock pins to reduce axle damage, lip seals to keep contaminants out, and no-ream bushings for easier installation, improving maintenance efficiency.

The construction is designed to handle the mechanical stresses of steering while providing a barrier against environmental factors, such as road salt, mud, and debris, ensuring long-term performance.

Maintenance and Signs of Wear

Maintaining king pin sets is vital for vehicle safety, with recommendations for regular inspections to catch issues early. The evidence leans toward the following practices:

1. Inspection Frequency: King pins should be checked during routine maintenance, especially for heavy-duty vehicles. Look for signs of wear, such as play, unusual noises, or uneven tire wear. Inspections can be conducted by jacking up the front axle and wiggling it left to right, up and down, to check for excessive movement.
2. Lubrication: Proper lubrication is critical. King pin bushings must be greased regularly to prevent metal-on-metal contact, which can accelerate wear. Less-than-ideal grease intervals or use of incorrect grease can cause the protective layer to break down, leading to bushing erosion bushing erosion. Modern sets like STEMCO's hold 300% more grease, reducing the need for frequent lubrication.
3. Signs of Wear or Damage: Common symptoms include:

Shaking Cab or Steering Wheel: A noticeable shake, especially at certain speeds (e.g., around 45 mph), can indicate worn king pins.

Uneven Tire Wear: Worn king pins can cause misalignment, leading to uneven or premature tire wear, often showing a cupping pattern.

Rough Handling: The vehicle may feel unstable or difficult to control, particularly during turns or on rough roads.

Unusual Noises: Clanging, popping, or grinding sounds from the steering area during turns or axle movement can signal excessive wear.

Steering Issues: The vehicle may pull to one side or feel loose and unresponsive, which can be dangerous, especially at high speeds.

Play in the King Pin: Excessive movement (play) when the front axle is jacked up indicates wear, which can be checked by lifting the tire with a bar and looking for movement.

Vibration at Specific Speeds: A progressive shake or vibration that worsens over time can point to king pin failure.

Difficulty Steering: The steering wheel may feel loose or require more effort to turn, indicating potential failure.

If any of these symptoms are present, it is essential to inspect and potentially replace the king pin set to prevent further damage or safety hazards.
