Clock Spring

What is a Clock Spring?

A clock spring, also known as a spiral cable, is a critical component in a vehicle's steering system. It ensures electrical connections between the steering wheel and the car's systems, like the airbag and horn, remain intact as you turn the wheel.

Location and Function

It's located between the steering wheel and the steering column, appearing as a coiled, circular device (often black or yellow) with wires. It allows the wheel to rotate freely while maintaining connections for airbag deployment, horn functionality, and other controls like cruise control.

Signs of Failure and Replacement

If it fails, you might notice the horn not working, cruise control issues, an illuminated airbag warning light, or unusual noises when turning. Replacement is needed if damaged, typically after wear or an airbag deployment, and should be done by a professional to ensure safety.

Function and Role in Steering Systems

A clock spring, also referred to as a spiral cable, coil spring unit, clock spring coil, cable reel assembly, contact reel, or coil assembly, is a critical component in a vehicle's steering system. Its primary function is to maintain electrical continuity between the steering wheel and the vehicle's electrical systems while allowing the steering wheel to rotate freely. This is essential for several key functions:

• Airbag Deployment: The clock spring ensures that the driver's airbag can deploy correctly during a collision by maintaining the necessary electrical connection to the car's computer. A malfunctioning clock spring could prevent this critical safety feature from operating as intended, posing significant risks.
• Horn and Other Controls: It provides the electrical pathway for the horn to function and ensures that other steering wheel-mounted controls, such as cruise control, audio adjustments, and phone connectivity buttons, work properly. Without it, these features would fail as the steering wheel turns.
• Steering Wheel Rotation: The clock spring's coiled design allows it to expand and contract, accommodating the full range of steering wheel rotation (typically several turns lock-to-lock) without tangling or breaking the electrical connections. This is crucial for maintaining functionality during normal driving maneuvers.

The clock spring is particularly important in modern vehicles, where steering wheels often have multiple integrated controls, making it a vital link for both safety and convenience features.

Location

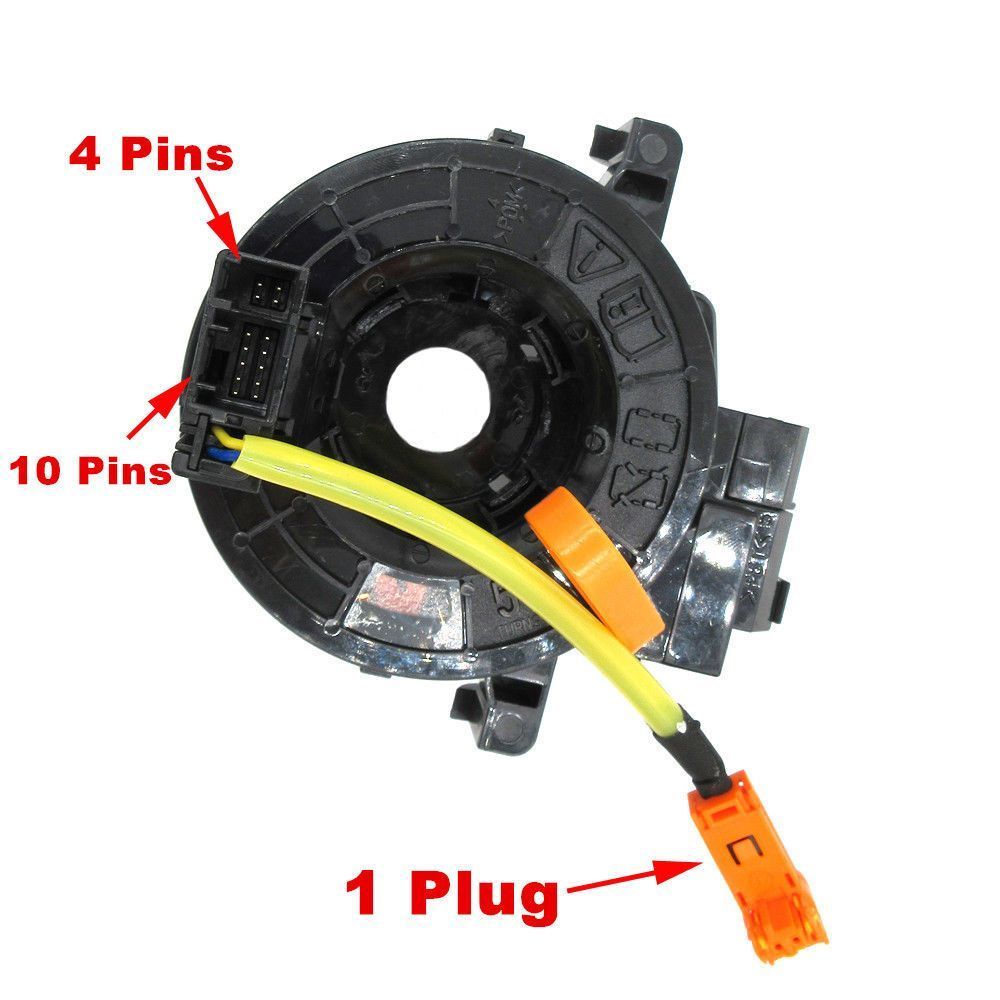

The clock spring is located between the steering wheel and the steering column. When the steering wheel is removed, it appears as a circular, coiled device, typically black or yellow, with wires extending from it into the steering column. This positioning allows it to act as a rotary electrical connector, ensuring that the electrical connections remain intact despite the steering wheel's movement. Its design is often compared to a flexible bridge, maintaining communication between the moving steering wheel and the stationary vehicle systems.

Components and Construction

The clock spring consists of a flat, coiled ribbon of conductive material, wound around a spindle and housed within a protective casing. This ribbon is typically a printed circuit strip, allowing for multiple electrical pathways within a compact space. The construction is designed to withstand the mechanical stresses of repeated expansion and contraction, with materials chosen for flexibility and durability to handle the range of steering wheel motion without breaking.

Signs of Failure

Maintaining the clock spring is vital for vehicle safety, with recommendations for regular inspections to catch issues early. The evidence leans toward the following symptoms indicating potential failure:

1. Non-Functional Horn: If the horn stops working, it could be due to a broken connection in the clock spring, as it is responsible for transmitting the signal.
2. Malfunctioning Steering Wheel Controls: Cruise control, audio controls, or other buttons on the steering wheel may fail to respond, indicating a disruption in the electrical pathway.
3. Airbag Warning Light: The illumination of the airbag warning light on the dashboard can signal a problem with the clock spring, as it affects the airbag system's electrical connection, potentially preventing deployment .
4. Unusual Noises: Rubbing or clicking sounds when turning the steering wheel may indicate wear or damage to the clock spring, affecting its ability to maintain smooth operation.

If any of these symptoms are observed, it is advisable to have a professional mechanic inspect the clock spring, as a faulty unit can lead to safety hazards, particularly with the airbag system.

Replacement Considerations

When a clock spring is found to be damaged or worn, replacement is necessary to ensure safety and functionality:

1. When to Replace: Clock springs need replacement if they show signs of failure, such as melted connectors (often due to heat exchange during an airbag deployment) or wear from prolonged use. This can happen over time due to the mechanical stress of constant expansion and contraction or after an accident involving airbag deployment (Guard My Ride - The Clock Spring: Everything You Need to Know About This Accessory).
2. Replacement Process: The process typically involves removing the steering wheel to access the clock spring, installing a new unit, and ensuring all electrical connections are properly reattached. It is crucial to center the new clock spring correctly to avoid damage when reinstalling the steering wheel, as improper centering can lead to immediate failure. This work should be done by a professional due to the complexity and safety implications, especially concerning the airbag system.
3. Safety Considerations: Driving with a faulty clock spring is not recommended, as it can disable critical safety features like the airbag, which could be life-threatening in an accident. Regular maintenance and timely replacement are essential to ensure vehicle safety.

Summary Table of Key Aspects

Conclusion

The clock spring is a vital yet often overlooked part of a vehicle's steering system, ensuring safe and functional operation of critical features like the airbag, horn, and steering wheel controls. Regular inspections for signs of failure—such as a non-working horn, malfunctioning controls, an illuminated airbag warning light, or unusual noises—are essential for safety.
