Steering parts work together to create a responsive, controlled steering system that allows drivers to safely navigate their vehicles.
Steering System Core Components

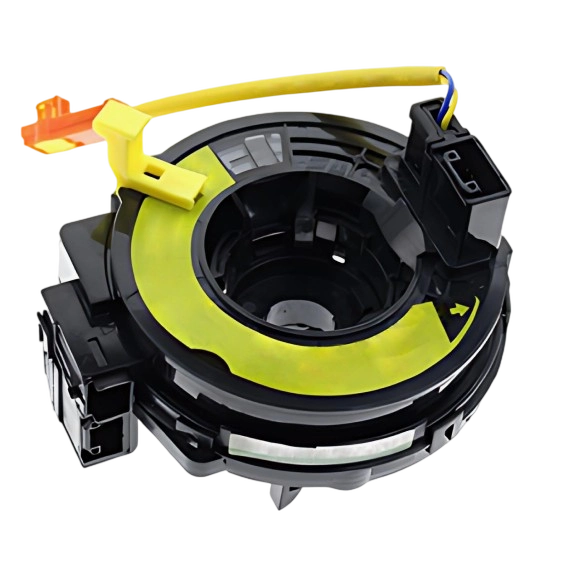

1. Clock Spring
The clock spring is a vital component located behind the steering wheel, consisting of a coil of specialized wires designed to stretch and twist. This ingenious device solves a critical problem: how to maintain electrical connections to steering wheel-mounted controls while allowing the wheel to rotate. Without the clock spring, the wires connecting the horn, cruise control buttons, and airbag would quickly become tangled and break.
The clock spring functions like a flexible bridge, allowing information to travel between the rotating steering wheel and the vehicle's fixed electrical systems. When you turn the steering wheel, the coiled wires unwind and stretch, maintaining continuous electrical connections. As you return the wheel to center, the clock spring recoils, ensuring the wires remain connected without interruption or damage.
Beyond facilitating button functionality, the clock spring plays a crucial safety role by maintaining the connection to the airbag system. During a collision, this connection ensures deployment signals reach the airbag promptly, potentially saving lives.

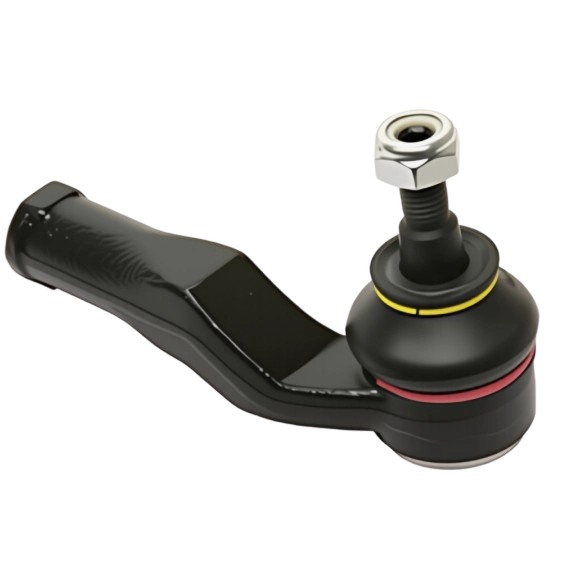

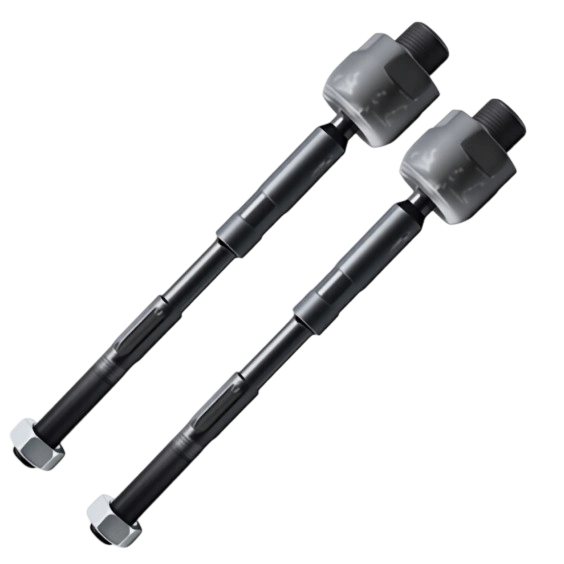

2. Inner Tie Rods and Tie Rod Ends
Inner tie rods are crucial connectors in the steering system, linking the steering rack to the steering knuckles. When a driver turns the steering wheel, the inner tie rods transmit this input from the steering rack to the steering knuckles, causing the wheels to turn accordingly.
The tie rod ends serve as the connection point between the inner tie rod and the steering knuckle of each wheel. This configuration ensures synchronized movement during steering and translates the steering movement into actual wheel rotation. Together, these components maintain proper wheel alignment and provide responsive steering control.
Warning signs of tie rod wear include uneven tire wear (particularly excessive wear on one side) and steering wheel vibrations, especially at higher speeds. These symptoms indicate that the tie rods may no longer maintain proper steering control and should be inspected.

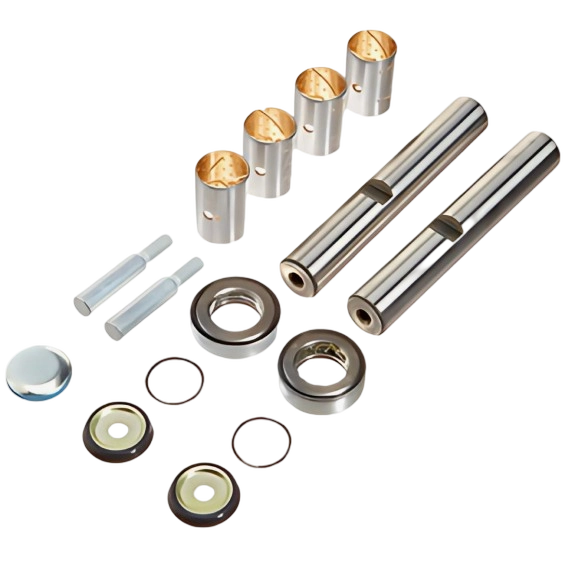

3. King Pin Set
The king pin set serves as a pivotal connection between the front axle and the steering knuckle, enabling the wheels to pivot and allowing directional changes. This component bears significant weight and stress during vehicle operation, requiring exceptional durability and wear resistance.
King pins are manufactured from highly durable materials including steel, brass, or bronze. Steel is particularly common in heavy-duty trucks and commercial vehicles due to its superior strength. The manufacturing process typically includes heat treatment to enhance strength and hardness, with some pins receiving special coatings to improve corrosion resistance and reduce friction.
Proper maintenance of the king pin set is essential for safe and smooth vehicle operation, as this component directly impacts steering performance and vehicle control.
Power Steering Components

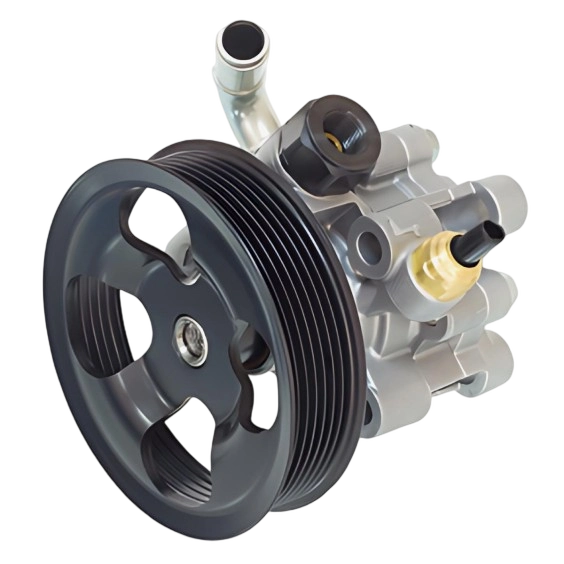

1. Power Steering Pump
The power steering pump generates the hydraulic pressure necessary for power-assisted steering. Driven by the engine via a belt and pulley system, this pump circulates power steering fluid through the steering system, significantly reducing the effort required to turn the steering wheel.
This hydraulic assistance is particularly valuable during low-speed maneuvers or when the vehicle is stationary, where manual steering would require substantial physical effort. Any reduction in hydraulic pressure—due to pump wear, fluid leaks, or other issues—can make steering noticeably more difficult.
The power steering pump contributes to enhanced vehicle control, improved driving comfort by reducing physical strain, and increased safety by allowing drivers to respond more quickly to road conditions and obstacles.

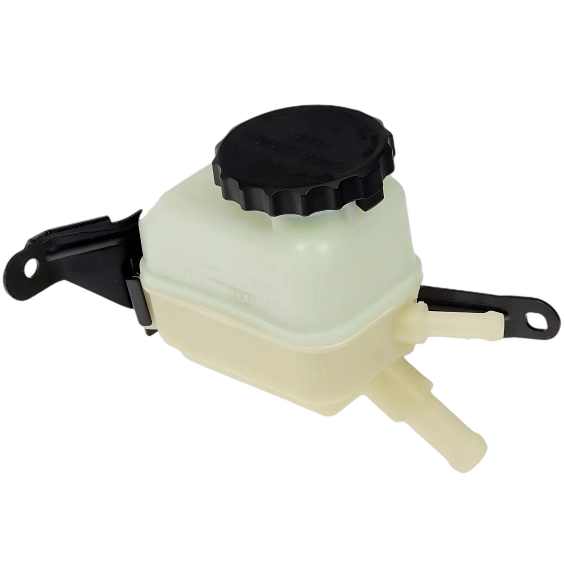

2. Power Steering Reservoir
The power steering reservoir serves as the storage container for power steering fluid. Typically located under the hood near the engine, this component ensures a steady and reliable supply of fluid to the steering system.
Beyond simply storing fluid, the reservoir performs several crucial functions:
1. It provides adequate fluid storage to maintain proper system pressure during operation
2. It assists in cooling the power steering fluid as it circulates through the system
3. It often incorporates filtration to remove contaminants from the fluid
4. It allows for easy monitoring of fluid levels during maintenance checks
Proper maintenance of the power steering reservoir, including regular fluid level checks and replacement when specified, helps ensure optimal steering performance and extends the life of power steering components.
Steering Connection and Control Components

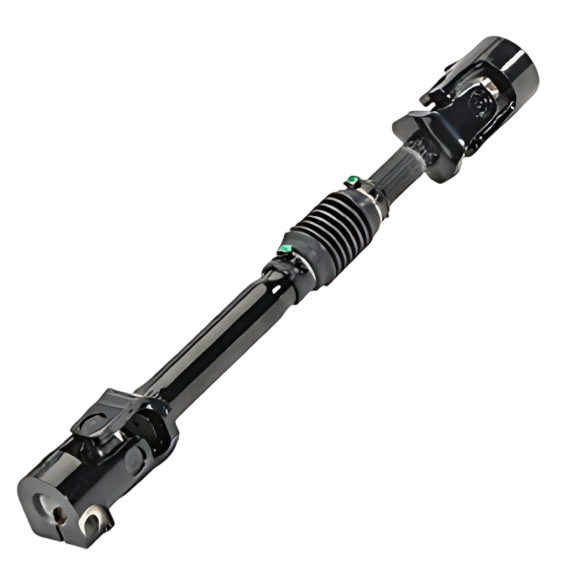

1. Steering Column Shaft
The steering column shaft serves as the critical mechanical link between the steering wheel and the steering gear. Its primary function is to transmit the rotational motion from the steering wheel to the steering gear, enabling directional control of the vehicle.
Modern steering columns incorporate several key design features:
1. Collapsibility: Many steering columns are designed to collapse or break at specific points during a frontal collision, absorbing energy and reducing driver injury
2. Adjustability: Tilt and/or telescopic adjustments allow drivers to customize the steering wheel position for comfort and control
3. Mounting brackets: These secure the column to the vehicle body while allowing for the safety features above
The steering column also houses various controls and may incorporate electronic components in advanced steering systems. Proper maintenance of adjustment mechanisms through lubrication and periodic inspection ensures smooth operation and maintains safety features.

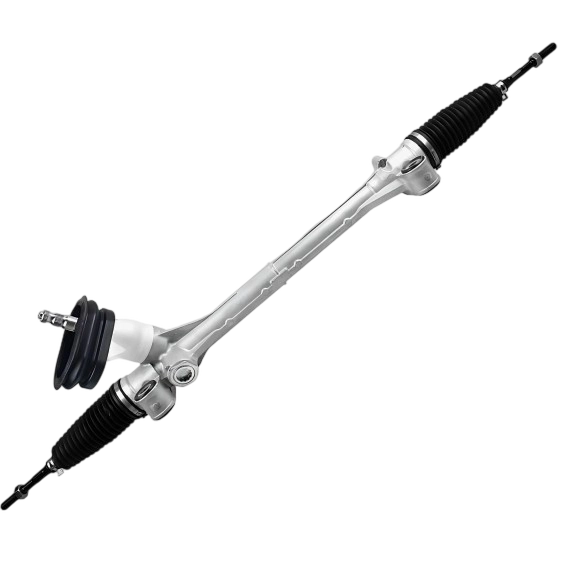

2. Steering Rack
The steering rack, commonly referred to as the rack and pinion assembly, is the core mechanism that converts the rotational motion of the steering wheel into the linear motion needed to turn the wheels. This system operates through the interaction of a pinion gear with a geared rack.
When the driver rotates the steering wheel, the pinion gear translates this motion into lateral movement, pushing the rack either left or right. This movement is transferred to the tie rods, which then turn the wheels. In power steering systems, hydraulic fluid assists this process by pushing an internal piston, making steering easier.
The level of power assistance is regulated by a rotary control valve located within the steering column, which ensures the hydraulic assistance is proportionate to the force applied by the driver. This creates a responsive steering feel that adjusts to different driving conditions.

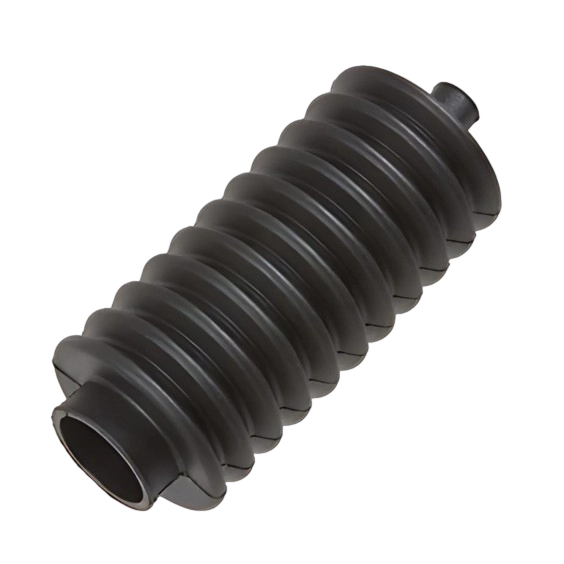

3. Steering Rack Boot
The steering rack boot is an expandable rubber component that forms a protective seal at each end of the steering rack. Its primary purpose is to prevent contaminants like dirt, water, and road debris from entering the steering system while still allowing the necessary movement of steering components.
Beyond its protective function, the steering rack boot retains lubricating grease inside the steering rack assembly. This grease ensures smooth movement of the internal components and reduces friction and wear. When the boot becomes damaged, grease can leak out and contaminants can enter, potentially causing expensive damage to the steering rack.
Signs of a failing steering rack boot include visible damage such as tears or cracks, leaking grease, tight steering feel, and grinding noises when turning. Replacing damaged boots promptly can prevent more extensive and costly steering system repairs.
Conclusion
The vehicle steering system represents a complex integration of mechanical, hydraulic, and sometimes electronic components working in harmony to provide safe, responsive vehicle control. Each component—from the clock spring that maintains electrical connections to the power steering pump that provides hydraulic assistance—serves a specific and vital function.
Regular inspection and maintenance of these steering components is essential for safe vehicle operation. Early detection of wear or damage can prevent more serious issues and costly repairs, while ensuring the steering system continues to perform optimally throughout the vehicle's life. Understanding these components and their functions empowers vehicle owners to better communicate with mechanics and make informed decisions about maintenance and repairs.
