The evolution of vehicle sensors is fundamentally transforming modern automobiles from basic transportation machines into sophisticated, intelligent systems. Modern vehicles incorporate an impressive array of sensor technologies that monitor everything from engine performance to the surrounding environment. These sensors serve as the eyes and ears of the vehicle, enabling enhanced safety features, improved performance, and paving the way for autonomous driving.
What Are Car Sensors and How Do They Work?
A car sensor serves as a tool that monitors specific aspects of the vehicle and transmits information to either the driver or the Electronic Control Unit (ECU). In many cases, the ECU automatically adjusts components based on the sensor's information. These sensors function similarly to human sense organs, which receive signals and send them to the brain for decision-making.
Modern vehicles are equipped with a surprisingly large number of sensors. A typical non-electric passenger vehicle contains between 60 and 100 sensors, including 15-30 dedicated to engine management alone. For trucks, this number increases to approximately 400 sensors, with up to 70 monitoring the engine. Advanced electric vehicles, particularly those with semi-autonomous capabilities, may incorporate two to three times that number.
These sensors continuously monitor various vehicle functions once the engine is started, tracking aspects such as temperature, coolant system performance, engine operation, oil pressure, emission levels, and vehicle speed.
Primary Types of Vehicle Sensors
Camera Sensors
Camera sensors provide visual data that's crucial for various vehicle functions. They excel at reading road signs and markings, making them vital for traffic sign recognition and lane departure warning systems. Using advanced image processing algorithms, camera systems can recognize traffic signs, lanes, and pedestrians, enhancing overall vehicle awareness.
Radar Sensors
Radar sensors are particularly valuable for measuring speed and distance with precision. They function effectively even in challenging weather conditions, making them essential components for adaptive cruise control, blind spot detection, and collision warning systems. Millimeter-wave (mmWave) radar can "see" better than cameras in certain conditions, offering high resolution, good performance, and resistance to weather interference.
LiDAR Sensors
LiDAR (Light Detection and Ranging) uses laser beams to create detailed three-dimensional maps of the vehicle's surroundings. This high-precision environmental mapping is critical for navigation and obstacle detection, particularly in autonomous vehicles. LiDAR provides excellent three-dimensional object detection with accurate range but may struggle in heavy rain, snow, or fog conditions.
Ultrasonic Sensors
Ultrasonic sensors emit sound waves and measure their reflection to detect nearby objects. Typically mounted in vehicle bumpers, these sensors are primarily used for parking assistance systems. Currently, they operate at low speeds (under 10 km/hour) but may evolve to work with other sensing technologies for more comprehensive distance measurement in autonomous vehicles.
Other Important Sensor Types
Engine Management Sensors
1. Oxygen Sensor (O₂ Sensor)
The oxygen sensor monitors the oxygen content in exhaust gases to maintain the optimal air-fuel ratio (14.7:1 for gasoline engines). Located in the exhaust manifold or downstream in the exhaust pipe, it ensures efficient combustion and reduces harmful emissions. Faulty O₂ sensors can trigger the check engine light and lead to increased fuel consumption or failed emissions tests.
2. Mass Air Flow Sensor (MAF)
The MAF sensor measures the volume of air entering the engine’s intake system. By communicating with the ECU, it ensures precise fuel injection, directly affecting engine power and fuel efficiency. A malfunctioning MAF sensor may cause rough idling, stalling, or poor acceleration.
3. Engine Coolant Temperature Sensor (ECT)
This sensor monitors the coolant temperature to regulate fuel injection, ignition timing, and radiator fan operation. Overheating due to a faulty ECT can lead to engine damage, while incorrect readings may cause poor cold-start performance.
4. Crankshaft Position Sensor (CKP)
The CKP sensor tracks the rotational speed and position of the crankshaft, enabling the ECU to synchronize fuel injection and ignition timing. Failures can result in engine misfires, stalling, or failure to start.

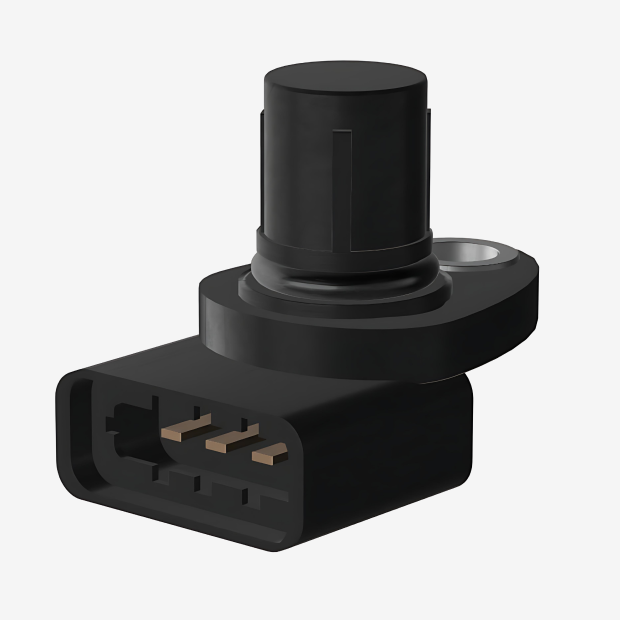

5. Camshaft Position Sensor (CMP)
Working in tandem with the CKP sensor, the CMP detects the camshaft’s position to optimize valve timing. This synchronization improves engine efficiency and reduces emissions.
6. Manifold Absolute Pressure Sensor (MAP)
The MAP sensor measures intake manifold pressure to calculate air density, allowing the ECU to adjust the air-fuel mixture. It is critical for turbocharged engines, where it monitors boost pressure.
7. Throttle Position Sensor (TPS)
Mounted on the throttle body, the TPS relays the throttle valve’s angle to the ECU, influencing fuel delivery and transmission shifting. A faulty TPS can cause erratic acceleration or gear changes.
8. Knock Sensor
This sensor detects abnormal combustion (engine knocking) and adjusts ignition timing to prevent damage. Modern engines rely on it to maintain performance while using lower-octane fuels.
Emission Control Sensors
1. Nitrogen Oxide Sensor (NOx Sensor)
Critical for diesel engines with selective catalytic reduction (SCR) systems, the NOx sensor monitors exhaust gas composition to optimize urea injection, reducing nitrogen oxide emissions.
2. Exhaust Gas Temperature Sensor (EGT)
The EGT sensor prevents overheating in the exhaust system, particularly in turbocharged engines. It ensures compliance with emission standards by protecting catalytic converters and particulate filters.
Safety and Driver-Assistance Sensors
1. Wheel Speed Sensors
Integrated into anti-lock braking systems (ABS), these sensors monitor individual wheel speeds to prevent skidding during braking. They also enable traction control and electronic stability programs.
2. Tire Pressure Monitoring Sensor (TPMS)
TPMS alerts drivers to underinflated tires, improving fuel efficiency and reducing blowout risks. Direct TPMS uses pressure sensors in each wheel, while indirect systems rely on wheel speed data.
3. Proximity Sensors (Ultrasonic/Radar)
Ultrasonic sensors in bumpers assist with parking by detecting obstacles at low speeds. Radar sensors, used in adaptive cruise control and collision avoidance systems, measure object distance and velocity in all weather conditions.
Vehicle Dynamics and Comfort Sensors
1. Vehicle Speed Sensor (VSS)
The VSS measures transmission output shaft speed to inform the speedometer and ECU. It also influences ABS, cruise control, and navigation systems.
2. Oil Pressure Sensor
This sensor alerts drivers to low oil pressure, which can indicate leaks or pump failures. Severe drops in pressure may trigger engine shutdown to prevent damage.
3. Intake Air Temperature Sensor (IAT)
By measuring air temperature in the intake manifold, the IAT helps the ECU adjust air-fuel ratios for optimal combustion, particularly in cold climates.
Emerging Sensor Technologies
Modern vehicles increasingly incorporate Time-of-Flight (ToF) cameras for gesture recognition and driver monitoring, while moisture sensors activate windshield wipers automatically. Ethanol sensors in flex-fuel vehicles adjust engine parameters based on fuel blend, and oil quality sensors monitor lubricant degradation to optimize service intervals.
Applications and Functions of Automotive Sensors
Safety Applications
Vehicle sensors have dramatically improved automotive safety through various applications:
Accident Prevention: Sensors provide real-time data and alerts that help reduce accidents through features like blind spot detection, night vision assistance, and forward collision warnings. These technologies allow vehicles to detect potential dangers before the driver might notice them.
Advanced Driver Assistance Systems (ADAS): Sensors form the foundation of ADAS, which helps drivers with tasks such as lane centering, adaptive cruise control, and emergency braking. These systems rely on multiple sensor types to "see" the vehicle's surroundings and perform safety-critical functions.
Anti-lock Braking Systems (ABS): Wheel sensors continuously monitor the rotational speed of each wheel. If a wheel stops rotating while the vehicle is in motion, the ABS automatically reduces brake pressure to prevent skidding and maintain driver control.
Autonomous Driving Capabilities
Sensors are absolutely essential for the development of autonomous vehicles:
Environmental Awareness: To deliver safe self-driving capabilities, vehicles must combine inputs from radar, cameras, LiDAR, and GPS to recognize and navigate through their surroundings.
Levels of Autonomy: The progression toward fully autonomous vehicles is directly tied to advancements in sensor technology and integration. As these technologies improve, the reality of self-driving cars comes closer, promising safer and more efficient transportation.
Sensor Requirements: For Level 3 autonomous driving (conditional automation), Mercedes-Benz implemented approximately 30 sensors in their DRIVE PILOT system, including lidar, advanced stereo cameras, microphones, and moisture sensors.
Comfort and Convenience Features
Beyond safety and autonomy, sensors enable various comfort enhancements:
Climate Control: Temperature sensors monitor both internal and external conditions to maintain comfortable cabin environments.
Gesture Recognition: Time-of-flight cameras focused on the car interior allow for gesture control of various vehicle features, enhancing the user experience.
Connected Car Ecosystem: Automotive sensors facilitate seamless communication between vehicles, infrastructure, and road users, supporting applications such as real-time traffic data and remote diagnostics.
