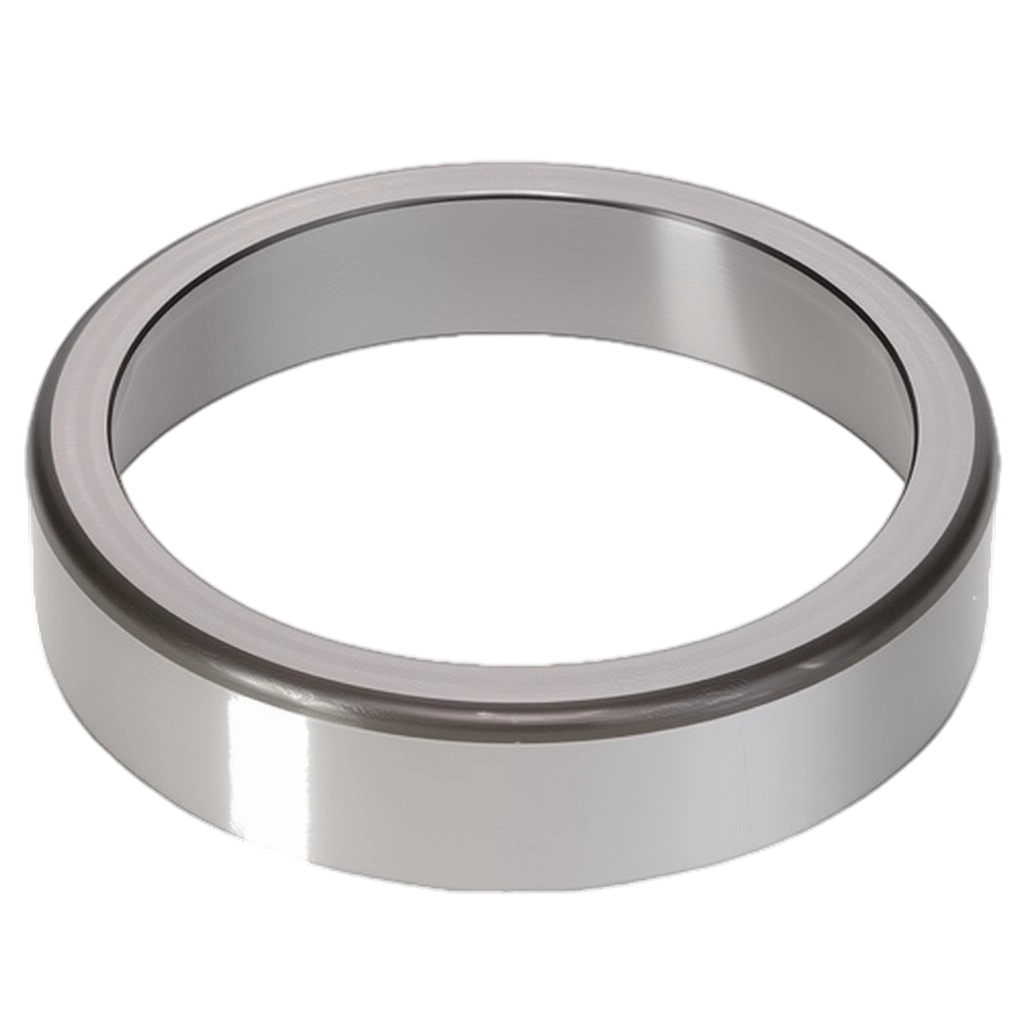

Tapered Roller Bearings Single Cups

Unit System

Imperial (1852)
METRIC (483)

Part Number	Unit System	Cup Outer Diameter	Series	Cup Width	Cone Backface Clearance Radius
00150	Imperial	38.1 mm	00000	11.113 mm	0.76 mm
00152	Imperial	38.1 mm	00000	13.556 mm	0.76 mm
00152X	Imperial	36.513 mm	00000	11.113 mm	1.52 mm
00162X	Imperial	41.300 mm	00000	14.288 mm	0.25 mm
02419	Imperial	66.987 mm	02400	15.999 mm	1.52 mm
02420	Imperial	68.263 mm	02400	17.463 mm	1.52 mm
02420A	Imperial	68.263 mm	02400	16.238 mm	1.52 mm
02421	Imperial	68.263 mm	02400	17.463 mm	0.76 mm
02820	Imperial	73.025 mm	02800	17.463 mm	3.30 mm
02830	Imperial	73.025 mm	02800	17.463 mm	0.76 mm
02831	Imperial	80.963 mm	02800	17.463 mm	0.76 mm
03157X	Imperial	40 mm	03000	11.113 mm	1.52 mm
03162	Imperial	41.275 mm	03000	11.113 mm	2.03 mm
05175	Imperial	44.450 mm	05000	11.430 mm	1.52 mm
05185	Imperial	47 mm	05000	11.113 mm	1.27 mm
05185A	Imperial	46.982 mm	05000	11.113 mm	1.52 mm
05185-S	Imperial	47 mm	05000	11.113 mm	1.52 mm
05186	Imperial	46.990 mm	05000	11.999 mm	1.52 mm
07196	Imperial	50.005 mm	07000	9.525 mm	1.02 mm
07204	Imperial	51.994 mm	07000	12.700 mm	1.27 mm
07205	Imperial	51.999 mm	07000	12.700 mm	2.03 mm
07205X	Imperial	51.986 mm	07000	13 mm	1.52 mm
07210X	Imperial	50.8 mm	07000	12.700 mm	1.52 mm
08231	Imperial	58.738 mm	08000	10.716 mm	1.02 mm
08237	Imperial	58.788 mm	08000	10.716 mm	1.02 mm
09194	Imperial	49.225 mm	09000	17.463 mm	3.56 mm
09194-S	Imperial	52.883 mm	09000	14.684 mm	3.30 mm
09195	Imperial	49.225 mm	09000	14.288 mm	1.27 mm
09196	Imperial	49.225 mm	09000	17.463 mm	1.52 mm
09199	Imperial	49.225 mm	09000	27.239 mm	1.27 mm
09201	Imperial	50.8 mm	09000	17.463 mm	0.51 mm
09207	Imperial	52.819 mm	09000	14.173 mm	1.52 mm
101575	Imperial	400.050 mm	100000	34.925 mm	3.30 mm
101600	Imperial	406.400 mm	100000	34.925 mm	3.30 mm
107105	Imperial	268.288 mm	107000	57.150 mm	6.35 mm
107105V	Imperial	268.288 mm	107000	57.150 mm	6.35 mm
107107	Imperial	269.799 mm	107000	57.150 mm	6.35 mm
108142	Imperial	361.950 mm	108000	76.2 mm	3.30 mm
111700	Imperial	431.800 mm	110000	53.975 mm	3.30 mm
1120NI	Imperial	44.450 mm	1100	14.288 mm	1.52 mm
1130	Imperial	44.450 mm	1100	15.875 mm	0.76 mm
11300	Imperial	76.2 mm	11000	14.288 mm	1.52 mm
1130NI	Imperial	44.450 mm	1100	14.288 mm	0.51 mm
11315	Imperial	80 mm	11000	14.288 mm	1.52 mm
11315-S	Imperial	80 mm	11000	14.288 mm	2.03 mm
113170	Imperial	431.800 mm	113000	49.213 mm	6.35 mm
113181	Imperial	459.892 mm	113000	49.213 mm	0.00 mm
114160	Imperial	406.400 mm	114000	57.150 mm	6.35 mm
11520	Imperial	42.863 mm	11500	9.525 mm	1.52 mm
116097	Imperial	247.650 mm	116000	47.625 mm	4.83 mm
116098	Imperial	250.825 mm	116000	47.625 mm	4.83 mm
116098W	Imperial	250.825 mm	116000	47.625 mm	4.83 mm
117148	Imperial	374.650 mm	117000	60.325 mm	1.52 mm
121265	Imperial	673.100 mm	121000	114.3 mm	6.35 mm
121265X	Imperial	673.100 mm	121000	114.3 mm	6.35 mm
1220	Imperial	57.150 mm	1200	17.463 mm	1.52 mm
122125	Imperial	317.500 mm	122000	50.8 mm	3.30 mm
12303	Imperial	76.992 mm	12000	11.908 mm	1.52 mm
125145	Imperial	368.300 mm	125000	53.975 mm	3.30 mm
12520	Imperial	49.225 mm	12500	15.875 mm	1.52 mm
