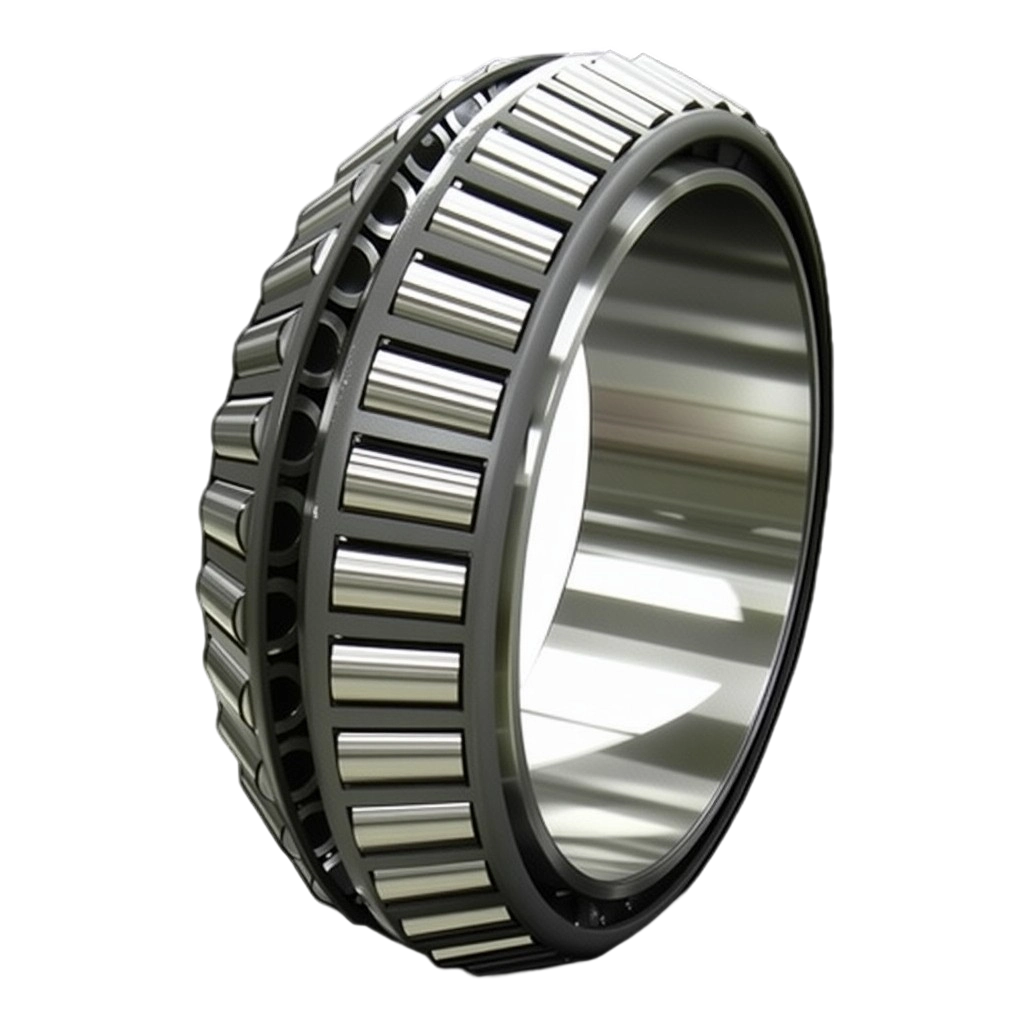

Tapered Roller Bearings Double Cones

Part Number	Unit System	Series	Static Radial Load Rating (C0)	Double Cone Width	Cone Bore	Dynamic Radial Load Rating (C1, 1M rev)	Dynamic Thrust Load Rating (Ca90, 90M rev)	Cone Backface Clearance Radius	Dynamic Radial Load Rating (C1, Two-Row, 1M rev)
07100D	Imperial	07000	29600 N	36.513 mm	25.400 mm	29100 N	5190 N	0.800 mm	50700 N
07101DW	Imperial	07000	29600 N	36.513 mm	25.400 mm	27500 N	4900 N	0.800 mm	47900 N
13176D	Imperial	13000	61100 N	31.750 mm	44.450 mm	50800 N	11900 N	0.13 mm	88500 N
13182D	Imperial	13000	61100 N	31.750 mm	46.038 mm	50800 N	11900 N	0.800 mm	88500 N
14126D	Imperial	14000	61700 N	39.182 mm	31.750 mm	54600 N	9260 N	1.5 mm	95100 N
17116D	Imperial	17000	44100 N	34.925 mm	30.163 mm	43200 N	7340 N	0.800 mm	75300 N
19145D	Imperial	19000	57800 N	38.100 mm	36.513 mm	50700 N	10000 N	0.800 mm	88300 N
19152D	Imperial	19000	57800 N	49.200 mm	38.1 mm	50700 N	10000 N	0.800 mm	88300 N
357DW	Imperial	355	88800 N	65.075 mm	42.863 mm	81800 N	11100 N	0.800 mm	142000 N
358D	Imperial	355	88800 N	52.375 mm	42.863 mm	81800 N	11100 N	1.5 mm	142000 N
375D	Imperial	375	101000 N	53.188 mm	50.8 mm	87900 N	13200 N	0.800 mm	153000 N
376DE	Imperial	375	101000 N	53.188 mm	47.625 mm	87900 N	13200 N	0.800 mm	153000 N
378DE	Imperial	375	101000 N	53.188 mm	49.213 mm	87900 N	13200 N	0.800 mm	153000 N
378DW	Imperial	375	101000 N	67.488 mm	49.213 mm	87900 N	13200 N	0.800 mm	153000 N
389DE	Imperial	385	107000 N	53.188 mm	55.563 mm	91000 N	14300 N	0.800 mm	158000 N
392DW	Imperial	395	125000 N	73.025 mm	61.913 mm	93400 N	16700 N	0.800 mm	163000 N
39585D	Imperial	39500	224000 N	60.325 mm	63.500 mm	167000 N	25100 N	0.800 mm	291000 N
399D	Imperial	395	125000 N	55.550 mm	61.913 mm	98900 N	17600 N	0.800 mm	172000 N
42362D	Imperial	42000	241000 N	57.942 mm	92.075 mm	163000 N	35600 N	1.5 mm	284000 N
46790D	Imperial	46700	635000 N	76.200 mm	165.1 mm	303000 N	51600 N	0.800 mm	528000 N
48290DW	Imperial	48200	493000 N	76.200 mm	127 mm	268000 N	36300 N	1.5 mm	466000 N
48393D	Imperial	48300	542000 N	77.788 mm	136.525 mm	283000 N	40300 N	1.5 mm	492000 N
487TD	Imperial	475	186000 N	67.539 mm	72.073 mm	135000 N	23100 N	0.800 mm	236000 N
496D	Imperial	495	216000 N	59.538 mm	80.963 mm	154000 N	30500 N	1.5 mm	269000 N
52387D	Imperial	52000	343000 N	79.375 mm	98.425 mm	223000 N	47100 N	0.800 mm	389000 N
52400D	Imperial	52000	343000 N	79.375 mm	101.600 mm	223000 N	47100 N	1.5 mm	389000 N
581D	Imperial	575	291000 N	80.134 mm	80.963 mm	207000 N	37100 N	1.5 mm	360000 N
67388D	Imperial	67300	625000 N	92.075 mm	127 mm	368000 N	56100 N	1.5 mm	640000 N
67390D	Imperial	67300	625000 N	92.075 mm	133.350 mm	368000 N	56100 N	1.5 mm	640000 N
67790D	Imperial	67700	779000 N	90.488 mm	177.800 mm	405000 N	79000 N	1.5 mm	705000 N
67985D	Imperial	67900	876000 N	87.313 mm	206.375 mm	424000 N	95800 N	0.800 mm	738000 N
688TD	Imperial	675	386000 N	95.250 mm	100.211 mm	250000 N	52200 N	0.800 mm	435000 N
71426D	Imperial	71000	543000 N	101.600 mm	107.95 mm	364000 N	67100 N	1.5 mm	633000 N
71450D	Imperial	71000	543000 N	101.600 mm	114.300 mm	364000 N	67100 N	1.5 mm	633000 N
74510D	Imperial	74000	614000 N	123.825 mm	130.005 mm	382000 N	82600 N	1.5 mm	665000 N
74512D	Imperial	74000	614000 N	101.600 mm	130.175 mm	382000 N	82600 N	1.5 mm	665000 N
74555D	Imperial	74000	567000 N	106.363 mm	139.700 mm	341000 N	73800 N	1.5 mm	594000 N
767D	Imperial	755	441000 N	107.950 mm	88.900 mm	327000 N	49500 N	1.5 mm	570000 N
779D	Imperial	775	495000 N	102.362 mm	98.425 mm	346000 N	59200 N	1.5 mm	603000 N
78251D	Imperial	78000	193000 N	65.989 mm	63.500 mm	171000 N	65700 N	2.300 mm	298000 N
78255D	Imperial	78000	193000 N	65.989 mm	64.988 mm	171000 N	65700 N	1.5 mm	298000 N
782D	Imperial	775	495000 N	102.362 mm	104.775 mm	346000 N	59200 N	1.5 mm	603000 N
81601D	Imperial	81000	595000 N	92.075 mm	152.400 mm	402000 N	62700 N	1.5 mm	699000 N
82680D	Imperial	82600	979000 N	112.713 mm	177.800 mm	534000 N	124000 N	1.5 mm	930000 N
82680DG	Imperial	82600	979000 N	112.713 mm	177.800 mm	534000 N	124000 N	1.5 mm	930000 N
82681D	Imperial	82600	979000 N	112.713 mm	177.800 mm	534000 N	124000 N	1.5 mm	930000 N
82681DGW	Imperial	82600	979000 N	112.713 mm	177.800 mm	565000 N	132000 N	1.5 mm	984000 N
8576D	Imperial	8500	1070000 N	93.663 mm	234.95 mm	527000 N	95200 N	1.5 mm	918000 N
8576DW	Imperial	8500	1070000 N	93.663 mm	234.95 mm	527000 N	95200 N	1.5 mm	918000 N
868D	Imperial	855	630000 N	127.000 mm	101.600 mm	458000 N	68000 N	1.5 mm	797000 N
89108D	Imperial	89000	941000 N	88.900 mm	276.225 mm	463000 N	120000 N	3.300 mm	806000 N
89111D	Imperial	89000	941000 N	88.900 mm	279.578 mm	463000 N	120000 N	3.300 mm	806000 N
8976D	Imperial	8900	764000 N	81.758 mm	203.352 mm	428000 N	84200 N	1.5 mm	746000 N
93751D	Imperial	93000	1290000 N	133.350 mm	190.5 mm	731000 N	170000 N	6.4 mm	1270000 N
93751DW	Imperial	93000	1290000 N	133.350 mm	190.5 mm	731000 N	170000 N	6.4 mm	1270000 N
93788D	Imperial	93000	1290000 N	133.350 mm	199.974 mm	731000 N	170000 N	6.4 mm	1270000 N
93800D	Imperial	93000	1290000 N	123.825 mm	203.2 mm	731000 N	170000 N	1.5 mm	1270000 N
93800DGW	Imperial	93000	1290000 N	123.825 mm	203.2 mm	731000 N	170000 N	1.5 mm	1270000 N
93801D	Imperial	93000	1290000 N	133.350 mm	203.2 mm	731000 N	170000 N	6.4 mm	1270000 N
946D	Imperial	935	786000 N	152.400 mm	107.95 mm	572000 N	82700 N	3.300 mm	996000 N
