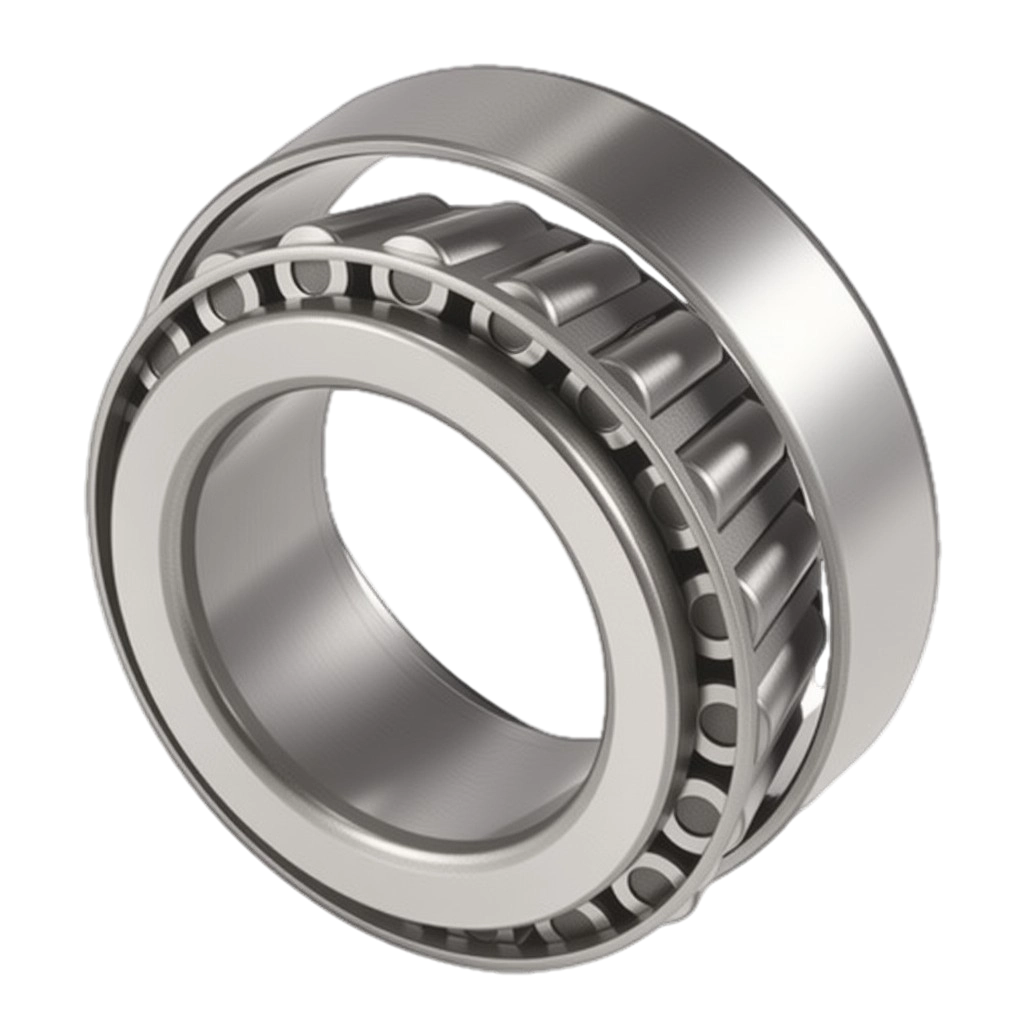

Single Row Tapered Roller Bearings with Flange

Single-Row Tapered Roller Bearings with Flange (commonly known as TSF bearings) are specialized tapered roller bearings featuring a flange on the outer ring (cup). The flange allows for precise axial positioning within a through-hole housing, eliminating the need for additional shoulders or mechanical locators.

675 results
    display in:
    Part Number Unit System Bore Diameter Cup Outer Diameter Series Static Radial Load Rating (C0) Cone Width Cup Width Cup Flange Width Flange Outer Diameter
    86669 - 86100-B Inch 170 mm 254.000 mm 86000 644000 N 46.038 mm 33.338 mm 9.525 mm 263.525 mm
    87762 - 87111-B Inch 193.675 mm 282.575 mm 87000 692000 N 47.625 mm 36.513 mm 9.525 mm 291.998 mm
    87750 - 87111-B Inch 190.5 mm 282.575 mm 87000 692000 N 47.625 mm 36.513 mm 9.525 mm 291.998 mm
    898 - 892-B Inch 139.700 mm 228.600 mm 895 809000 N 57.150 mm 44.450 mm 9.525 mm 238.023 mm
    9278 - 9221-B Inch 68.263 mm 161.925 mm 9200 330000 N 46.038 mm 30.163 mm 7.137 mm 171.450 mm
    9285 - 9221-B Inch 76.2 mm 161.925 mm 9200 330000 N 46.038 mm 30.163 mm 7.137 mm 171.450 mm
    9275 - 9221-B Inch 60.325 mm 161.925 mm 9200 330000 N 46.038 mm 30.163 mm 7.137 mm 171.450 mm
    93825 - 93125-B Inch 209.550 mm 317.500 mm 93000 1290000 N 63.5 mm 46.038 mm 11.113 mm 328.524 mm
    93787 - 93125-B Inch 200.025 mm 317.500 mm 93000 1290000 N 63.5 mm 46.038 mm 11.113 mm 328.524 mm
    93708 - 93125-B Inch 179.974 mm 317.500 mm 93000 1290000 N 63.5 mm 46.038 mm 11.113 mm 328.524 mm
    93800 - 93125-B Inch 203.2 mm 317.500 mm 93000 1290000 N 63.5 mm 46.038 mm 11.113 mm 328.524 mm
    93750 - 93125-B Inch 190.5 mm 317.500 mm 93000 1290000 N 63.5 mm 46.038 mm 11.113 mm 328.524 mm
    9380 - 9321-B Inch 76.2 mm 171.450 mm 9300 351000 N 46.038 mm 31.750 mm 7.938 mm 179.375 mm
    9386H - 9321-B Inch 84.138 mm 171.450 mm 9300 351000 N 46.038 mm 31.750 mm 7.938 mm 179.375 mm
    938 - 932-B Inch 114.300 mm 212.725 mm 935 786000 N 66.675 mm 53.975 mm 11.113 mm 223.736 mm
    941 - 932-B Inch 101.600 mm 212.725 mm 935 786000 N 66.675 mm 53.975 mm 11.113 mm 223.736 mm
    94700 - 94113-B Inch 177.800 mm 288.925 mm 94000 1070000 N 63.5 mm 47.625 mm 11.113 mm 299.933 mm
    94687 - 94113-B Inch 174.625 mm 288.925 mm 94000 1070000 N 63.5 mm 47.625 mm 11.113 mm 299.933 mm
    95528 - 95925-B Inch 133.350 mm 234.95 mm 95000 931000 N 63.5 mm 49.213 mm 11.113 mm 245.958 mm
    95525 - 95925-B Inch 133.350 mm 234.95 mm 95000 931000 N 63.5 mm 49.213 mm 11.113 mm 245.958 mm
    95475 - 95925-B Inch 120.650 mm 234.95 mm 95000 931000 N 63.5 mm 49.213 mm 11.113 mm 245.958 mm
    95500 - 95925-B Inch 127 mm 234.95 mm 95000 931000 N 63.5 mm 49.213 mm 11.113 mm 245.958 mm
    98400 - 98788-B Inch 101.600 mm 200 mm 98000 519000 N 49.213 mm 34.925 mm 9.525 mm 209.550 mm
    98350 - 98788-B - - - - - - - - -
    99600 - 99100-B Inch 152.400 mm 254.000 mm 99000 1030000 N 66.675 mm 47.625 mm 11.113 mm 264.973 mm
    99550 - 99100-B Inch 139.700 mm 254.000 mm 99000 1030000 N 66.675 mm 47.625 mm 11.113 mm 264.973 mm
    99587 - 99100-B Inch 149.225 mm 254.000 mm 99000 1030000 N 66.675 mm 47.625 mm 11.113 mm 264.973 mm
    99575 - 99100-B Inch 146.050 mm 254.000 mm 99000 1030000 N 66.675 mm 47.625 mm 11.113 mm 264.973 mm
    99537 - 99100-B Inch 136.525 mm 254.000 mm 99000 1030000 N 66.675 mm 47.625 mm 11.113 mm 264.973 mm
    A2031 - A2126-B Inch 7.938 mm 31.991 mm A2000 9230 N 10.785 mm 7.938 mm 2.388 mm 35.166 mm
    A4050 - A4138-B Inch 12.7 mm 34.989 mm A4000 11500 N 10.988 mm 8.730 mm 2.362 mm 38.062 mm
    A4059 - A4138-B Inch 14.989 mm 34.989 mm A4000 11500 N 10.988 mm 8.730 mm 2.362 mm 38.062 mm
    A6062 - A6157-B Inch 15.875 mm 39.992 mm A6000 12300 N 11.153 mm 9.525 mm 2.362 mm 43.066 mm
    A6067 - A6157-B Inch 16.993 mm 39.992 mm A6000 12300 N 11.153 mm 9.525 mm 2.362 mm 43.066 mm
    A6075 - A6157-B Inch 19.05 mm 39.992 mm A6000 12300 N 11.153 mm 9.525 mm 2.362 mm 43.066 mm
    H414249 - H414210-B Inch 71.438 mm 136.525 mm H414200 335000 N 41.275 mm 31.750 mm 7.112 mm 143.637 mm
    H414235 - H414210-B Inch 63.500 mm 136.525 mm H414200 335000 N 41.275 mm 31.750 mm 7.112 mm 143.637 mm
    H715348 - H715310-B Inch 77.788 mm 139.700 mm H715300 405000 N 46.038 mm 36.513 mm 7.938 mm 152.400 mm
    H715345 - H715310-B Inch 71.438 mm 139.700 mm H715300 405000 N 46.038 mm 36.513 mm 7.938 mm 152.400 mm
    H715343 - H715310-B Inch 68.263 mm 139.700 mm H715300 405000 N 46.038 mm 36.513 mm 7.938 mm 152.400 mm
    H715341 - H715310-B Inch 66.675 mm 139.700 mm H715300 405000 N 46.038 mm 36.513 mm 7.938 mm 152.400 mm
    HH221442 - HH221410-B Inch 98.425 mm 190.5 mm HH221400 692000 N 57.531 mm 46.038 mm 11.113 mm 199.923 mm
    HH221447 - HH221410-B Inch 99.982 mm 190.5 mm HH221400 692000 N 57.531 mm 46.038 mm 11.113 mm 199.923 mm
    HH221449 - HH221410-B Inch 101.600 mm 190.5 mm HH221400 692000 N 57.531 mm 46.038 mm 11.113 mm 199.923 mm
    HH221440 - HH221410-B Inch 95.250 mm 190.5 mm HH221400 692000 N 57.531 mm 46.038 mm 11.113 mm 199.923 mm
    HH221434 - HH221410-B Inch 88.900 mm 190.5 mm HH221400 692000 N 57.531 mm 46.038 mm 11.113 mm 199.923 mm
    HH224332 - HH224310-B Inch 98.425 mm 212.725 mm HH224300 906000 N 66.675 mm 53.975 mm 11.113 mm 223.733 mm
    HH224340 - HH224310-B Inch 107.95 mm 212.725 mm HH224300 906000 N 66.675 mm 53.975 mm 11.113 mm 223.733 mm
    HM231136 - HM231115-B Inch 142.875 mm 241.300 mm HM231100 932000 N 56.642 mm 44.450 mm 9.525 mm 250.723 mm
    HM231149 - HM231115-B Inch 149.225 mm 241.300 mm HM231100 932000 N 56.642 mm 44.450 mm 9.525 mm 250.723 mm
    HM231140 - HM231115-B Inch 146.050 mm 241.300 mm HM231100 932000 N 56.642 mm 44.450 mm 9.525 mm 250.723 mm
    HM231132 - HM231115-B Inch 139.700 mm 241.300 mm HM231100 932000 N 56.642 mm 44.450 mm 9.525 mm 250.723 mm
    HM237545 - HM237510-B Inch 177.800 mm 288.925 mm HM237500 1240000 N 63.5 mm 47.625 mm 11.113 mm 299.933 mm
    HM237542 - HM237510-B Inch 174.625 mm 288.925 mm HM237500 1240000 N 63.5 mm 47.625 mm 11.113 mm 299.933 mm
    HM237532 - HM237510-B Inch 160.325 mm 288.925 mm HM237500 1240000 N 63.5 mm 47.625 mm 11.113 mm 299.933 mm
    HM535349 - HM535310-B Inch 171.450 mm 260.350 mm HM535300 1180000 N 66.675 mm 52.388 mm 11.113 mm 271.374 mm
    HM804846 - HM804811-B Inch 47.625 mm 95.250 mm HM804800 157000 N 29.370 mm 24.021 mm 5.001 mm 100.686 mm
    HM807046 - HM807010-B Inch 50.8 mm 104.775 mm HM807000 223000 N 36.513 mm 28.575 mm 7.938 mm 114.300 mm
    HM813844 - HM813815-B Inch 66.675 mm 130.200 mm HM813800 256000 N 36.513 mm 26.988 mm 10.340 mm 138.201 mm
    HM89449 - HM89410-B Inch 36.513 mm 76.2 mm HM89400 119000 N 28.575 mm 23.020 mm 4.763 mm 80.863 mm
