Tapered Roller Bearings

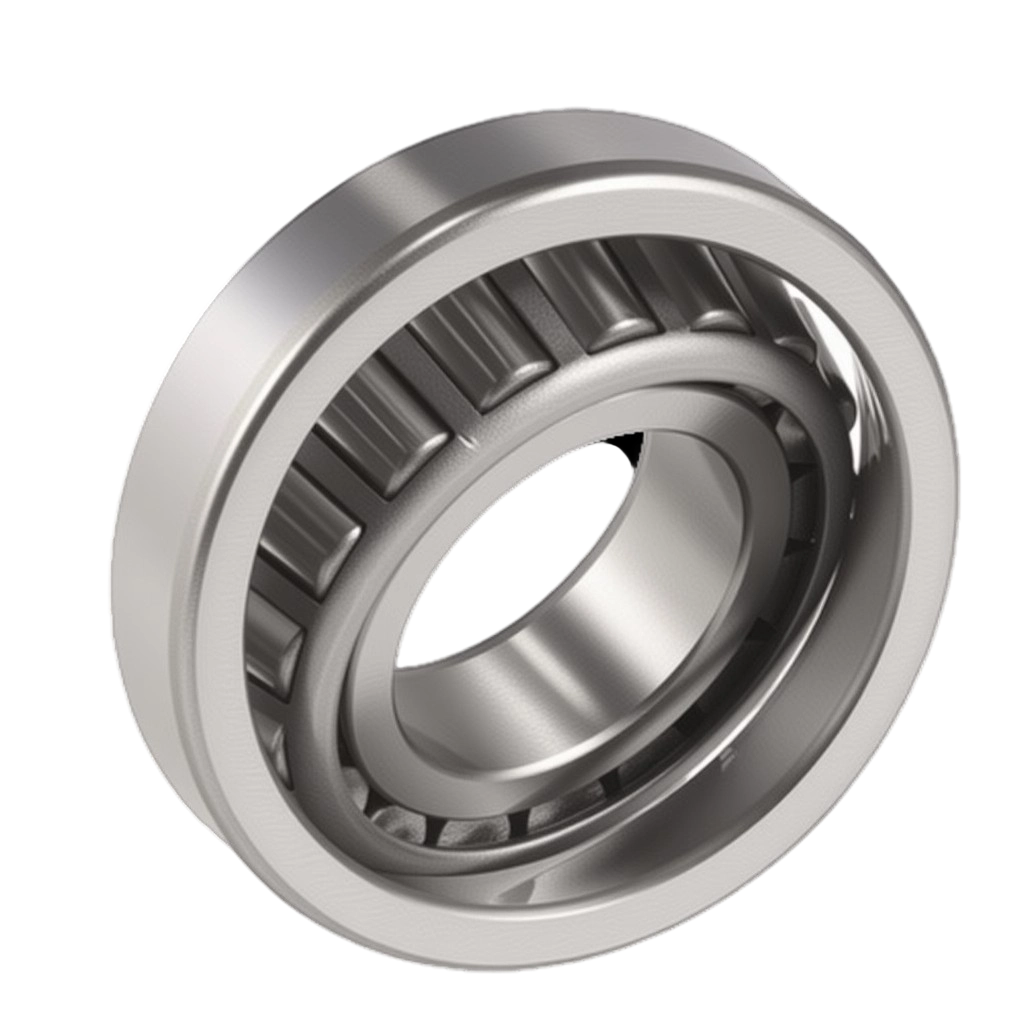

Single Row Tapered Roller Bearings

Single-row tapered roller bearings are designed to handle combined radial and axial loads effectively. The rolling elements in these bearings are shaped like truncated cones and are arranged so that their axes converge at a single point. Enables them to carry heavy loads, reduce friction, and operate with minimal wear.

Single Row Tapered Roller Bearings with Flange

Single-Row Tapered Roller Bearings with Flange (commonly known as TSF bearings) are specialized tapered roller bearings featuring a flange on the outer ring (cup). The flange allows for precise axial positioning within a through-hole housing, eliminating the need for additional shoulders or mechanical locators.

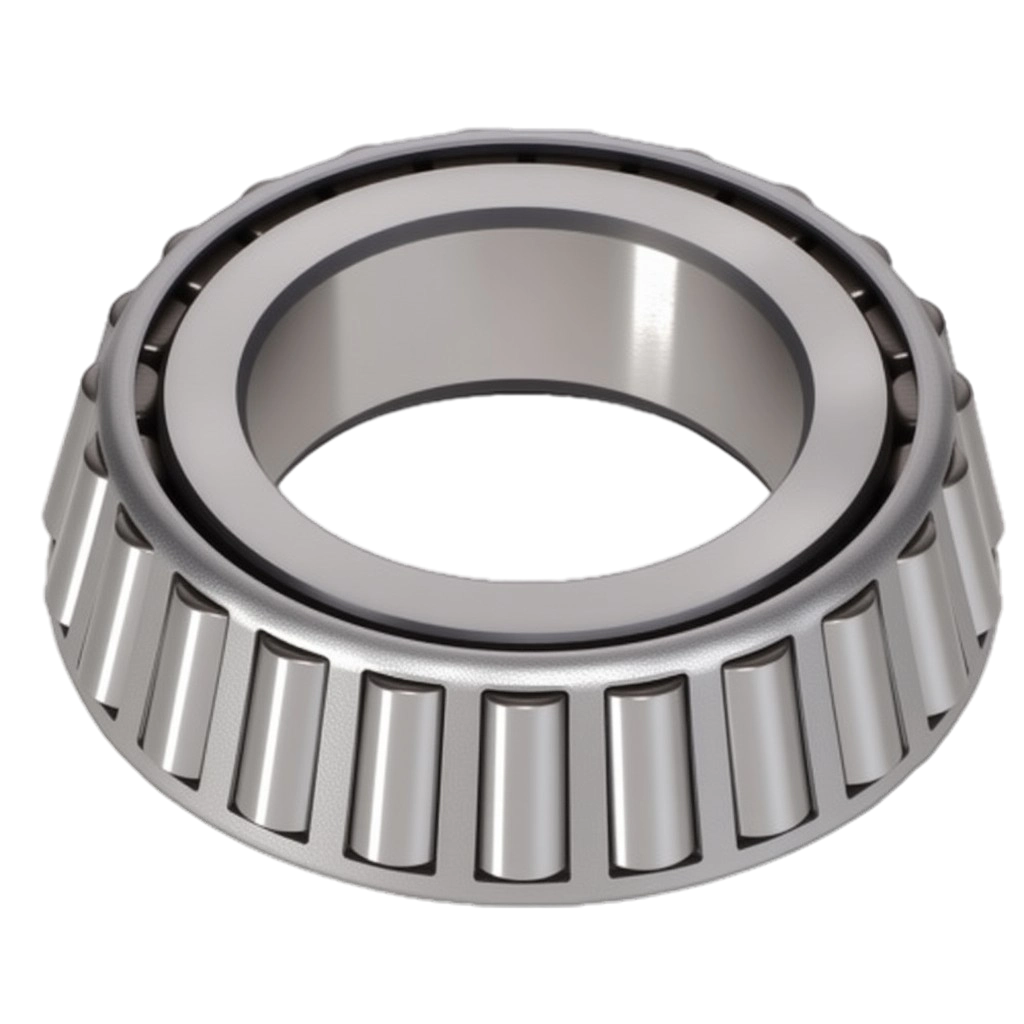

Tapered Roller Bearings Single Cones

Tapered Roller Bearings Single Cones are the inner ring assemblies of tapered roller bearings, consisting of the cone, rollers, and cage, which are separable from the outer ring (cup). These single cones are the most basic and widely used type of tapered roller bearing design.

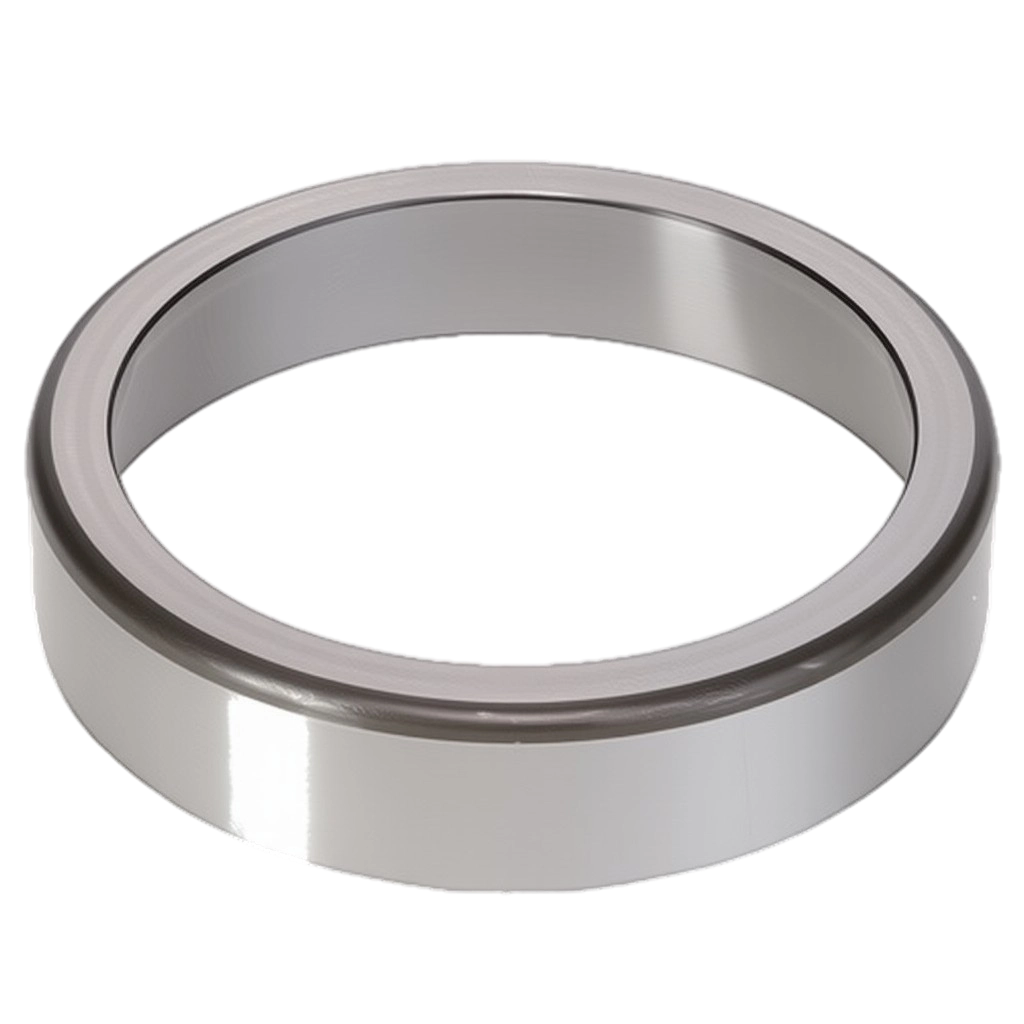

Tapered Roller Bearings Single Cups

Tapered Roller Bearings Single Cups are the outer rings of single-row tapered roller bearings. Together with the cone assembly (which includes the inner ring, tapered rollers, and cage), the cup forms a complete tapered roller bearing. These cups are separable from the cone, allowing for easier mounting and replacement.

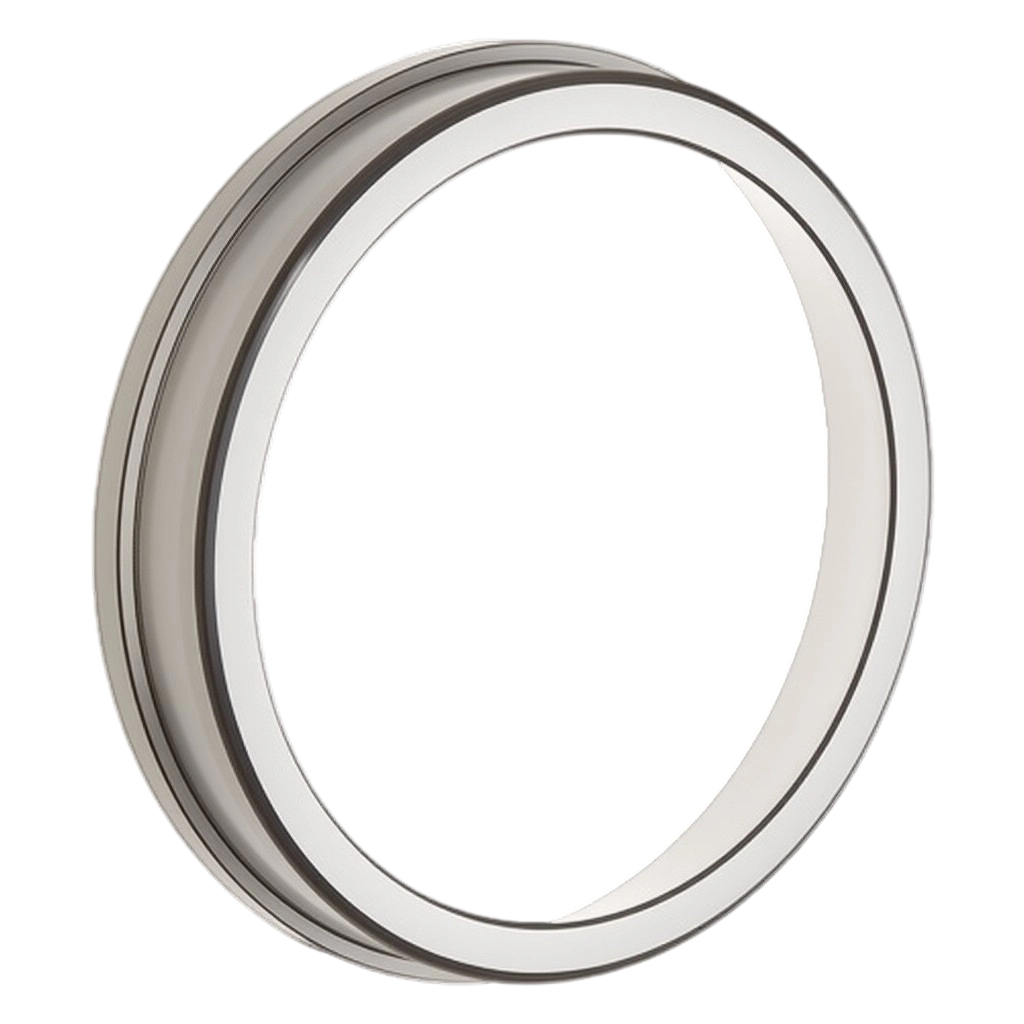

Tapered Roller Bearings Single Flanged Cups

Tapered roller bearings with single-flanged cups support both radial and axial loads. They consist of two separable components: the cone assembly (inner ring, tapered rollers, and cage) and the cup (outer ring). The single flange on the cup aids in axial positioning and precise alignment within the housing.

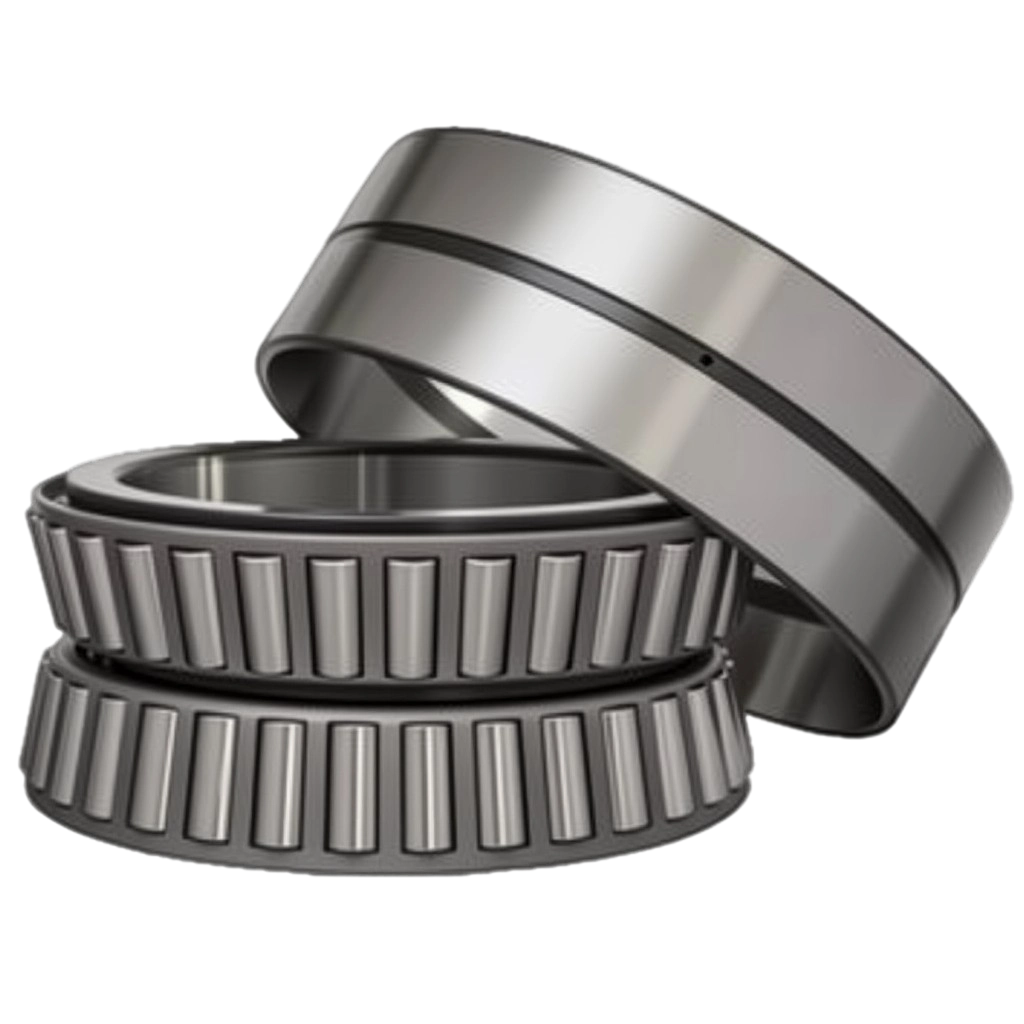

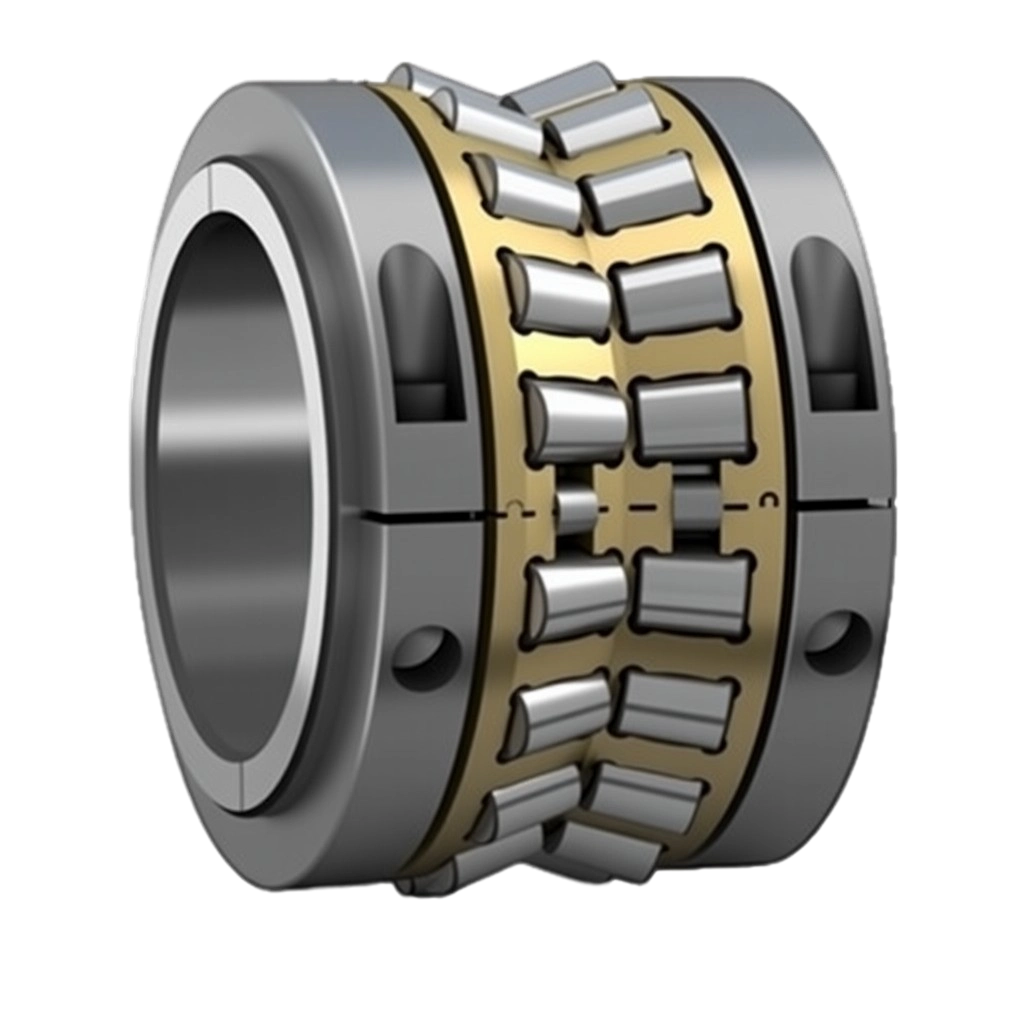

Double Row Tapered Roller Bearings

Double Row Tapered Roller Bearings consist of two rows of tapered rollers positioned between shared rings (cones and cups), enabling them to bear high radial and bidirectional axial loads simultaneously. Their geometry—with rollers and raceways converging at a common apex—results in linear line-contact and effective load distribution, reducing friction and enhancing rigidity.

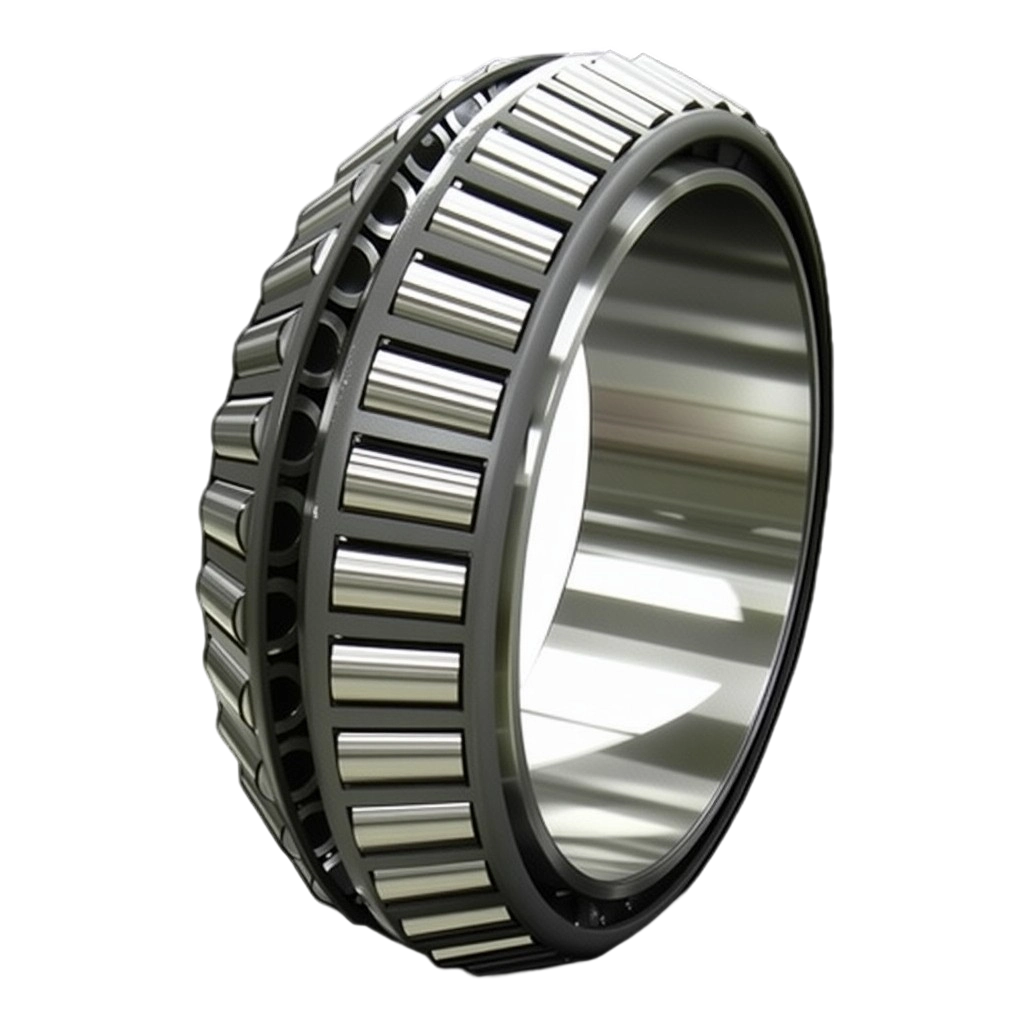

Tapered Roller Bearings Double Cones

Double cone tapered roller bearings consist of a one-piece inner ring (double cone) and two separate outer rings (cups). They are designed to handle both radial and axial loads in both directions, making them suitable for applications where loads are applied from various directions.

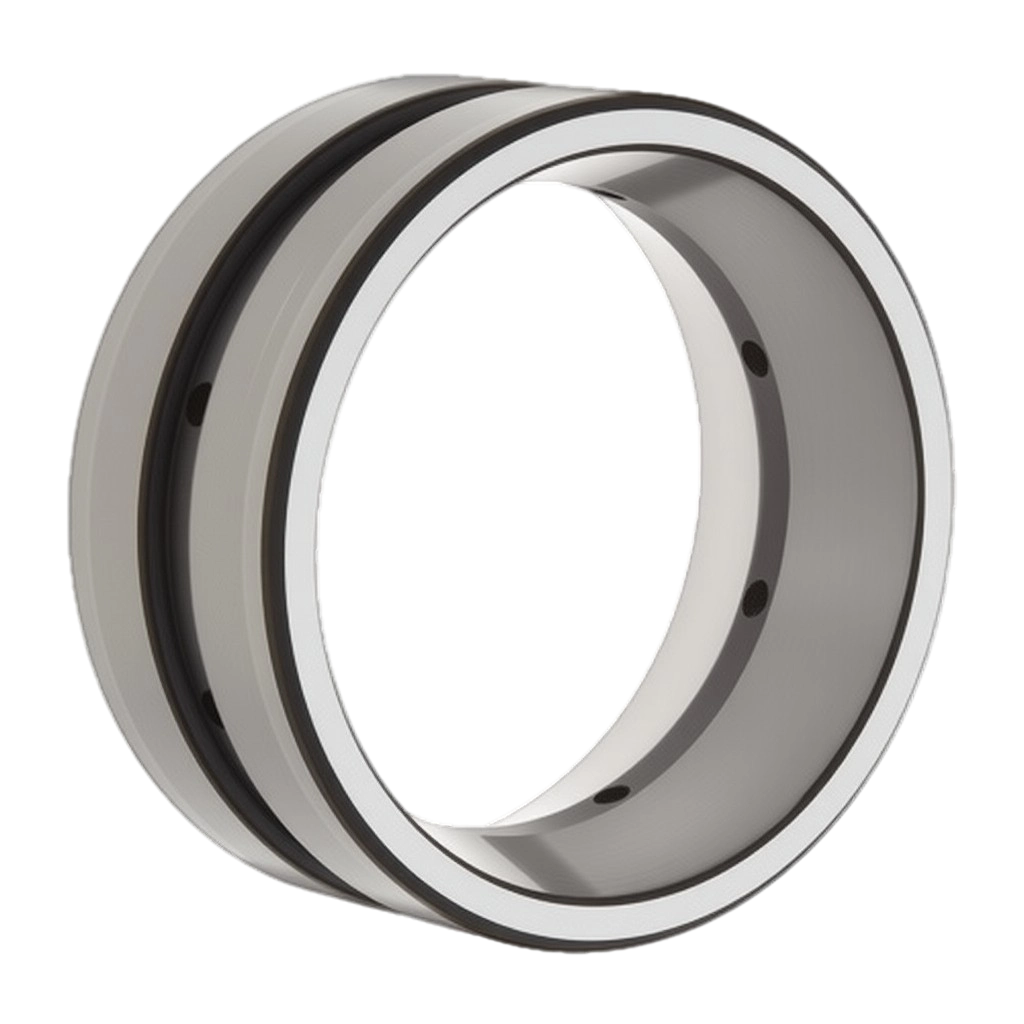

Tapered Roller Bearings Double Cups

A tapered roller bearing double cup is the outer ring component of a double-row tapered roller bearing system. The double cup configuration consists of two single-row cups joined together to form one integrated outer ring assembly that works with either a double cone or two single cones.

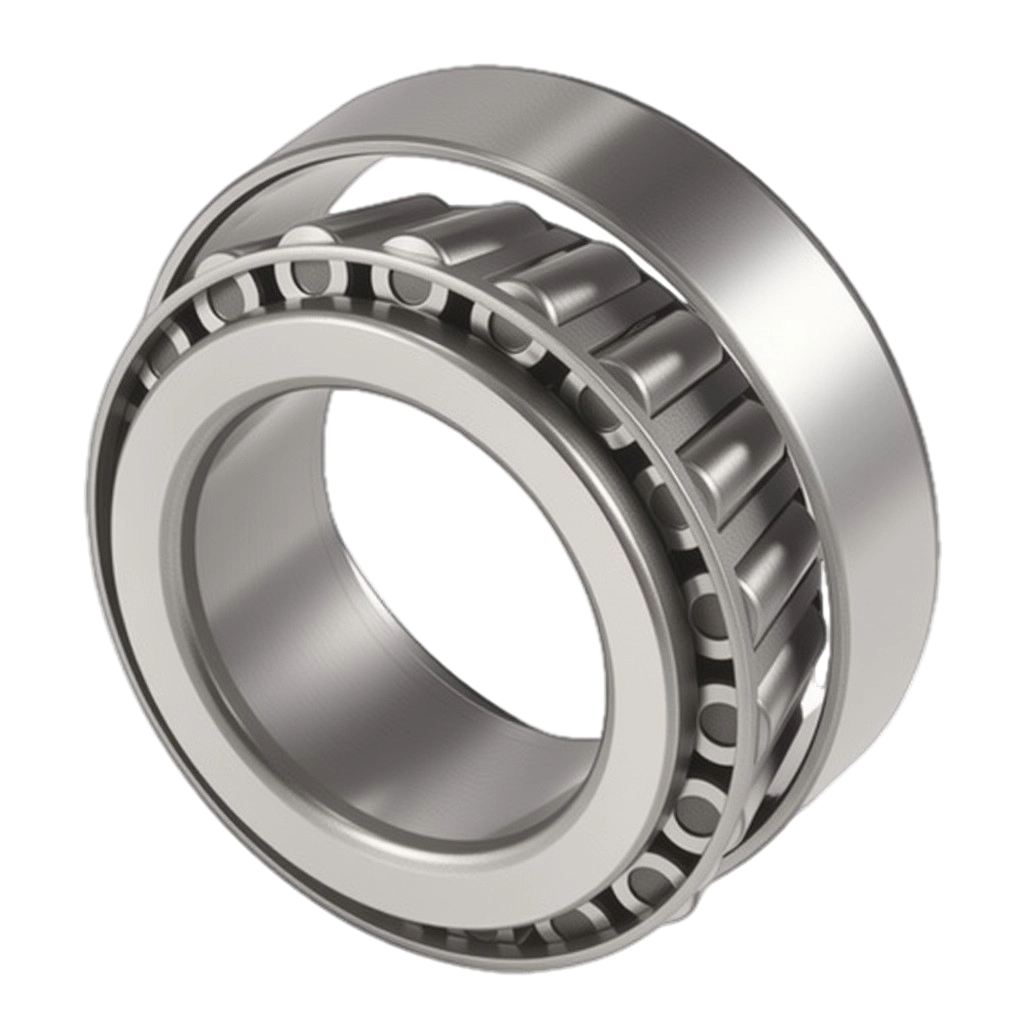

Matched Tapered Roller Bearings

Matched Tapered Roller Bearings (also called duplex sets) are paired single-row tapered roller bearings. Offer precise end play/preload, bidirectional positioning, high rigidity, and ease of assembly. They come ready in X, O, or tandem configurations—ideal for high-performance, precision, or heavy-duty shafts.
