Brake hoses are critical components in automotive braking systems, responsible for transferring hydraulic pressure from the master cylinder to the brake calipers or wheel cylinders. These flexible conduits must withstand high pressure and varying temperatures while maintaining sufficient flexibility to accommodate vehicle movement. The proper specification and quality of brake hoses directly impact braking performance, safety, and reliability.
Types of Brake Component Hoses
The automotive industry employs several types of brake hoses, each with specific characteristics suited to different applications and performance requirements.
Rubber Brake Hoses
Rubber brake hoses represent the most commonly used type in automotive braking systems. These hoses feature a blend of synthetic rubber compounds reinforced with multiple layers to enhance strength and flexibility. Their construction typically includes a rubber inner tube, a reinforcing layer of textile or synthetic fibers, and an outer rubber cover that protects against environmental factors. The primary advantages of rubber hoses include cost-effectiveness and widespread availability, making them the standard choice for everyday passenger vehicles and light trucks with moderate braking demands.
Despite their prevalence, rubber hoses have limitations. They are susceptible to degradation over time due to exposure to heat, moisture, and road chemicals, which can lead to reduced braking performance if not regularly inspected and maintained. The flexibility of rubber allows these hoses to accommodate suspension and steering movement, but this same characteristic can sometimes result in expansion under pressure, affecting brake pedal feel.

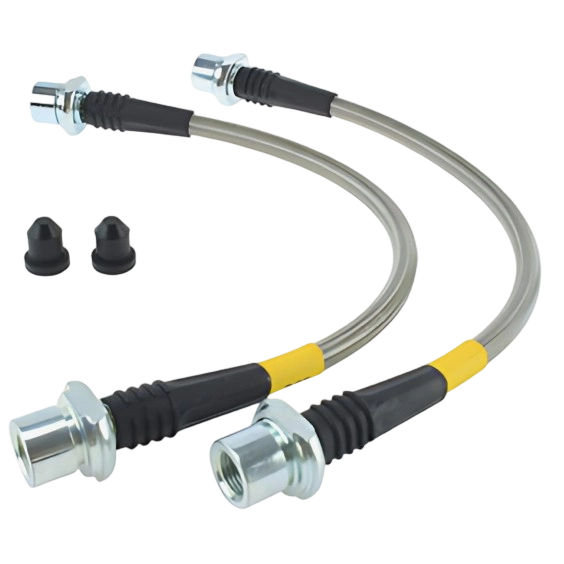

Braided Stainless Steel Brake Hoses
Braided stainless steel brake hoses represent a premium alternative to standard rubber hoses. These hoses combine the flexibility of rubber with the strength and durability of stainless steel reinforcement. The stainless steel braiding significantly reduces hose expansion under pressure, resulting in a firmer brake pedal feel and more responsive braking.
The construction of braided hoses typically involves a PTFE or synthetic rubber inner tube surrounded by stainless steel braiding, providing superior resistance to pressure, heat, and environmental factors. This construction makes them particularly suitable for performance vehicles and racing applications where consistent, responsive braking is critical. Braided hoses are also built to last longer than conventional rubber hoses, improving reliability and durability in demanding conditions.
PTFE (Teflon) Brake Hoses
PTFE brake hoses represent the highest performance option available for braking systems. These hoses utilize a Tefzel® liner that ensures smooth fluid flow, often combined with a Kevlar weave® that provides strength to prevent hose expansion while maintaining flexibility. PTFE hoses offer exceptional resistance to heat, chemicals, and pressure, making them ideal for high-performance and racing applications.
The low-friction interior of PTFE hoses allows for more efficient hydraulic pressure transfer, while their construction minimizes volume expansion even at high braking pressures. This results in a more consistent pedal feel and greater responsiveness compared to conventional rubber hoses.
Nylon Brake Hoses
Nylon brake hoses serve specific applications, particularly in air brake systems for tractors, trailers, and other commercial vehicles. These hoses offer excellent chemical resistance and durability in specific operating conditions. The rigid yet somewhat flexible nature of nylon makes these hoses suitable for applications where moderate flexibility is required, but the primary concern is resistance to environmental factors and chemicals.
Construction and Materials
The construction of brake hoses involves multiple specialized layers, each serving a specific purpose in ensuring safety, durability, and performance.
Multi-layer Construction
Modern brake hoses feature a sophisticated multi-layer design that balances flexibility, strength, and durability. A typical brake hose consists of several distinct layers, each made from different materials optimized for specific functions. From inside to outside, these layers typically include an inner tube rubber, a lower thread layer, an intermediate rubber layer, an upper thread layer, and an outer skin rubber. This multi-layered approach provides the necessary combination of pressure resistance, flexibility, and environmental protection.
Material Composition
The materials used in brake hose construction are carefully selected for their specific properties. The inner tube typically uses nitrile rubber because it comes in direct contact with brake fluid and offers excellent oil and abrasion resistance. This material choice is critical as it must maintain its integrity despite constant exposure to potentially corrosive brake fluid.
The outer rubber layer typically consists of highly durable rubber with excellent weather resistance. This outer layer protects the hose from environmental factors, including road debris, moisture, salt, and UV radiation. Between these layers, various reinforcing materials provide strength and pressure resistance while maintaining the necessary flexibility for vehicle movement.
Reinforcement Techniques
Brake hoses employ various reinforcement techniques to withstand the high pressures generated during braking. Most commonly, manufacturers use braided textile or synthetic fibers as reinforcing layers. In premium brake hoses, stainless steel braiding or Kevlar weaves provide superior strength and resistance to expansion under pressure.
These reinforcement layers serve as pressure support, preventing the hose from ballooning when hydraulic pressure is applied during braking. This characteristic is particularly important for maintaining consistent brake pedal feel and ensuring reliable braking performance. The reinforcement layers must also allow sufficient flexibility for the hose to accommodate suspension travel and steering movement without compromising strength.
Technical Specifications and Standards
Brake hoses must meet stringent technical specifications and industry standards to ensure safety and reliability in automotive applications.
Size Specifications
Brake hoses come in various sizes to accommodate different vehicle requirements. Standard rubber brake hoses typically feature inner diameters (ID) ranging from 3/8 to 1/2 inch and outer diameters (OD) from 3/4 to 7/8 inch. Hydraulic brake hoses may have different specifications, with IDs of 3.2 and 5 mm and ODs of 10.5 and 13 mm. These precise dimensions ensure proper fluid flow and compatibility with connecting components.
Pressure Ratings
Brake hoses must withstand significant pressure during braking operations. Typical rubber brake hoses have working pressures around 225 psi and burst pressures of approximately 900 psi. Hydraulic brake hoses feature even higher pressure ratings, with burst pressures ranging from 345 to 490 bars (approximately 5,000 to 7,100 psi). These pressure ratings provide a substantial safety margin above normal operating pressures.
Performance Requirements
Beyond regulatory compliance, brake hoses must meet various performance requirements to ensure reliable operation in challenging conditions. These requirements include resistance to high temperatures, chemicals, and mechanical stress, as well as maintaining flexibility and integrity over an extended service life.
Performance testing for brake hoses encompasses multiple parameters, including leak testing, pressure resistance, fluid displacement, tensile strength, and volume expansion. Low volume expansion is particularly important for brake hose performance, as excessive expansion can lead to a spongy brake pedal and reduced responsiveness. Quality manufacturers design their hoses to expand minimally, even at high braking pressures, ensuring consistent pedal feel and greater responsiveness.
Applications and Compatibility
Brake hoses serve diverse applications across various vehicle types, each with specific requirements and compatibility considerations.
Passenger Vehicles
In passenger vehicles, brake hoses connect the master cylinder on the body side to the wheel cylinders and calipers on the wheel side. These flexible connections accommodate the significant vertical displacement of wheels due to the suspension system and the steering movement of front wheels. Standard passenger cars with four-wheel independent suspension require four brake hoses, while those with two-wheel independent suspension need a minimum of three hoses.
Rubber brake hoses remain the most common choice for standard passenger vehicles, offering a balanced combination of performance, cost, and durability for everyday driving conditions. However, performance-oriented passenger vehicles increasingly utilize braided stainless steel or PTFE hoses to enhance braking response and pedal feel. These premium options provide more consistent performance, particularly during aggressive driving or in high-temperature conditions.
Commercial Vehicles
Commercial vehicles like trucks, buses, and trailers often employ specialized brake hose systems designed for heavy-duty applications. These vehicles frequently use air brake systems with nylon brake hoses suitable for pneumatic rather than hydraulic operation. The requirements for commercial vehicle brake hoses include enhanced durability, higher pressure ratings, and resistance to severe operating conditions.
Air brake hoses for commercial applications typically feature multi-spiral construction with inner diameters ranging from 1/4 to 5/8 inch. These specialized hoses must withstand the unique demands of pneumatic braking systems while providing reliable performance under heavy loads and frequent use. The design and materials of commercial vehicle brake hoses prioritize longevity and reliability in challenging operating environments.
Motorsport Applications
Motorsport applications demand the highest performance from brake hoses, with specialized products designed specifically for racing conditions. Racing brake hoses typically utilize braided stainless steel or PTFE construction to minimize expansion under the extreme pressures generated during high-performance braking. These hoses also offer superior resistance to the high temperatures common in racing applications. The enhanced responsiveness and consistent pedal feel provided by premium brake hoses contribute to driver confidence and control in competitive environments.
Installation Considerations
Proper installation of brake hoses is critical for safety and performance. When performing a repair or replacement, technicians must consider several important factors. First, they must ensure the hose has the correct length and fittings for the specific vehicle application. Additionally, they must verify that the hose is not twisted, kinked, or subjected to tension when installed.
To facilitate installation and ensure reliable connections, quality manufacturers often supply all-new banjo clamps and brackets with their brake hoses, matching the original equipment manufacturer (OEM) specifications. This approach ensures a robust connection and longer service life while saving valuable labor time and costs. Proper routing of brake hoses is also essential to prevent contact with moving parts or components that generate heat, which could cause premature failure.
Conclusion
Brake hoses represent critical components in automotive braking systems, directly impacting safety, performance, and reliability. From standard rubber hoses in everyday passenger vehicles to specialized PTFE and stainless steel braided hoses in high-performance applications, these components must withstand challenging conditions while providing consistent hydraulic pressure transfer for effective braking.
The multi-layered construction of modern brake hoses demonstrates the engineering sophistication behind these seemingly simple components. Each layer serves a specific purpose, from the chemical-resistant inner lining to the reinforced middle layers and weather-resistant outer covering. This complex construction enables brake hoses to withstand the high pressures, temperature variations, and environmental challenges encountered in automotive applications.
As automotive technology continues to advance, brake hose technology will likely evolve in parallel, with ongoing improvements in materials, construction techniques, and performance characteristics. The trend toward more environmentally friendly materials and manufacturing processes will also influence future developments in this essential automotive component. Regardless of these advancements, the fundamental importance of brake hoses to vehicle safety ensures their continued significance in automotive engineering.
