Automotive pipes and hoses represent critical but often overlooked components that form the circulatory system of modern vehicles. These essential conduits transport various fluids and gases throughout the vehicle, ensuring proper functioning of multiple systems from engine cooling to brake operation. Behind the sleek bodywork and powerful engines lies a complex network of these vital components working together to maintain smooth and efficient operation across all vehicle systems. Without properly functioning pipes and hoses, vehicles would quickly overheat, lose braking capability, or experience fuel delivery failures that could lead to complete system breakdown.
Types and Functions of Automotive Hoses
Vehicles contain numerous specialized hoses, each designed for specific applications and not interchangeable with other systems due to their unique material properties and construction techniques. Different automotive fluids and gases require specialized hoses that can withstand specific pressures, temperatures, and chemical interactions without degradation or failure.
1. Fuel Hoses
Fuel hoses serve the critical function of transporting fuel from the tank to various parts of the vehicle, particularly the fuel pump and engine components. These reinforced rubber hoses come in various sizes and pressure ranges specifically designed for different vehicle types, from small passenger cars to agricultural tractors and commercial trucks. Fuel hoses must withstand exposure to aggressive chemicals while maintaining structural integrity to prevent dangerous leaks.
Low-pressure fuel hoses, designed for carbureted vehicles (6-10 psi), feature flexible nitrile construction with nylon reinforcement, resisting various fuels and handling up to 25 psi. High-pressure hoses, for EFI systems (30-100 psi), require rounded clamps or dedicated fittings to ensure safety and prevent leaks under higher pressures.

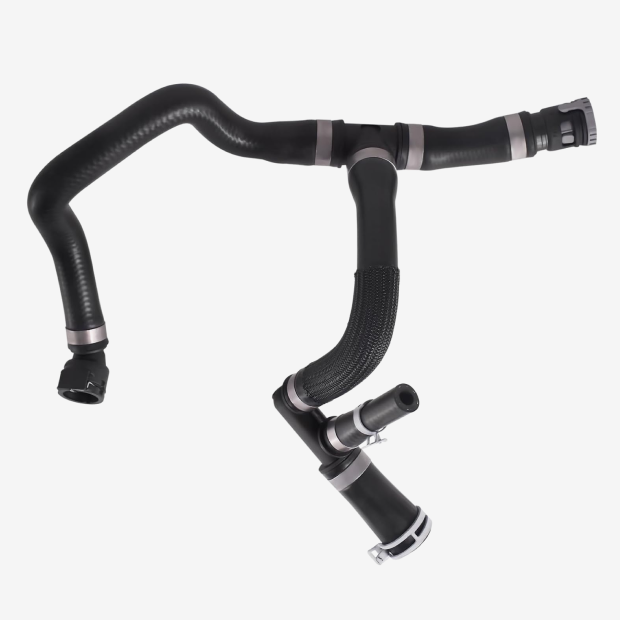

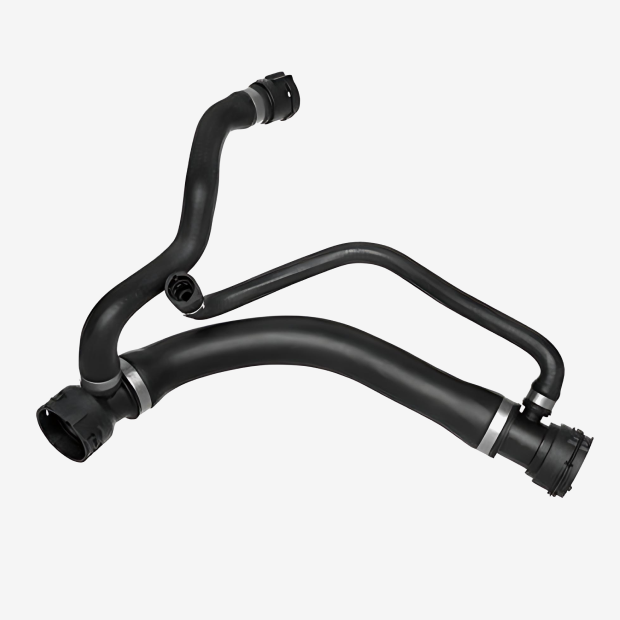

2. Radiator and Coolant Hoses
Radiator hoses play a critical role in the vehicle's cooling system by transporting coolant between the radiator and the engine to maintain optimal operating temperature. Most radiator hoses are manufactured from EPDM (ethylene propylene diene monomer) rubber, which provides excellent resistance to heat, ozone, and coolant chemicals that would rapidly degrade lesser materials. These hoses must withstand both high temperatures and pressure fluctuations while remaining flexible enough to accommodate engine movement.
Regular inspection of cooling system hoses is essential as they naturally degrade over time due to thermal cycling and chemical exposure. Vehicle owners should check for cracks, leaks, bulges, and hardening of the rubber, as these are indicators of impending failure that could lead to overheating and potentially catastrophic engine damage. Automotive experts recommend diagnosing coolant hoses approximately every 30,000 operational kilometers to prevent unexpected failures during vehicle operation.

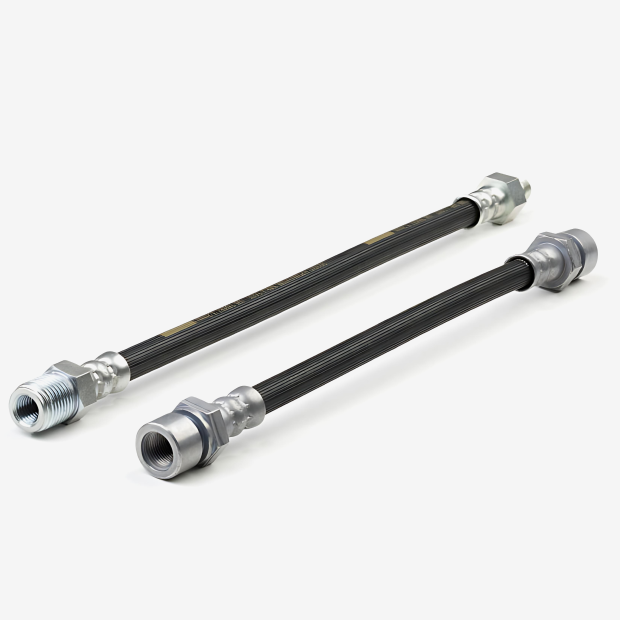

3. Brake Hoses
Brake hoses serve as vital components in vehicle safety systems, transmitting hydraulic pressure from the master cylinder to the brake calipers or wheel cylinders. These hoses must withstand extreme pressure fluctuations while remaining flexible enough to accommodate suspension movement during normal driving conditions. Due to their critical safety role, brake hoses are subject to stringent design and testing standards to ensure reliability under diverse operating conditions.
Brake hoses typically incorporate multiple layers of specialized materials including inner liners resistant to brake fluid, reinforcement layers for pressure resistance, and outer coverings that protect against environmental damage. Industry standards recommend inspecting brake hoses approximately every 50,000 operational kilometers, with particular attention to signs of cracking, bulging, or fluid seepage. Modern brake hose designs often incorporate stainless steel braided reinforcement for enhanced durability and resistance to expansion under pressure, which provides more responsive brake pedal feel and improved braking performance in high-performance applications.
4. Air Conditioning Hoses
Air conditioning hoses transport refrigerant between the AC compressor, condenser, and evaporator, forming a critical component of the vehicle's climate control system. These specialized hoses must withstand high pressures and significant temperature variations while preventing the escape of refrigerant gases that could damage the environment. Their construction typically features materials specifically chosen for refrigerant compatibility and pressure resistance.
AC hoses typically feature an inner tube of EPDM or NBR for chemical resistance and flexibility, reinforced with braided or spiral-wrapped textiles for strength under pressure. The outer layer, made of durable synthetic rubber, resists abrasion, UV exposure, and contamination. Modern assemblies include corrosion-resistant aluminum or steel fittings for long-term durability in air conditioning systems.
5. Hydraulic Hoses
Hydraulic hoses in vehicles transport high-pressure fluid to operate power steering systems, suspension components, convertible tops, and various other hydraulic mechanisms. These hoses must withstand significant pressure while remaining flexible enough to accommodate vehicle movement and vibration. Medium to high-pressure hydraulic applications typically employ wire-reinforced or yarn-braid hoses that offer lightweight construction and excellent flexibility characteristics.
The construction of hydraulic hoses typically features three primary components: an inner tube made from oil-resistant NBR (Nitrile Butadiene Rubber), reinforcement layers composed of high-tensile steel wire or synthetic fiber braid, and an outer cover resistant to oil, ozone, and abrasion (typically CSM - Chlorosulfonated Polyethylene). Applications for hydraulic hoses in vehicles include high-temperature medium pressure hydraulic oil lines, antifreeze solutions, air systems, and water circulation, with size ranges typically spanning from ¼ to 2 inches depending on the specific application requirements.
Automotive Pipes and Their Applications
Unlike flexible hoses, automotive pipes provide rigid fluid pathways that offer stability, precise routing, and enhanced durability for specific vehicle systems. These components are manufactured from various materials including steel, aluminum, and specialized alloys selected for specific performance characteristics and application requirements. Automotive pipes undergo rigorous testing to ensure they meet industry standards for strength, pressure resistance, and dimensional accuracy.
Fuel and SCR Piping Systems
Fuel piping systems in vehicles perform the critical function of transporting fuel between storage and combustion components, with different designs for under-body lines and tank lines. Under-body lines communicate between the tank and engine, providing fuel supply and engine feedback through durable, corrosion-resistant materials that can withstand road debris and environmental exposure. Tank lines, located outside the fuel tank, perform multiple functions including supplying fuel to the vehicle, removing it when necessary, purging the system, and venting fuel vapors to prevent dangerous pressure buildup.
Modern vehicles increasingly incorporate SCR (Selective Catalytic Reduction) systems that reduce harmful emissions by injecting AdBlue into exhaust gases. These systems require specialized filling pipes that can handle the unique chemical properties of emissions treatment fluids. These advanced piping systems demonstrate how modern automotive design continues to evolve, creating new requirements for fluid transfer components that support environmental compliance and emissions reduction technologies.
Hydraulic Mainframe Piping: Non-welded systems, favored for their reliability and clean installation, support hydraulic functions in manufacturing and testing, including brake lines and suspension systems. These are widely adopted globally for their cost and performance advantages.
Materials and Construction Technologies
The performance and durability of automotive pipes and hoses depend on material selection and manufacturing technologies tailored to specific operating conditions such as chemical exposure, temperature extremes, and mechanical stress.
1. Rubber Compounds:
EPDM rubber is ideal for radiator and heater hoses due to its heat, ozone, and chemical resistance, while NBR rubber is preferred for fuel and hydraulic hose inner tubes due to its superior oil and fuel resistance. Multi-layer construction optimizes performance, combining chemical-resistant inner tubes, pressure-resistant reinforcement layers (e.g., textile yarn or steel wire), and protective outer covers for environmental resilience.
2. Silicone Technology:
Silicone hoses, with exceptional temperature resistance (-60°C to +350°C), are ideal for high-performance and racing vehicles. Customizable for specific needs, they offer features like Turbo Nomex reinforcement for strength or fluorosilicone linings for oil resistance. Despite higher costs, silicone hoses provide unmatched durability and performance for critical cooling systems.
3. Advanced Polymer Tubing:
Modern vehicles use advanced polymers for lightweight, durable, and flexible tubing. Polyurethane resists abrasion, while nylon offers high-pressure capabilities and solvent resistance for fuel lines and brake systems.
Common Failure Modes and Maintenance of Automotive Pipes and Hoses
1. Signs of Failure:
Early indicators include erratic operation of cooling, heating, or air conditioning systems, soft brake pedals, or increased stopping distances. Visual signs such as fluid leaks, cracks, or kinks, along with unusual odors, signal potential issues requiring immediate attention.
2. Causes of Degradation:
Aging and environmental exposure degrade rubber and metal components, while improper routing, clamp tension, or the use of low-quality parts accelerate failure. Neglecting maintenance or operating under extreme conditions (e.g., overheating) also contributes to premature wear.
3. Maintenance and Replacement:
Regular inspections (e.g., cooling system hoses every 30,000 km, brake hoses every 50,000 km) and condition-based replacements ensure reliability. Replacement involves draining fluids, removing old components, cleaning connections, installing new parts with correct fittings, and refilling fluids. Complete replacement is generally more reliable than patching damaged hoses.
