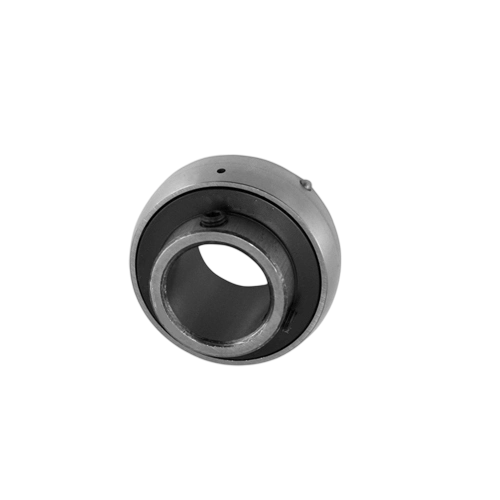

Set Screw Bearing Insert

Part Number	Shaft Diameter	Dynamic Load Rating	Static Load Rating	Weight	D	Bi	Be	R	N
K000	10 mm	470 kgf	200 kgf	0.05 lb	26 mm	14 mm	8 mm	0.5 mm	4 mm
K001	12 mm	520 kgf	245 kgf	0.06 lb	28 mm	14.5 mm	8 mm	0.5 mm	4 mm
K002	15 mm	570 kgf	290 kgf	0.10 lb	32 mm	16.5 mm	9 mm	0.5 mm	4.5 mm
K003	17 mm	610 kgf	335 kgf	0.11 lb	35 mm	17.5 mm	10 mm	0.5 mm	5 mm
K004	20 mm	955 kgf	515 kgf	0.19 lb	42 mm	21 mm	12 mm	1 mm	6 mm
K005	25 mm	1030 kgf	595 kgf	0.22 lb	47 mm	22.5 mm	12 mm	1 mm	6 mm
K006	30 mm	1350 kgf	845 kgf	0.32 lb	55 mm	24.5 mm	13 mm	1.5 mm	6.5 mm
UCX05-16	1 in	4410 lbf	2540 lbf	0.82 lb	2.4409 in	1.500 in	0.748 in	0.059 in	0.626 in
UCX06-18	1-1/8 in	5820 lbf	3460 lbf	1.01 lb	2.8346 in	1.689 in	0.787 in	0.059 in	0.689 in
UCX06-19	1-3/16 in	5820 lbf	3460 lbf	1.01 lb	2.8346 in	1.689 in	0.787 in	0.059 in	0.689 in
UCX06-20	1-1/4 in	5820 lbf	3460 lbf	1.01 lb	2.8346 in	1.689 in	0.787 in	0.059 in	0.689 in
UCX07-20	1-1/4 in	6590 lbf	4020 lbf	1.63 lb	3.1496 in	1.937 in	0.827 in	0.079 in	0.748 in
UCX07-22	1-3/8 in	6590 lbf	4020 lbf	1.63 lb	3.1496 in	1.937 in	0.827 in	0.079 in	0.748 in
UCX07-23	1-7/16 in	6590 lbf	4020 lbf	1.63 lb	3.1496 in	1.937 in	0.827 in	0.079 in	0.748 in
UCX08-24	1-1/2 in	7420 lbf	4610 lbf	1.76 lb	3.3465 in	1.937 in	0.866 in	0.079 in	0.748 in
UCX09-26	1-5/8 in	7980 lbf	5220 lbf	2.03 lb	3.5433 in	2.031 in	0.906 in	0.079 in	0.748 in
UCX09-27	1-11/16 in	7980 lbf	5220 lbf	2.03 lb	3.5433 in	2.031 in	0.906 in	0.079 in	0.748 in
UCX09-28	1-3/4 in	7980 lbf	5220 lbf	2.03 lb	3.5433 in	2.031 in	0.906 in	0.079 in	0.748 in
UCX10-30	1-7/8 in	9700 lbf	6610 lbf	2.67 lb	3.9370 in	2.189 in	0.945 in	0.079 in	0.874 in
UCX10-31	1-15/16 in	9700 lbf	6610 lbf	2.67 lb	3.9370 in	2.189 in	0.945 in	0.079 in	0.874 in
UCX10-32	2 in	9700 lbf	6610 lbf	2.67 lb	3.9370 in	2.189 in	0.945 in	0.079 in	0.874 in
UCX11-32	2 in	11800 lbf	8120 lbf	3.79 lb	4.3307 in	2.563 in	1.024 in	0.098 in	1.000 in
UCX11-35	2-3/16 in	11800 lbf	8120 lbf	3.79 lb	4.3307 in	2.563 in	1.024 in	0.098 in	1.000 in
UCX11-36	2-1/4 in	11800 lbf	8120 lbf	3.79 lb	4.3307 in	2.563 in	1.024 in	0.098 in	1.000 in
UCX12-38	2-3/8 in	12900 lbf	9000 lbf	4.34 lb	4.7244 in	2.563 in	1.063 in	0.098 in	1.000 in
UCX12-39	2-7/16 in	12900 lbf	9000 lbf	4.34 lb	4.7244 in	2.563 in	1.063 in	0.098 in	1.000 in
UCX13-40	2-1/2 in	14000 lbf	9900 lbf	5.14 lb	4.9213 in	2.937 in	1.142 in	0.098 in	1.189 in
UCX14-43	2-11/16 in	14900 lbf	10800 lbf	5.66 lb	5.1181 in	3.063 in	1.181 in	0.098 in	1.311 in
UCX14-44	2-3/4 in	14900 lbf	10800 lbf	5.66 lb	5.1181 in	3.063 in	1.181 in	0.098 in	1.311 in
UCX15-47	2-15/16 in	16300 lbf	11900 lbf	7.10 lb	5.5118 in	3.252 in	1.260 in	0.098 in	1.311 in
UCX15-48	3 in	16300 lbf	11900 lbf	7.10 lb	5.5118 in	3.252 in	1.260 in	0.098 in	1.311 in
UCX16-51	3-3/16 in	18700 lbf	13900 lbf	8.40 lb	5.9055 in	3.374 in	1.339 in	0.118 in	1.343 in
UCX17-52	3-1/4 in	21500 lbf	16100 lbf	10.65 lb	6.2992 in	3.780 in	1.417 in	0.118 in	1.563 in
UCX17-55	3-7/16 in	21500 lbf	16100 lbf	10.65 lb	6.2992 in	3.780 in	1.417 in	0.118 in	1.563 in
UCX18-56	3-1/2 in	24500 lbf	18400 lbf	12.10 lb	6.6929 in	4.094 in	1.496 in	0.118 in	1.689 in
UCX20-63	3-15/16 in	30200 lbf	23600 lbf	19.92 lb	7.4803 in	4.626 in	1.654 in	0.138 in	1.937 in
UCX20-64	4 in	30200 lbf	23600 lbf	19.92 lb	7.4803 in	4.626 in	1.654 in	0.138 in	1.937 in
UCX05	25 mm	2000 kgf	1150 kgf	0.83 lb	62 mm	38.1 mm	19 mm	1.5 mm	15.9 mm
UCX06	30 mm	2640 kgf	1570 kgf	1.03 lb	72 mm	42.9 mm	20 mm	1.5 mm	17.5 mm
UCX07	35 mm	2990 kgf	1830 kgf	1.65 lb	80 mm	49.2 mm	21 mm	2 mm	19 mm
UCX08	40 mm	3350 kgf	2090 kgf	1.78 lb	85 mm	49.2 mm	22 mm	2 mm	19 mm
UCX09	45 mm	3600 kgf	2370 kgf	2.05 lb	90 mm	51.6 mm	23 mm	2 mm	19 mm
UCX10	50 mm	4400 kgf	3000 kgf	2.70 lb	100 mm	55.6 mm	24 mm	2 mm	22.2 mm
UCX11	55 mm	5350 kgf	3700 kgf	3.84 lb	110 mm	65.1 mm	26 mm	2.5 mm	25.4 mm
UCX12	60 mm	5850 kgf	4100 kgf	4.39 lb	120 mm	65.1 mm	27 mm	2.5 mm	25.4 mm
UCX13	65 mm	6350 kgf	4500 kgf	5.20 lb	125 mm	74.6 mm	29 mm	2.5 mm	30.2 mm
UCX14	70 mm	6750 kgf	4900 kgf	5.73 lb	130 mm	77.8 mm	30 mm	2.5 mm	33.3 mm
UCX15	75 mm	7400 kgf	5400 kgf	7.18 lb	140 mm	82.6 mm	32 mm	2.5 mm	33.3 mm
UCX16	80 mm	8500 kgf	6300 kgf	8.50 lb	150 mm	85.7 mm	34 mm	3 mm	34.1 mm
UCX17	85 mm	9750 kgf	7300 kgf	10.8 lb	160 mm	96 mm	36 mm	3 mm	39.7 mm
UCX18	90 mm	11100 kgf	8350 kgf	12.3 lb	170 mm	104 mm	38 mm	3 mm	42.9 mm
UCX20	100 mm	13700 kgf	10700 kgf	20.2 lb	190 mm	117.5 mm	42 mm	3.5 mm	49.2 mm
UC305-16	1 in	4780 lbf	2450 lbf	0.97 lb	2.4409 in	1.496 in	0.827 in	0.079 in	0.591 in
UC306-19	1-3/16 in	6020 lbf	3370 lbf	1.23 lb	2.8346 in	1.693 in	0.906 in	0.079 in	0.669 in
UC307-20	1-1/4 in	7530 lbf	4320 lbf	1.56 lb	3.1496 in	1.890 in	0.984 in	0.098 in	0.748 in
UC307-23	1-7/16 in	7530 lbf	4320 lbf	1.56 lb	3.1496 in	1.890 in	0.984 in	0.098 in	0.748 in
UC308-24	1-1/2 in	9150 lbf	5380 lbf	2.20 lb	3.5433 in	2.047 in	1.063 in	0.098 in	0.748 in
UC309-27	1-11/16 in	11570 lbf	6630 lbf	2.82 lb	3.9370 in	2.244 in	1.181 in	0.098 in	0.866 in
UC309-28	1-3/4 in	11570 lbf	6630 lbf	2.82 lb	3.9370 in	2.244 in	1.181 in	0.098 in	0.866 in
UC310-30	1-7/8 in	13900 lbf	8600 lbf	3.64 lb	4.3307 in	2.402 in	1.260 in	0.118 in	0.866 in
