The ignition system is a critical component in internal combustion engines, responsible for generating the high-voltage electrical spark that initiates the combustion process. This fundamental system has evolved significantly over time, from mechanical contact points to sophisticated electronic control modules.
Fundamentals of Ignition Systems
An ignition system's primary purpose is to generate a high-voltage spark at precisely the right moment to ignite the compressed air-fuel mixture within the engine's combustion chambers. This system must produce voltages of 12,000-25,000 volts or more to "fire" properly and create the spark that initiates combustion. Proper timing of this spark is crucial for optimal engine performance, fuel efficiency, and emissions control.
In gasoline engines, the ignition system delivers electrical current from a power source to the spark plugs, while diesel engines use a different approach involving compression ignition rather than spark ignition. These fundamental differences highlight how ignition systems are designed to match specific engine requirements and fuel types.
Purpose and Significance
The ignition system serves as the trigger for the engine's power generation cycle. Without a properly functioning ignition system, the engine cannot start or run efficiently. As the spark jumps across the gap of the spark plug, it creates a small explosion that ignites the fuel-air mixture, pushing the piston down and generating mechanical power. This precisely timed process must occur repeatedly and reliably under varying engine loads and speeds.
Parts of Ignition Systems
Modern ignition systems consist of several interconnected components that work together to generate and deliver the high-voltage spark at the right moment. Understanding these components helps in diagnosing potential issues and appreciating the system's complexity.
Battery and Power Supply
The battery serves as the initial power source for the ignition system, providing the electrical energy needed to create the spark. In a typical automotive application, a 12-volt lead-acid battery supplies the low-voltage current that will eventually be transformed into high-voltage electricity. After the engine starts running, the charging system (alternator or generator) takes over to provide continuous power to the ignition system.
Ignition Switch
The ignition switch functions as the master control for the entire ignition system, allowing the driver to turn the system on and off. When engaged, it connects the battery to the rest of the ignition system, initiating the process of spark generation. This simple but essential component serves as the gateway for electrical power into the ignition system.
Ignition Coil
The ignition coil is a transformer that converts the battery's low-voltage current (typically 12 volts) into the high voltage (20,000+ volts) required to create a spark across the spark plug gap. It consists of primary and secondary windings wrapped around an iron core. The primary winding typically has 200-300 turns of wire, while the secondary winding has approximately 21,000 turns, creating the substantial voltage amplification through electromagnetic induction.
When current flows through the primary winding, it creates a magnetic field. When this current is interrupted, the collapsing magnetic field induces a much higher voltage in the secondary winding through mutual induction.
Distributor Components (in Traditional Systems)
In conventional ignition systems, the distributor plays a crucial role in directing the high-voltage current to each spark plug in the proper firing order. The distributor assembly typically includes:
1.Distributor cap: Covers the rotor and houses the contacts connected to spark plug wires
2.Rotor: Spins inside the distributor cap, transferring high voltage to the correct contacts
3.Points (in older systems): Mechanical switches that open and close the primary circuit
4.Condenser/capacitor: Prevents dangerous arcing across the breaker points
Modern vehicles have largely abandoned distributor-based systems in favor of more efficient electronic ignition systems, but understanding the distributor remains important for older vehicles.
Spark Plugs
Spark plugs are the final delivery point for the high-voltage electrical current, creating the spark that ignites the air-fuel mixture. A spark plug has a metal threaded shell electrically isolated from a central electrode by a ceramic insulator. When high voltage is applied, a spark jumps the gap between the center electrode and the ground electrode, igniting the compressed fuel-air mixture.
The spark raises the temperature in the spark channel to approximately 60,000 K, creating a small explosion that initiates combustion throughout the cylinder. Properly functioning spark plugs are essential for efficient engine operation and should be replaced according to manufacturer recommendations.
Electronic Components in Modern Systems
Modern ignition systems incorporate sophisticated electronic components that improve reliability, efficiency, and performance:
1. Electronic Control Module (ECM)/Powertrain Control Module (PCM): Controls the timing and intensity of the spark based on various engine parameters
2. Crankshaft and camshaft sensors: Provide precise position information to determine optimal spark timing
3. Knock sensor: Detects engine knocking and allows the system to adjust timing accordingly
4. Ignition module: Replaces mechanical points in controlling the primary circuit current
These electronic components allow for much more precise control of ignition timing across different engine speeds and load conditions.
Types of Ignition Systems
Ignition systems have evolved significantly over time, with several distinct types developed to meet different engine requirements and technological capabilities.
Conventional/Battery Ignition Systems
The battery ignition system is one of the oldest types, using a battery as the primary source of electrical energy. This system includes a battery, ignition switch, ballast resistor, ignition coil, contact breaker, capacitor, distributor, and spark plugs. In this system, the contact breaker mechanically interrupts the primary circuit, causing the ignition coil to generate high voltage.
Battery ignition systems are commonly used in light commercial vehicles and virtually all petrol engines, though they have largely been replaced by electronic systems in modern vehicles.
Electronic Ignition Systems
Electronic ignition systems represent a significant advancement over conventional systems, replacing mechanical components with electronic circuits for improved reliability and performance. These systems use electronic control modules and sensors to determine the optimal timing for spark generation.

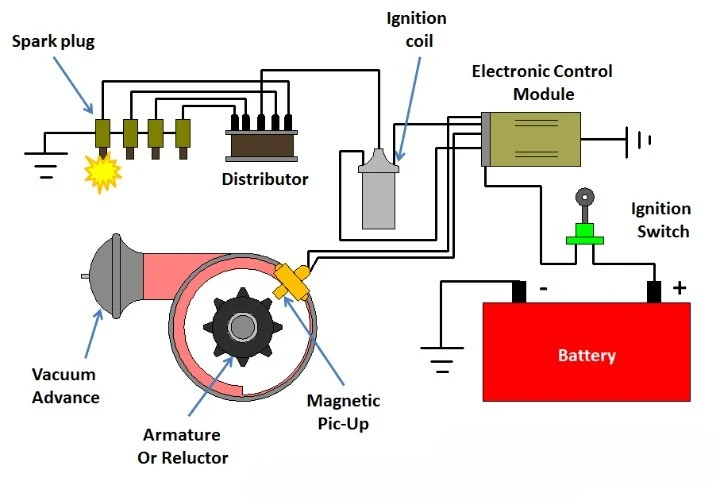

The electronic ignition system includes components such as the battery, ignition switch, electronic control module, armature with a reluctor, ignition coil, and spark plugs. The electronic control module serves as the brain of the system, containing pre-programmed instructions and monitoring the timing and intensity of the spark.

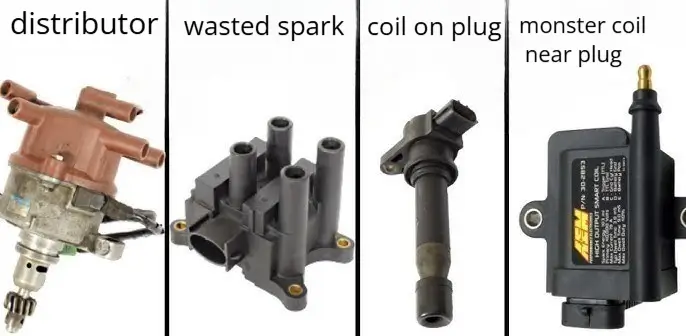

Distributor-less Ignition Systems
Distributor-less ignition systems eliminate the distributor entirely, using individual ignition coils for each cylinder or pair of cylinders. These systems come in several configurations:
Waste spark systems: Use one coil for every two cylinders, with one cylinder receiving a spark during its compression stroke (for combustion) and the paired cylinder receiving a "wasted" spark during its exhaust stroke

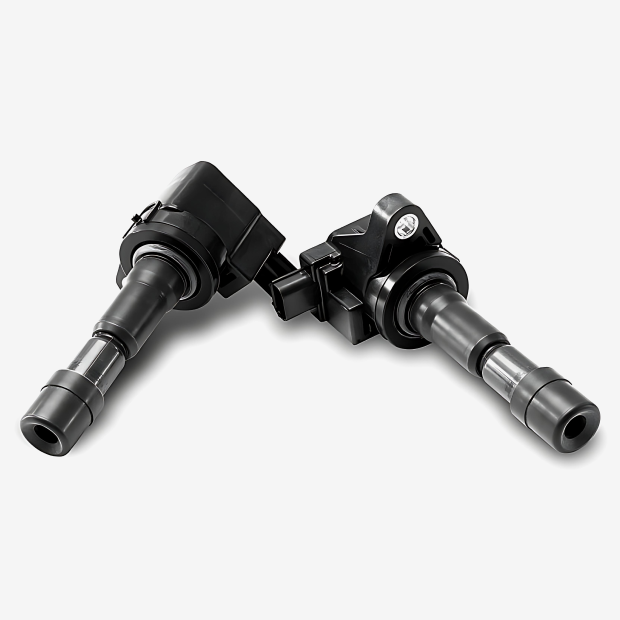

Coil-on-plug (COP) systems: Feature individual coils mounted directly on each spark plug, eliminating the need for high-tension wires and providing more precise control over ignition timing
Distributor-less systems offer advantages in timing control, reliability, and performance, especially at high RPMs.
Compression Ignition (Diesel)
Diesel engines use compression ignition rather than spark ignition. In a diesel engine, air is compressed to a very high pressure, causing it to heat up to approximately 400°F (204°C). When diesel fuel is injected into this hot, compressed air, it spontaneously ignites without requiring a spark plug.
This process relies on the principle that compressing a gas increases its temperature, and when that temperature exceeds the auto-ignition point of the fuel, combustion occurs. This fundamental difference in ignition mechanisms distinguishes diesel engines from gasoline engines and explains their different design characteristics.
Motorcycle Ignition Systems
Motorcycles use specialized ignition systems adapted to their unique requirements. Common types include:
Capacitor Discharge Ignition (CDI): Stores energy in a capacitor and releases it quickly to the ignition coil, producing a hot, short-duration spark ideal for high-RPM engines
AC-CDI: Uses alternating current from the motorcycle's magneto
DC-CDI: Uses direct current from the battery
Transistorized Pointless Ignition (TPI): Uses transistors instead of mechanical points to control the primary circuit, offering improved reliability
These systems are designed to meet the specific needs of motorcycle engines, which often operate at higher RPMs and have different packaging constraints than automotive engines.
Applications in Different Vehicles
Ignition systems are tailored to the specific requirements of different vehicle types and engines.
Automotive Ignition Systems
Modern automotive ignition systems have largely transitioned to distributor-less designs with individual coils for each cylinder or pair of cylinders. These systems typically feature:
Coil-on-plug configurations for direct spark delivery
Integration with comprehensive engine management systems
Sophisticated timing control based on multiple sensor inputs
Diagnostic capabilities for easier troubleshooting
These systems provide reliable operation with minimal maintenance requirements, contributing to the increased longevity and efficiency of modern engines.
Motorcycle Ignition Systems
Motorcycle ignition systems face unique constraints related to size, weight, and operating conditions. Common features include:
Compact CDI systems that provide hot sparks for high-RPM performance
Integration with simple starting systems (kick-start or electric start)
Specialized designs for different motorcycle types (sport, cruiser, off-road)
The motorcycle ignition system must be reliable under challenging conditions while remaining lightweight and compact.
Diesel Engine Ignition Systems
Diesel engines use compression ignition rather than spark ignition, resulting in a fundamentally different approach. Key aspects include:
High-pressure fuel injection systems rather than spark plugs
Glow plugs to facilitate cold starting by pre-heating the combustion chamber
Precise control of injection timing rather than spark timing
This approach provides the high efficiency and torque characteristics that make diesel engines valuable for certain applications, despite not using traditional spark-based ignition.
