What is an Oil Seal?

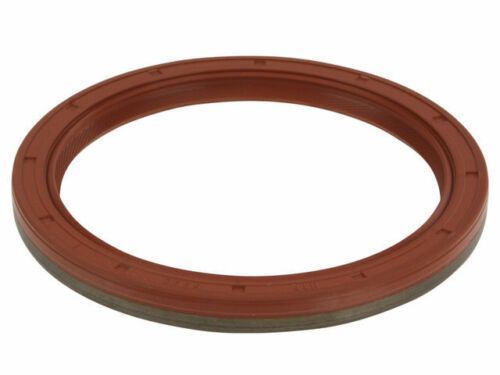

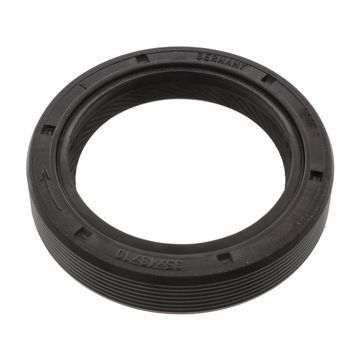

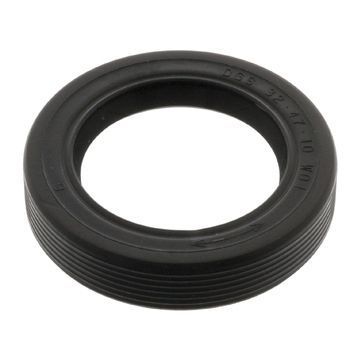

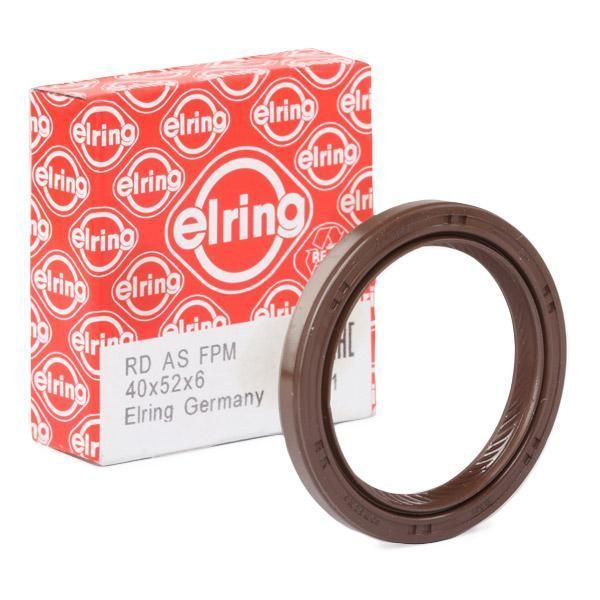

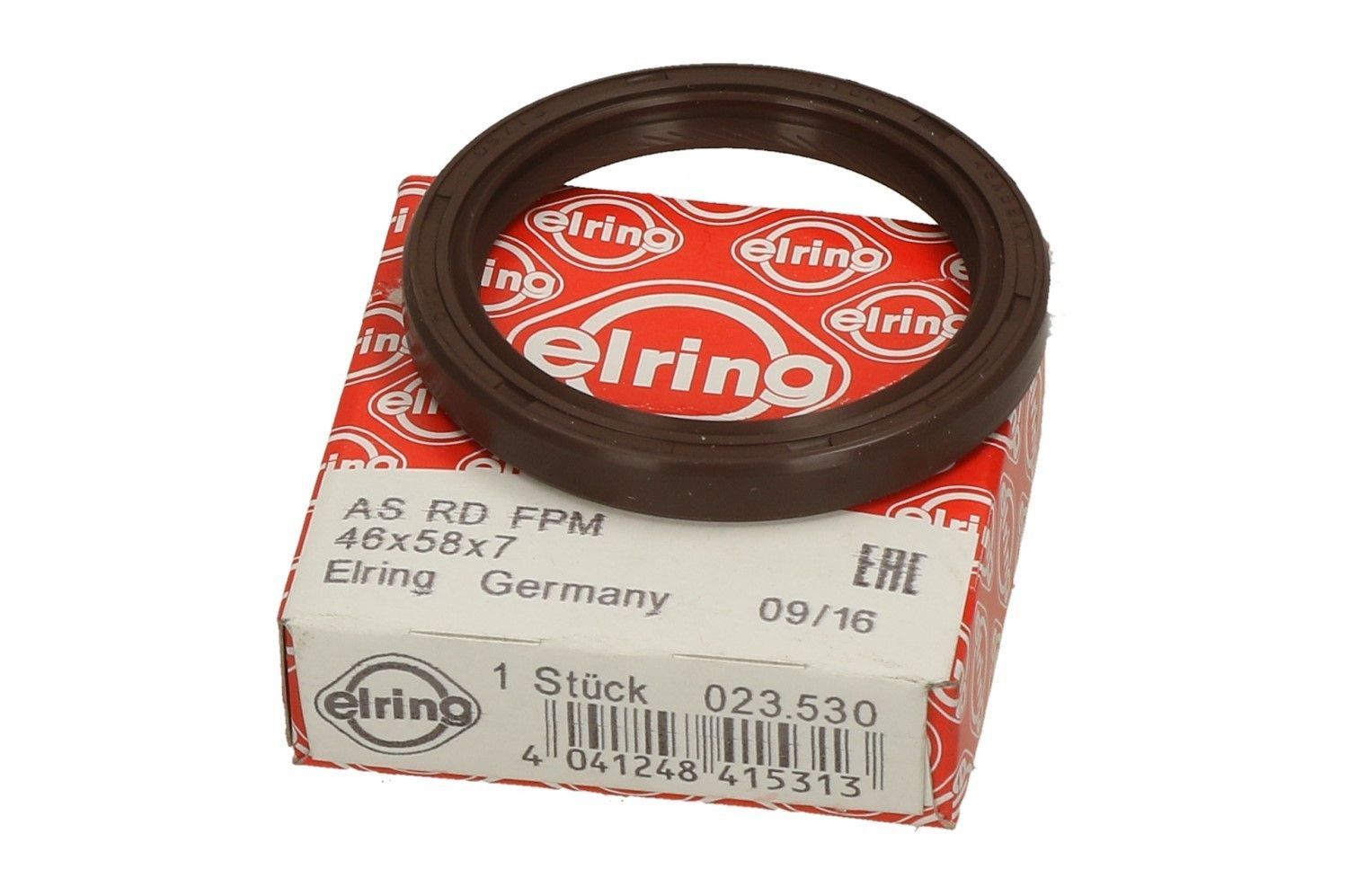

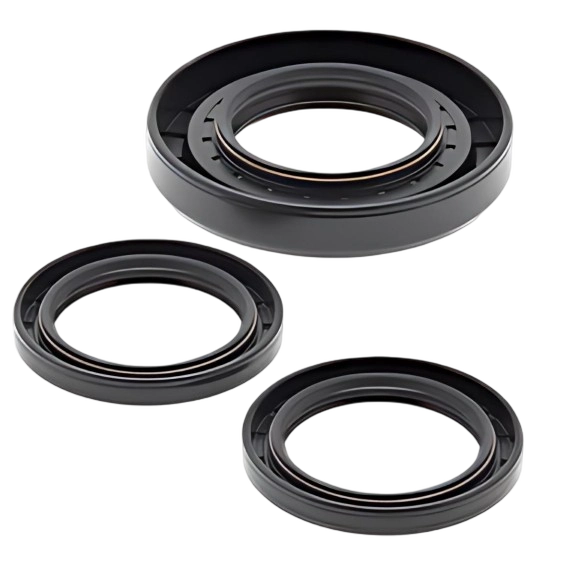

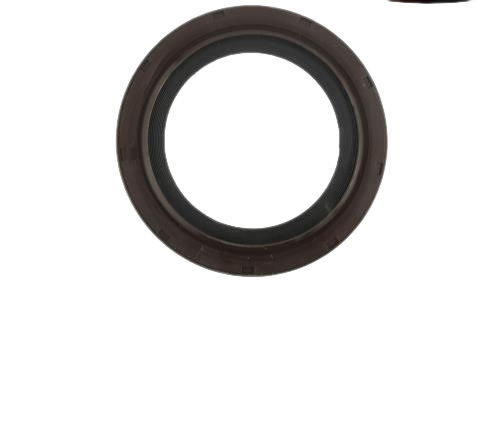

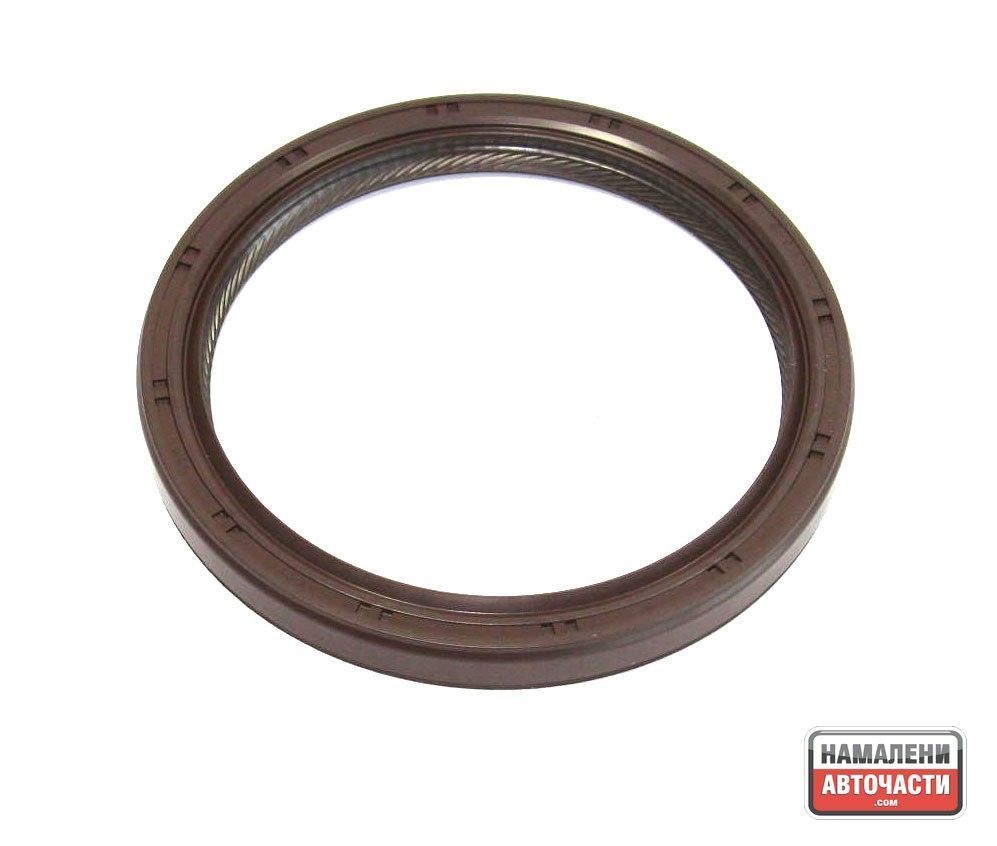

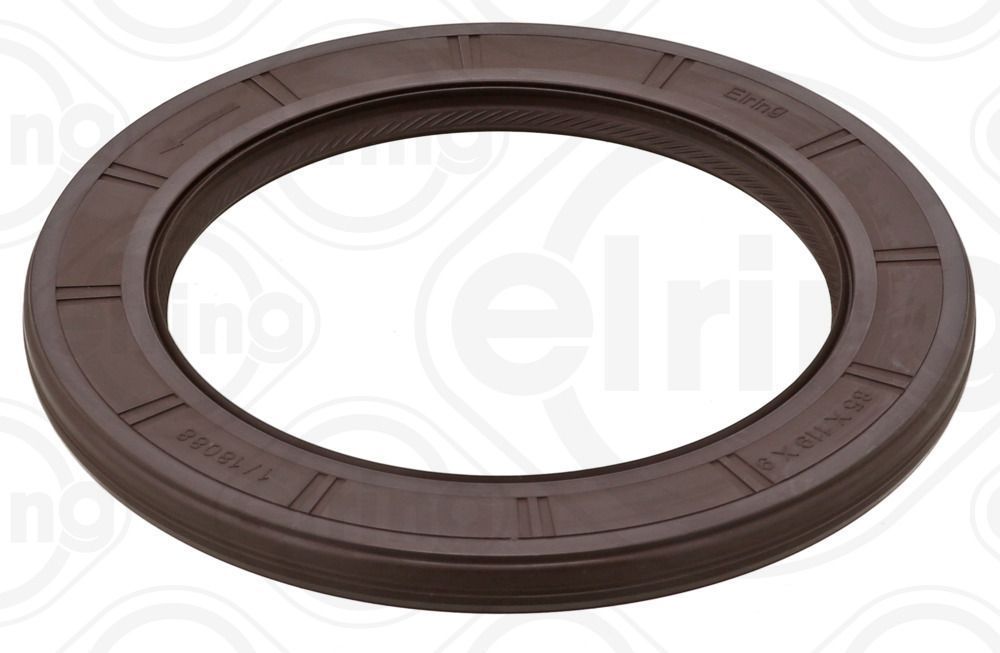

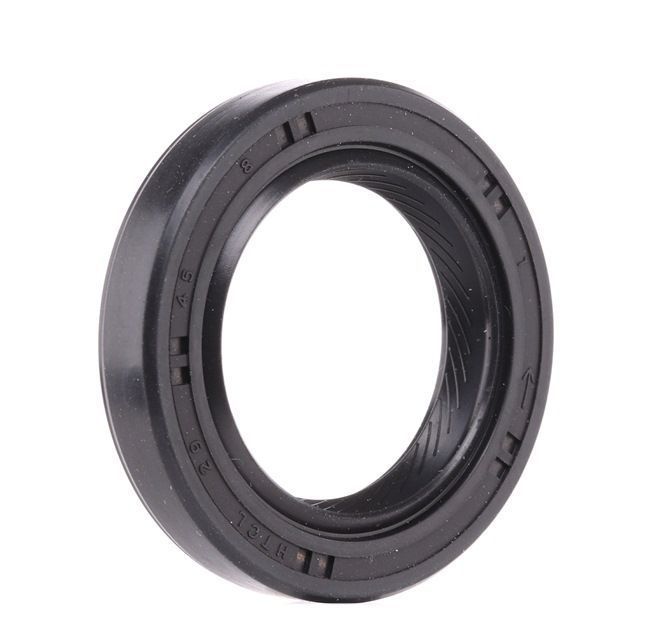

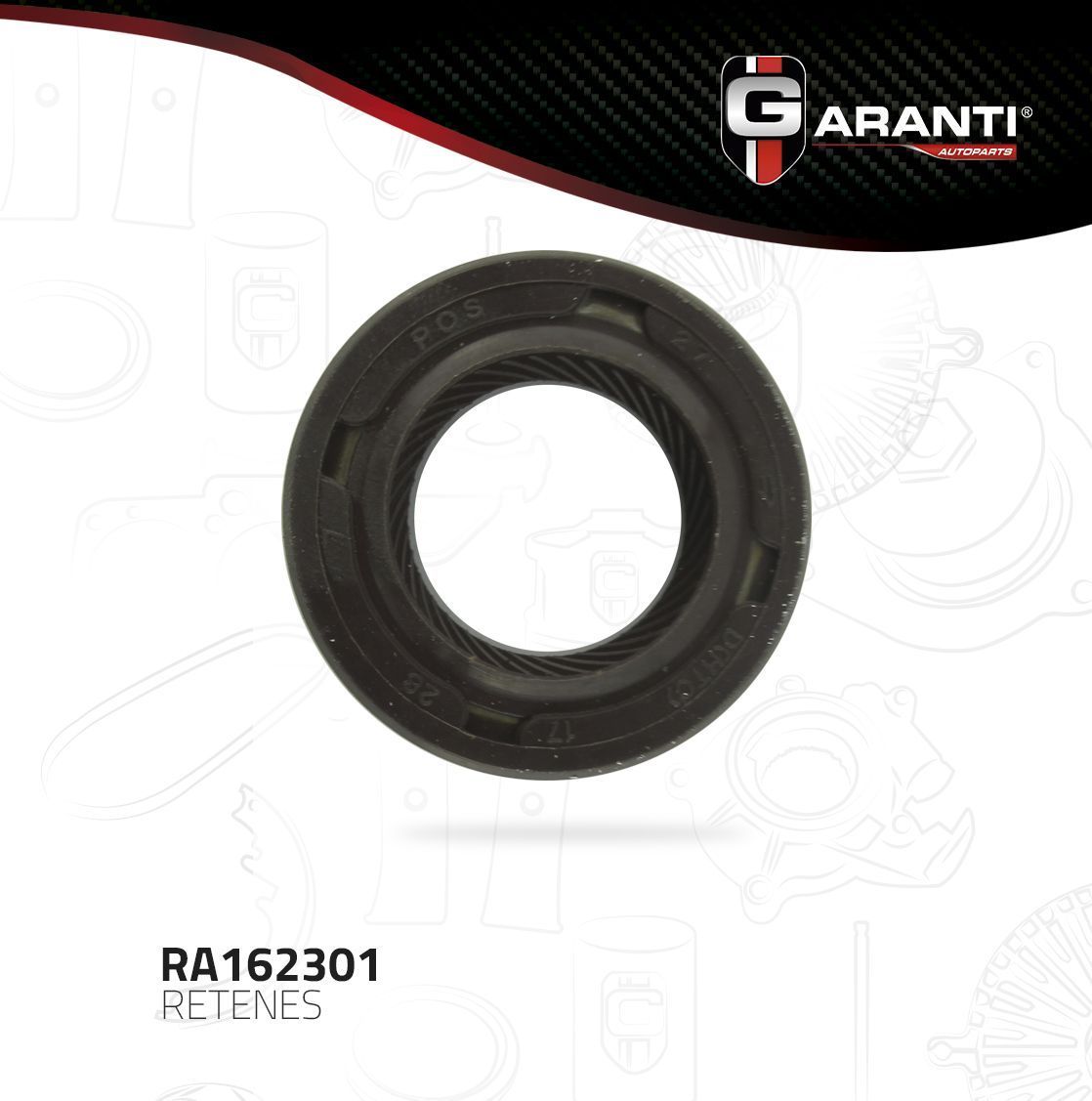

An oil seal, also known as a shaft seal or lip seal, is a device that prevents oil or grease from leaking out of engines and machinery while keeping dirt and water out. It typically has a metal case with a flexible rubber or synthetic sealing lip that presses against a rotating shaft.
Function
It ensures engine oil stays inside, lubricating parts like the crankshaft and camshaft, and protects against contaminants that could cause wear or damage.
Common Issues
If it fails, you might see oil spots under your car, hear unusual noises, or notice reduced performance, which can harm the engine if not fixed.
Definition and Context
An oil seal , also known as a shaft seal, lip seal, rotary seal, or grease seal, is a mechanical device used in engines and other machinery to prevent the leakage of lubricants, such as oil or grease, and to keep contaminants like dust, water, and debris out. It typically consists of an outer circular metal case and an inner flexible member, often made of rubber, synthetic elastomer, or other materials, bonded together by chemical adhesive agents. The sealing element, metal case, and sometimes a garter spring work together to create a dynamic seal between a rotating shaft and a stationary housing, and a static seal between the housing and the seal itself. This is essential for maintaining the integrity of the lubrication system in automotive engines, where oil seals are found in various locations such as around the crankshaft, camshaft, and differential, as highlighted in resources like and.
Function and Operational Role
Oil seals serve two primary functions, crucial for engine operation:
- Preventing Oil Leaks: They create a dynamic seal between the rotating shaft and the stationary housing, preventing engine oil from leaking out. This ensures proper lubrication of moving parts like the crankshaft, camshaft, and bearings, reducing friction and wear friction and wear. The seal’s inner diameter (ID) is slightly smaller than the shaft diameter, often aided by a garter spring to increase radial interference, ensuring a tight seal [5].
- Excluding Contaminants: They also provide a static seal between the housing and the seal, preventing contaminants like dirt, dust, and water from entering the engine, which could cause corrosion, wear, or damage to internal components. This is particularly important in harsh environments, such as snowy regions or high-temperature conditions, where oil seals must maintain oil resistance and pressure resistance.
Failure to maintain these seals can result in oil leaks, reduced lubrication, overheating, and potential catastrophic failure of engine components, leading to costly repairs, as discussed in automotive forums and repair guides.
Types and Materials
Oil seals in automotive engines vary by location and design, each suited to specific applications. The following table summarizes the common types and materials, based on insights from various sources:
| Type | Description | Common Use |
|---|

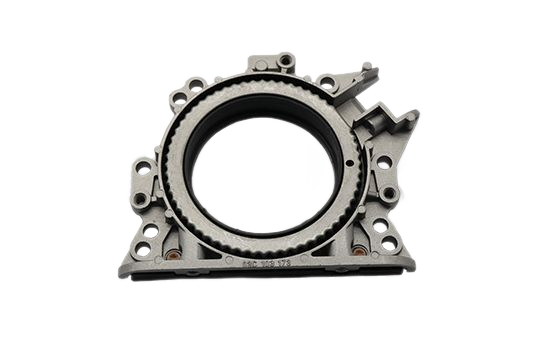

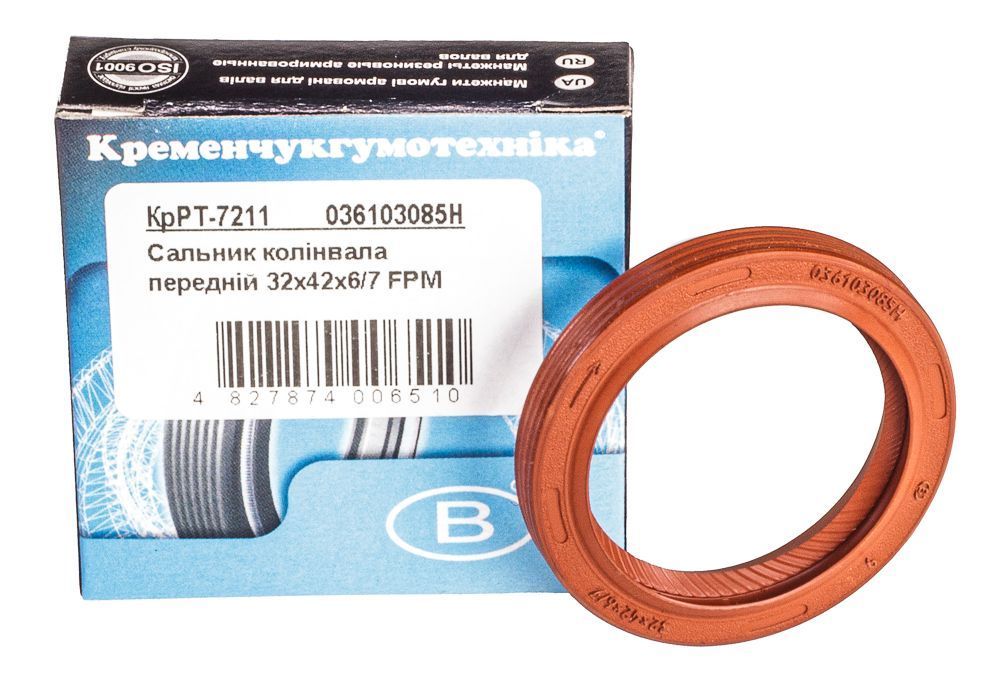

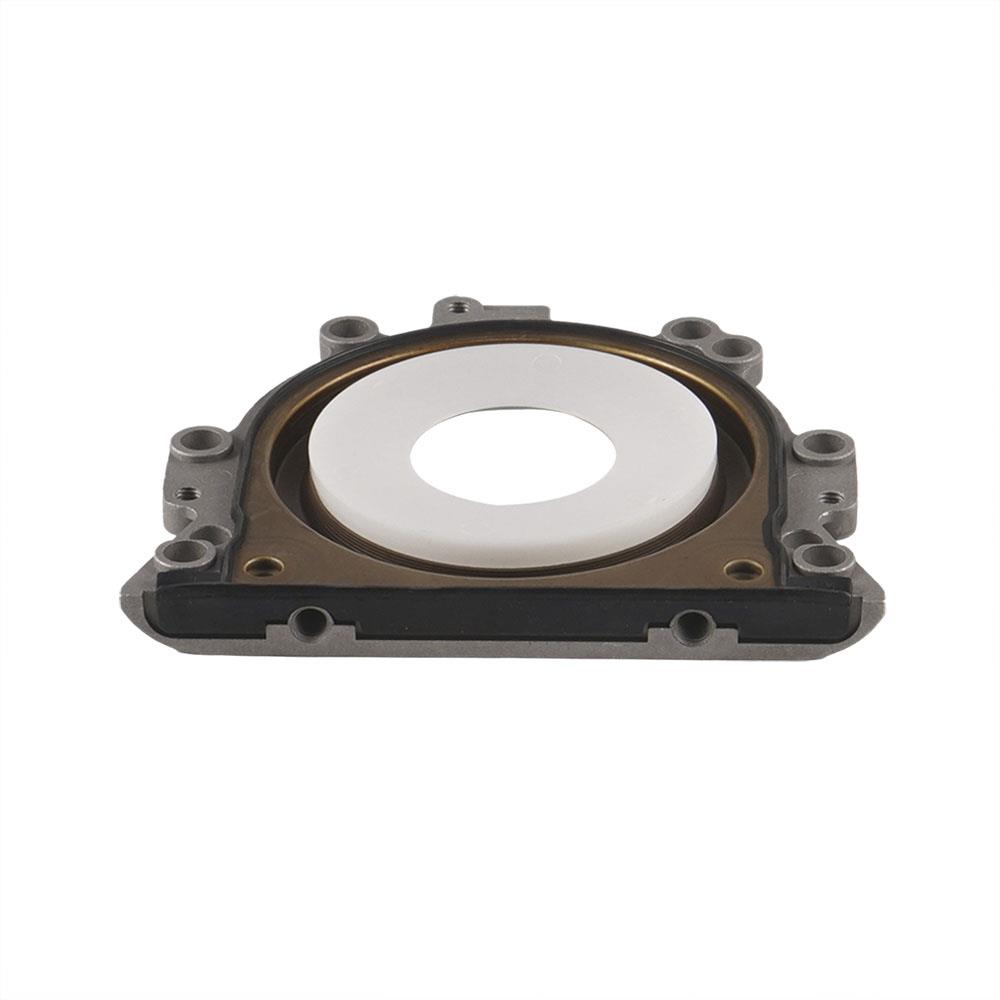

| Crankshaft Oil Seals | Seal around the crankshaft, preventing oil leaks from the engine block, often on both sides (front and rear). | All engines, critical for lubrication. |

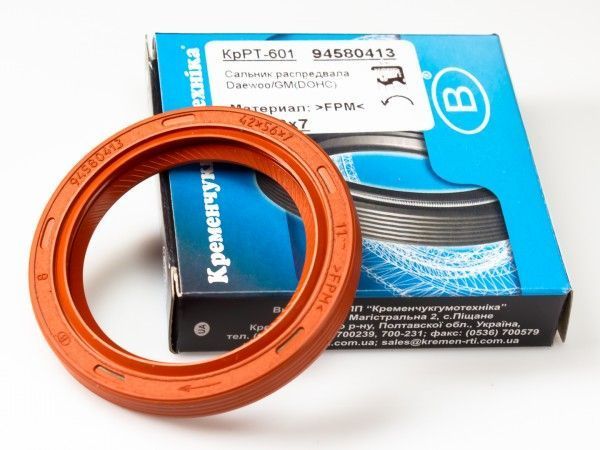

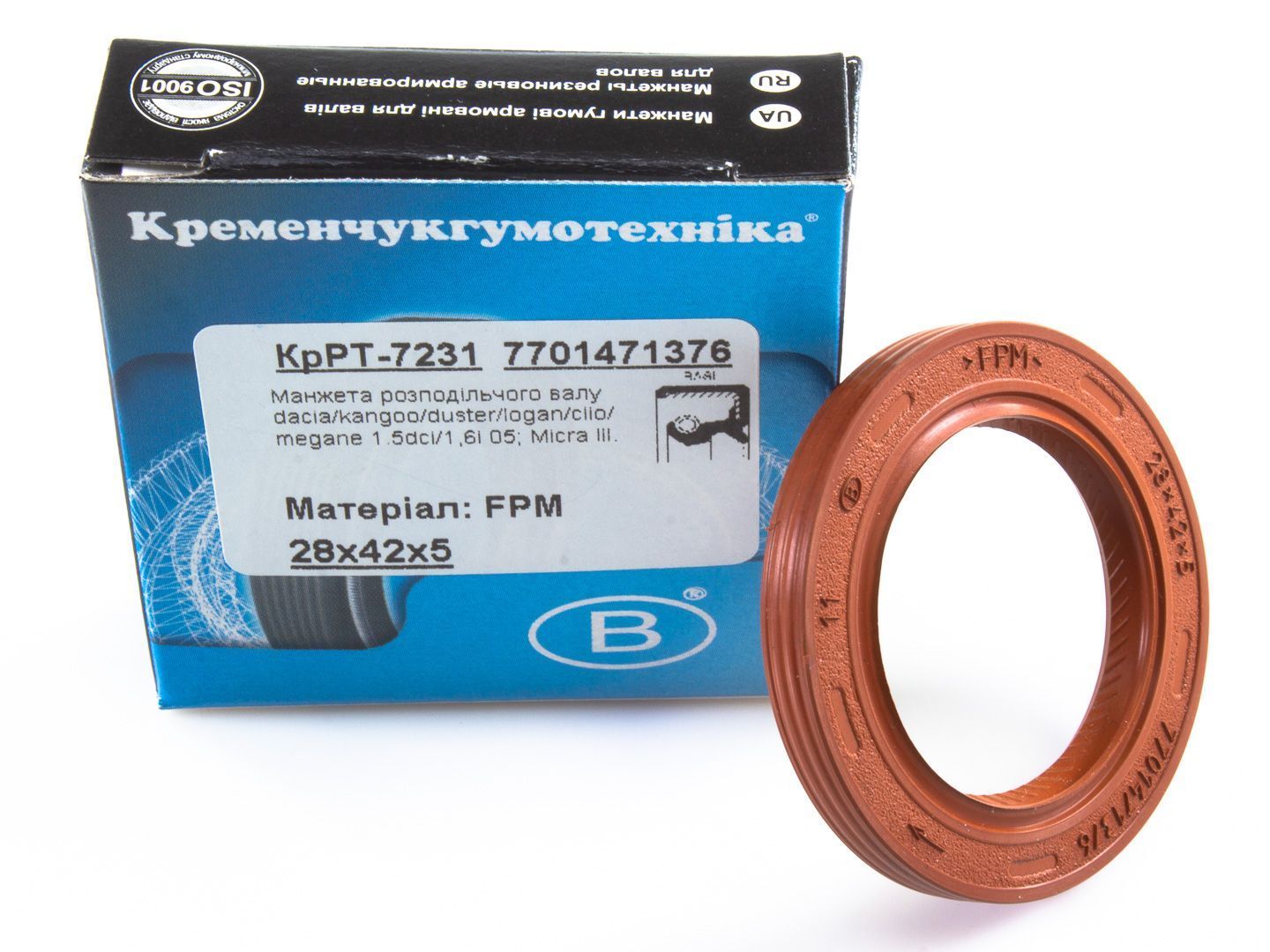

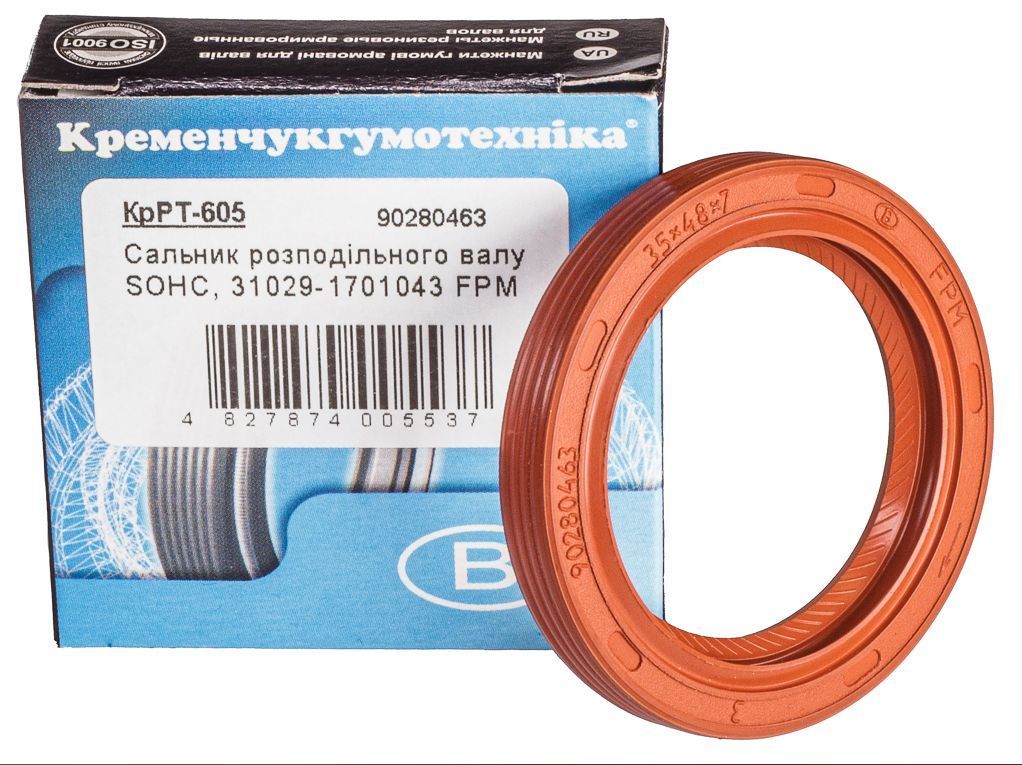

| Camshaft Oil Seals | Seal around the camshaft, preventing oil leaks in the cylinder head, especially in timing belt systems. | Engines with timing belts, high-temperature areas. |
| Timing Gear Case Seals | Seal the front of the crankshaft, part of the timing mechanism, preventing leaks in the chain or belt area. | Engines with timing chains or belts. |
| Oil Pump Seals | Seal the oil pump, preventing oil leaks and ensuring proper oil pressure distribution. | All engines, essential for oil circulation. |
These seals are typically made from durable materials such as nitrile rubber, Viton, or other synthetic elastomers, chosen for their ability to withstand high temperatures (up to 130°C or more), pressures, and exposure to oil and . For high-speed applications, PTFE (polytetrafluoroethylene) seals are gaining popularity, while traditional materials like leather and felt are less common but still used in some older engines.
Common Problems and Diagnosis
Oil seal failures can manifest in various ways, impacting engine performance and safety. Common issues include:
- Oil Leaks: The most frequent symptom is oil leaking from the engine, often noticed as oil spots under the vehicle near the crankshaft, camshaft, or differential area. This can lead to low oil levels, which may trigger warning lights or cause overheating.
- Low Oil Pressure: Frequent need to add oil, indicating a leak. This can result in engine damage if not addressed.
- Unusual Noises: Whining, growling, or clicking sounds from the engine area, often due to inadequate lubrication.
