Automotive seals are crucial components that function as barriers between stationary and moving parts, preventing fluid leakage and contaminant ingress while maintaining pressure integrity across various vehicle systems. These precision-engineered components, ranging from simple O-rings to complex composite designs, play a vital yet often overlooked role in vehicle reliability, efficiency, and longevity.
The Function and Importance of Automotive Seal Parts
Automotive seals serve multiple critical functions that directly impact vehicle performance, safety, and longevity. Their primary purpose is to prevent the escape of fluids (such as oil, coolant, and fuel) and gases from their respective systems, while simultaneously blocking external contaminants like dust, water, and debris from entering sensitive components. This dual-protection mechanism is fundamental to maintaining the operational integrity of various vehicle systems.
In engine applications, seals prevent lubricant escape and contaminant ingress, which directly affects engine longevity and performance. When properly functioning, these seals help prevent premature wear of critical components by maintaining proper lubrication and a clean operating environment. Additionally, seals in transmission systems prevent transmission fluid leakage, ensuring smooth operation of gears and hydraulic systems essential for power transfer.
Beyond fluid containment, automotive seals also play a vital role in maintaining pressure differentials between separated compartments. This pressure maintenance is particularly important in systems like brake lines, fuel injection, and cooling circuits where precise pressure levels are required for optimal performance. Seals in these applications must withstand significant pressure variations while maintaining their structural integrity.
The importance of effective sealing extends to passenger comfort and safety as well. Body sealing systems prevent water, air, and noise infiltration into the passenger compartment, enhancing ride comfort and protecting interior components from environmental damage. In safety-critical systems like braking and fuel delivery, seal integrity directly impacts vehicle safety by preventing system failures that could lead to accidents.
Types of Automotive Seals
Rubber Seals and Gaskets

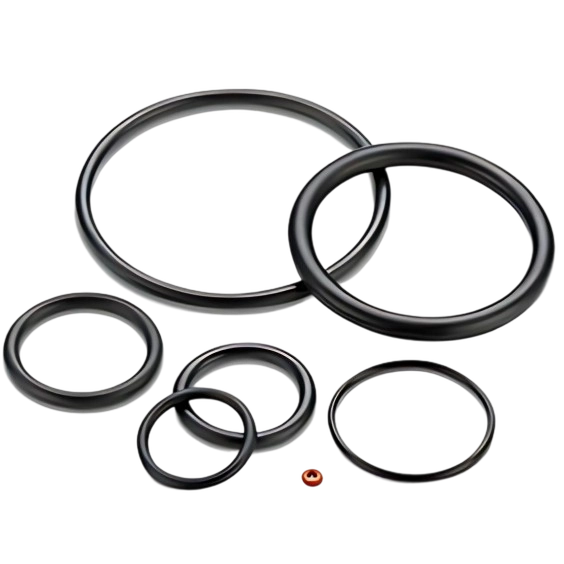

Rubber seals represent one of the most common and versatile sealing solutions in automotive applications. O-rings, a simple yet effective design, consist of a donut-shaped ring of elastomer that creates a seal when compressed between two mating surfaces. These are widely used in fuel systems, cooling systems, and hydraulic applications due to their excellent sealing capabilities against both liquids and gases.

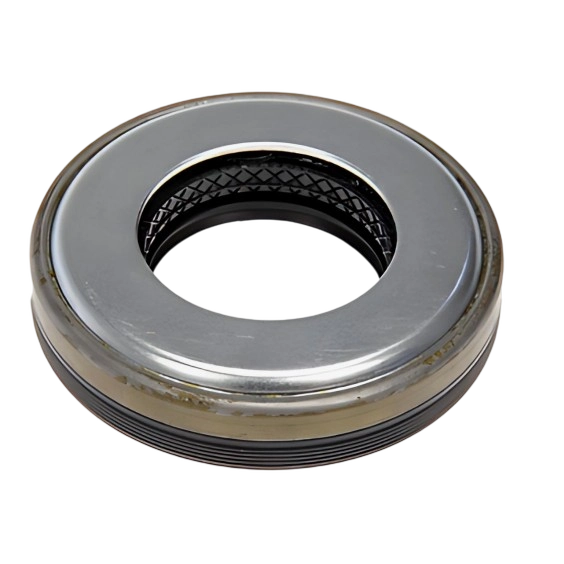

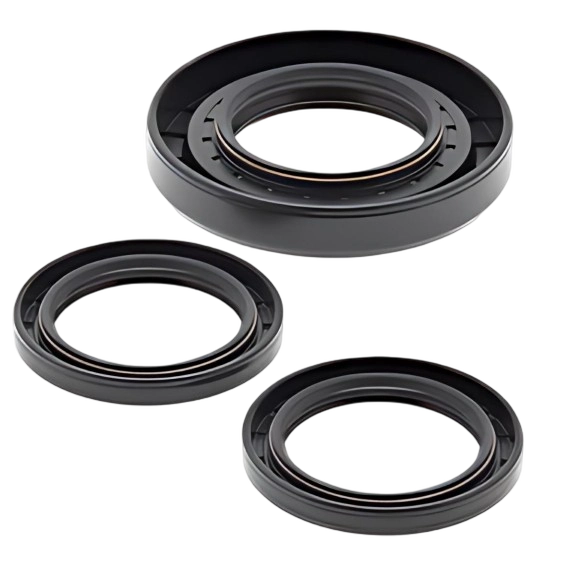

Oil seals (also called shaft seals or lip seals) feature a flexible lip design that maintains contact with a rotating shaft, preventing lubricant leakage from gearboxes, engines, and transmissions. These seals often incorporate additional design elements such as dust lips or springs to enhance sealing performance and longevity.

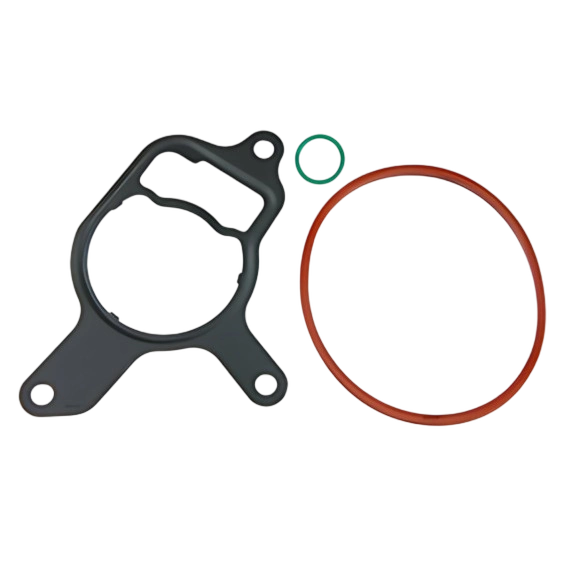

Gaskets serve as static seals between non-moving components, such as engine blocks and cylinder heads. Unlike O-rings, gaskets are typically cut from sheet materials and can be manufactured in complex shapes to match the contours of mating surfaces. They effectively fill irregularities in these surfaces when compressed, creating a reliable seal against fluids and gases. Materials for gaskets range from rubber compounds to composite materials depending on the application requirements.
Mechanical and Composite Seals
Mechanical seals are specialized components typically used in rotating applications where high temperatures, pressures, or speeds are present. These seals create a barrier through mechanical contact between rotating and stationary components, often incorporating precision-engineered faces that slide against each other with minimal leakage. In automotive applications, mechanical seals are commonly found in water pumps, power steering systems, and certain transmission components.
Composite seals combine multiple materials or sealing principles to achieve superior performance. These advanced designs might incorporate elastomeric elements for flexibility, metal components for strength and stability, and specialized coatings for reduced friction or enhanced chemical resistance.
Common Materials Used in Automotive Sealing
Elastomers for Automotive Applications
Fluorocarbon (Viton) is among the most versatile and widely used elastomers for automotive seals, particularly in applications involving fuel, oil, and high temperatures. Its exceptional resistance to automotive fluids, especially modern transmission oils containing amine-based additives, makes it ideal for transmission and fuel system seals. Standard fluorocarbon compounds offer temperature resistance from -13°F to +446°F (-25°C to +230°C), with high-fluorine grades providing superior resistance to swelling in ethanol/methanol blended fuels.
Nitrile rubber (Buna-N) represents one of the most economical elastomer options while still offering excellent resistance to petroleum-based oils and fuels. With temperature capabilities typically ranging from -40°F to +257°F (-40°C to +125°C), nitrile is commonly used in off-road equipment, automotive seals, and aircraft fuel systems. Its balance of cost-effectiveness and performance makes it a popular choice for many standard automotive applications.
Hydrogenated nitrile butadiene rubber (HNBR) offers enhanced temperature and chemical resistance compared to standard nitrile, making it suitable for more demanding applications. This material is particularly valuable in wheel end seals and other components exposed to harsh environments, with temperature ranges from -40°F to 310°F (-40°C to 150°C).
Automotive Seal Applications by Vehicle System
Engine and Powertrain Applications
Engine systems contain numerous critical sealing points, with crankshaft seals being among the most important. These seals prevent oil leakage at the front and rear of the crankshaft while withstanding high rotational speeds and temperature variations. Advanced designs like Koyo's "Super helix seal" incorporate one-way two-step screw patterns to improve sealing performance while reducing friction torque. Other critical engine seals include valve stem seals, which control oil consumption by regulating the amount of lubricant reaching the valve guides, and plug tube gaskets that seal spark plug tubes against oil leakage.
Fuel injection systems require specialized seals capable of withstanding extremely high pressures (over 3,000 bar/43,511 psi) and exposure to various fuel blends. These applications typically utilize PTFE (polytetrafluoroethylene) and fluoroelastomer (FKM) seals manufactured using advanced high-volume production technologies. The sealing materials must demonstrate compatibility with all fuel blends while maintaining integrity under extreme pressure conditions.
Transmission and Differential System Seals
Transmission systems rely on various seals to contain transmission fluid and maintain hydraulic pressure. Front pump input seals prevent fluid leakage where the torque converter connects to the transmission, while bonded piston seals within the transmission provide quick hydraulic response throughout the rotation range. These components often utilize acrylic rubber or hydrogenated nitrile rubber due to their excellent resistance to transmission fluids.
Differential gear systems require specialized seals at the pinion and side output locations. Differential gear pinion seals often incorporate bidirectional threaded designs for perfect sealing, while side output seals may utilize super helix patterns similar to those found in crankshaft applications. These seals typically face challenging operating conditions, including high-pressure differentials, temperature variations, and exposure to gear lubricants.
Body Sealing Systems and Door Components
Vehicle body sealing systems prevent water, air, dust, and noise from entering the passenger compartment. These systems comprise weatherstrips, seals, and gaskets used around doors, windows, trunks, and hoods.
Door seals in particular represent a major application area for automotive sealing technology. These components must provide reliable sealing against environmental elements while allowing for thousands of door opening and closing cycles over the vehicle's lifetime. Modern door seals often incorporate multiple sealing lips and sophisticated designs to enhance sealing performance while minimizing the force required to close the door.
Conclusion
Automotive seals and related components represent critical elements in vehicle design and performance across all automotive systems. From preventing fluid leakage and contaminant ingress to maintaining pressure integrity and supporting efficient operation, these often-overlooked components directly impact vehicle reliability, safety, and longevity.
