What is a Valve Cover Gasket?
A valve cover gasket is a seal between the valve cover and the cylinder head in an engine. It prevents oil from leaking out and keeps debris from entering, ensuring the engine stays lubricated and protected.
Function
It ensures oil stays inside to lubricate moving parts like valves and pistons, and it blocks dirt and moisture, helping the engine run smoothly.
Common Issues
Signs of a problem include low oil levels, oil on the engine, a burning smell, or engine misfires. If ignored, it can lead to wear, damage, or even engine fires.
Replacement Tips
Replacing it involves removing the old gasket, cleaning surfaces, and installing a new one with proper torque. Costs typically range from $100 to $500, and professional help is recommended if unsure.
Definition and Context
A valve cover gasket, also known as a rocker arm cover gasket, is a critical sealing component in internal combustion engines, such as those found in automobiles, tractors, and motorcycles. It is positioned between the valve cover and the cylinder head, forming a barrier to prevent oil leaks and protect the engine from contaminants. This seal is essential for maintaining the engine's operational integrity.
Function and Operational Role
The valve cover gasket's primary function is to create a tight seal between the valve cover and the cylinder head, ensuring that engine oil remains contained within the valvetrain area. This is vital for:
- Lubrication: Preventing oil leaks ensures proper lubrication of moving parts, such as rocker arms, camshafts, and valves.
- Protection: It keeps dirt, debris, and moisture out of the engine, which could otherwise cause damage to internal components.
- Performance: By maintaining oil levels, it prevents engine misfires and rough running, which can occur if oil leaks onto spark plugs.
Failure to maintain this seal can result in oil leaks, reduced engine performance, and potential catastrophic failure, such as engine fires.

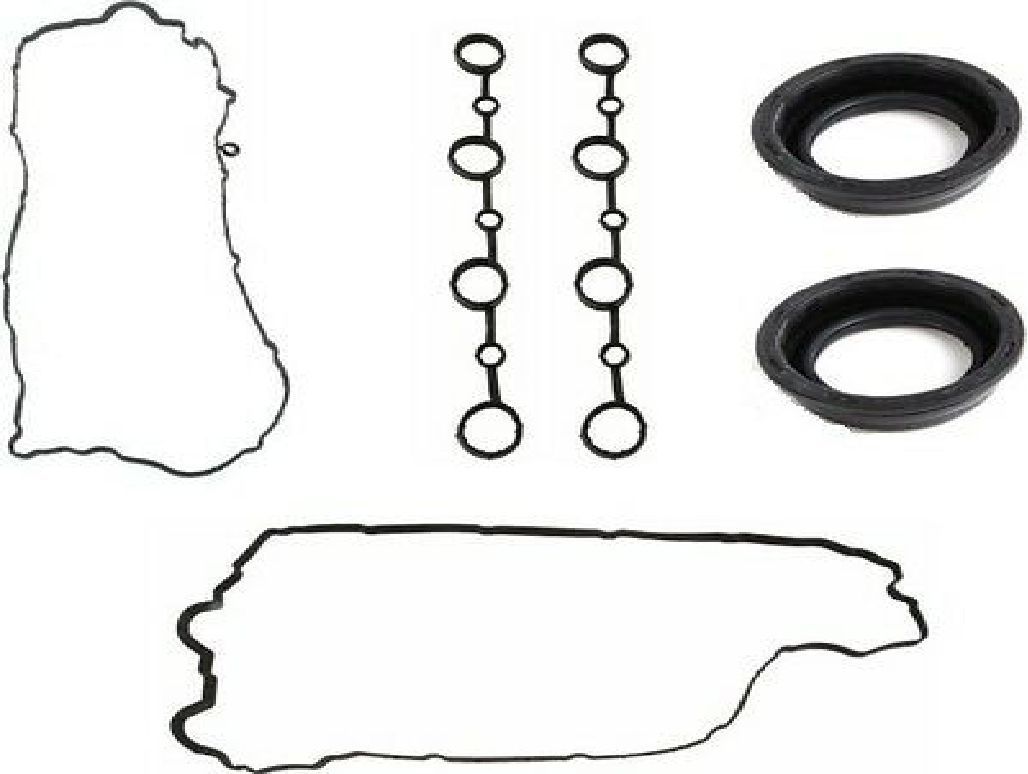

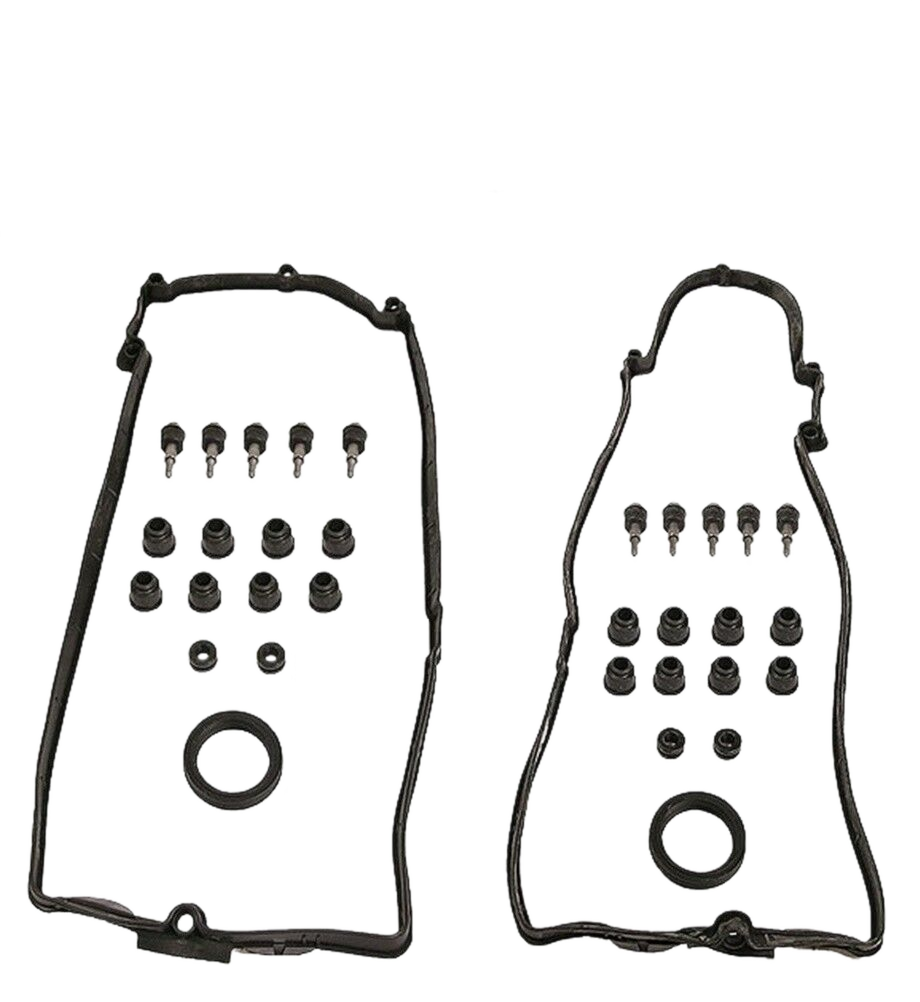

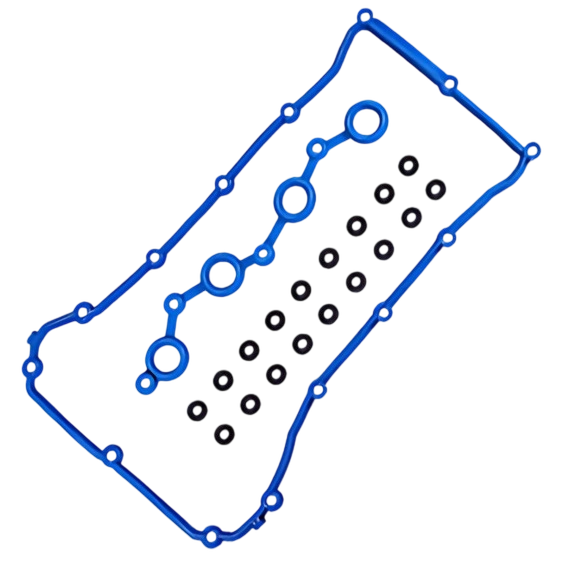

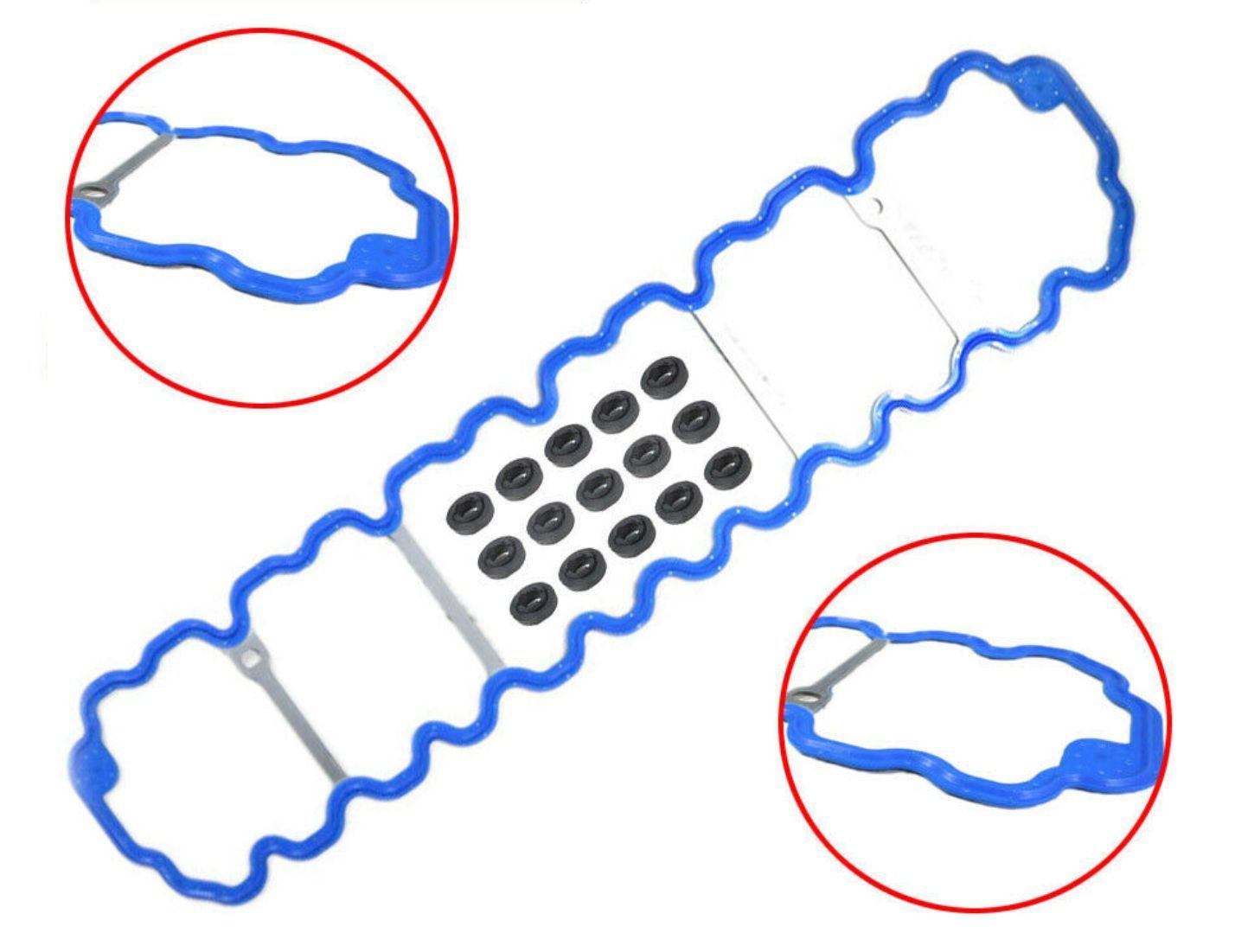

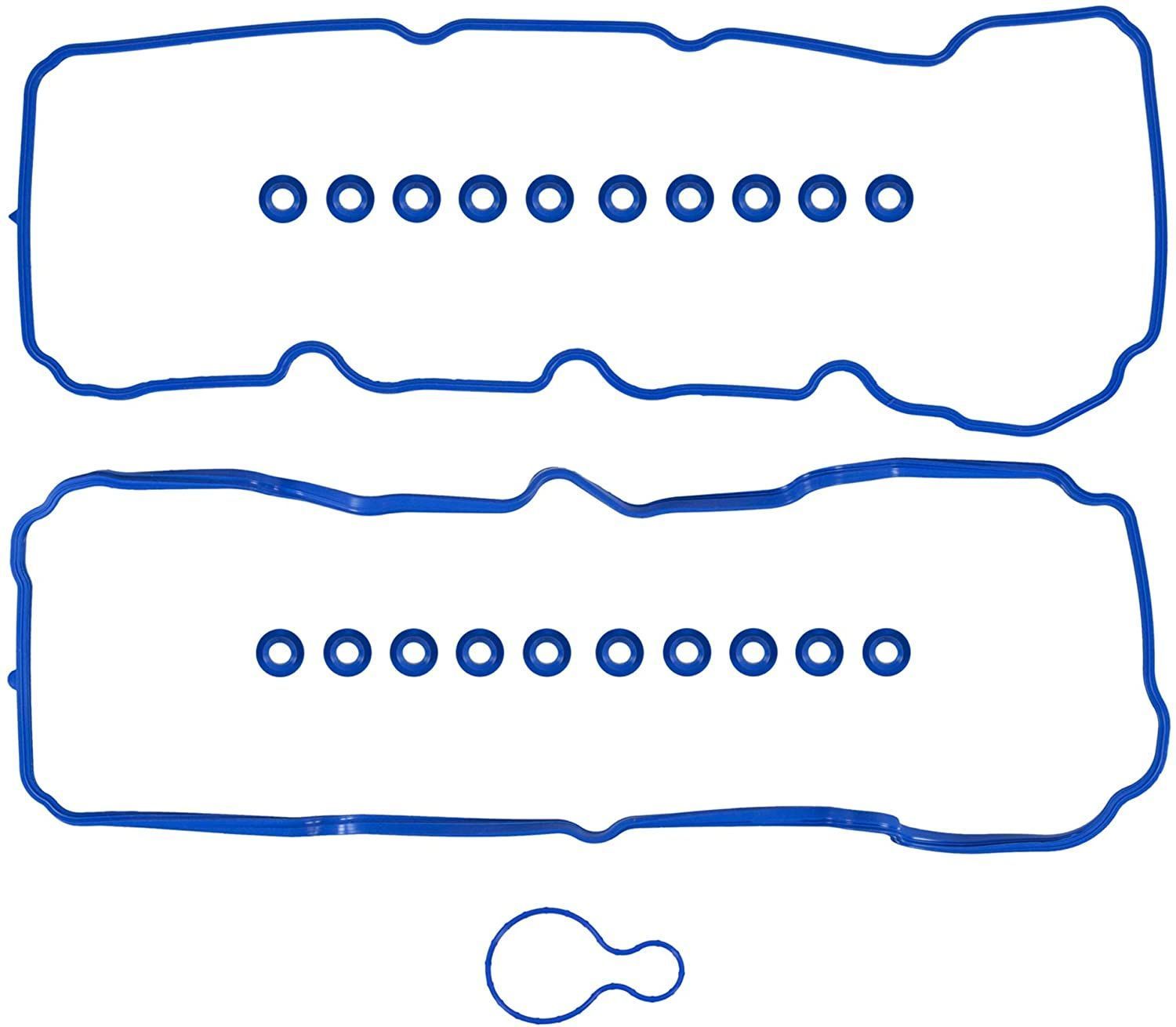

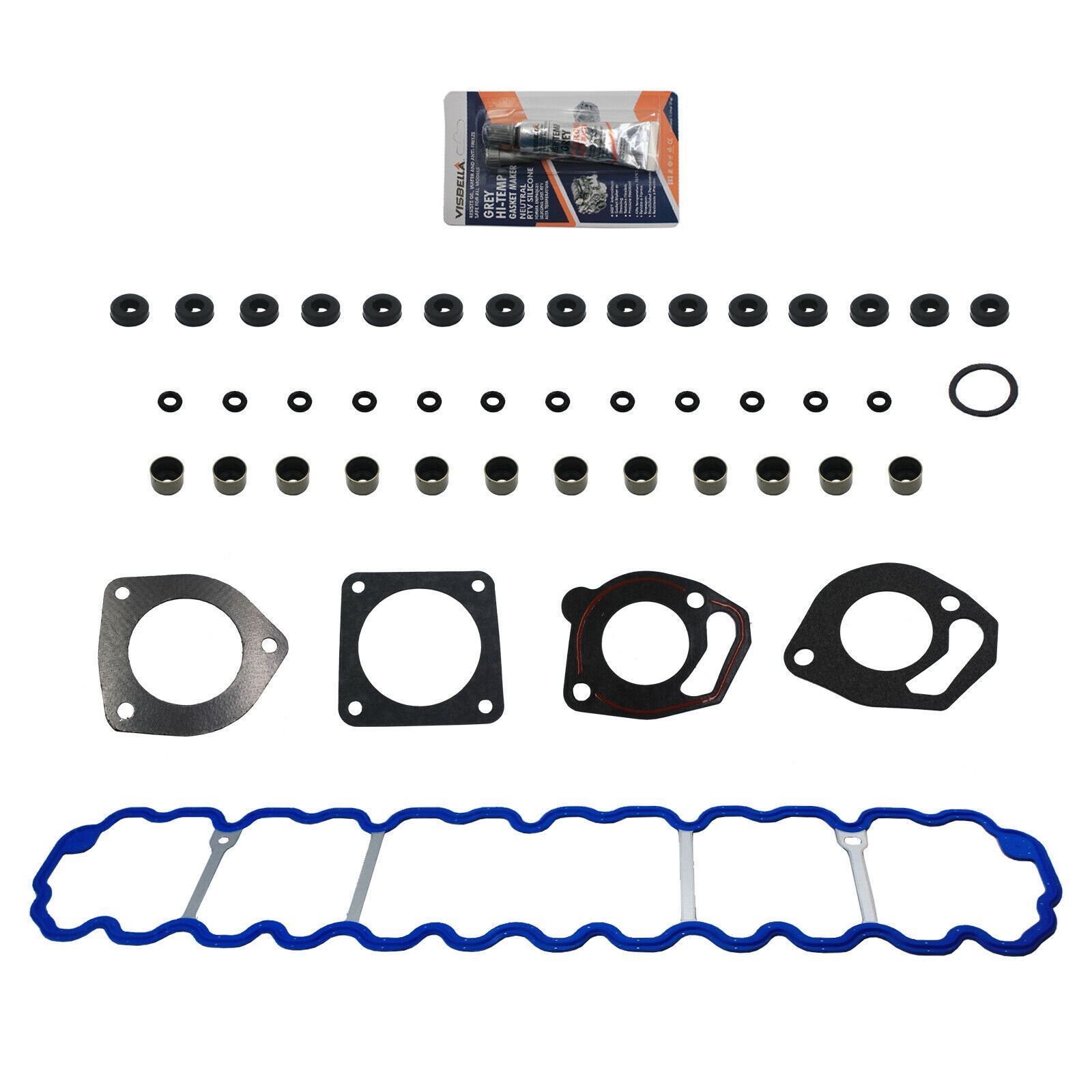

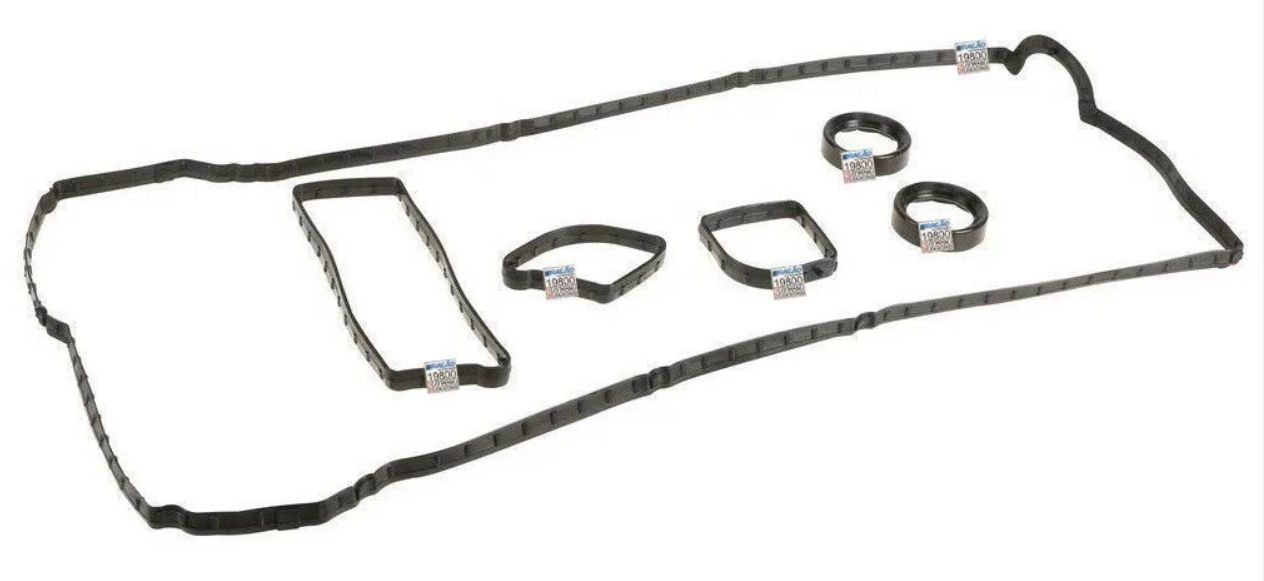

Types of Valve Cover Gaskets
Valve cover gaskets vary by material and design, each suited to specific engine requirements. The following table summarizes the types:
| Type | Description | Common Use |
|---|
| Cork Gaskets | Affordable and replaceable, but can become brittle over time. | Older engines, budget applications. |
| Rubber Gaskets | Durable and resistant to oil leaks, but may not fit snugly on certain engines. | General use, modern engines. |
| Silicone Gaskets | Flexible and can withstand high temperatures, ideal for high-performance engines. | Performance and racing applications. |
| PermaDryPlus® (Fel-Pro) | Proprietary material for reliable sealing, includes retention features. | Advanced engines, high durability. |
| PermaDry® (Fel-Pro) | Another proprietary option, designed for specific sealing needs. | Engine-specific applications. |
| Blue Stripe® (Fel-Pro) | Enhanced sealing, often with spark plug tube seals included. | Modern, complex engines. |
Common Problems and Diagnosis
Valve cover gasket failures can manifest in various ways, impacting engine performance and longevity. Common issues include:
- Oil Leaks: External leaks show visible oil on the engine or valve cover, often noticed during routine checks.
- Low Oil Levels: Frequent need to add oil, indicating oil loss oil loss.
- Burning Smell: Oil leaking onto hot engine components can cause a distinctive burning odor, leading to excess smoke in the exhaust exhaust.
- Engine Misfires: Oil can seep into spark plug areas, causing misfires and rough running, potentially leading to engine fires.
Diagnosis typically involves visual inspection for oil residue, checking oil levels, and observing symptoms like burning smells or misfires. In some cases, cleaning the area and adding dye to the oil can help pinpoint the leak.
