What is a Timing Cover Gasket?
A timing cover gasket is a seal between the timing cover and the engine block, crucial for preventing oil leaks and protecting the timing chain or belt. It ensures the engine stays lubricated and performs efficiently.
Function
It prevents oil leaks, protects timing components from debris, and maintains engine performance by keeping oil levels stable, avoiding potential damage.
Common Issues
Common problems include oil leaks, which can cause low oil levels, engine noises, or even coolant leaks in some designs, risking engine damage if ignored.
Definition and Context
A timing cover gasket is a critical sealing component in internal combustion engines, positioned between the timing cover and the engine block. It forms a barrier to prevent leaks of oil or coolant from the front of the engine, where the timing chain or belt operates. The timing cover itself protects the timing mechanism, ensuring that dirt and debris do not enter the engine, while the gasket ensures an airtight seal. This is essential for maintaining engine performance and longevity.
Function and Operational Role
The timing cover gasket's primary function is to create a tight seal between the timing cover and the engine block, ensuring that engine oil remains contained and does not leak. This is vital for:
- Lubrication: Preventing oil leaks ensures proper lubrication of the timing chain, gears, and other components, reducing wear and tear wear and tear.
- Protection: It keeps dirt, debris, and moisture out of the timing mechanism, which could otherwise cause damage or premature failure.
- Performance: By maintaining oil levels, it prevents issues like low oil pressure, which could trigger warning lights or lead to engine damage, as noted in discussions on engine maintenance.
Failure to maintain this seal can result in oil leaks, reduced engine performance, and potential catastrophic failure, such as engine overheating or seizure.

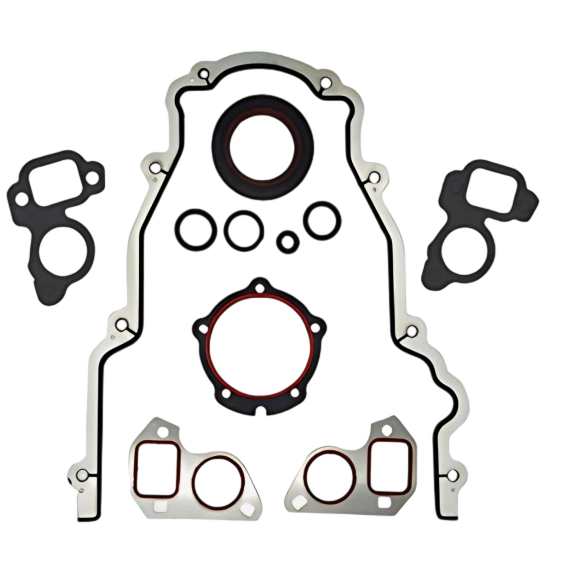

Types of Timing Cover Gaskets
Timing cover gaskets vary by material and design, each suited to specific engine requirements. The following table summarizes the types:
| Type | Description | Common Use |
|---|
| Standard Gasket | Made from traditional gasket material, provides a reliable seal. | General use, older engines. |
| O-Ring Style Seal | Rubber or silicone O-ring for flexibility and durability. | Modern engines, high-performance. |
| Silicone Sealant (RTV) | Applied as a liquid, cures to form a seal, conforms to irregular surfaces. | Aluminum timing covers, complex designs. |
Some engines may use a combination of these, or even require specific sealants like RTV for proper installation. For example, some enthusiasts recommend using a light coating of oil or adhesive like 3M gasket adhesive for certain gaskets to ensure an oiltight seal.
Common Problems and Diagnosis
Timing cover gasket failures can manifest in various ways, impacting engine performance and longevity. Common issues include:
- Oil Leaks: The most frequent symptom is oil leaking from the front of the engine, often noticed as oil spots under the vehicle or on the driveway. Leaks can occur due to the gasket drying out, cracking, or becoming dislodged over time.
- Coolant Leaks: In some engine designs, the timing cover may also house part of the cooling system, leading to coolant leaks if the gasket fails, as mentioned in.
- Engine Noises: If oil leaks onto timing components, it can cause unusual noises from the front of the engine, indicating contamination or wear, as discussed in.
