Intake Manifold Gasket

What is an Intake Manifold Gasket?

An intake manifold gasket is a seal between the intake manifold and the cylinder head, typically made from durable materials like rubber, silicone, or composites. It prevents leaks of air, fuel, and coolant, helping your engine run smoothly.

Function

It ensures the engine gets the right air-fuel mix for combustion, maintains the vacuum system for efficiency, and helps manage coolant flow to prevent overheating.

Common Issues

Signs of a problem include engine misfires, overheating, reduced power, coolant leaks (often green, red, or yellow), and a check engine light. These can stem from wear after high mileage or heat damage.

Definition and Context

An intake manifold gasket is a mechanical seal located between the intake manifold and the cylinder head of an internal combustion engine. It is typically made from durable materials such as rubber, silicone, or composite materials, designed to withstand the extreme temperatures and pressures encountered during engine operation. The gasket ensures a tight seal, preventing leaks of air, fuel, and coolant, which is essential for maintaining engine efficiency and performance. Found on any vehicle with an internal combustion engine, the intake manifold sits on top of the engine and plays a key role in the combustion process by distributing the air-fuel mixture to the cylinders.

The importance of this component is underscored by its application across various engine types, from passenger cars to performance vehicles, with manufacturers like Fel-Pro offering advanced designs for enhanced durability, as seen in their product offerings.

Function and Operational Role

The intake manifold gasket serves several critical functions, essential for engine operation and environmental impact:

1. Sealing: It creates an airtight and watertight seal, preventing vacuum leaks and maintaining proper pressure in the intake manifold, which is crucial for efficient combustion. This seal prevents air, fuel, or coolant from escaping, ensuring that the engine operates at peak performance.
2. Air-Fuel Mixture Delivery: It ensures the precise delivery of the air-fuel mixture to each combustion chamber, which is vital for optimizing power output and fuel efficiency. This is particularly important in fuel-injected engines, where the manifold directs air from the throttle body to the intake ports.
3. Coolant Containment: In some engine designs, the gasket also helps contain coolant, preventing leaks that could lead to overheating and potential engine damage. It facilitates the distribution of coolant through the manifold, helping to keep the engine at optimal operating temperatures.
4. Vacuum System Integrity: It maintains the integrity of the engine's vacuum system, contributing to efficient fuel combustion and overall engine performance by preventing vacuum leaks that could cause the engine to run lean.

Failure to maintain this seal can result in reduced engine performance, increased emissions, and potential catastrophic failure, such as engine overheating or seizure, as discussed in various automotive repair guides.

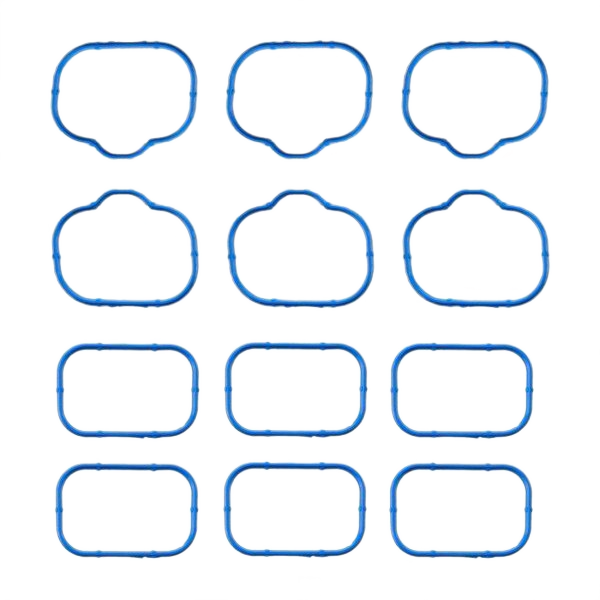

Types and Materials

Intake manifold gaskets vary by material and design, each suited to specific engine requirements. The following table summarizes the common types and materials, based on insights from:

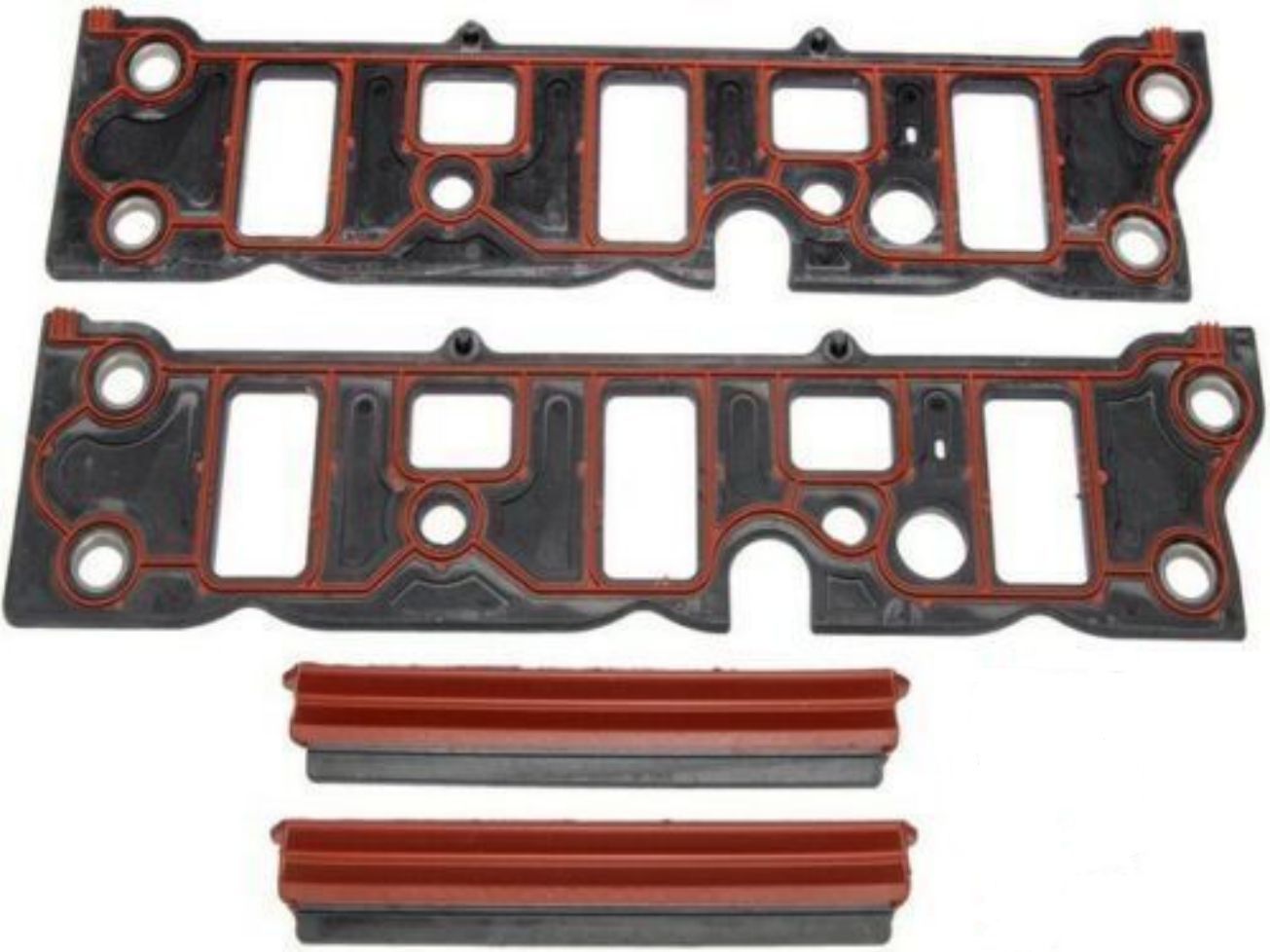

Some designs, especially for older engines, may require additional RTV sealant around the edges for a better seal, while modern engines often do not need it, indicating differences in gasket technology over time. High-quality gaskets, such as those from Fel-Pro, are one-piece with reinforced edges and linings around each port or runner opening, ensuring durability and proper fit.

Common Problems and Diagnosis

Intake manifold gasket failures can manifest in various ways, impacting engine performance and safety. Common symptoms include:

1. Engine Misfires: Caused by air or fuel leaks, leading to an imbalanced air-fuel mixture, which can result in rough idling, hesitation during acceleration, or engine sputtering. This can be diagnosed through a check engine light or performance issues.
2. Overheating: Coolant leaks can cause the engine to overheat, potentially leading to severe engine damage, often visible as green, red, or yellow leaks under the vehicle. This can be confirmed by checking coolant levels and inspecting for leaks.
3. Reduced Power and Fuel Efficiency: Leaks disrupt the air-fuel ratio, affecting engine performance and increasing fuel consumption, noticeable as reduced MPG and difficulty maintaining speed. This can be diagnosed through fuel economy tracking and performance tests.
4. Coolant Leaks: Visible leaks under the vehicle, often green, red, or yellow in color, indicating coolant loss, which can lead to overheating. Diagnosis involves visual inspection and checking coolant levels.
5. Check Engine Light: The vehicle's computer may detect issues related to leaks or pressure loss, triggering the check engine light, which can be diagnosed using an OBD-II scanner.
6. Rough Idling or Hesitation: Symptoms of improper combustion due to leaks, often felt as engine shaking or stalling, especially at idle or low speeds.

Causes of failure can include natural wear and tear after high mileage (typically 50,000–100,000 miles), exposure to high heat causing expansion and potential cracking, acidic coolant damaging the gasket if not changed regularly, or vacuum leaks affecting the air-fuel ratio. Diagnosis typically involves visual inspection, checking coolant levels, and performing tests like a compression test or leak-down test to confirm the source of the issue.
