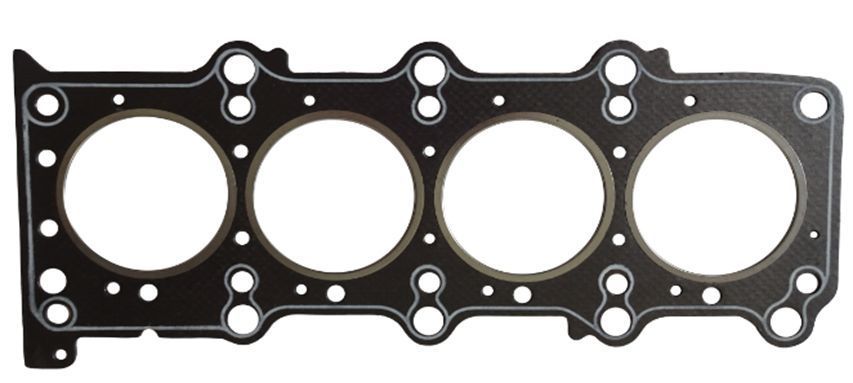

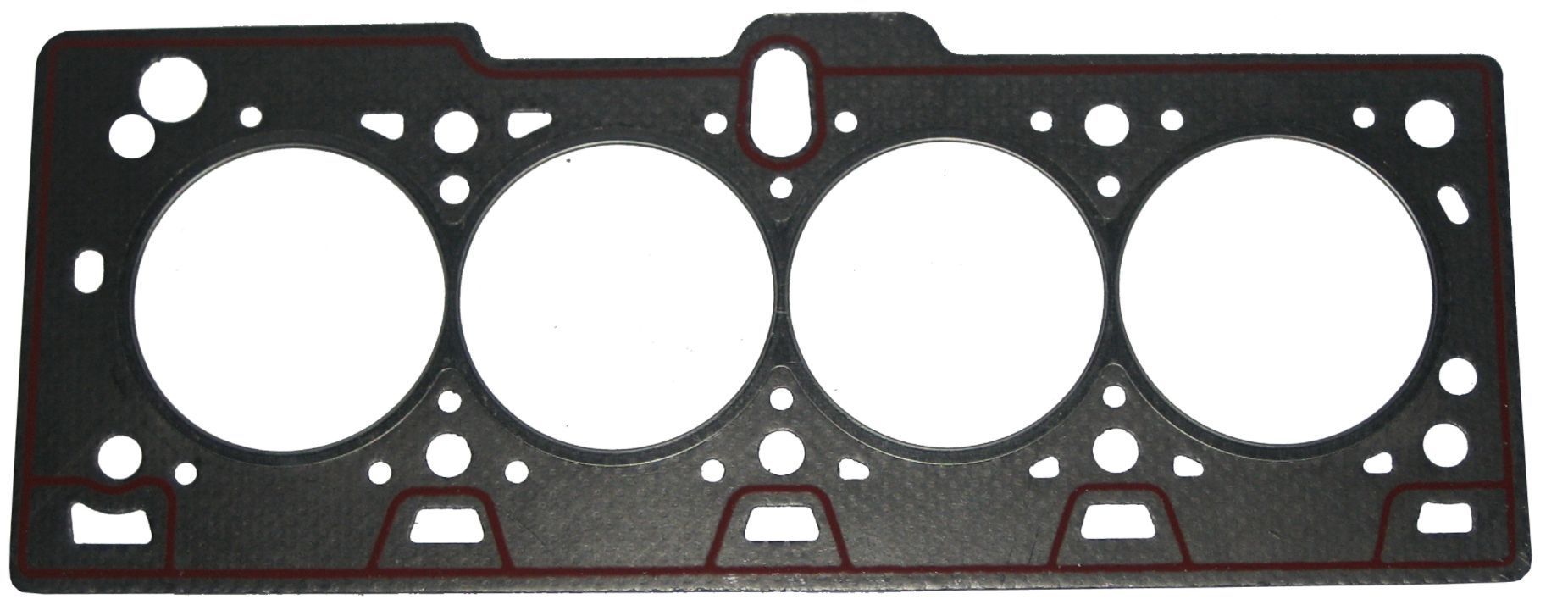

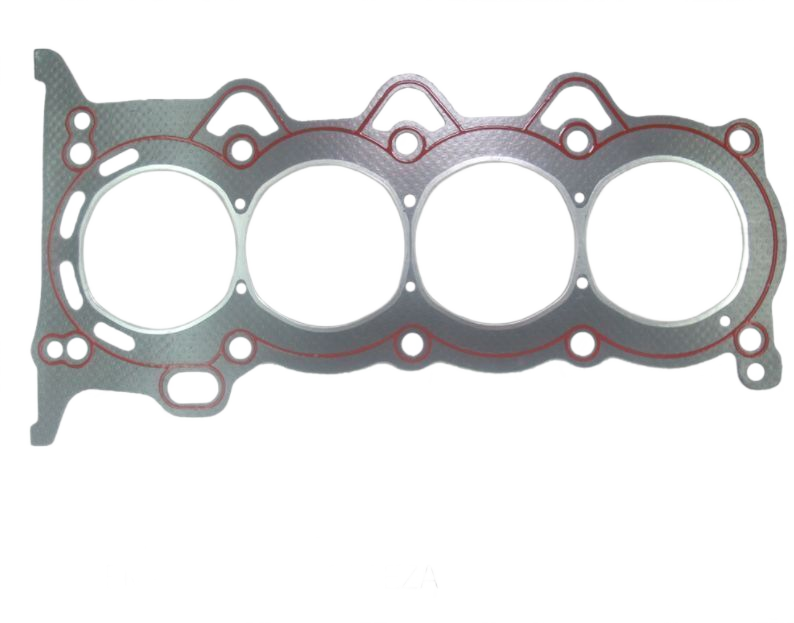

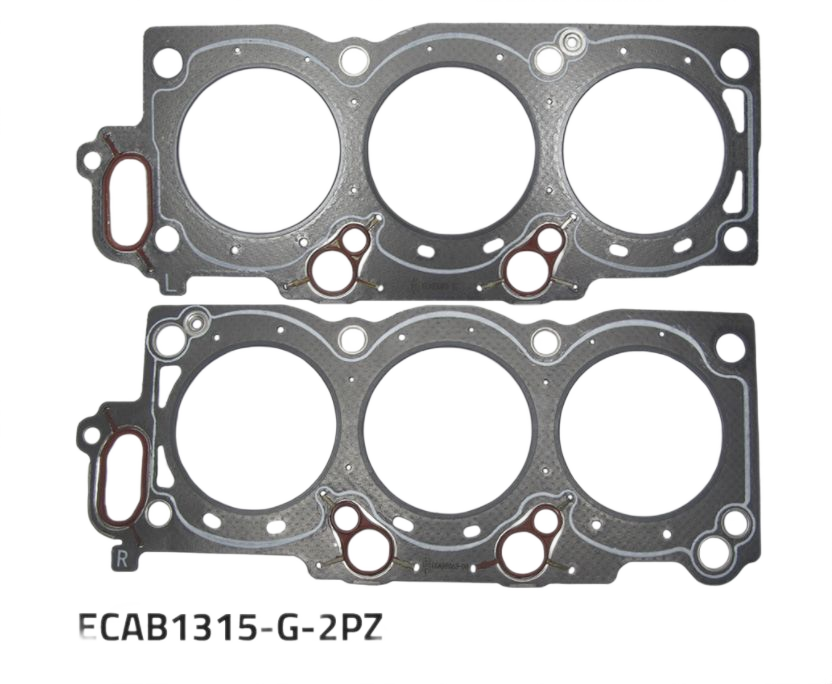

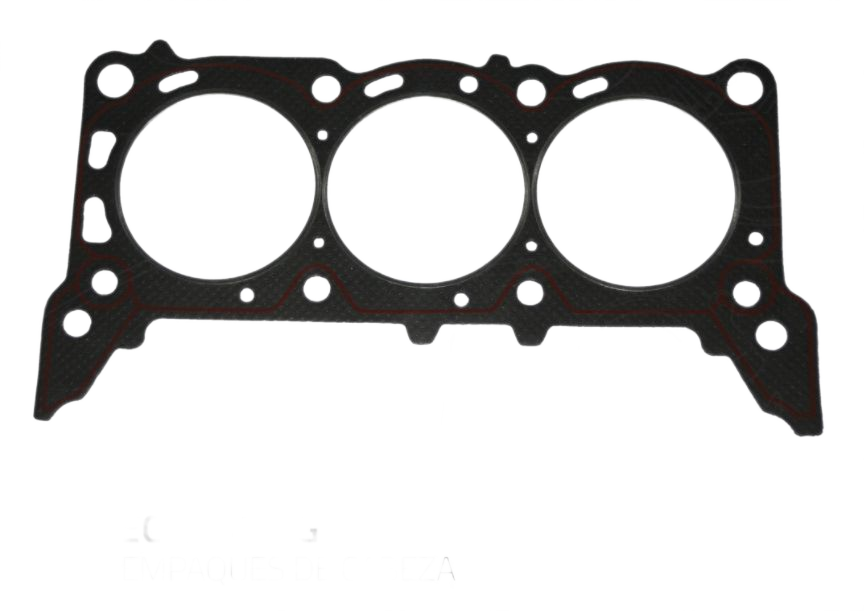

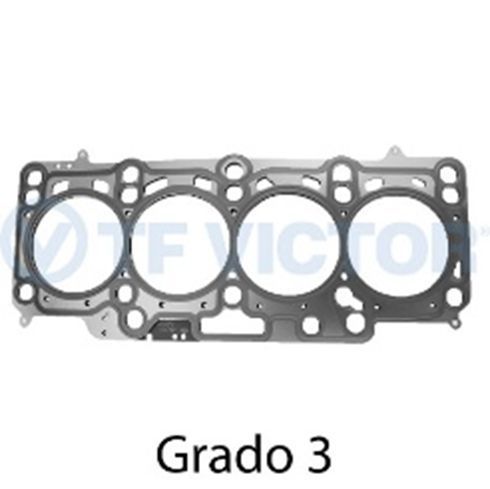

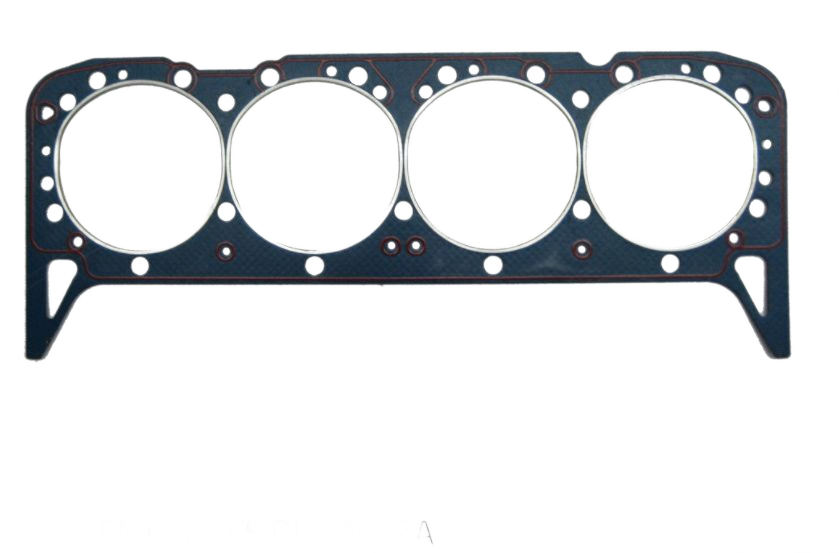

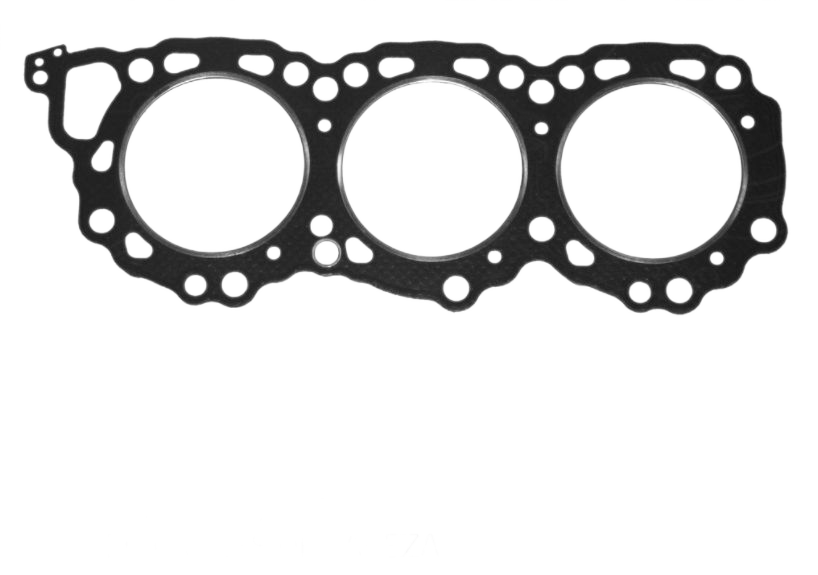

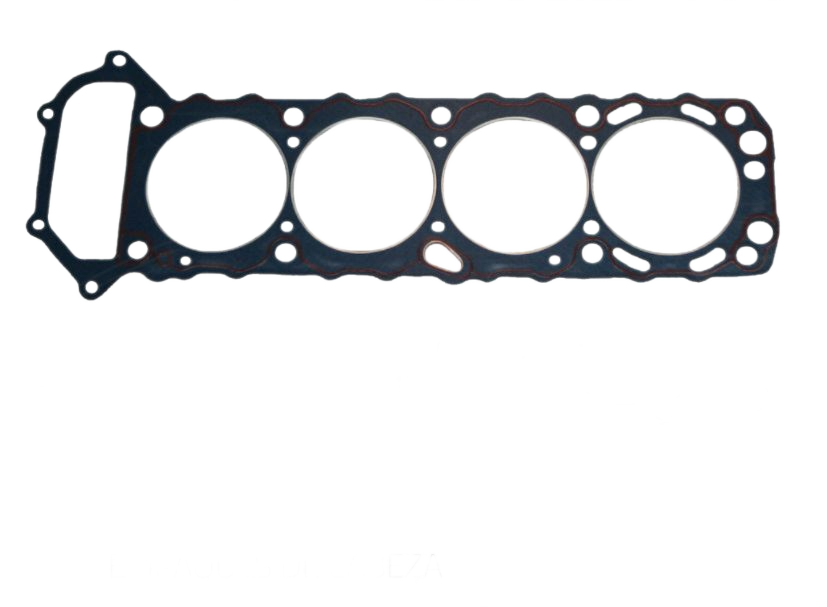

What is a Cylinder Head Gasket?
A cylinder head gasket, often called a head gasket, is a seal between the engine block and cylinder head in internal combustion engines. It ensures no leaks occur at this junction, which is vital for engine operation.
Function
It seals combustion gases within cylinders and prevents coolant or engine oil from leaking, maintaining separation of three fluid circuits: combustion gases, coolant, and engine oil. Failure can mix these, causing severe engine issues.
Types and Common Problems
There are several types, including multi-layer steel (MLS), solid copper, composite, elastomeric, and O-ring, each with specific uses. Common problems include leaks (external or internal), coolant leakage into the combustion chamber, combustion gas leakage, and engine knocking, often diagnosed via compression, leak-down, or chemical tests.
Replacement Tips
For replacement, ensure surfaces are clean and flat, check for warpage (distortion should not exceed 0.002 inches), apply sealer to head bolts if needed, and follow torque specifications. For aluminum heads, use gaskets with pre-flattened fire rings to prevent damage.
Definition and Context
A cylinder head gasket, commonly referred to as a head gasket, is a critical sealing component in internal combustion engines, such as those found in automobiles, tractors, and motorcycles. It is positioned between the engine block and the cylinder head, forming a barrier to prevent leaks and pressure losses at their junction. This seal is essential for maintaining the engine's operational integrity and plays role in sealing combustion gases and preventing fluid mixing.
Function and Operational Role
The head gasket's primary function is to seal the combustion chamber, ensuring that high-pressure gases remain contained within the cylinders during the combustion process. It also prevents the leakage of coolant and engine oil into the cylinders, maintaining the separation of three distinct fluid circuits:
- Combustion gases: These include unburned air/fuel mixtures and exhaust gases, critical for power generation.
- Coolant: A water-based fluid circulating through the engine block and cylinder head to manage temperature.
- Engine oil: Lubricating oil that reduces friction and wear within the engine, ensuring longevity.
Failure to maintain this separation can lead to severe consequences, such as engine overheating, reduced performance, and potential catastrophic failure, as noted in discussions on diagnosing blown head gaskets.
Types of Head Gaskets
Head gaskets vary by design and material, each suited to specific engine requirements. The following table summarizes the types:
| Type | Description | Common Use |
|---|

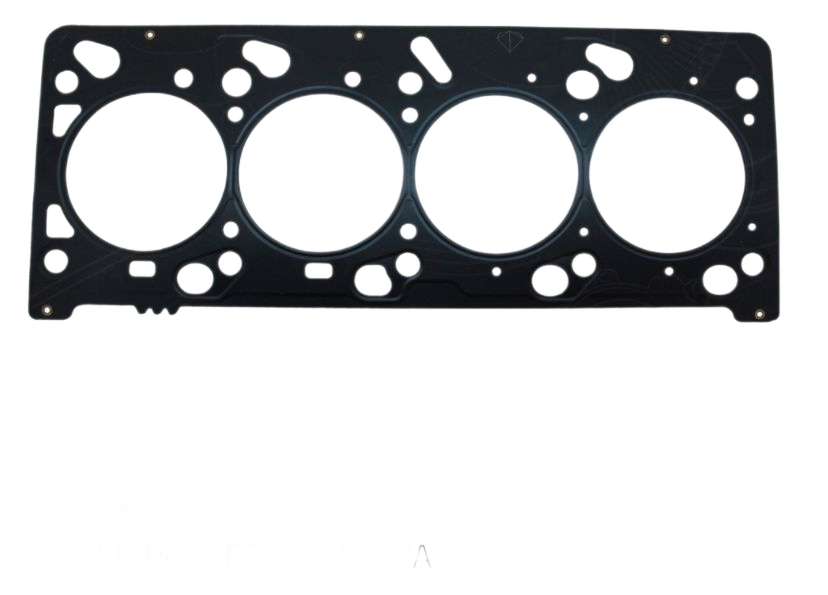

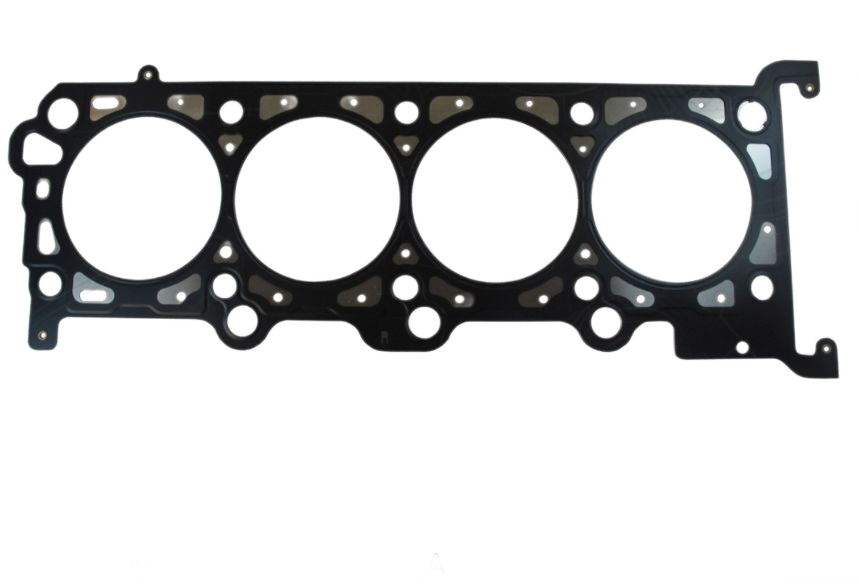

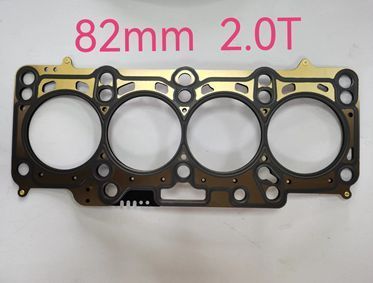

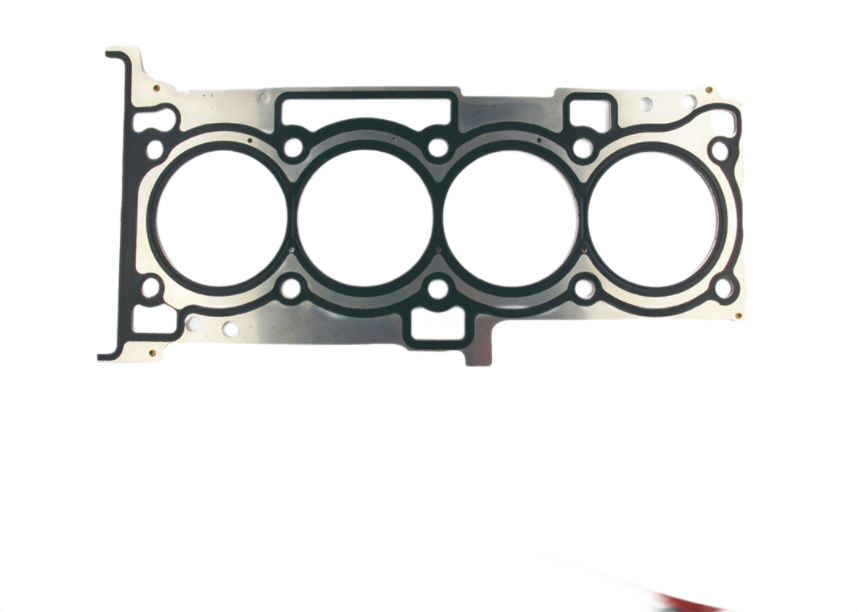

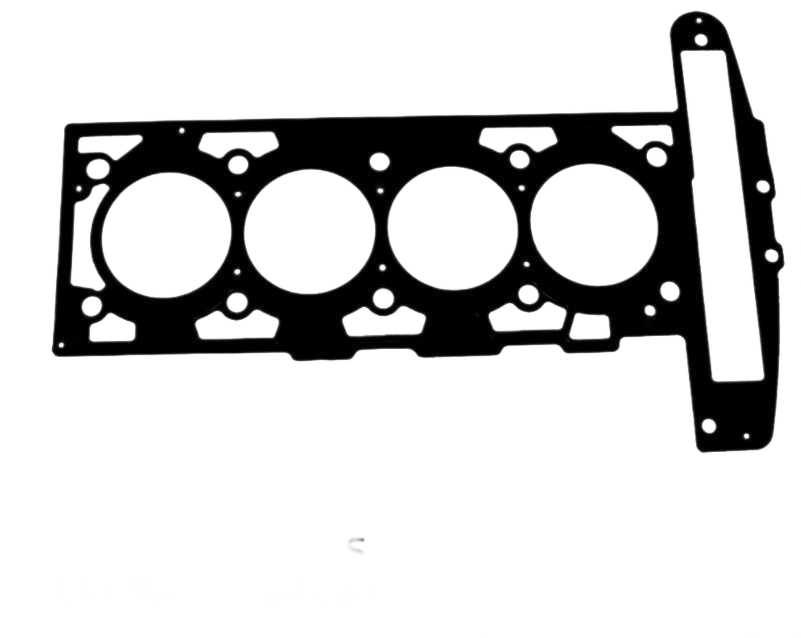

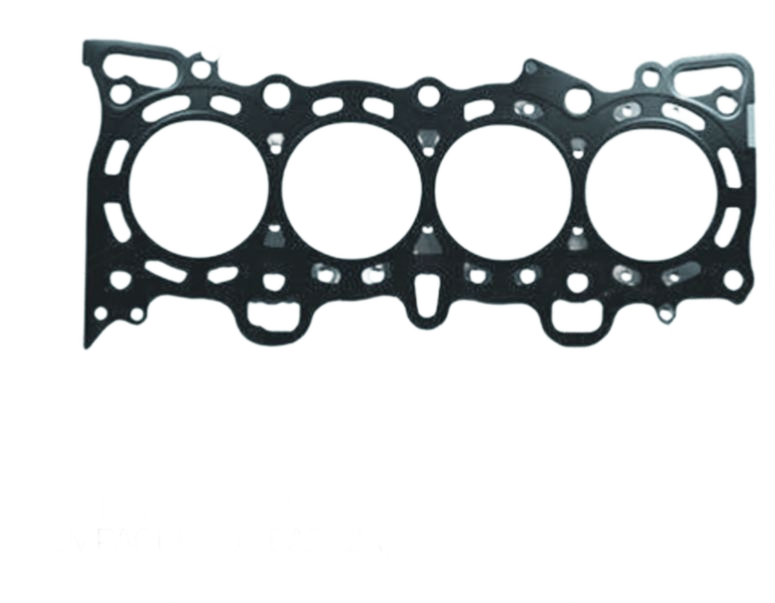

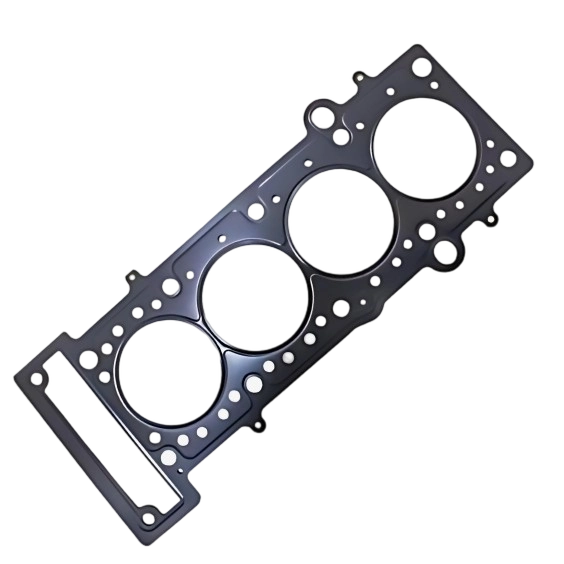

| Multi-layer steel (MLS) | 2-5 thin steel layers (typically 3), coated with rubber (e.g., Viton), durable. | Modern engines, high power demands. |
| Solid copper | Durable, requires O-ringing, strong and conforming. | Performance and older engines. |

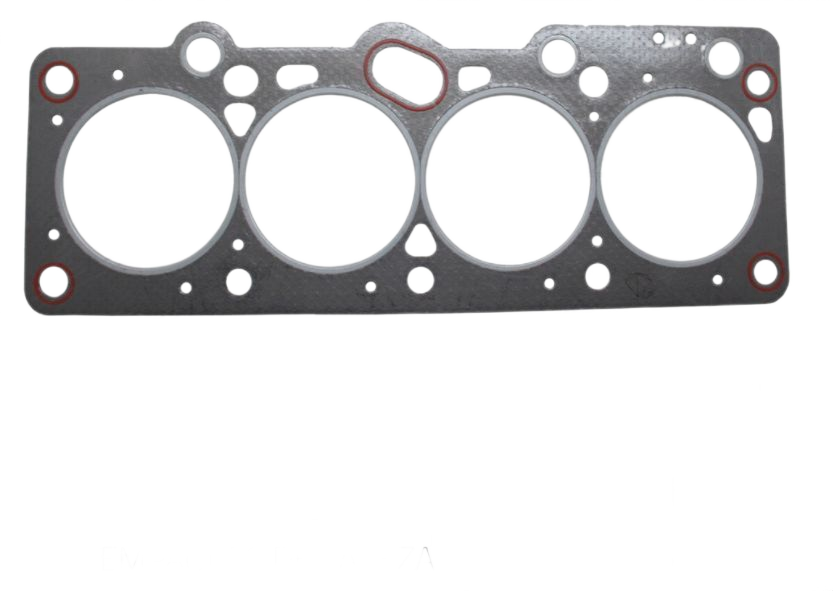

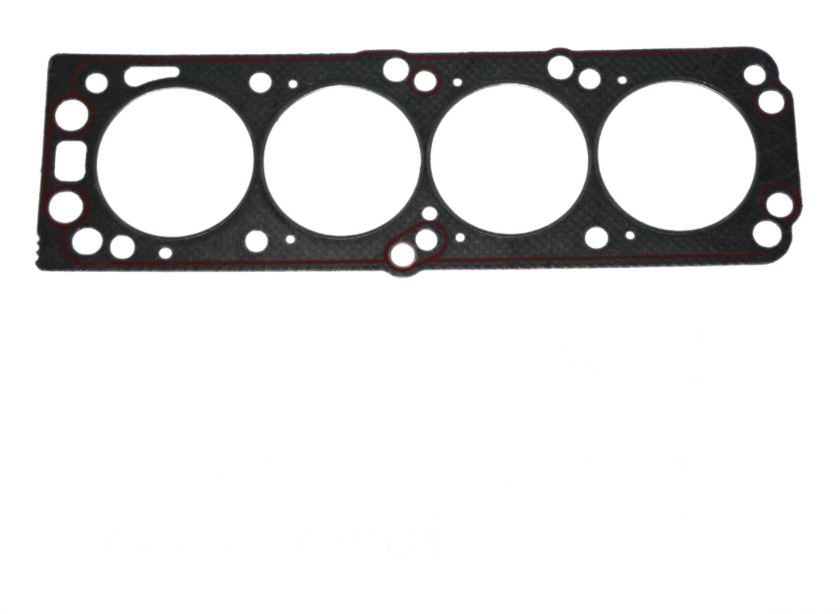

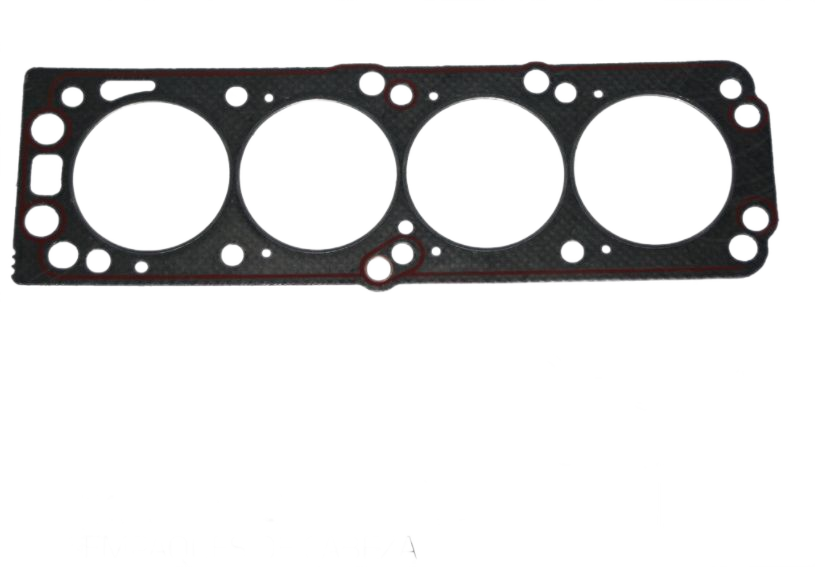

| Composite | Thin sheeting bonded to steel core, often asbestos or graphite, prone to blowouts. | Older engines, less common today. |

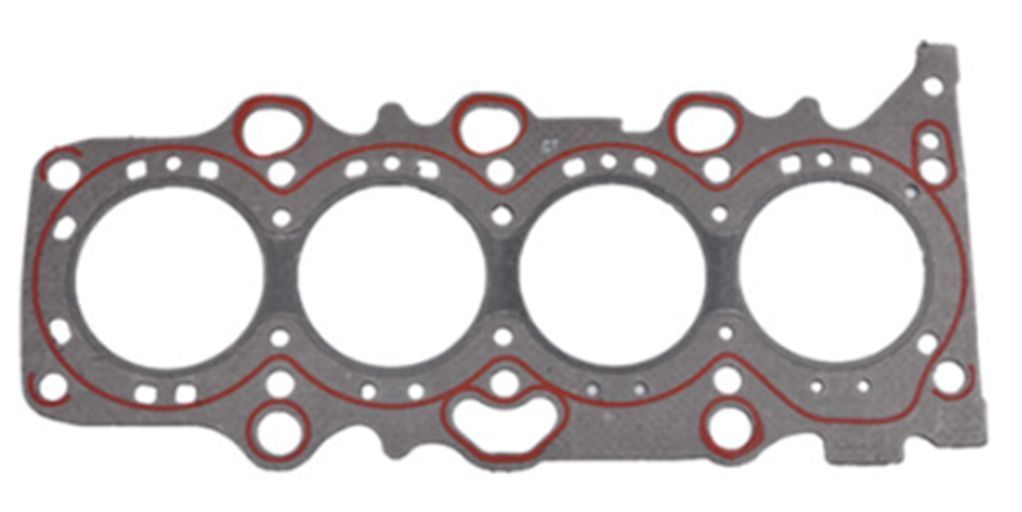

| Elastomeric | Steel core with silicone rubber beads, specific to engines like Rover K-series. | Niche applications. |
| O-ring | Steel or copper, reusable, requires high clamping pressure. | High-performance or racing engines. |
For aluminum cylinder heads, gaskets with pre-flattened fire rings are recommended to prevent surface damage, for examples like Fel-Pro Copper Ring Head Gaskets for small block Chevy.
Common Problems and Diagnosis
Head gasket failures can manifest in various ways, impacting engine performance and longevity. Common issues include:
- Leaks: External leaks show visible coolant or oil, while internal leaks mix fluids, such as coolant in oil, leading to foam in coolant or a mayonnaise-like substance in oil, though these symptoms are not always conclusive.
- Coolant leakage into the combustion chamber: This causes white smoke from the exhaust, reduced performance, and potential hydrolock, damaging components like the catalytic converter.
- Combustion gas leakage into the cooling system: Results in loss of compression, reduced power, rough running, overheating, air pockets in coolant, and coolant expulsion into the expansion tank.
- Engine knocking: Severe detonation can create pressures up to eight times normal, lifting the cylinder head and damaging the gasket, as noted in the Wikipedia summary.
Diagnosis typically involves:
- Compression test: Checks for loss of compression in cylinders.
- Leak-down test: Detects where air is leaking.
- Chemical test: Identifies hydrocarbons in coolant, indicating combustion gas leakage.
