Cylinder Head Gasket Set

What is a Cylinder Head Gasket Set?

A cylinder head gasket set is a collection of gaskets and seals used for repairing or replacing the cylinder head in an internal combustion engine. It typically includes the main cylinder head gasket, which seals the combustion chamber, along with other gaskets like the valve cover and intake/exhaust manifold gaskets, and various oil seals and O-rings.

Why is it Important?

It ensures proper sealing to prevent leaks of oil, coolant, and combustion gases, which is crucial for maintaining engine performance and longevity. This set is essential during major engine repairs to avoid issues like overheating or reduced power.

When to Replace?

Replace during engine overhauls, especially after a head gasket failure, with professional installation recommended due to complexity. Look for symptoms like overheating or white smoke from the exhaust.

Definition and Purpose

A cylinder head gasket set is a comprehensive collection of gaskets and seals specifically designed for the repair or replacement of the cylinder head in an internal combustion engine. The primary component, the cylinder head gasket, is a critical part that sits between the engine block and the cylinder head, sealing the combustion chamber and preventing leaks of coolant, engine oil, and combustion gases. The set ensures that all necessary sealing components are replaced during major engine repairs, maintaining engine performance, reliability, and longevity. Research suggests that using a full set is particularly important when the engine is disassembled for extensive work, such as after a head gasket failure or during a performance upgrade, ensuring all sealing surfaces are properly addressed.

The purpose of a cylinder head gasket set is to provide a complete solution for engine sealing, preventing issues like oil leaks, coolant contamination, and compression loss, which can lead to engine failure. It is ideal for engine overhauls, ensuring compatibility and reliability, and is crucial for maintaining the engine's integrity under high-stress conditions.

Key Components and Composition

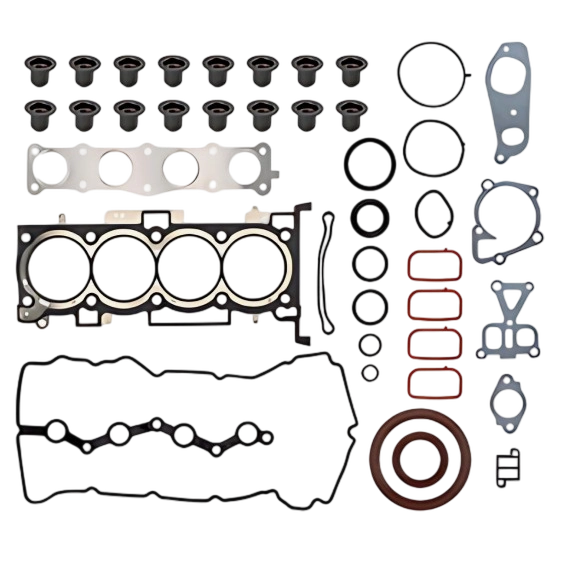

A typical cylinder head gasket set includes a wide range of gaskets and seals, tailored to specific engine types and models. The evidence leans toward the following components being commonly included:

1. Cylinder Head Gasket: Seals the interface between the engine block and the cylinder head, critical for preventing oil and coolant leaks. For gasoline engines, this is always included, while for diesel engines, it may vary by thickness, and sometimes it's not included in the set.
2. Valve Cover Gasket: Seals the valve cover to the cylinder head, preventing oil leaks from the top of the engine.
3. Intake Manifold Gasket: Seals the intake manifold to the engine block or cylinder head, ensuring proper air-fuel mixture delivery.
4. Exhaust Manifold Gasket: Seals the exhaust manifold to the engine block or cylinder head, preventing exhaust leaks.
5. Oil Seals: Includes seals for the crankshaft, camshaft, and other rotating components, such as front and rear main seals.
6. Various O-Rings and Small Seals: These are often included for smaller components like water pumps, turbochargers, or liners, ensuring comprehensive coverage.
7. Aluminum or Copper Rings: Small sealing components for specific engine parts, such as exhaust ports or sensor locations.

Some sets may also include additional gaskets depending on the engine type and manufacturer, such as:

1. Turbocharger Gaskets (for turbocharged engines)
2. Water Pump Gasket
3. Side Cover Gaskets

The composition is studied with high accuracy to ensure no item is missing, offering the most exact and complete package for a cylinder head repair or rebuild.

Symptoms of Failure

If the cylinder head gasket is failing, you might notice:

1. Constant Engine Overheating: Due to coolant leaks into the combustion chamber.
2. Consistent Lowering of Coolant Level: Without visible external leaks, indicating internal leakage.
3. Decreased Pressure in Combustion Chamber: Leading to reduced engine power output.
4. White Smoke from the Exhaust: Indicating coolant is being burned in the combustion chamber.
5. Milky Oil: Coolant mixing with engine oil, appearing as a milky substance in the oil.

These symptoms indicate that the gasket is no longer effectively sealing the engine, which can lead to more severe engine damage if not addressed promptly.
