Gaskets and sealing components serve as critical elements in modern vehicles, ensuring optimal performance, preventing fluid leakage, and maintaining system integrity. Without these seemingly simple components, engines would fail, transmissions would leak, and vehicle systems would rapidly deteriorate.
Understanding Automotive Gaskets
Gaskets are mechanical seals designed to fill the space between two or more mating surfaces, preventing leaks and contamination under compression. In automotive applications, gaskets create tight barriers between components that must remain sealed despite exposure to extreme temperatures, pressures, and chemical environments.
The Primary Functions of Automotive Gaskets
The fundamental purpose of gaskets in vehicles extends beyond simply "filling gaps":
1. Preventing fluids (oil, coolant, fuel) and gases from leaking between surfaces
2. Sealing combustion chambers to maintain proper compression
3. Preventing cross-contamination between different fluid systems
4. Withstanding varying pressures, temperatures, and chemical exposures
5. Absorbing vibration between mechanical components

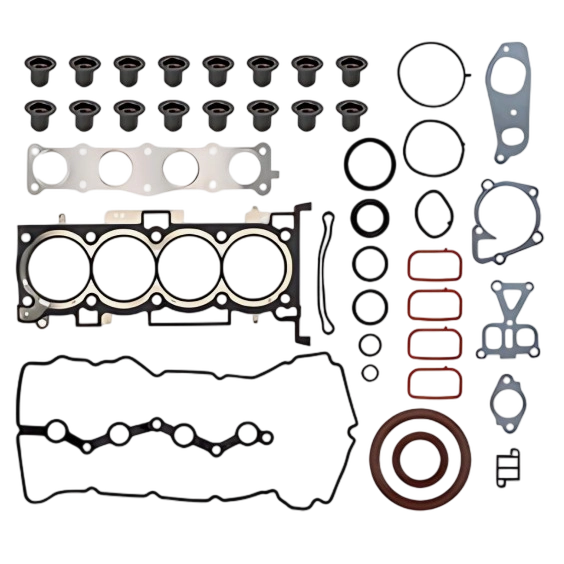

Critical Types of Automotive Gaskets
Vehicles contain numerous gasket types, each designed for specific applications and operating conditions.
Engine Gaskets

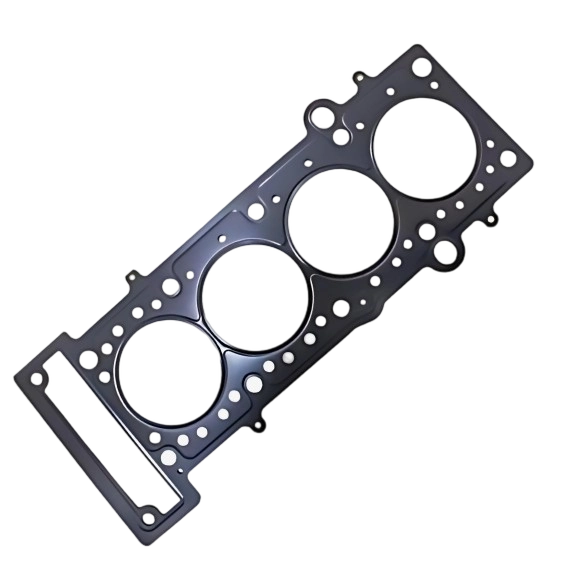

Head Gaskets
Perhaps the most critical gasket in any vehicle, the head gasket seals the connection between the engine block and cylinder head. This gasket must:
1. Prevent coolant, oil, and high-pressure combustion gases from escaping or mixing
2. Withstand extreme temperature fluctuations and pressure changes
3. Maintain proper compression within the combustion chambers
Head gaskets are manufactured using robust materials such as Multi-Layer Steel (MLS) or composite materials to withstand the demanding engine environment. Failure of a head gasket can result in severe engine damage, requiring complex and costly repairs.

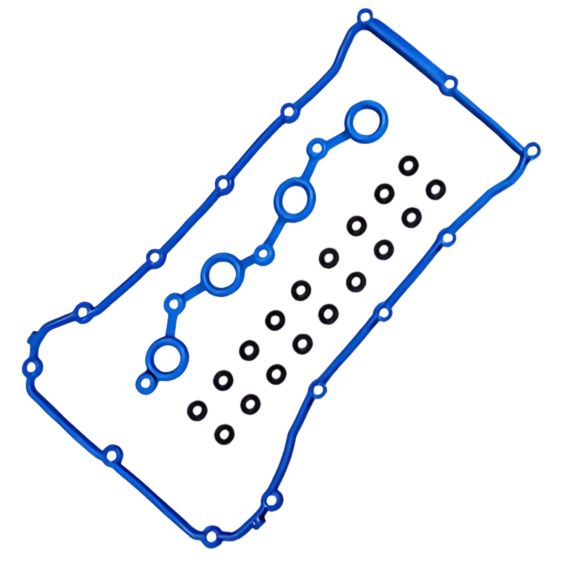

Valve Cover Gaskets
These gaskets seal the valve cover to the cylinder head, preventing oil leakage from the upper portion of the engine. They are typically made from materials that resist heat and oil exposure in the engine bay. Their proper functioning keeps the engine clean and ensures appropriate lubrication of valve train components.
Manifold Gaskets

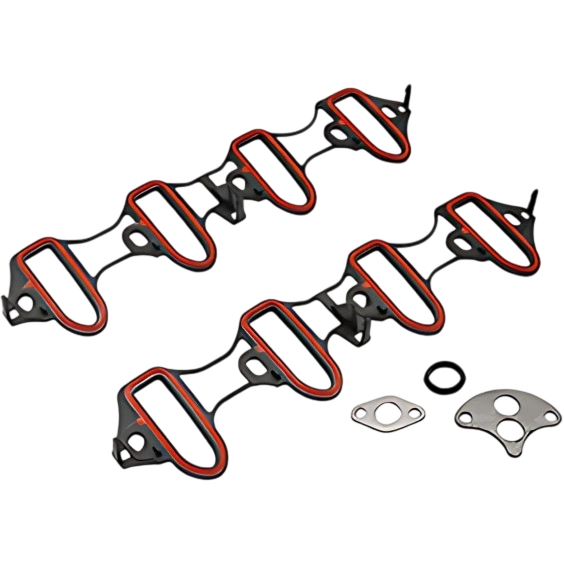

Intake Manifold Gaskets
Located between the intake manifold and cylinder head, these gaskets prevent air or fuel leaks as they travel into the engine's cylinders. They are crucial for:
1. Maintaining proper air-fuel ratios for combustion
2. Ensuring engine efficiency and performance
3. Preventing vacuum leaks that could affect engine operation

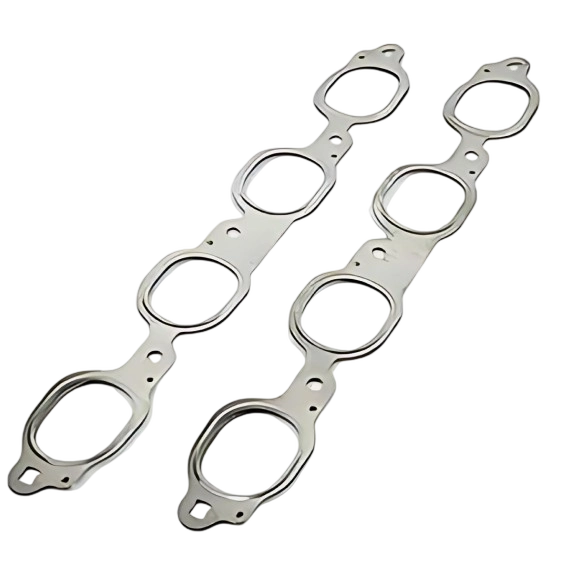

Exhaust Manifold Gaskets
These gaskets seal the junction between the exhaust manifold and cylinder head, preventing exhaust gases from escaping before entering the exhaust system. They are designed to withstand extremely high temperatures and pressures produced by exhaust gases, ensuring proper emission control and exhaust system efficiency.
Cooling System Gaskets
Water Pump Gaskets
Positioned between the water pump and engine block or timing cover, water pump gaskets prevent coolant leakage at the pump mounting location. Their primary function is to maintain cooling system integrity, preventing engine overheating and potential damage.
Thermostat Gaskets
These gaskets seal the thermostat housing to the cooling system components, preventing coolant leaks from this critical temperature control junction. Proper sealing at the thermostat helps maintain consistent engine operating temperatures.
Gasket Materials and Manufacturing
The effectiveness of a gasket depends largely on the materials used in its construction and manufacturing processes.
Common Gasket Materials
Gasket materials are selected based on their specific applications, with consideration for temperature resistance, chemical compatibility, and compressibility:
· Rubber and Elastomers: Used for applications requiring flexibility and resilience
· Metal: Including steel, copper, and stainless steel for high-temperature, high-pressure applications
· Cork and Cork-Elastomer Compounds: Excellent for applications requiring good compressibility and conformability
· Non-Asbestos Fiber: Environmentally friendly alternatives to traditional asbestos-based products
· PTFE (Polytetrafluoroethylene): Used for chemical resistance and sealing in harsh environments
· Graphite: Excellent for high-temperature applications such as exhaust systems
· Composite Materials: Engineered combinations of materials designed for specific applications
For fuel system applications specifically, nitrile and viton rubbers are recommended due to their resistance to modern fuel additives that can cause gasket erosion.
Related Sealing Components in Vehicles
Beyond traditional gaskets, vehicles use various specialized sealing components.
O-Rings and Seals
O-rings are circular sealing rings used throughout automotive systems:
1. Available in standardized AS568 sizes for consistent application
2. Critical for containing fluids and managing pressure in various vehicle systems
3. Manufactured from materials specifically formulated for automotive applications
Specialized automotive seals include:
· Rotary shaft seals for dynamic applications
· Power steering and A/C compressor seals
· Shock absorber oil seals and gas spring seals

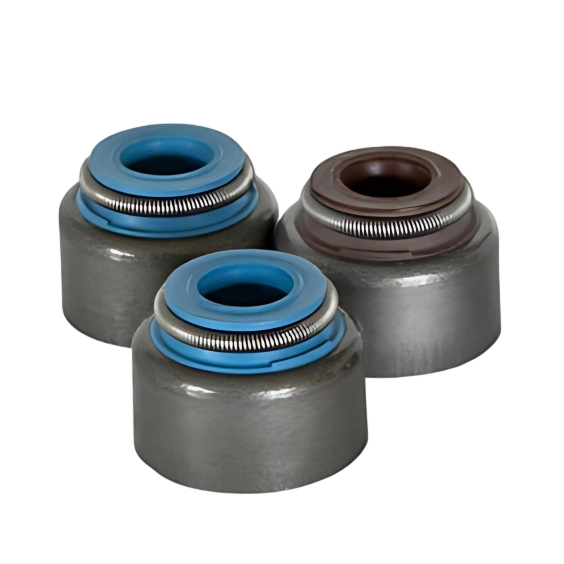

· Valve stem seals and bearing seals
· Crankshaft and camshaft oil seals
Gasket Failure
Gasket failure can lead to serious vehicle problems, including:
1. Fluid leaks causing system damage
2. Compression loss affecting engine performance
3. Cross-contamination between different fluid systems
4. Overheating and potential engine damage
Conclusion
Gaskets and related sealing components represent essential elements in modern vehicle design and operation. From simple cork gaskets to advanced multi-layer steel head gaskets and complex 2-component seals, these components enable the reliable functioning of automotive systems under extreme conditions.
As vehicle technologies advance, gasket and seal technologies continue to evolve, with manufacturers developing new materials and designs to meet the challenges of modern automotive applications. These developments focus on improving reliability, extending service life, reducing weight, and enhancing overall vehicle performance and efficiency.
Understanding the types, materials, and applications of automotive gaskets and seals is critical for proper vehicle maintenance and repair, helping to ensure optimal performance and longevity of automotive systems. Whether for standard production vehicles or specialized racing applications, properly selected and installed gaskets and sealing components remain fundamental to automotive engineering.
