Vehicle performance and longevity depend significantly on components that often go unnoticed until they fail - gaskets and seals. These mechanical devices create critical barriers throughout a vehicle, preventing leaks and maintaining system integrity under varying conditions. As vehicle technology evolves from traditional internal combustion engines to electric powertrains, so too do the requirements for these essential sealing solutions.
Gaskets and Seals in Automotive Applications
Gaskets and seals are mechanical components designed to create tight barriers between mating surfaces in vehicles. Their primary function is to prevent the leakage of fluids or gases between connected parts while maintaining proper pressure within various systems. These components serve as critical interfaces between different vehicle parts, ensuring that everything from engine oil to battery coolant remains contained within their designated systems.
The Critical Functions of Automotive Gaskets and Seals
Gaskets and seals perform several vital functions in vehicles that directly impact performance, safety, and longevity:
1. Fluid Containment: They prevent essential fluids such as oil, coolant, and fuel from escaping their respective systems. Without proper sealing, these fluids would leak, potentially causing engine damage and costly repairs.
2. Contaminant Protection: They create barriers that protect sensitive components from external contaminants like dust, dirt, moisture, and road salt. This protection is essential for maintaining engine longevity and performance.
3. Compression and Combustion Control: Particularly in internal combustion engines, gaskets such as head gaskets ensure proper compression in combustion chambers, which is crucial for engine efficiency and power generation.
4. Thermal Management: Vehicles generate substantial heat during operation. Gaskets play a vital role in managing this heat by preventing thermal leaks and ensuring components remain properly lubricated.
5. Environmental Sealing: Modern gaskets protect sensitive electronics and battery systems from environmental factors that could compromise vehicle function.
Major Types of Gaskets Used in Vehicle Applications
Engine Gaskets in Internal Combustion Vehicles
The internal combustion engine utilizes several critical gaskets to maintain its operation:
Head Gaskets

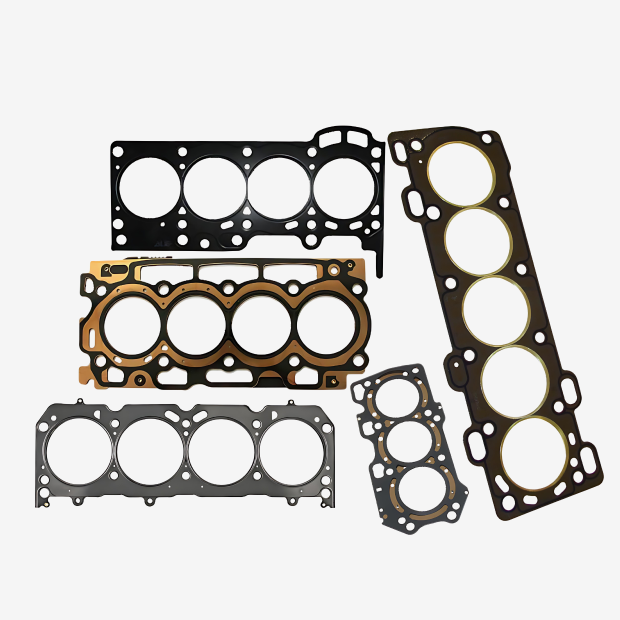

Head gaskets seal the mating surface between the cylinder head and engine block. They prevent oil, coolant, and combustion gases from leaking between these major engine components. These gaskets must withstand extreme temperature variations and high pressures while maintaining perfect seals around cylinder bores, oil passages, and coolant channels. Materials used include steel, copper, carbon, fiberglass, and composite materials.
Manifold Gaskets
Also known as intake gaskets, manifold gaskets seal the space between the manifold and cylinder head. They prevent air and coolant leakage, ensuring proper engine function. The integrity of these gaskets directly affects engine performance and efficiency.

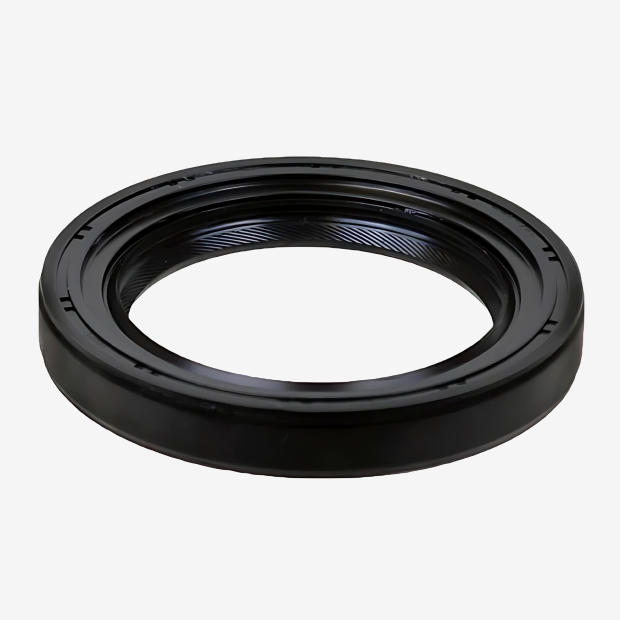

Camshaft Gaskets
These smaller, often O-ring shaped gaskets seal the camshaft or camshafts in the engine. Some automotive engines feature a single camshaft, while others utilize multiple camshafts requiring several gaskets.
Valve Cover Gaskets
These gaskets prevent oil leakage between the valve/rocker cover and engine. They're typically manufactured from cork, nitrile, or non-asbestos materials and are essential for keeping oil contained within the engine's upper section.
Oil Pan Gaskets
Located between the engine block and oil pan, these gaskets prevent oil leaks from the bottom of the engine, helping maintain proper lubrication and preventing environmental contamination.
Seals for System Components
Beyond engine gaskets, vehicles rely on numerous other seals throughout their systems:
1. Coolant System Seals: These withstand water-glycol mixtures and high temperatures without premature aging.
2. Oil Distribution System Seals: Made from cork and cured nitrile, these resist aromatic hydrocarbons while creating formidable barriers against oil leaks.
3. Exhaust Gas Recirculation (EGR) Valve Gaskets: Manufactured from flexible graphite or composite materials, these gaskets resist high temperatures, oils, and fuels in the exhaust system.
Gaskets and Seals in Electric Vehicles
As the automotive industry transitions toward electric mobility, gasket and seal applications are evolving to meet new challenges.
Differences from Traditional Applications
Electric vehicles have fewer moving parts than internal combustion engines, eliminating the need for certain traditional gaskets like head gaskets. However, they introduce new sealing requirements focused primarily on protecting electrical components and battery systems.
Battery Sealing Applications
Battery sealing is particularly critical in electric vehicles. These applications include:
1. Battery Cover Gaskets: Typically made of aluminum, these gaskets seal the large area covering the battery pack, preventing environmental ingress.
2. Battery Compartment Gaskets: These create seals between battery modules and housing components.
3. EMI Shielding Gaskets: These specialized gaskets protect sensitive electronics from electromagnetic interference, which is particularly important in EVs due to strong electromagnetic fields between battery packs, motors, and controllers.
4. Flame-Resistant Gaskets: These provide UL 94 V-0 flame resistance, offering critical protection in the event of thermal incidents in the battery system.
Special Requirements for EV Gaskets
EV gasket materials must meet specific requirements:
1. Thermal Management: They must withstand and help manage the heat generated by battery packs.
2. Chemical Resistance: Battery gaskets must resist various chemicals used in battery systems.
3. Environmental Protection: They must seal against water, moisture, dust, and road salt for effective ingress protection (IP).
4. Vibration Dampening: EV gaskets help dampen noise and vibration from the electric drivetrain.
Materials Used in Automotive Gaskets and Seals
The performance of gaskets and seals is largely determined by their material composition. Different applications require specific materials:
Traditional Materials
1. Cork Gaskets: Highly compressible and versatile, ideal for oil, fuel, and solvent applications when combined with elastomer bindings.
2. Metal Gaskets: Manufactured to withstand extreme temperatures, strain, and chemical exposure. Their ability to expand and contract makes them suitable for high-duty applications.
3. Fiber Gaskets: Made from various materials including cellulose, aramid, and glass fibers, offering good temperature resistance.
4. Rubber Gaskets: Provide excellent sealing capabilities with flexibility and conformability.
Advanced Materials and Composites
1. Polytetrafluoroethylene (PTFE): Resistant to several vehicle fluids and extreme temperatures.
2. Nitrile: Highly resistant to petroleum-based fluids and effective at various temperatures.
3. Perfluoroelastomer (FFKM): Offers substantial chemical resistance and long-term performance in severe situations.
4. Fluorocarbon Materials: Preferred for their ability to withstand ethanol and methanol in modern fuel systems.
5. Silicone: Used in applications requiring extreme temperature resistance and flexibility.
Gaskets and seals, though often overlooked, remain critical components in both traditional and electric vehicles. Their role in preventing leaks, managing heat, protecting against contaminants, and ensuring system integrity directly impacts vehicle performance, safety, and longevity.
