Vehicle filters play a crucial role in ensuring optimal performance, longevity, and efficiency of automobiles. These components serve as defensive barriers, preventing contaminants from entering critical systems while ensuring clean air, oil, and fuel circulation. Modern vehicles typically contain four to five main types of filters, each with specific functions that contribute to the vehicle's overall health and performance.
Engine Air Filters: The First Line of Defense
Engine air filters serve as the "lungs" of the vehicle, purifying incoming air before it enters the combustion chamber. These filters prevent dust, dirt, debris, pollen, and other airborne contaminants from entering the engine, which could otherwise cause internal damage to components like pistons and cylinder walls.
Types of Engine Air Filters
The market offers several types of engine air filters, each with unique properties:
Paper Air Filters: The most common type found in passenger vehicles, these use specially designed paper media to trap contaminants. They're cost-effective but need regular replacement.
Cotton Air Filters: Often used in sports and high-performance vehicles, these filters consist of cotton layers soaked in oil to enhance filtering capabilities. They provide better airflow compared to paper filters and can be washed and reused, though they require regular maintenance including cleaning and re-oiling.
Fiberglass Air Filters: Less common but highly effective at trapping fine particles. They're more durable than paper filters but also more expensive.

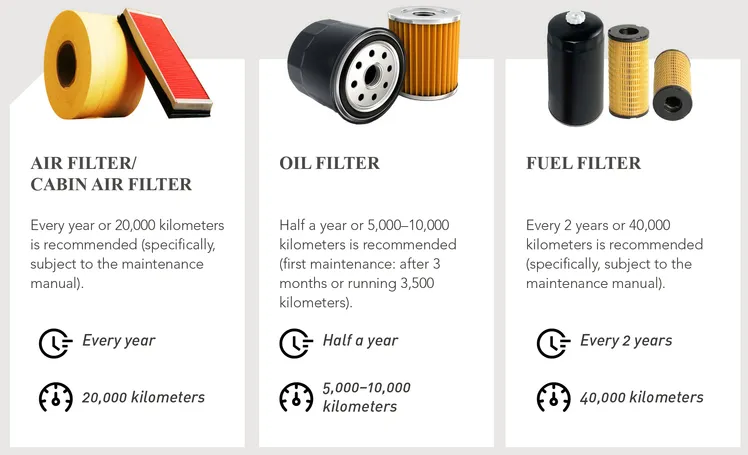

Maintenance Requirements
Engine air filters should typically be checked every 12,000 to 15,000 miles and replaced every 30,000 to 45,000 miles or as indicated in the vehicle's owner's manual. However, driving conditions significantly impact replacement frequency. Signs that an air filter needs replacement include reduced acceleration, decreased fuel efficiency, engine misfiring, or a visibly dirty filter.
Oil Filters: Protecting the Engine's Lifeblood
The oil filter is critical for engine health as it removes impurities from the engine oil that accumulate over time, such as moisture, dust, metal particles, and corrosion products.
How Oil Filters Work

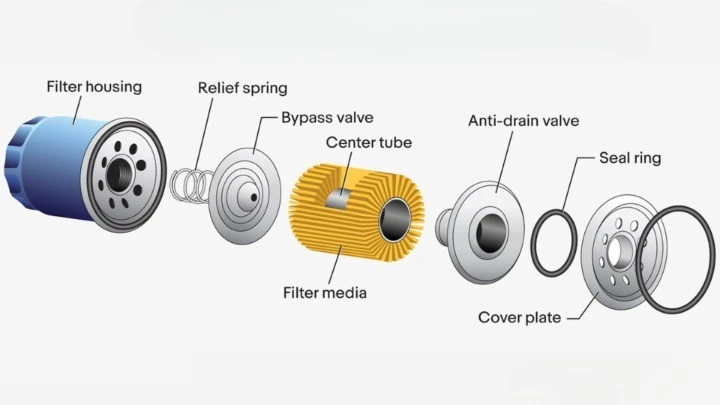

The outside of the oil filter consists of a metal can with a sealing gasket that allows it to be tightly held against the engine's mating surface. Inside the can is the filter material, most frequently made from synthetic fiber. The engine's oil pump moves the oil directly to the filter, where it enters from the holes in the perimeter of the base plate. The dirty oil passes through the filter media and back through the central hole, where it re-enters the engine.
Importance of Timely Replacement
Oil filters should be replaced during every oil change, typically every 5,000 to 7,500 miles. Clean oil is essential for proper lubrication, reducing friction between moving parts, regulating engine temperature, and ultimately extending engine life. Indicators of a failing oil filter include an illuminated check engine light, decreased engine oil pressure, or knocking sounds from the engine.
Cabin Air Filters: Ensuring Passenger Health and Comfort
Unlike other filters that protect the vehicle's mechanical components, cabin air filters are designed specifically to improve the air quality inside the vehicle's cabin.
Types and Functions
Standard Cabin Filters: These basic filters trap dust, pollen, and other particulates, providing clean air inside the vehicle.
Activated Carbon Cabin Filters: These advanced filters not only trap particles but also absorb harmful and foul-smelling gases like ozone, smog, and exhaust fumes through an activated carbon layer, providing superior air quality.
Benefits and Maintenance
The cabin air filter purifies the air entering the vehicle's interior through the HVAC system. It traps dust, pollen, bacteria, exhaust particles, and other allergens, improving air quality for passengers and proving especially beneficial for those with allergies or respiratory issues.
These filters typically should be replaced every 15,000 to 30,000 miles or annually[8]. Signs of replacement include reduced airflow from vents, persistent unpleasant odors, increased allergic reactions, or excessive window fogging.
Fuel Filters: Ensuring Clean Fuel Delivery
Fuel filters remove contaminants from the fuel before it reaches the engine's injection system or carburetor.
Function and Placement
Located inside the fuel line, the fuel filter works to trap dust, dirt, debris, and other pollutants from the fuel. This protection is critical for preventing clogs in fuel injectors and damage to other sensitive components in the fuel system.
Maintenance Considerations
Fuel filters typically need replacement every 30,000 to 50,000 miles, though this varies significantly between vehicle makes and models. Indicators that a fuel filter needs replacement include engine misfires, difficulty starting, stalling or rough idling, and decreased performance.
Transmission Filters: Protecting the Transmission System
The transmission filter acts as a specialized strainer to keep transmission fluid clean by removing debris and metal particles that accumulate over time.
Role in Vehicle Health
Clean transmission fluid is essential for smooth gear shifting and overall transmission operation. The transmission filter helps prevent contamination that could lead to premature wear of the transmission's internal components.
Replacement Schedule
Transmission filters are typically replaced during transmission fluid changes, which occur every 60,000 to 90,000 miles for most vehicles. Signs that a transmission filter needs replacement include rough or delayed shifting, transmission slipping, or unusual noises from the transmission.
Specialized Filters for Commercial and Heavy-Duty Vehicles
Beyond the standard filters found in passenger vehicles, commercial and heavy-duty vehicles often utilize additional specialized filtration systems.
Urea Filters
In vehicles equipped with Selective Catalytic Reduction (SCR) systems, urea filters (also called DEF or AdBlue filters) protect the SCR system by filtering the urea solution before it's injected into the exhaust stream to reduce nitrogen oxide emissions. These filters can be integrated into the SCR system on the suction or pressure side and reliably filter dirt particles from the urea solution "AdBlue".
Air Dryer Cartridges
Commercial vehicles with pneumatic systems use air dryer cartridges to dehumidify compressed air and reliably separate particles and oil mist, thus reducing the risk of expensive downtimes.
Additional Specialized Filters
Other specialized filters include coolant filters for heavy-duty vehicles and hydraulic/transmission filters tailored for specific applications. These specialized filters are crucial for the proper functioning of commercial vehicles, which often operate under more demanding conditions than passenger vehicles.
Vehicle Filter Symptoms and Diagnostic Indicators
Vehicle filters are critical components that ensure the proper functioning of automotive systems by removing contaminants from air, fuel, oil, and cabin environments. Failure to maintain these filters can lead to a cascade of mechanical issues, reduced performance, and increased operational costs.
Engine Air Filter Symptoms
The engine air filter safeguards combustion systems by preventing particulate ingress. When compromised, it directly impacts engine efficiency and drivability.
Reduced Acceleration and Power Output
A clogged air filter restricts airflow to the engine, creating an imbalanced air-fuel ratio. This results in incomplete combustion, manifesting as sluggish throttle response and diminished power during acceleration. Drivers may notice prolonged hesitation when overtaking or climbing inclines, as the engine compensates for oxygen deprivation by enriching the fuel mixture, further straining efficiency.
Abnormal Combustion Noises
Insufficient airflow forces the engine to operate under suboptimal conditions, often producing audible detonation events. These include backfiring, popping sounds during deceleration, or metallic pinging under load. Such noises stem from erratic combustion cycles caused by oxygen starvation, which destabilizes ignition timing and cylinder pressure dynamics.
Fuel Economy Degradation
Restricted airflow forces the engine control unit (ECU) to inject excess fuel to maintain stoichiometric balance, increasing fuel consumption by 5–15%. This symptom often develops gradually, making it less noticeable until fuel costs rise significantly. Prolonged operation with a dirty filter can also accelerate carbon buildup on intake valves and fuel injectors, compounding efficiency losses.
Visual Contamination and Physical Damage
Direct inspection remains the most reliable diagnostic method. Filters exhibiting visible debris accumulation, oil saturation, or structural deformities (e.g., collapsed pleats, torn media) require immediate replacement. In severe cases, particulate bypass can score cylinder walls or damage turbocharger components in forced-induction engines.
Oil Filter Failure Indicators
Oil filters maintain lubricant purity by trapping wear metals, soot, and combustion byproducts. Their failure precipitates accelerated engine wear and thermal instability.
Low Oil Pressure Warnings
A clogged filter creates flow resistance, reducing lubrication system pressure. Dashboard warning lights typically illuminate when pressure drops below manufacturer thresholds (often 5–15 psi at idle). Persistent low pressure may trigger limp-mode activation in modern vehicles to prevent catastrophic bearing failure.
Elevated Engine Temperatures
Contaminated oil loses its ability to transfer heat from critical components like piston crowns and camshafts. Drivers may observe coolant temperature spikes despite functional cooling systems, as degraded oil fails to manage thermal loads. Extended high-temperature operation risks polymerizing oil into sludge, further obstructing filter media.
Audible Valve Train Noise
Inadequate lubrication due to restricted oil flow exacerbates mechanical friction. This often manifests as increased valvetrain clatter—particularly during cold starts—as hydraulic lifters fail to maintain proper lash adjustment. Worn timing chains or rattling cam phasers may also indicate oil starvation.
Fuel Filter Degradation Symptoms
Fuel filters protect injection systems from particulate and microbial contamination. Their failure directly impacts combustion quality and component longevity.
1. Engine Misfires Under Load
Partial filter blockages create fuel pressure inconsistencies, causing lean misfires during high-demand scenarios like highway acceleration.
2. Cold Start Difficulties
Fuel system pressure bleed-down due to filter restrictions prevents adequate rail pressure buildup. Extended cranking times (>5 seconds) and multiple ignition attempts typify this issue, particularly in temperatures below 10°C where fuel viscosity increases.
3. Erratic Idle and Stalling
Intermittent fuel delivery disrupts idle air-fuel control loops. The ECU compensates by adjusting throttle position and ignition timing, resulting in surging RPM (200–300 rpm fluctuations) or unexpected stall events at traffic stops.
4. Cabin Air Filter Performance Decline
Cabin filters impact occupant health and HVAC performance through particulate and odorant filtration.
5. Reduced Airflow Through Vents
Clogged cabin filters increase blower motor workload while decreasing vent output. A 30–50% reduction in airflow volume is common, often accompanied by whistling noises as air navigates obstructed filter media.
6. Persistent Musty Odors
Saturated filters become breeding grounds for microbial growth, releasing volatile organic compounds (VOCs) into the cabin. These odors intensify when using recirculation modes or during humid conditions, potentially exacerbating respiratory issues.
7. Fogging Window Persistence
Inadequate airflow across evaporator cores prevents effective humidity control. Drivers notice slower defogging times and residual condensation on glass surfaces despite AC operation.
8. Allergenic Particle Penetration
Failed filters allow pollen and PM2.5 particulates to enter the cabin. Occupants may experience increased sneezing, nasal congestion, or asthma symptoms—particularly during urban driving or agricultural exposure.
