The automotive industry relies heavily on fasteners - small but critical components that hold vehicles together and ensure their structural integrity and safety. While often overlooked, the average vehicle contains over 30,000 small parts, with a significant portion being fasteners. These components come in over 64,000 different designs used throughout the industry, and vehicles simply cannot function without them.
Types of Automotive Fasteners
Automotive fasteners can be categorized into various types based on their design, function, and application. Understanding these distinctions is crucial for proper vehicle assembly and maintenance.
Threaded Fasteners
Threaded fasteners are among the most common types used in the automotive industry, characterized by their helical ridges that allow them to be screwed into place.

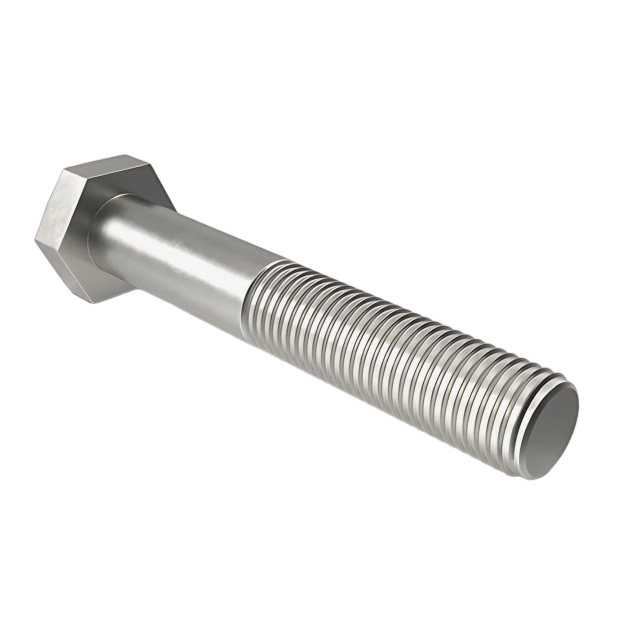

Bolts: These are threaded fasteners with a stem-like structure on one end and a head on the other. They are primarily used for joining components like dashboards and engine parts. Hex-headed bolts are the most common, but other varieties include socket, flanged, and hexagonal bolts, each serving specific functions in automotive settings. Flanged bolts, for example, provide a larger surface area that distributes clamping force, making them suitable for components subjected to heavy loads or pressure.
Screws: Similar to bolts but typically designed to be driven into the material directly rather than paired with nuts. Socket cap screws are particularly common in automotive applications requiring precise torque applications.

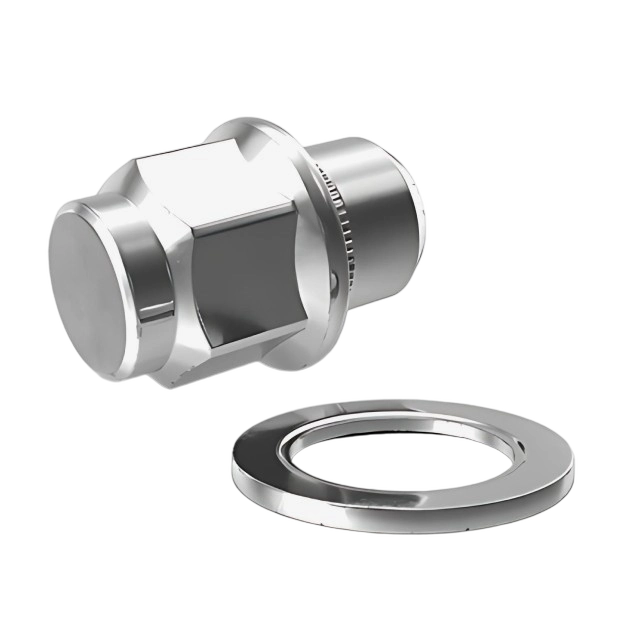

Nuts: These small metal components are made primarily from carbon steel and work in conjunction with bolts to secure parts. Hex nuts are the most common, but varieties include flange nuts, which have a wide flange at one end to hold automotive parts firmly and reduce the likelihood of loosening. Other types include lock nuts and cap nuts that prevent loosening due to vibrations or torque loads.
Studs: Threaded rods that can be fixed at one end with the other end accepting a nut. They're particularly useful in applications where frequent disassembly is required.
Non-Threaded Fasteners
Non-threaded fasteners rely on different mechanical principles to secure components together.
Rivets: These provide permanent fastening and are suitable in situations where routine disassembly isn't required. Their ability to handle shear and tension loads makes them valuable in automotive engineering, despite limitations such as difficulty in removal.
Washers: Thin plates typically placed beneath the head of a bolt or nut to distribute load over a larger area. They also prevent damage to the surface being fastened and provide a smooth bearing surface.
Clips and Clamps: Utilized extensively in automotive assemblies for securing hoses, wires, and other components. Their usage contributes significantly to maintaining the vehicle's structural integrity and vibration resistance.
Cotter Pins: Simple mechanical fasteners used to secure nuts, bolts, and other movable parts to prevent them from shifting out of position.
Retainers: Designed to hold components in place while allowing for some movement, often used for cables, hoses, and wiring harnesses.
Materials and Strength Classifications
The materials used in automotive fasteners significantly impact their performance, durability, and application suitability.
Metal Fasteners
Metal is the most common material for automotive fasteners, offering strength and durability.
Steel and Steel Alloys: The predominant material, especially for high-strength applications. Carbon steel fasteners are often categorized by grade, indicating their strength level. Many bolts are covered in zinc for rust protection and durability.
Aluminum and Aluminum Alloys: Increasingly popular for weight reduction while maintaining adequate strength, particularly in applications where weight savings are critical, such as in electric vehicles and for fuel efficiency.
Titanium: Lightweight yet extremely strong, making it ideal for high-performance and aerospace-influenced automotive applications. The rising adoption of titanium in fasteners is part of the trend toward advanced materials that enhance vehicle performance.
Stainless Steel: Offers corrosion resistance with tensile strength equivalent to grade 5 heat-treated steel, making it ideal for exposed areas or environments with moisture or chemical exposure.
Brass and Bronze: These materials have excellent corrosion resistance and are primarily used in marine applications. While visually appealing, their strength is generally equivalent to an un-hardened Grade 2 fastener .
Plastic Fasteners
Plastic fasteners offer weight reduction, corrosion resistance, and cost advantages in appropriate applications.
Types and Applications: Plastic is used for connectors, pins, spacers, and washers. Manufactured through injection molding, these fasteners cost less than metal alternatives and don't rust, conduct heat, or electricity.
Limitations: Due to their brittle nature, plastic fasteners are often designed for single use and aren't recommended for reuse after removal. They're generally not suitable for high-stress or high-temperature applications.
Strength Grades and Standards
Industry standards classify fasteners according to their strength and material properties.
SAE Grades (Imperial): The Society of Automotive Engineers classifies fasteners into grades based on strength:
1. Grade 2: Low/medium carbon steel for general use throughout the vehicle, primarily for interiors and trim
2. Grade 5: Quenched and tempered medium carbon steel for substantial components like brackets and suspension parts
3. Grade 8: Quenched and tempered medium carbon alloy steel for torqued engine components and main drivelines
Metric Classifications: The international standard uses classes:
· Class 5.8: Equivalent to SAE Grade 2, with proof load of 385 MPa
· Class 8.8: Equivalent to SAE Grade 5, with proof load of 600 MPa
· Class 10.9: Equivalent to SAE Grade 8, with proof load of 840 MPa
· Class 12.9: Exceeds Grade 8, the highest-grade fastener designed for extreme forces
Identification Markings: Each grade has specific markings on the fastener head. For example, Grade 5 (8.8) bolts have three lines in the head, while Grade 8 (10.9) have six lines .
Applications and Importance in Vehicles
Automotive fasteners play critical roles throughout vehicle systems, ensuring safety, performance, and longevity.
Structural Applications
Fasteners are essential for maintaining vehicle structural integrity under various operating conditions.
Body and Chassis: Fasteners join body panels, chassis components, and structural elements together, providing the framework that supports all other vehicle systems . The choice of appropriate fasteners ensures these structures can withstand the stresses of daily operation, including vibrations and impacts.

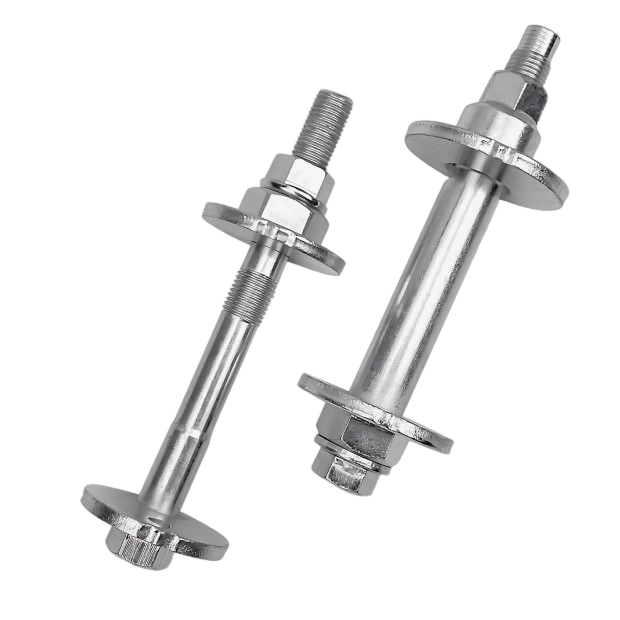

Suspension Systems: High-strength fasteners like Grade 8 bolts are crucial in suspension components where they must withstand constant dynamic loads and stress . The reliability of these connections directly impacts vehicle handling, stability, and safety.

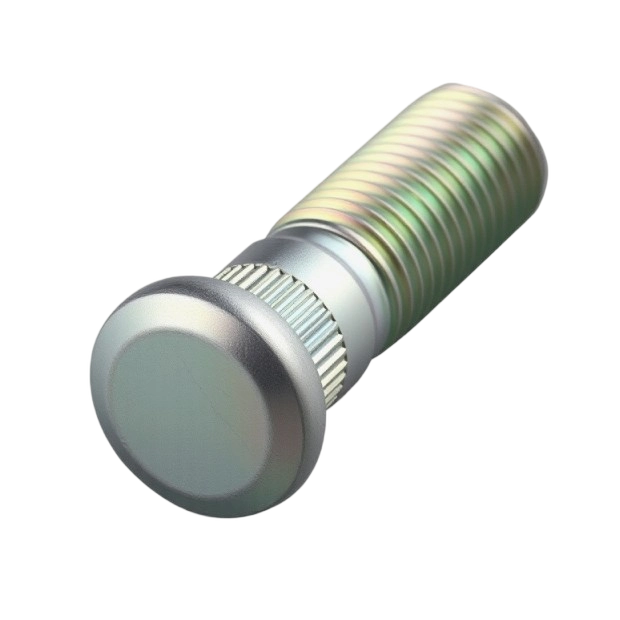

Wheels and Brakes: Specialized fasteners secure wheels to the vehicle and connect brake components. These are critical safety applications where failure could be catastrophic, requiring fasteners designed to precise specifications for torque and durability.
Engine and Powertrain Applications
The powertrain contains some of the most demanding applications for fasteners in terms of heat, vibration, and stress.
Engine Components: Engine fasteners must withstand extreme temperatures, vibration, and pressure. High-strength bolts (Class 10.9 or Grade 8) are typically used for critical components like cylinder heads and main bearings .
Drivetrain: Fasteners in the transmission, axles, and other drivetrain components must maintain precise alignments while handling substantial torque loads. These often require specialized designs with carefully calculated torque specifications.
Electric Vehicle Systems: The growing EV market creates demand for specialized fasteners designed for battery systems and electric drivetrains. These must address unique challenges including thermal management, vibration resistance, and high-voltage safety.
Interior and Exterior Applications
Less stressed but equally important applications include interior and exterior components.
Dashboard and Interior Systems: Typically using lower-grade fasteners (Grade 2/Class 5.8), these applications focus on securing interior panels, seats, and accessories . While not subjected to the same stresses as drivetrain components, these fasteners must still prevent rattles and maintain appearance over the vehicle's life.
Exterior Trim and Accessories: Various clips, bolts, and specialized fasteners secure exterior trim pieces, lighting assemblies, and other accessories. These often combine functional requirements with aesthetic considerations.
Electronics and Wiring: As vehicles incorporate more complex electronic systems, specialized fasteners for securing wiring harnesses, sensors, and control modules become increasingly important.
Current and Future Trends
The automotive fastener industry is evolving rapidly to meet changing market demands and technological advancements.
Selection Criteria for Automotive Fasteners
Choosing the right fastener is critical for vehicle safety, performance, and longevity.
Technical Considerations
Several technical factors must be considered when selecting automotive fasteners.
Material and Strength Grade: Selection should be based on the specific application requirements, considering factors like load, stress, and environmental exposure. For example, engine components typically require Grade 8/Class 10.9 fasteners, while interior trim may need only Grade 2/Class 5.8 .
Size and Fit: The fastener must be properly sized to provide sufficient clamping force without overtightening or under tightening. Selecting an undersized fastener and compensating with higher torque can cause excessive stretching, while oversized fasteners may not create enough tension to prevent loosening.
Thread Design: The choice between coarse (UNC) and fine (UNF) threads affects assembly time and joint security. Fine threads take longer to assemble but contribute to a more secure joint that can permit higher tension levels.

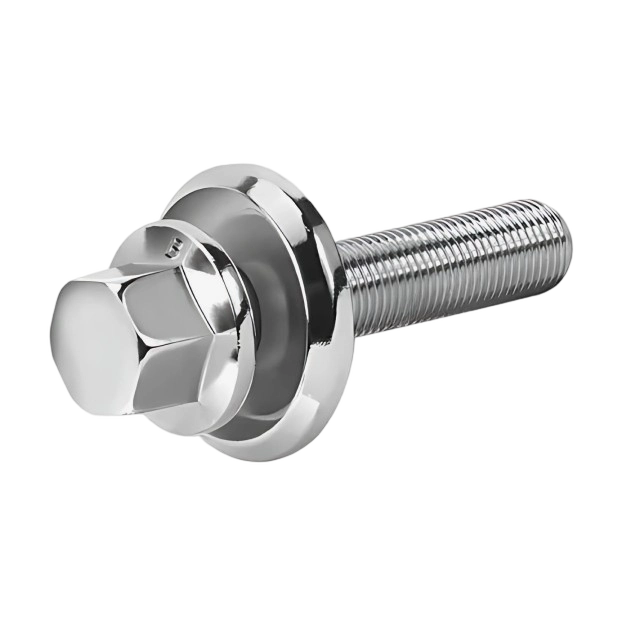

Head Style: Various head styles (hex, socket, flange, etc.) affect torque capability and installation access. The proper selection facilitates assembly and ensures the fastener can be tightened to the appropriate torque.
Application-Specific Requirements
Different vehicle systems have unique fastener requirements.
Corrosion Resistance: For exposed components or those in corrosive environments, materials like stainless steel or coated fasteners are essential. This is particularly important for underbody components and parts exposed to road salt or environmental elements.
Temperature Considerations: Engine and exhaust system fasteners must withstand extreme temperatures without losing strength or becoming permanently deformed. This often requires specialized high-temperature alloys.
Vibration Resistance: Many automotive applications experience constant vibration, requiring fasteners with locking features or thread designs that resist loosening under dynamic loads.
Weight Optimization: For performance and fuel efficiency, lightweight fasteners may be specified where appropriate without compromising safety or functionality.
Quality and Standards Compliance
Quality assurance and standards compliance are critical for automotive fasteners.
Manufacturing Standards: Fasteners should meet recognized quality standards, with ISO 9001 certification being the minimum general quality standard a manufacturer should meet.
Testing and Validation: Properly selected fasteners undergo rigorous testing to ensure they meet performance requirements under various conditions, including stress testing, corrosion testing, and fatigue analysis.
