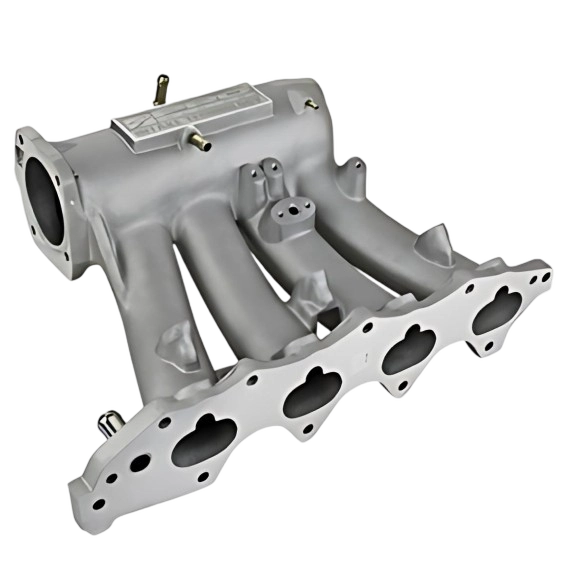

What is an Inlet Manifold?
The inlet manifold, or intake manifold, is a key part of your car's engine. It supplies air or a mix of air and fuel to the cylinders, ensuring they get what they need for combustion to keep the engine running smoothly.
Function
It evenly distributes the air or mixture to each cylinder, helping the engine work efficiently. It can also hold parts like the carburetor or fuel injectors and creates vacuum pressure used for things like power brakes or emission controls.
Common Issues
Problems like cracks or leaks can lead to noises like hissing, rough idling, or even stalling. Carbon buildup might reduce power, and vacuum leaks can cause misfiring or poor acceleration. Regular checks can help catch these issues early.
Overview and Definition
The inlet manifold, also known as the intake manifold, is a critical component of a vehicle's internal combustion engine. Its primary function is to supply the air-fuel mixture (or air in direct injection engines) to the engine's cylinders, ensuring even distribution for optimal combustion efficiency and performance. In older vehicles, particularly those with carbureted engines, it handles the fuel-air mixture from the carburetor, while in modern engines, it primarily distributes air, with fuel being injected directly into the cylinders or via fuel injectors mounted on the manifold.
Function and Operation
The inlet manifold plays a vital role in the engine's operation by:
- Air Distribution: Evenly distributing the combustion mixture (or just air in direct injection engines) to each intake port in the cylinder head(s), which is crucial for maintaining consistent engine performance and efficiency. This even distribution helps optimize the air-fuel ratio, ensuring complete combustion and maximizing power output.
- Mounting Components: It often serves as a mounting point for the carburetor (in older vehicles), throttle body, fuel injectors, and other engine components, facilitating the integration of the fuel delivery system.
- Manifold Vacuum: Due to the downward movement of the pistons and the restriction caused by the throttle valve, a partial vacuum (lower than atmospheric pressure) exists in the intake manifold. This vacuum is used for various auxiliary systems, such as power-assisted brakes, emission control devices, cruise control, ignition advance, windshield wipers, power windows, and ventilation system valves.
- Positive Crankcase Ventilation (PCV): In some designs, it draws piston blow-by gases from the crankcase, recycling them into the combustion process to reduce emissions and prevent pressure buildup, contributing to engine longevity and environmental compliance.
The manifold lets air into the combustion chamber on the intake stroke, where it is mixed with fuel from the injector in modern engines, or from the carburetor in older models without direct fuel injection. The air reaches the manifold through the air cleaner assembly, which contains the car's air filter. Regularly changing the air filter is vital, as it stops dust and other foreign bodies from entering and damaging the engine.
Materials and Design
- Materials: Inlet manifolds are typically made of aluminum or cast iron for durability and heat resistance, ensuring they can withstand the high temperatures and pressures of engine operation. Some modern vehicles use composite plastic materials for weight reduction and cost efficiency, such as in Chrysler 4-cylinders, Ford Zetec 2.0, Duratec 2.0 and 2.3, and GM Ecotec series.
- Design Variations: Modern engines often feature variable intake manifolds, which adjust the length of intake runners based on engine speed to optimize airflow and improve torque and power across different RPM ranges. This is particularly common in performance-oriented vehicles, where adjustable intake lengths can enhance volumetric efficiency. Some diesel engines include swirl flaps to enhance mixture formation and emission control, as mentioned in [Motorservice: How Intake Manifolds Are Designed and Work]([invalid url, do not cite]). These flaps can close at low engine speeds to create turbulence, improving combustion efficiency, but they can also be a source of issues, as discussed later.
Common Issues and Symptoms
Inlet manifolds are subject to wear and tear, leading to several common problems:
- Leaks: Cracks in the manifold or gasket failures can lead to leaks, causing symptoms like whistling or hissing noises, rough idling, stalling, or decreased engine performance. Leaks can also result in a vacuum leak, leading to misfiring, poor acceleration, loss of power, and decreased fuel efficiency.
- Carbon Buildup: Over time, carbon deposits can accumulate inside the manifold, particularly in areas where fuel or oil vapors condense. This can lead to reduced engine power, clogged engine components, and overall performance degradation.
- Vacuum Leaks: These can occur due to cracks or poor sealing, resulting in air entering the system outside the controlled intake process, leading to rough idling, misfiring, and the Check Engine warning light.
- Swirl Flap Issues (Diesel Engines): In diesel models with swirl flaps, these can become fouled, stuck, or sheared off due to exhaust gas recirculation or carbon buildup. This can potentially cause catastrophic engine damage, such as pieces breaking off and entering the combustion chamber.
- Fuel Pooling: In some cases, fuel can pool on the manifold walls due to electrostatic forces and condensation, forming larger droplets. This can create inconsistencies in the air-fuel ratio, leading to uneven combustion and reduced engine efficiency.
- Pressure Drops: Excessive turbulence or abrupt contour changes in the manifold design can provoke pressure drops, reducing the amount of air/fuel entering the combustion chamber and affecting volumetric efficiency, which can impact engine performance.
Symptoms of a failing inlet manifold include:
- Coolant leak: Indicated by a sweet coolant smell, steam, pools of coolant, and engine overheating.
- Vacuum leak: Leading to misfiring, poor acceleration, loss of power, rough idling, decreased fuel efficiency, and a hissing sound.
- Carbon buildup: Causing loss of engine power and reduced performance.
- Cracked intake manifold: Resulting in rough idling, misfiring, and the Check Engine warning light.
