Exhaust Manifold

What is an Exhaust Manifold?

The exhaust manifold is a part of your car's engine that gathers exhaust gases from the cylinders and sends them into the exhaust system. It's crucial for keeping the engine running efficiently and controlling emissions.

Function and Materials

It helps reduce back pressure, improving power and fuel efficiency, and manages heat to keep the engine cool. Typically made of cast iron or stainless steel, aftermarket headers can offer better performance with tubular designs.

Common Issues and Symptoms

Cracks and leaks are common, causing noises like tapping or hissing, reduced power, and even health risks if fumes enter the cabin. Look for unusual engine sounds, check engine light, or decreased fuel efficiency as signs of trouble.

Overview and Definition

The exhaust manifold is a critical component of a vehicle's engine system, responsible for collecting exhaust gases from the engine cylinders and directing them into the exhaust pipe, which then leads to the catalytic converter and out through the tailpipe. Its primary functions include:

1. Collecting Exhaust Gases: Gathering spent gases from each cylinder, ensuring they are expelled from the engine.
2. Reducing Back Pressure: Minimizing resistance to exhaust flow, which can improve engine performance and fuel efficiency.
3. Heat Management: Helping dissipate heat from the engine to maintain optimal operating temperatures, contributing to overall engine health.

In V-type engines (e.g., V6, V8), there are typically two manifolds—one for each cylinder bank—while inline engines (e.g., inline-four) have a single manifold.

Function and Operation

The exhaust manifold plays a vital role in the engine's operation by:

1. Ensuring efficient expulsion of exhaust gases, which is essential for emissions control and preventing back pressure that could hinder engine performance.
2. Enhancing exhaust scavenging through tuned-length primary tubes and designs like Y-pipes and X-pipes for V6/V8 engines, which can improve volumetric efficiency and power output.
3. Managing heat, which helps prevent overheating and maintains engine efficiency.

Some vehicles, like Yamaha motorcycles, may use an EXUP valve to adjust back pressure for low to mid-range performance, further optimizing the exhaust system.

Materials and Design

Exhaust manifolds are typically constructed from:

1. Cast Iron: A traditional material known for its durability and heat resistance, commonly used in older vehicles.
2. Stainless Steel: Lighter and more corrosion-resistant, often used in modern or aftermarket applications for better longevity.
3. Mild Steel: Sometimes used in budget-friendly aftermarket headers for cost-effectiveness.

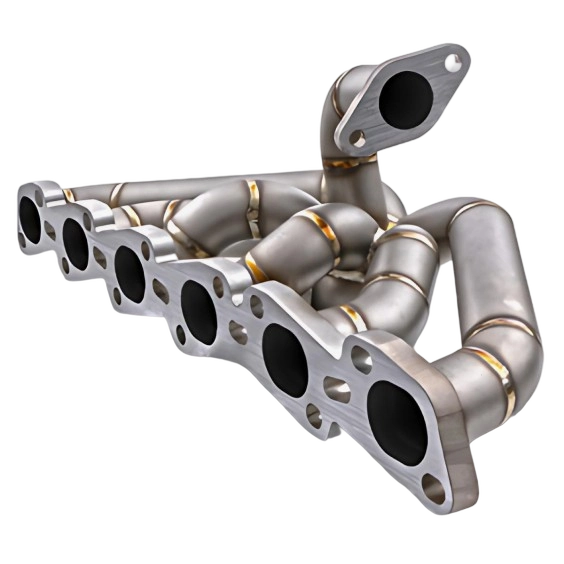

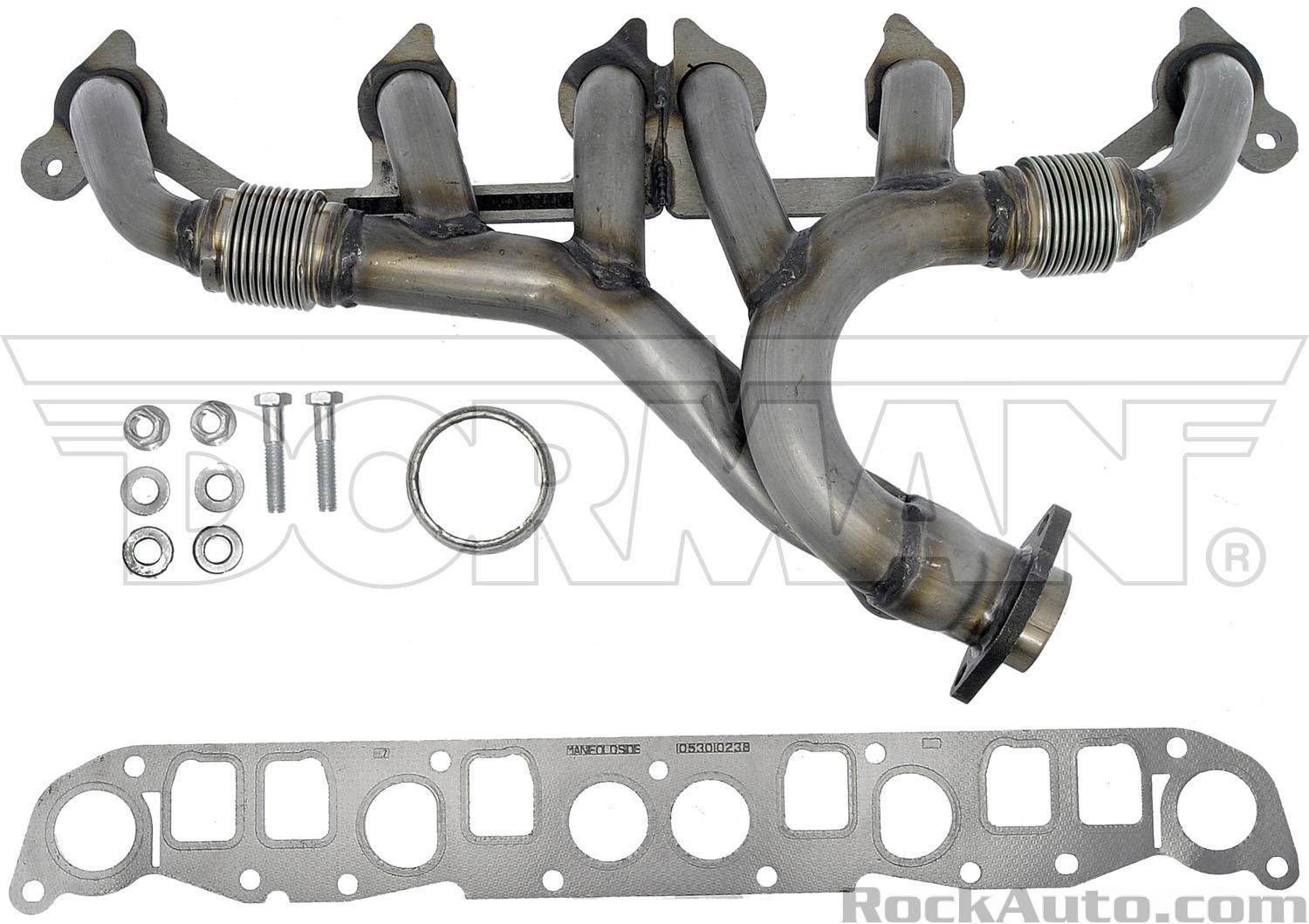

Aftermarket options often include tubular manifolds (headers), which consist of individual pipes for each cylinder that converge into a collector. These designs can improve exhaust flow and scavenging, enhancing engine performance, as noted in discussions on performance exhaust systems.

Coatings and insulation, such as ceramic paint or exhaust wrap, may be applied to manage heat, though care must be taken as exhaust wrap can lead to premature manifold degradation.

Common Issues and Symptoms

Exhaust manifolds are subjected to extreme heat and stress, making them susceptible to several problems:

1. Cracks and Leaks: Over time, the manifold can crack, especially if made of cast iron, leading to exhaust leaks. Leaks can also occur at the gaskets where the manifold connects to the engine or exhaust pipe.
2. Noisy Operation: A leaking manifold can produce tapping, rattling, hissing, or clicking sounds, particularly noticeable when the engine is cold.
3. Performance Issues: Leaks can disrupt the engine's air-fuel mixture, leading to reduced power, poor acceleration, rough idling, and decreased fuel efficiency.
4. Check Engine Light: Erroneous oxygen sensor readings due to leaks can trigger the check engine light, affecting emission control.
5. Burning Smells and Smoke: Oil or coolant leaking onto hot surfaces can produce a burning odor or blue smoke from the exhaust, indicating potential manifold issues.
6. Health and Safety Concerns: Leaks can allow toxic exhaust gases, including carbon monoxide, to enter the vehicle's cabin, posing a serious health risk.
7. Visible Damage: Physical inspection might reveal cracks, warping, or corrosion on the manifold.

Common symptoms of a failing exhaust manifold include:

1. Unusual noises (tapping, rattling, hissing, clicking).
2. Check engine light illumination.
3. Reduced engine power, poor acceleration, or decreased fuel efficiency.
4. Burning smell from the engine bay.
5. Blue smoke from the exhaust.
6. Exhaust fumes in the cabin.
7. Visible cracks or leaks upon inspection.

Material Comparison Table

To illustrate the differences between materials used for exhaust manifolds, the following table provides a comparison based on durability, cost, and common issues:

This table highlights the trade-offs between different materials, aiding vehicle owners in understanding potential maintenance needs based on their vehicle's manifold material.
