What is a Turbocharger Cartridge?
The turbocharger cartridge, also called the CHRA, is the central component of a turbocharger. It includes the turbine wheel, compressor wheel, and the shaft connecting them, along with bearings. It’s like the heart of the turbo, handling the high-speed rotation that boosts engine power.
How Does It Work?
It works by using exhaust gases to spin the turbine wheel, which drives the compressor wheel via the shaft. The compressor then forces more air into the engine, allowing more fuel to burn for extra power and efficiency.
Common Issues
Problems often include oil-related issues like starvation or contamination, overheating from high speeds, and bearing failure from wear. Symptoms might include loss of power or loud noises, and regular maintenance like oil changes can help prevent these.
Overview and Definition

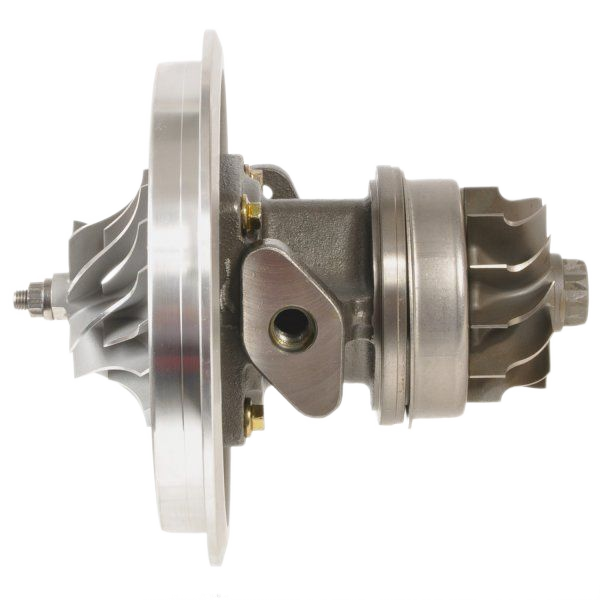

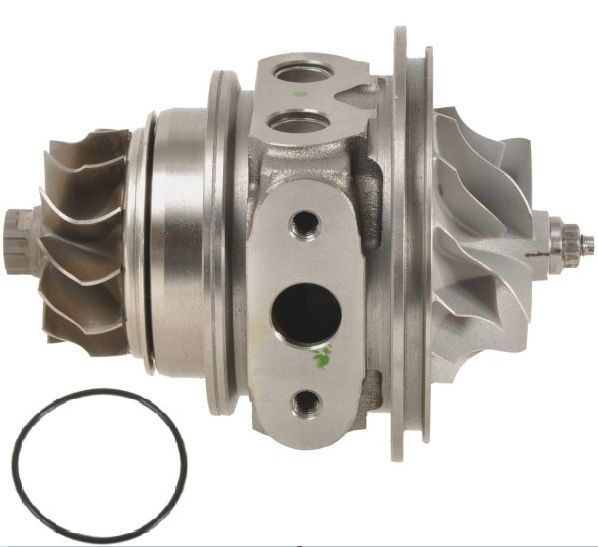

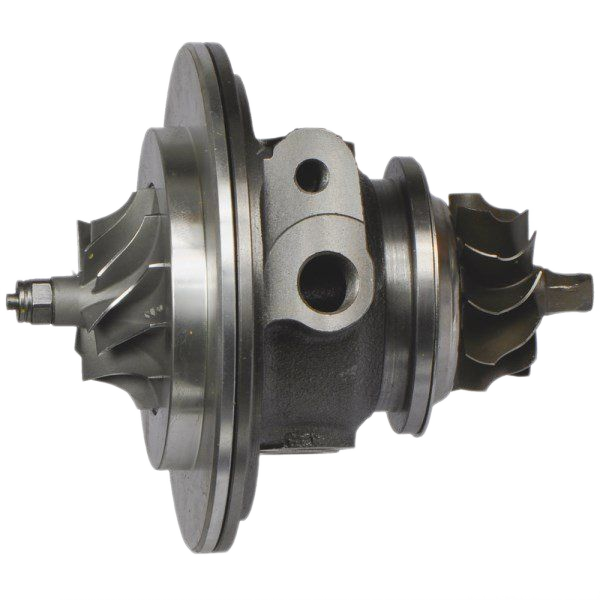

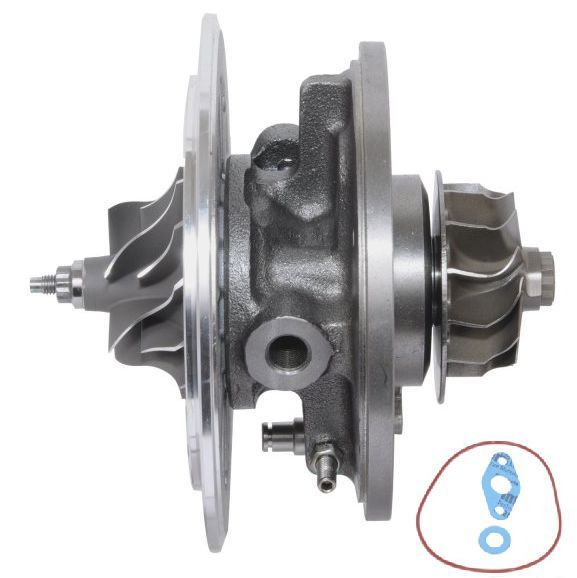

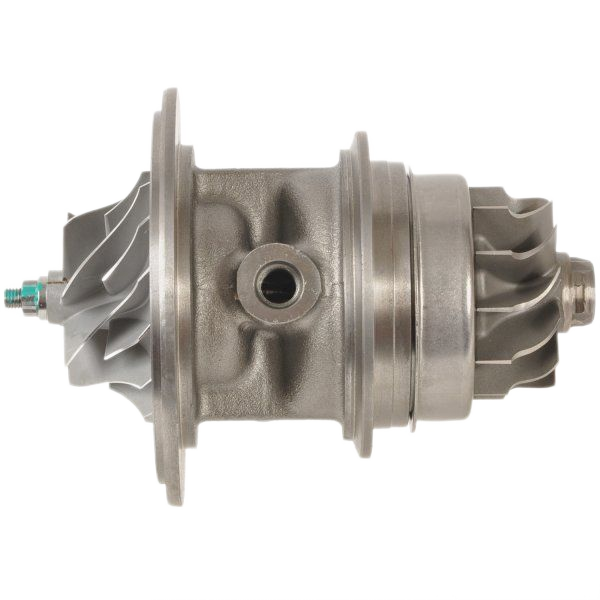

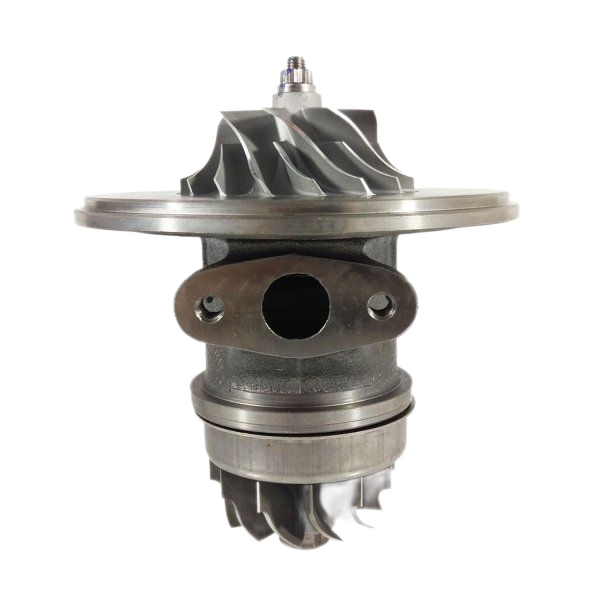

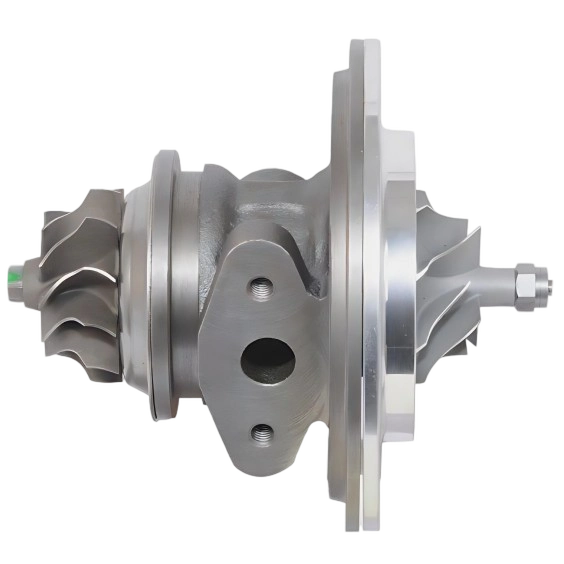

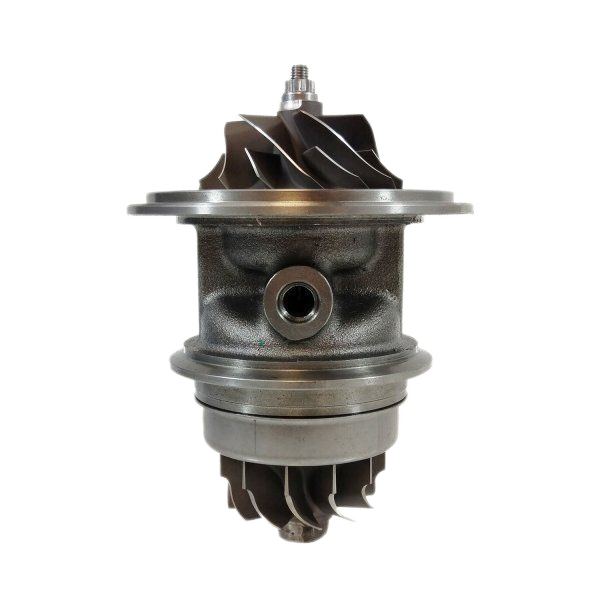

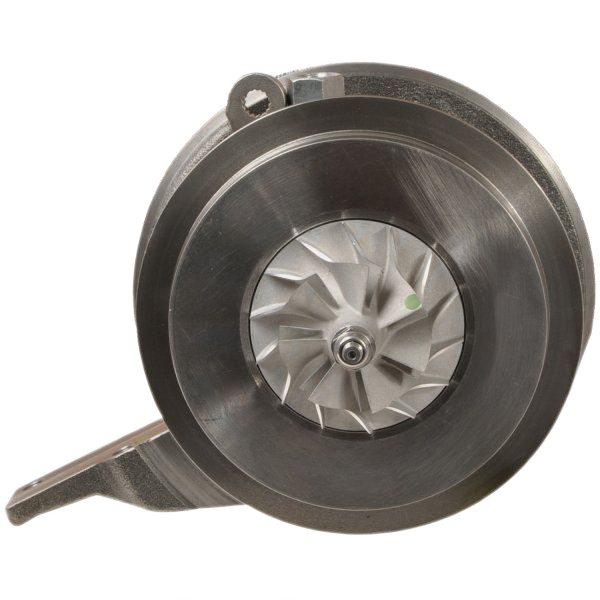

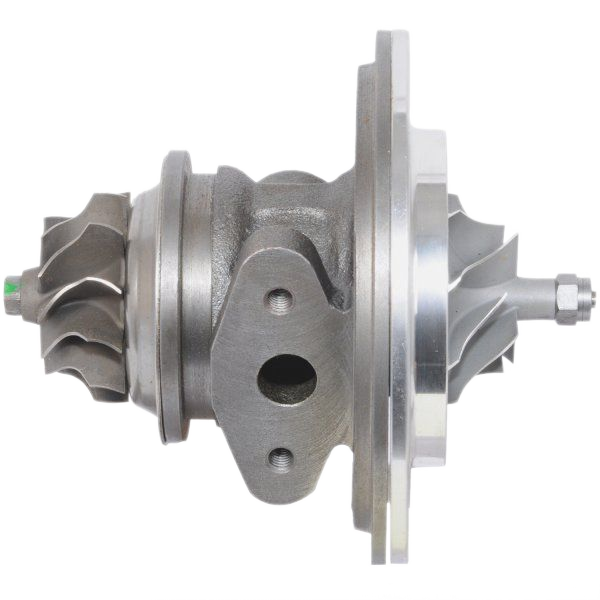

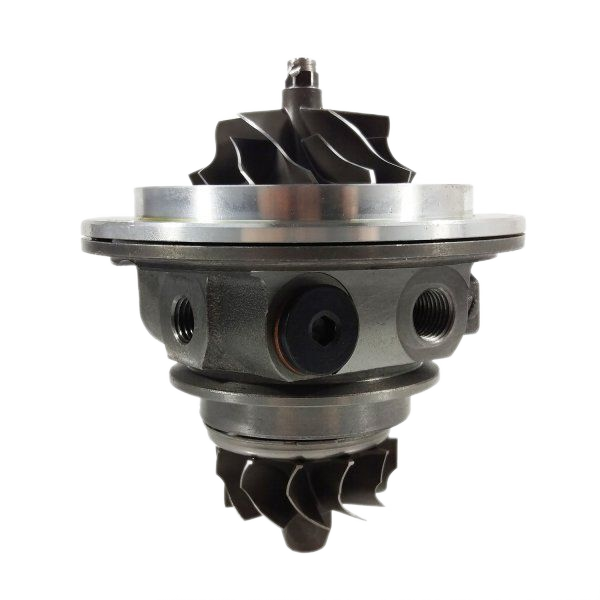

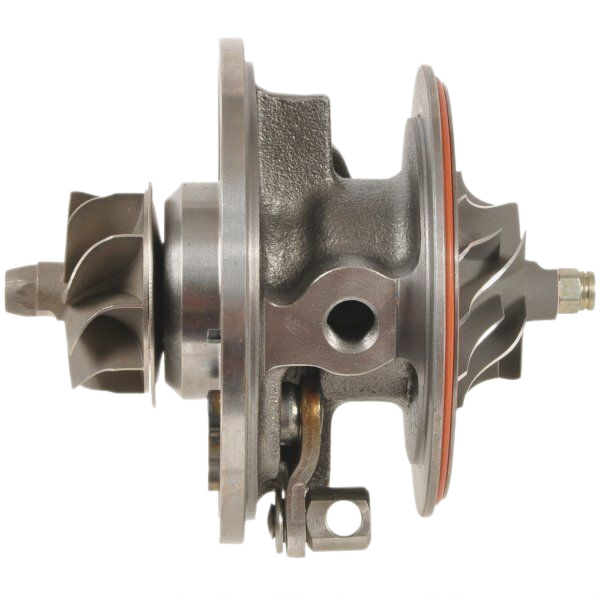

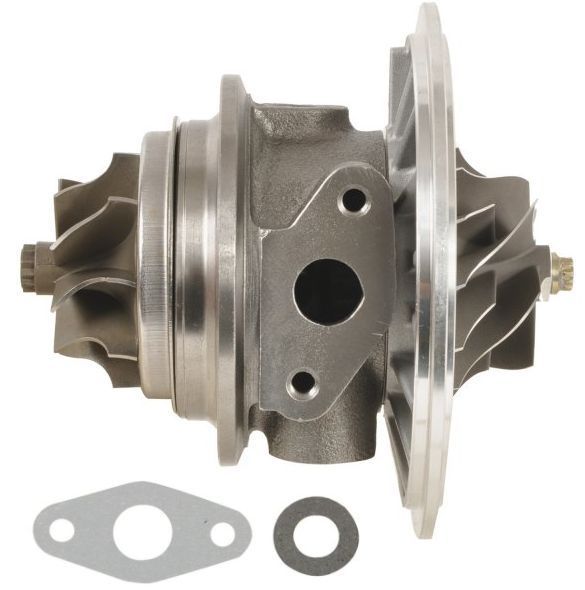

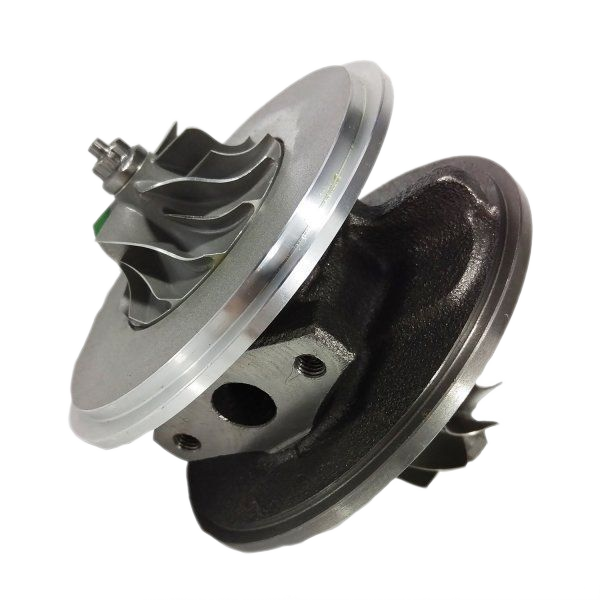

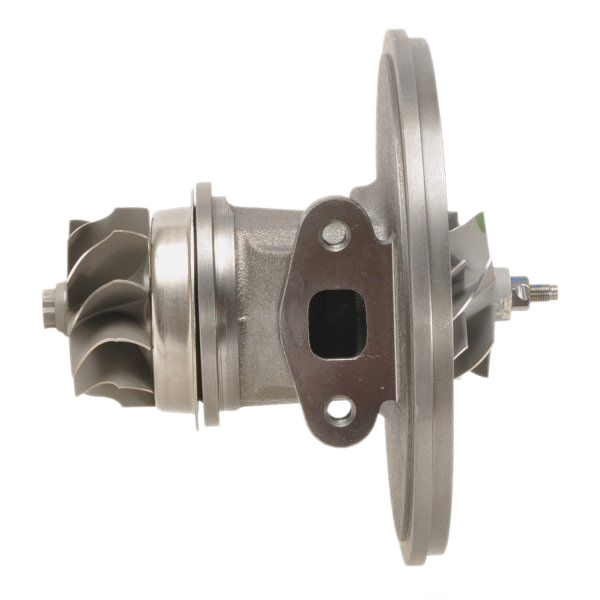

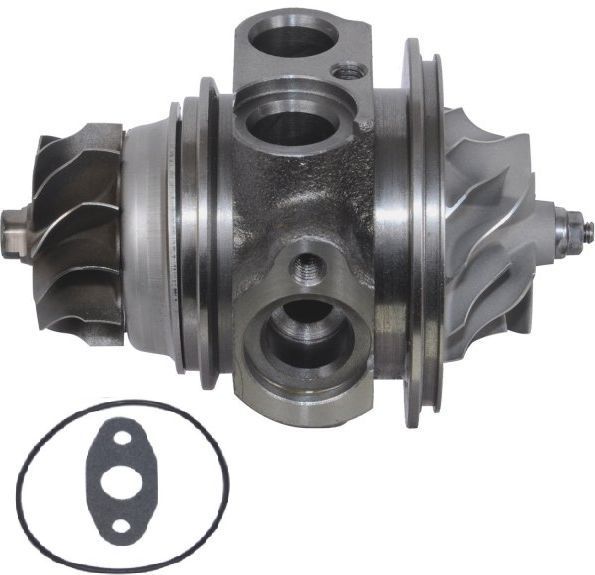

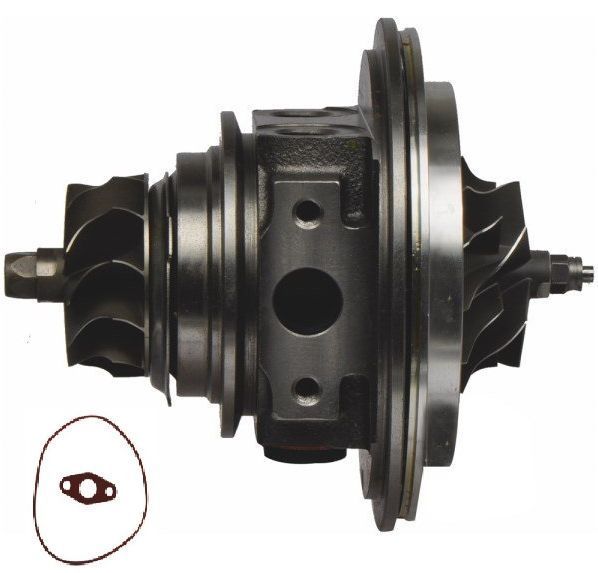

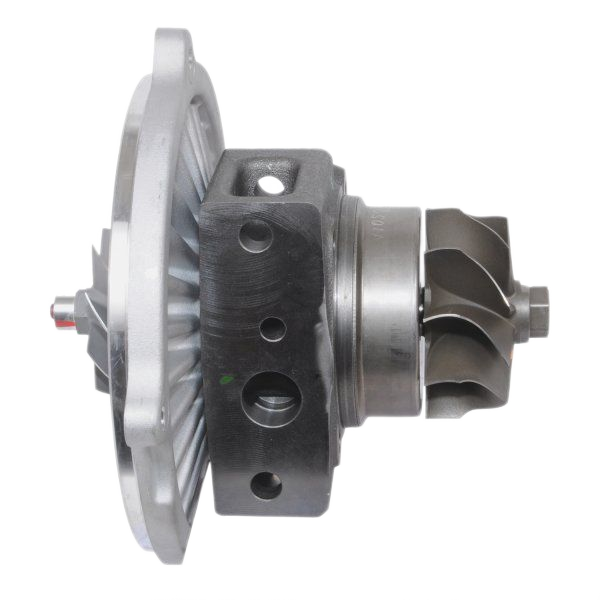

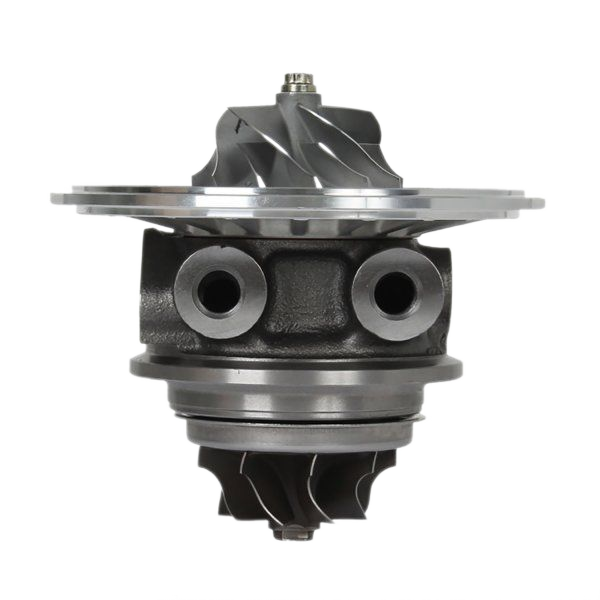

The turbocharger cartridge, also known as the Center Housing Rotating Assembly (CHRA), is a critical component of a turbocharger, which is a turbine-driven forced induction device that enhances an engine's efficiency and power output. The CHRA is essentially the core of the turbocharger, housing the rotating components that enable the forced induction process. It includes the turbine wheel, compressor wheel, and the shaft that connects them, along with the bearings that support high-speed rotation. This cartridge is responsible for compressing intake air, allowing more fuel to be burned in the combustion chamber, thus increasing horsepower and torque, particularly in modern vehicles with turbocharged engines.
The turbocharger itself was first developed in the early 1900s for marine applications and became widely adopted in automotive engines by the 1960s and 1970s, with ongoing advancements in design and materials improving reliability and efficiency. As of June 3, 2025, turbochargers remain a standard feature in many vehicles, with the CHRA being a key focus for maintenance and repair due to its critical role.
Function and Operation
The turbocharger cartridge's primary function is to facilitate the forced induction process, which involves using the engine's exhaust gases to power a turbine, which in turn drives a compressor. This process can be broken down as follows:
- Turbine Section: The turbine wheel, part of the CHRA, is driven by the kinetic energy of the exhaust gases, spinning at speeds up to 200,000 rpm. This rotational energy is transferred via the shaft to the compressor.
- Compressor Section: The compressor wheel, also part of the CHRA, compresses the incoming air, increasing its density and pressure before it enters the engine's intake manifold. This compressed air allows for more fuel to be added, enhancing combustion efficiency and power output.
- Bearing System: The bearings within the CHRA, such as thrust bearings and journal or ball bearings, minimize friction and support the high-speed rotation of the shaft, ensuring smooth operation and longevity.
The CHRA enables the turbocharger to offer "free power" by harnessing exhaust gas energy, unlike superchargers, which are mechanically driven by the engine. This makes turbochargers particularly efficient for improving fuel economy without sacrificing power, especially in smaller engines replacing larger V-6 or V-8 powerplants.
Components
The key components of a turbocharger cartridge include:
- Shaft: Connects the turbine wheel and compressor wheel, enabling them to rotate together at high speeds. It is precision-engineered to handle the stresses of rapid rotation.
- Turbine Wheel: Driven by exhaust gases, it extracts energy from the exhaust to spin the shaft, typically made of high-temperature resistant materials like nickel alloys to withstand extreme heat.
- Compressor Wheel: Compresses intake air, increasing its density before it enters the engine. It is usually made of aluminum or plastic for lightweight and corrosion resistance.
- Bearings: Support the shaft and allow it to rotate with minimal friction. These can include thrust bearings (to handle axial loads) and journal or ball bearings (for radial support), critical for maintaining stability at high speeds.
Common Issues
Turbocharger cartridges can experience several common issues, often related to their high-speed operation and exposure to harsh conditions, as highlighted in various sources:
1. Oil-Related Problems:
Oil Starvation: Insufficient oil flow to the bearings can cause increased friction, heat buildup, and eventual failure. This can result from blocked oil lines, low oil pressure, or inadequate oil changes. Research suggests over 90% of turbocharger failures are oil-related, with oil starvation being a primary cause.
Oil Contamination: Dirty or degraded oil can lead to carbon deposits, which can block oil passages and cause bearing wear, reducing the lifespan of the CHRA.
Oil Leaks: Leaks in the oil supply or return lines can deprive the cartridge of necessary lubrication, leading to increased wear and potential failure.
2. Overheating: Excessive heat, often from prolonged high-speed operation or lack of cooling, can damage bearings or warp the turbine/compressor wheels. This can lead to thermal stress and reduced efficiency, particularly if the engine is subjected to aggressive driving without proper cooling systems.
3. Carbon Buildup: Carbon deposits can accumulate on the turbine and compressor wheels, reducing efficiency and potentially causing imbalance or sticking. This is particularly common in diesel engines with high exhaust gas recirculation (EGR) rates.
4. Bearing Failure: Bearings can fail due to lack of lubrication, contamination, or overheating, leading to increased play, noise, and eventual seizure. The bearings are most likely to fail before main engine bearings due to the turbocharger's higher rotational speeds.
5. Seal Failure: If the seals within the CHRA fail, oil can leak into the intake or exhaust systems, causing blue smoke from the exhaust and potential engine damage.
6. Physical Damage: Foreign objects, excessive speed, or manufacturing defects can damage the turbine or compressor wheels, leading to reduced performance or catastrophic failure.
7. Lack of Maintenance: Neglecting regular maintenance, such as infrequent oil changes or ignoring air filter checks, can exacerbate all of the above issues, leading to premature failure of the CHRA.
Symptoms of Failure
The evidence leans toward several noticeable symptoms when a turbocharger cartridge is failing, which can help vehicle owners identify issues early:
- Loss of Power and Slow Acceleration: The CHRA may fail to provide the necessary boost, resulting in sluggish performance, especially during acceleration.
- Excessive Exhaust Smoke: Blue or grey smoke can indicate oil leaking into the exhaust system, often due to a cracked housing or damaged seals within the CHRA.
- Loud Noises: Whining, grinding, or screeching noises, particularly when accelerating, can signal bearing failure or internal damage to the CHRA.
- Check Engine Light: The check engine light may illuminate, often accompanied by diagnostic trouble codes (DTCs) related to the turbocharger, such as those indicating boost pressure issues.
- Poor Throttle Response: The engine may hesitate or respond slowly to throttle inputs, indicating the CHRA is not delivering the expected boost.
- Difficulty Maintaining Speed: The vehicle may struggle to maintain highway speeds or reach its usual top speed.
Driving with a failing turbocharger cartridge can lead to further engine damage, increased emissions, and potential safety risks, so it's crucial to address these symptoms promptly.
