Throttle Body

What is a Throttle Body?

The throttle body is a key part of your car's engine that manages how much air goes into the engine. It’s usually between the air filter and intake manifold, with a valve that opens and closes based on how far you press the accelerator pedal.

How Does It Work?

It works by letting more air in when you press the gas, which the engine mixes with fuel for power. There are two types: mechanical (older cars, cable-connected) and electronic (modern cars, controlled by sensors and a motor).

Common Issues and Symptoms

Dirt and grime can clog it, causing rough idling or stalling. Electrical problems might make the engine hesitate, and leaks can reduce fuel efficiency. Look for signs like the check engine light or poor acceleration.

Overview and Definition

The throttle body is a critical component of a vehicle's engine intake system, responsible for regulating the amount of air that enters the engine. It is typically located between the air filter and the intake manifold, where it controls airflow based on the driver's input through the accelerator pedal. The throttle body plays a vital role in maintaining the optimal air-fuel ratio for combustion, which is essential for engine performance, fuel efficiency, and emissions control. It replaced carburetors in modern fuel-injected vehicles, offering more precise control over engine operation.

Function and Operation

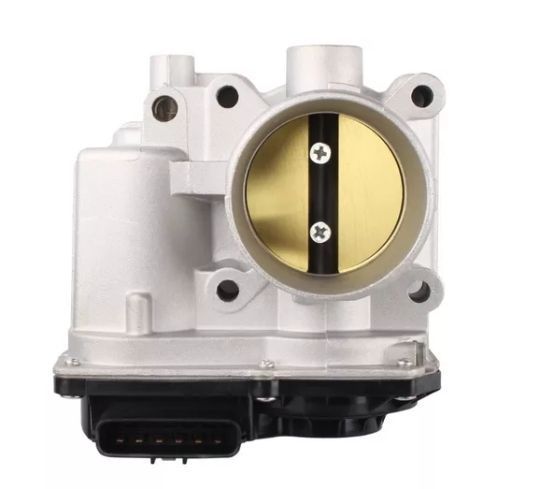

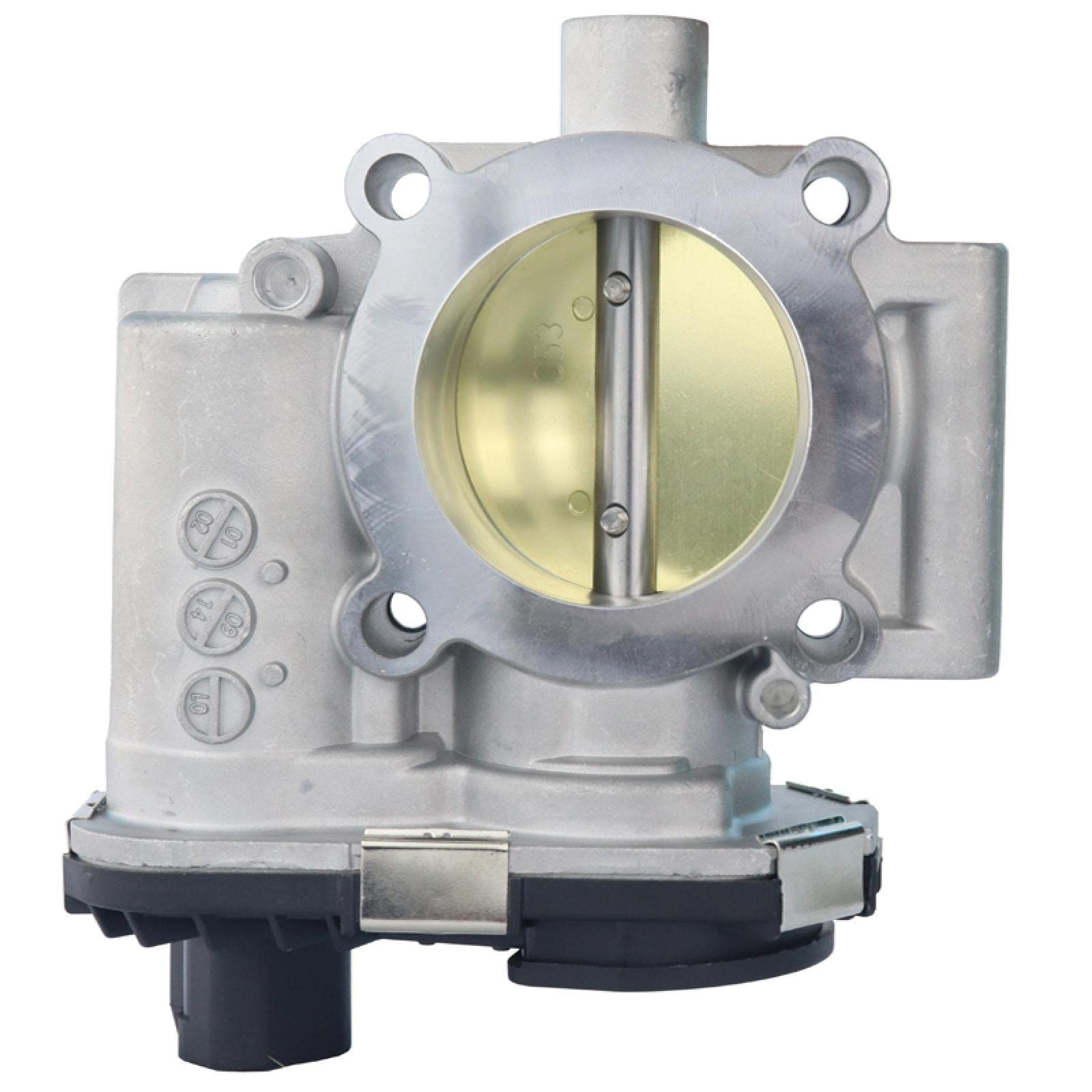

The throttle body's primary function is to regulate airflow into the engine, which directly affects engine speed and power output. It contains a throttle plate (or butterfly valve), a slightly oval-shaped plate mounted on a shaft within a housing, that opens and closes to adjust airflow. The operation varies based on the type:

1. Mechanical Throttle Body: Found in older vehicles, it is operated by a cable connected to the accelerator pedal. It includes an idle air control valve (IAC) to manage idle speed, no-touch starting, and dashpot functions (smoothing throttle transitions). The IAC allows air to bypass the closed throttle plate during idle, ensuring stable engine operation.
2. Electronic Throttle Body (ETC, Drive-by-Wire): Common in modern vehicles, it uses an electric motor to control the throttle plate position based on signals from the accelerator pedal position (APP) sensors and throttle position (TPS) sensors. ETC systems eliminate the need for a physical cable, allowing for more precise control and integration with other engine management systems. They manage idle speed by adjusting the throttle opening, eliminating the need for an IAC. ETC systems use redundant TP sensors and two or three APP sensors for feedback, enhancing reliability and safety.

The throttle body works in conjunction with the mass air flow sensor (MAF) or manifold absolute pressure (MAP) sensor to measure airflow. This data is sent to the engine control module (ECM), which adjusts fuel injection to maintain the ideal air-fuel ratio, typically 14.7:1 for gasoline engines. This ensures efficient combustion, maximizing power output and minimizing emissions.

Location and Design

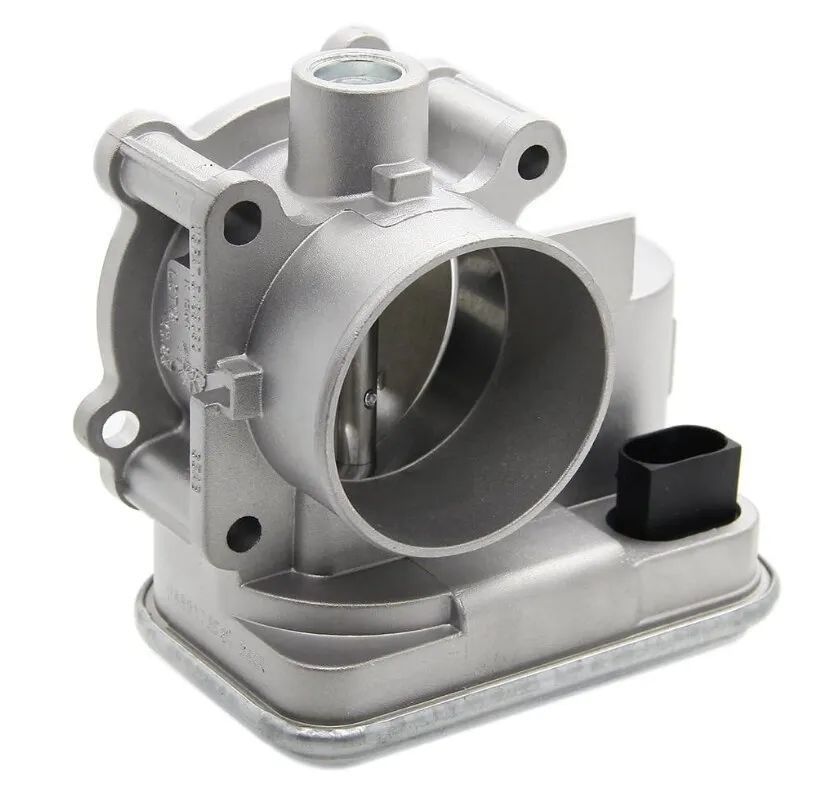

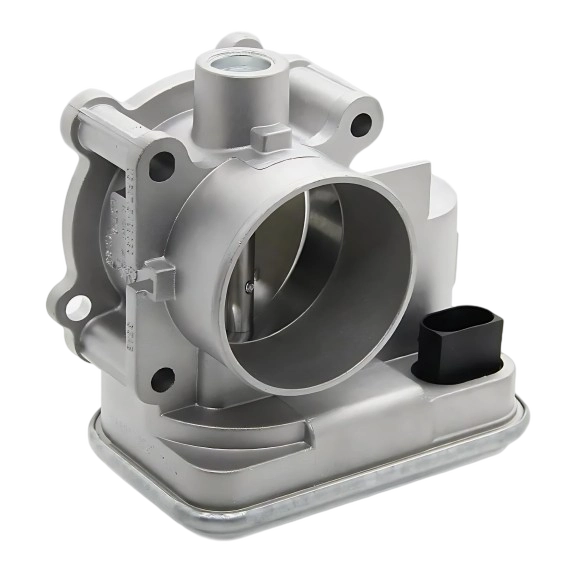

The throttle body is typically situated between the engine air filter and the intake manifold, ensuring it receives clean air from the filtration system. Most cars use a single throttle body, but some high-performance or specialized vehicles, such as those with twin-turbo setups, may have two throttle bodies to manage airflow to different cylinder banks. The design includes a housing that protects the throttle plate and associated sensors, with materials varying based on the vehicle's make and model, often using durable plastics or metals to withstand engine bay conditions.

Common Issues

Throttle bodies are prone to several issues, primarily due to their exposure to engine intake air and operational stresses:

1. Dirt and Carbon Buildup (Coking):Over time, dirt, grime, and carbon deposits can accumulate inside the throttle body, restricting airflow and disrupting the air-fuel mixture. This is especially common in high-mileage vehicles or those with poor maintenance, often due to inadequate air filtration or exposure to oil vapors from the positive crankcase ventilation (PCV) system. Known as coking, this buildup can create an imbalance in the normally smooth surface for air travel, leading to performance issues.
2. Electrical Problems: In electronic throttle bodies, issues with the TPS, APP sensors, or wiring can lead to incorrect throttle position readings. This can cause erratic engine behavior, such as sudden power surges or hesitations, due to the ECM receiving inaccurate data.
3. Vacuum Leaks: Leaks around the throttle body or in the intake system can disrupt the air-fuel ratio, leading to poor performance and increased emissions. Vacuum leaks can occur due to cracks in the housing, worn gaskets, or improper sealing, allowing uncontrolled air into the system.
4. Mechanical Failures: The throttle plate or its mounting can wear out, causing it to stick open or closed. This can result in either too much or too little air entering the engine, affecting idle speed and acceleration. Mechanical failures can also include issues with the IAC valve in mechanical systems, leading to unstable idle.
5. Sensor Failures: The TPS or other sensors associated with the throttle body can fail, sending inaccurate data to the ECM. This can lead to drivability issues, such as rough idling, stalling, or poor acceleration, as the ECM struggles to maintain the correct air-fuel ratio.

Symptoms of a Failing Throttle Body

The following symptoms indicate a potential issue with the throttle body, often requiring immediate attention to prevent further damage:

1. Rough Idling: The engine may idle unevenly or at an incorrect speed, sometimes dropping too low or surging.
2. Stalling: The engine may stall, especially when coming to a stop or during acceleration, due to insufficient airflow or incorrect air-fuel mixture.
3. Poor Acceleration: The vehicle may hesitate or lack power when accelerating, particularly noticeable on highway on-ramps or during overtaking.
4. Decreased Fuel Efficiency: A dirty or faulty throttle body can cause the engine to run rich (too much fuel) or lean (too little fuel), wasting fuel and increasing operating costs.
5. Check Engine Light: Often accompanied by diagnostic trouble codes (DTCs) related to the throttle body or its sensors, such as P0121 (TPS circuit range/performance) or P0221 (TPS/APP circuit range/performance).
6. High Idle: A stuck-open throttle plate can cause the engine to idle at a very high RPM, potentially leading to overheating or excessive wear.
7. Emissions Issues: Incorrect air-fuel mixtures can lead to increased emissions, potentially causing failure of emissions tests and environmental harm.

Material Comparison Table

To illustrate the differences between materials and components associated with throttle bodies, the following table provides a comparison based on durability, cost, and common issues:

This table highlights the importance of maintaining both the mechanical and electronic components of the throttle body to ensure optimal performance.
