What is a Fuel Injector?
A fuel injector is a component in internal combustion engines, commonly found in cars, that delivers fuel into the engine cylinders. It works by spraying pressurized fuel into the intake air, which mixes with air and burns to power the engine. This process is controlled electronically by the engine control unit (ECU), ensuring the right amount of fuel is used for optimal performance and efficiency.
Fuel injection systems have replaced older carburetor systems in most modern vehicles, offering better fuel economy and lower emissions. There are different types, such as port fuel injection (fuel sprayed near the intake valves) and direct injection (fuel sprayed directly into the combustion chamber), each suited for specific engine needs.
Common Issues and Maintenance
Fuel injectors can sometimes get clogged or malfunction, leading to problems like poor engine performance, rough idling, or increased fuel use. Regular cleaning or replacement can help maintain optimal engine operation.
Definition and Core Function

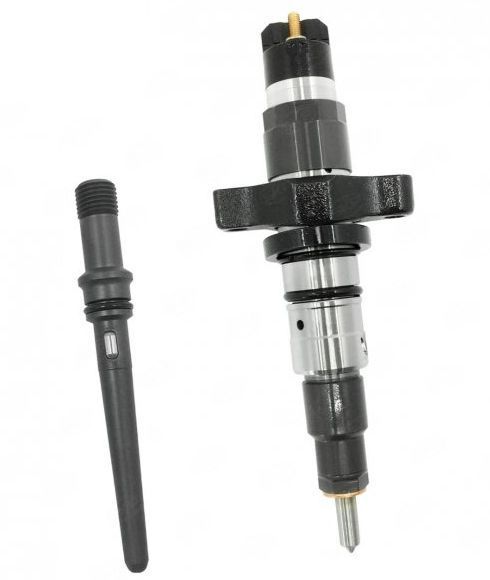

A fuel injector is essentially a spray nozzle that performs the final stage in fuel delivery within an engine. It is typically located in the combustion chamber, inlet manifold, or throttle body, depending on the system design. Its primary function is to spray pressurized fuel into the engine, ensuring it mixes with air for efficient combustion. In some advanced systems, such as unit injectors, the injector can also handle pressurizing and metering the fuel, in addition to injection. For instance, common-rail direct injection systems can operate at pressures up to 300 MPa (44,000 psi), using piezoelectric injectors for precise control.
This precision is crucial for optimizing engine performance, as it ensures the correct fuel-air mixture for combustion, directly impacting power output, fuel efficiency, and emissions.
Historical Context and Evolution
The transition to fuel injection systems marks a significant advancement in automotive technology, driven by environmental regulations and efficiency demands. The last carburetor-equipped car in the United States, the 1990 Subaru Justy, gave way to fuel-injected models by 1991. Fuel injection itself dates back to the 1950s, with widespread adoption in European cars by the 1980s, and it became standard by the early 1990s due to its ability to meet stricter emissions standards and improve fuel economy.
Early systems included throttle body fuel injection (also known as single-point or central injection), which served as a bolt-in replacement for carburetors. This evolved into multi-port fuel injection (port or sequential injection), offering greater accuracy and responsiveness to driver inputs, as explained in the same HowStuffWorks article. This evolution reflects the automotive industry's response to increasing regulatory pressures and consumer demands for better performance.
Operational Mechanisms
Fuel injectors operate as electronically controlled valves, supplied by a fuel pump and mounted in the intake manifold, where they spray fuel at the intake valves, typically fed through a fuel rail. The injector opens and closes many times per second, controlled by an electromagnet that moves a plunger to atomize fuel through a nozzle, facilitating easy combustion. The duration the injector stays open, known as pulse width, is determined by the engine control unit (ECU) based on real-time data from various sensors.
The pulse width calculation is a critical aspect, as outlined in HowStuffWorks. It starts with a base pulse width, which is a function of engine speed (RPM) and load. For example, at 2,000 RPM with a load of 4, the base pulse width might be 8 milliseconds. This is then adjusted by factors from sensors, such as coolant temperature and oxygen levels, using a formula like:
Pulse width = (Base pulse width) × (Factor A) × (Factor B)
For instance, if the coolant temperature is 100°C (Factor A = 0.8) and oxygen level is 3 (Factor B = 1.0), the pulse width would be 8 ms × 0.8 × 1.0 = 6.4 ms. The ECU uses inputs from sensors like mass airflow, oxygen, throttle position, coolant temperature, voltage, manifold absolute pressure, and engine speed to make these adjustments, ensuring optimal fuel delivery under varying conditions.
Multi-port systems can operate with all injectors opening simultaneously or sequentially, where each injector opens just before its cylinder's intake valve, offering faster response to driver changes. This level of control is a significant advantage over carburetors, contributing to the performance gains seen in modern engines.
Types of Fuel Injection Systems
Fuel injection systems vary by design, with two primary types being port fuel injection and direct injection. Port fuel injection, also known as multi-point or sequential injection, sprays fuel into the intake manifold near the intake valves, mixing with air before entering the combustion chamber. This method is common in many gasoline engines and provides good atomization and distribution.
Direct injection, on the other hand, sprays fuel directly into the combustion chamber, often at very high pressures. This allows for more precise control over the combustion process, enhancing efficiency, power output, and emissions reduction. Common-rail systems, a form of direct injection, use pressures up to 300 MPa and piezoelectric injectors for exceptional precision, as mentioned in Wikipedia. These systems are increasingly prevalent in modern vehicles, particularly in high-performance and diesel applications, due to their ability to optimize combustion under varying loads.
The choice between these systems depends on the engine design and intended use, with direct injection often preferred for its efficiency benefits, while port injection remains relevant for certain applications due to cost and simplicity.
Performance Impact and Future Trends
Fuel injection systems can add 10 to 20 horsepower to an engine, depending on its design, by optimizing the fuel-air mixture and combustion efficiency. Performance chips, which replace ECU lookup tables to allow higher fuel rates, are sometimes used in tuning, though they may prioritize power over emissions and mileage, as noted in HowStuffWorks.
Looking ahead, direct injection is expected to continue growing in popularity due to its efficiency and emissions benefits, particularly in hybrid vehicles. However, the rise of electric vehicles (EVs) may reduce demand for fuel injection systems in the long term, though they will remain relevant for hybrids and internal combustion engines for the foreseeable future. Innovations such as higher injection pressures, more precise ECU algorithms, and integration with electric systems are likely to shape the future of this technology.
Common Issues and Maintenance
Despite their advantages, fuel injectors are not immune to problems. Common issues include clogging, which can occur due to dirt or fuel impurities, and malfunctioning, often due to wear or electrical failures. Symptoms of a faulty fuel injector include poor engine performance, rough idling, difficulty starting, increased fuel consumption, and smoke from the tailpipe.
Regular maintenance, such as cleaning the injectors to remove deposits or replacing them when worn, can prevent these issues. Cleaning is often recommended for symptoms like lousy gas mileage or rough idling, while replacement may be necessary for more severe problems. Aftermarket kits are available for converting carburetor systems to fuel injection, typically costing over $1,000, though some options are less expensive, as noted in HowStuffWorks.
Comparative Analysis: Fuel Injection vs. Carburetors
To illustrate the differences, consider the following table comparing key aspects of fuel injection and carburetors, based on the information gathered:
| Aspect | Fuel Injection | Carburetor |
|---|
| Fuel Delivery | Electronically controlled, precise spraying | Relies on suction through Venturi tube |
| Efficiency | Higher, better fuel economy | Lower, less efficient |
| Emissions | Lower, meets modern standards | Higher, struggles with regulations |
| Control | ECU adjusts based on sensors | Mechanical, less adaptable |
| Complexity | More complex, requires electronics | Simpler, mechanical design |
| Adoption | Standard since early 1990s | Phased out by 1990s in US cars |
This table highlights why fuel injection has become the norm, offering superior control and efficiency compared to carburetors.
Conclusion
Fuel injectors are a cornerstone of modern engine technology, providing precise fuel delivery that enhances performance, efficiency, and emissions control. Their evolution from throttle body to multi-port and direct injection systems reflects the automotive industry's response to regulatory and consumer demands. While challenges like clogging and maintenance exist, regular care can mitigate these issues, ensuring optimal engine operation. As the industry moves toward electrification, fuel injectors will remain relevant, particularly in hybrid systems, with ongoing innovations shaping their future.
