Fuel Injector Sleeve

What is a Fuel Injector Sleeve?

The fuel injector sleeve, also known as an injector cup or tube, is a component in diesel engines (and sometimes gasoline engines) that holds the fuel injector in place within the cylinder head. It ensures a sealed passage for fuel delivery into the combustion chamber.

How Does It Work?

It creates a tight seal around the fuel injector, preventing coolant from entering the combustion chamber and fuel from leaking into the cooling system. This separation is crucial for maintaining engine performance and preventing damage.

Common Issues and Symptoms

Common problems include leaks due to wear, improper installation, or carbon buildup, leading to symptoms like:

•Coolant loss without visible leaks.

•White or blue smoke from the exhaust with a sweet smell.

•Rough engine operation, misfires, or loss of power.

•Contaminated engine oil, appearing milky or frothy.

•Potential engine overheating or turbid fuel in diesel engines.

Overview and Definition

The fuel injector sleeve, also known as an injector cup or injector tube, is a critical component in diesel engines and, to a lesser extent, some gasoline engines. It is responsible for holding the fuel injector in place within the cylinder head, providing a sealed passage for fuel delivery into the combustion chamber. Typically made from durable materials such as steel, brass, bronze, or stainless steel, the sleeve is press-fit into the cylinder head to prevent leaks between the fuel system and the cooling system, ensuring efficient engine operation and compliance with emissions standards.

Fuel injection systems have been standard in modern vehicles since the 1950s for gasoline engines and the 1930s for diesel engines, with the sleeve playing a pivotal role in maintaining the integrity of the injection process, particularly under high pressures and temperatures, as mentioned in general automotive history discussions.

Function and Operation

The fuel injector sleeve’s primary function is to ensure a tight seal around the fuel injector, preventing coolant and combustion gases from mixing, which can lead to engine damage and performance issues. This process can be broken down as follows:

1. Sealing the Injector: The sleeve creates a barrier between the fuel injector and the cylinder head, ensuring that fuel is delivered into the combustion chamber without leakage into the cooling system.
2. Protecting Components: It safeguards both the fuel injector and the cylinder head from damage due to high temperatures, pressures, and potential corrosion, particularly in diesel engines where pressures can reach 20,000 to 30,000 psi.
3. Maintaining Engine Performance: By preventing leaks, the sleeve ensures proper fuel atomization and combustion, which is critical for maintaining power output, fuel efficiency, and emissions control.

In diesel engines, the sleeve is particularly important due to the high-pressure direct injection process, where fuel is injected directly into the combustion chamber, igniting with compressed air. In gasoline engines with direct injection, similar principles apply, though sleeves are less commonly discussed, suggesting their primary relevance to diesel applications.

Components

The fuel injector sleeve is part of the fuel injection assembly, with key components including:

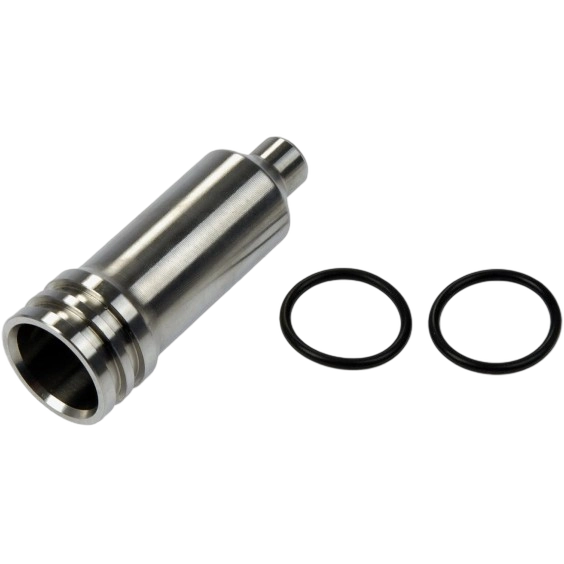

1. Sleeve Body: Often made of hardened steel, brass, bronze, or stainless steel, designed to withstand high pressures and temperatures.

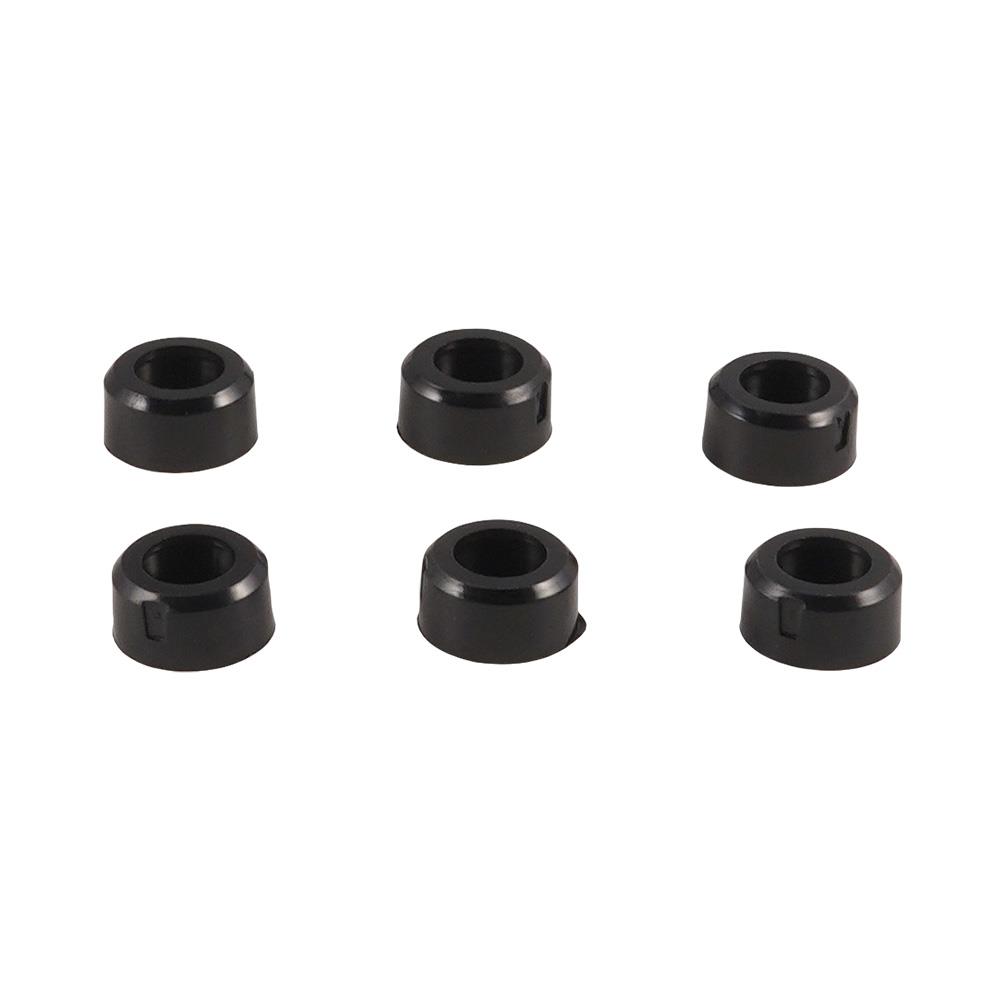

2. Seals and O-rings: Work in conjunction with the sleeve to prevent leaks, typically made of rubber or silicone, critical for maintaining the seal under extreme conditions.

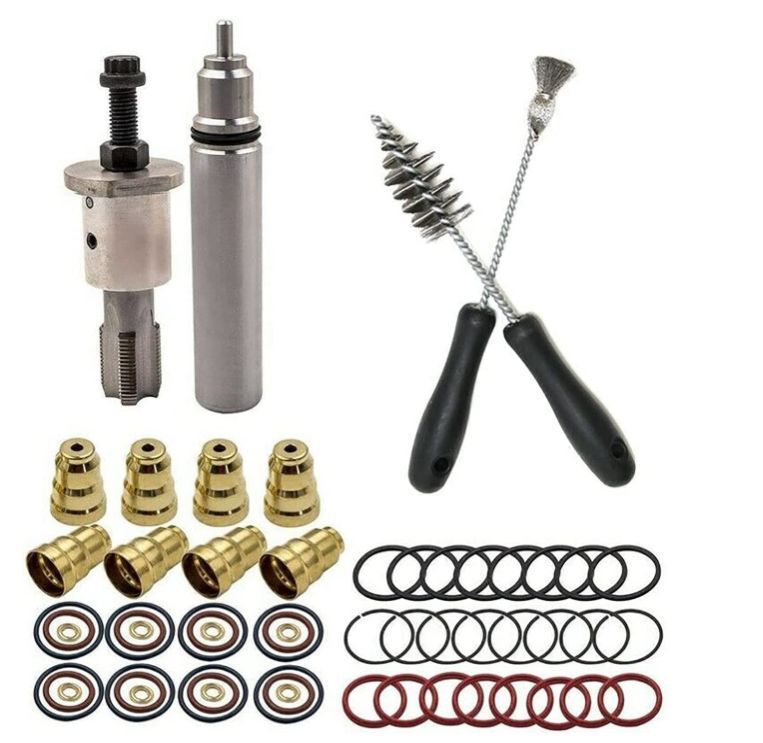

3. Installation Tools: Specialized tools, such as the 6.0L/6.4L Powerstroke Injector Sleeve Tool Set, are used for proper installation and removal, ensuring a tight fit.

Common Issues

Fuel injector sleeves can experience several common issues, often related to their operational environment and maintenance practices:

1. Leaks: Wear and tear, improper installation, or carbon buildup can cause the sleeve to leak, allowing coolant to mix with fuel or enter the combustion chamber. This can lead to coolant loss or fuel contamination, impacting engine performance.
2. Corrosion: Using improper coolant, such as tap water instead of antifreeze, can lead to corrosion of the sleeve and sealing rings. This is particularly common in regions where antifreeze is not regularly used, causing long-term damage.
3. Improper Installation: Incorrect torquing or installation can affect the seating of the sleeve, leading to leaks or damage.
4. Wear from Extreme Conditions: The high temperatures and pressures in diesel engines can cause the sleeve to degrade over time, necessitating replacement for optimal performance.

Symptoms of Failure

The evidence leans toward several noticeable symptoms when a fuel injector sleeve is failing, which can help vehicle owners identify issues early:

1. Coolant Loss: Unexplained decrease in coolant levels without visible external leaks, indicating internal leakage through the sleeve.
2. White or Blue Smoke from Exhaust: Burning coolant produces white or blue smoke with a sweet smell, due to coolant entering the combustion chamber, as mentioned in the same source.
3. Rough Engine Operation: Misfires, rough idling, or loss of power can occur if coolant disrupts normal combustion, affecting engine performance.
4. Contaminated Engine Oil: Severe damage may lead to coolant entering the oil system, turning it milky or frothy, as warned in general automotive diagnostics.
5. Overheating: Coolant loss can increase engine temperatures, potentially leading to overheating, though not always reported, as seen in the JustAnswer discussion where operating temps were ≤ 91°C with shutdown at 96°C.
6. Turbid Fuel: In diesel engines, antifreeze mixing with diesel fuel can make it cloudy, affecting fuel system operation.

Driving with a faulty fuel injector sleeve can lead to further engine damage, increased emissions, and potential safety risks, so it’s crucial to address these symptoms promptly.

Environmental and Financial Impact

A malfunctioning fuel injector sleeve can increase fuel consumption and emissions, leading to environmental harm and potential failure of emissions tests, especially with the EPA’s 2025 requirement for cars and light trucks to achieve an average of 54.5 mpg, as noted in general automotive maintenance discussions. Financially, ignoring sleeve issues can lead to costly repairs, such as engine damage from coolant contamination, catalytic converter failure due to increased emissions, or oil system repairs, impacting long-term vehicle reliability and resale value.

Material Comparison Table

To illustrate the differences between materials used for fuel injector sleeve components, the following table provides a comparison based on durability, cost, and common issues:

This table highlights the importance of selecting durable materials for the sleeve to withstand the harsh conditions of engine operation, aiding vehicle owners in understanding potential maintenance needs.
