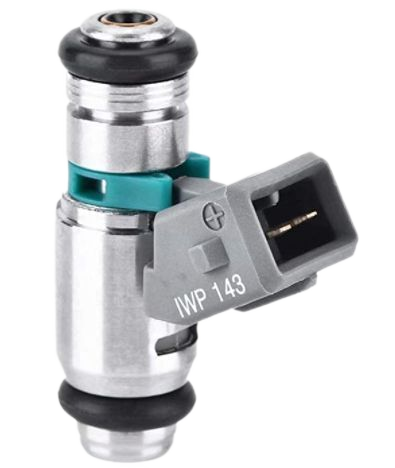

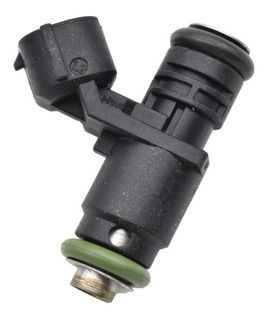

What is a Fuel Injector Nozzle?
The fuel injector nozzle is a crucial component of the fuel injection system in internal combustion engines. It’s responsible for delivering and atomizing fuel into the engine’s combustion chamber or intake manifold, ensuring efficient combustion and optimal performance.
How Does It Work?
The nozzle sprays fuel in a fine mist, mixing it with air for combustion. In diesel engines, it injects fuel directly into the combustion chamber under high pressure, igniting with compressed air. In gasoline engines, it may spray into the intake port (port injection) or directly into the cylinder (direct injection), depending on the system.
Common Issues and Symptoms
Common problems include clogging from deposits, wear and tear, leakage, and incorrect spray patterns. Symptoms may include rough idling, misfiring, decreased fuel efficiency, engine knocking, excessive smoke, and the check engine light turning on.
Overview and Definition
The fuel injector nozzle, often simply referred to as the nozzle, is a critical component of the fuel injection system in internal combustion engines, commonly found in automotive applications. It is responsible for delivering and atomizing fuel into the engine’s combustion chamber or intake manifold, ensuring efficient combustion, optimal engine performance, and compliance with emissions standards. The nozzle is part of the fuel injector, which is an electronically controlled valve fed with pressurized fuel from the fuel pump.
Fuel injection systems have largely replaced carburetors in modern vehicles, with the nozzle playing a pivotal role in atomizing fuel under high pressure, a key difference from carburetion, which relies on suction through a Venturi tube. This article focuses on fuel injection in reciprocating piston and Wankel rotary engines, covering both compression-ignition (diesel) and spark-ignition (gasoline) engines.
Function and Operation
The fuel injector nozzle’s primary function is to spray fuel in a fine mist, allowing it to mix thoroughly with air for efficient combustion. This process can be broken down as follows:
- Atomization: The nozzle atomizes the fuel, turning it into a fine spray, which enhances the surface area for better mixing with air, ensuring complete combustion and maximizing power output. This is critical for meeting emissions standards.
- Fuel Delivery: In diesel engines, the nozzle injects fuel directly into the combustion chamber under high pressure (often 20,000 to 30,000 psi), where it ignites due to the heat of compressed air, a process known as compression ignition. In gasoline engines, the nozzle’s operation depends on the injection type:
- Spray Pattern: The design of the nozzle, including the size, shape, and number of holes, significantly affects the spray pattern, atomization quality, and combustion characteristics. For diesel engines, parameters like injector seat, sac, and nozzle hole geometry are critical, impacting emissions and performance over the engine’s lifetime.
The nozzle’s precision is vital, with diesel nozzles firing up to 1,000 times per minute, requiring exacting precision and durability.
Components

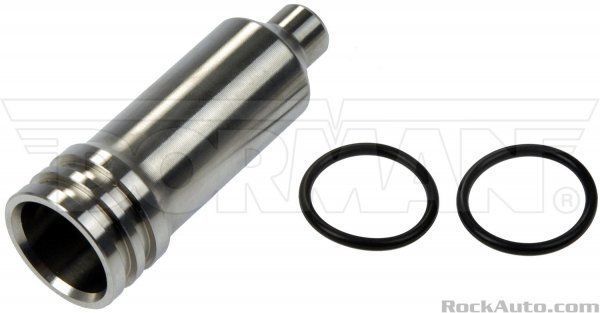

The fuel injector nozzle is part of the fuel injector assembly, which includes:
- Nozzle Body: Houses the nozzle holes and is designed to withstand high pressures, often made of hardened steel or ceramics for durability.
- Nozzle Holes: Small orifices that determine the spray pattern and atomization, critical for efficient combustion. The number, size, and angle of these holes vary by engine type and design.
- Plunger and Valve: Controlled by an electromagnetic force, it opens to allow fuel to flow through the nozzle, ensuring precise timing and quantity.
- Seals and O-rings: Prevent fuel leaks, ensuring the system operates efficiently and safely.
For diesel engines, the nozzle is often a replaceable part, especially in high-mileage vehicles or heavy-duty applications, while in gasoline engines, the entire injector is typically replaced as a unit.
Common Issues
Fuel injector nozzles can experience several common issues, often related to their operational environment and maintenance practices:
- Clogging: Deposits from fuel impurities, carbon buildup, or varnish can obstruct the nozzle holes, leading to poor atomization and reduced fuel flow. This is particularly common in gasoline engines with port injection due to lower pressures.
- Wear and Tear: Over time, the precision components of the nozzle can wear out, affecting spray pattern and atomization, especially under the high pressures of diesel engines.
- Leakage: Damaged seals, cracks, or worn O-rings can cause fuel to leak, leading to inefficient combustion, potential safety hazards, and increased emissions, as warned in general automotive maintenance advice.
- Incorrect Spray Pattern: Manufacturing defects, damage, or improper cleaning can alter the spray pattern, causing uneven fuel distribution, engine misfires, and reduced performance.
Symptoms of Failure
The evidence leans toward several noticeable symptoms when a fuel injector nozzle is failing, which can help vehicle owners identify issues early:
- Rough Idling: The engine may idle unevenly or stall due to improper fuel delivery.
- Misfiring: Inconsistent fuel spray can cause cylinders to misfire, leading to reduced power, increased emissions, and potential damage to the catalytic converter, as mentioned in general automotive diagnostics.
- Decreased Fuel Efficiency: A faulty nozzle can result in higher fuel consumption as the engine compensates for inefficient combustion, impacting operating costs.
- Engine Knocking or Pinging: In diesel engines, improper atomization can cause knocking sounds, indicating combustion issues,.
- Excessive Smoke: For diesel engines, a bad nozzle can produce black smoke from incomplete combustion, while in gasoline engines, it might cause blue smoke if oil is drawn into the combustion chamber, as discussed in general turbo failure symptoms.
- Check Engine Light: Modern vehicles may trigger the check engine light if the fuel injection system is malfunctioning, often accompanied by diagnostic trouble codes (DTCs) related to fuel delivery.
Material Comparison Table
To illustrate the differences between materials used for fuel injector nozzle components, the following table provides a comparison based on durability, cost, and common issues:
| Component | Material | Durability | Common Issues |
|---|
| Nozzle Body | Hardened Steel, Ceramics | High, pressure-resistant | Cracks, wear under high pressure |
| Nozzle Holes | Steel, Ceramics | High, precision-engineered | Clogging, erosion from fuel impurities |
| Seals | Rubber, Silicone | Moderate, prone to wear | Leaks, degradation from heat |
This table highlights the importance of selecting durable materials for the nozzle to withstand the harsh conditions of fuel injection, aiding vehicle owners in understanding potential maintenance needs.
Historical Context and Recent Developments
Fuel injector nozzles have been a standard component since the widespread adoption of fuel injection systems in the 1950s for gasoline engines and the 1930s for diesel engines, with designs evolving to improve atomization and efficiency. Recent developments, as of June 3, 2025, focus on advanced materials like ceramics for higher pressure tolerance and precision manufacturing for better spray patterns, particularly in direct injection systems, as discussed in general automotive technology trends. However, the core function of atomizing fuel remains unchanged, with ongoing emphasis on maintenance and integration with advanced engine management systems.
