Wrapped V-Belt Overview
A wrapped V-belt is a type of power transmission belt widely used in industrial and mechanical applications for transferring motion and power between pulleys. The defining feature of a wrapped V-belt is its fabric cover, which encloses the belt’s internal structure, giving it a smooth, uniform appearance and several performance advantages.
Construction

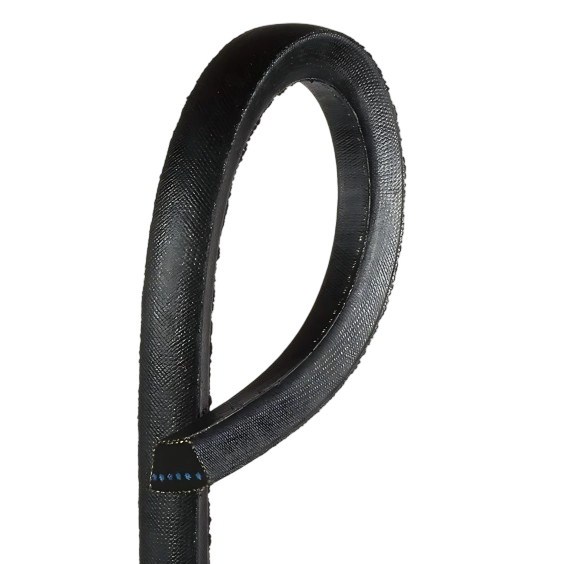

- Fabric Wrapping: The belt is covered with a textile or canvas wrap, which protects the internal rubber and tension cords.
- Internal Structure: Inside, there are layers of rubber (often neoprene or polychloroprene) and strong tension cords made from materials like polyester or aramid (Kevlar) for strength and flexibility.

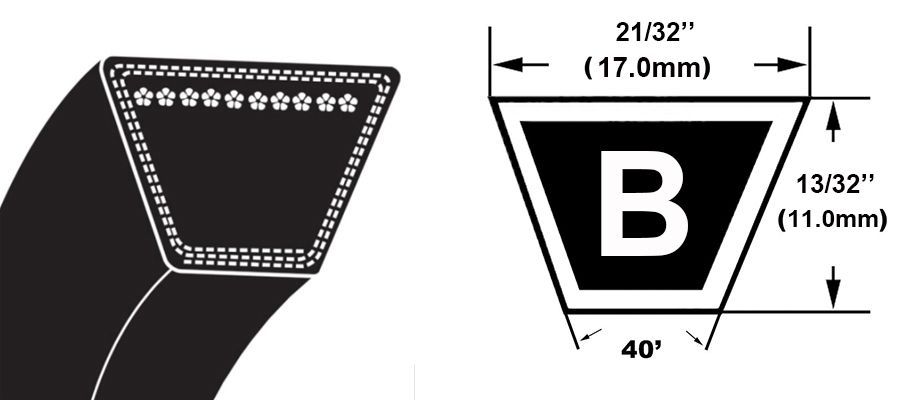

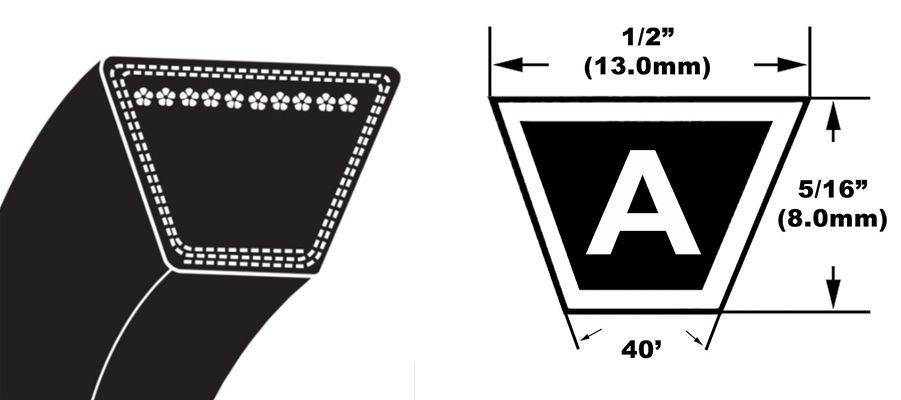

- Profile Types: Wrapped V-belts are available in classic (A, B, C, etc.) and narrow (SPA, SPB, etc.) profiles, suitable for various load and space requirements.
Key Features and Benefits
- Durability: The fabric wrap provides abrasion and wear resistance, extending the belt’s service life, especially in environments with dust, debris, or high-speed operation.
- Slip Capability: Wrapped V-belts are designed to slip more easily than raw-edge belts. This can act as a safety feature, preventing damage to machinery during torque spikes or sudden speed changes by allowing the belt to slip rather than transferring excessive force to other components.
- Quiet Operation: The uniform fabric covering helps reduce operational noise compared to other belt types.
- Oil and Contaminant Resistance: The wrap offers resistance to oil and helps prevent contaminants from penetrating the belt, reducing the risk of swelling or breakage.
- Temperature and Environmental Resistance: Many wrapped V-belts are engineered to withstand a broad temperature range (typically from -30°C to +90°C) and resist environmental factors such as heat, ozone, and sunlight.
Typical Applications
- Industrial Machinery: Used in conveyors, compressors, pumps, and other heavy-duty equipment.
- Agricultural Equipment: Common in tractors and harvesters.
- General Mechanical Drives: Suitable for fans, blowers, and other rotating equipment where reliability and longevity are important.
Comparison to Raw-Edge V-Belts
| Feature | Wrapped V-Belt | Raw-Edge V-Belt |
|---|
| Outer Surface | Fabric-wrapped, smooth | Exposed, raw rubber (may be cogged) |
| Durability | High, especially against abrasion | Moderate, less protected |
| Slip Tendency | Higher (can act as a safety feature) | Lower (better grip, less slip) |
| Power Transmission | Moderate | Higher (up to 30% more) |
| Noise | Quieter | Can be noisier |
| Cost | Generally lower | Higher |
| Oil/Contaminant Resistance | Better | Can absorb contaminants |
Standards and Specifications
- International Standards: Wrapped V-belts are manufactured according to standards such as DIN 2215 and ISO 4184.
- Antistatic Properties: Many are electrically conductive (ISO 1813) for safety in environments with explosive atmospheres.
Summary
Wrapped V-belts are robust, versatile belts ideal for a wide range of applications where durability, slip safety, and resistance to environmental factors are important. Their fabric covering distinguishes them from raw-edge belts, offering specific benefits in terms of longevity and operational safety, though they may transmit less power than raw-edge types and are more prone to controlled slip under overload conditions.
