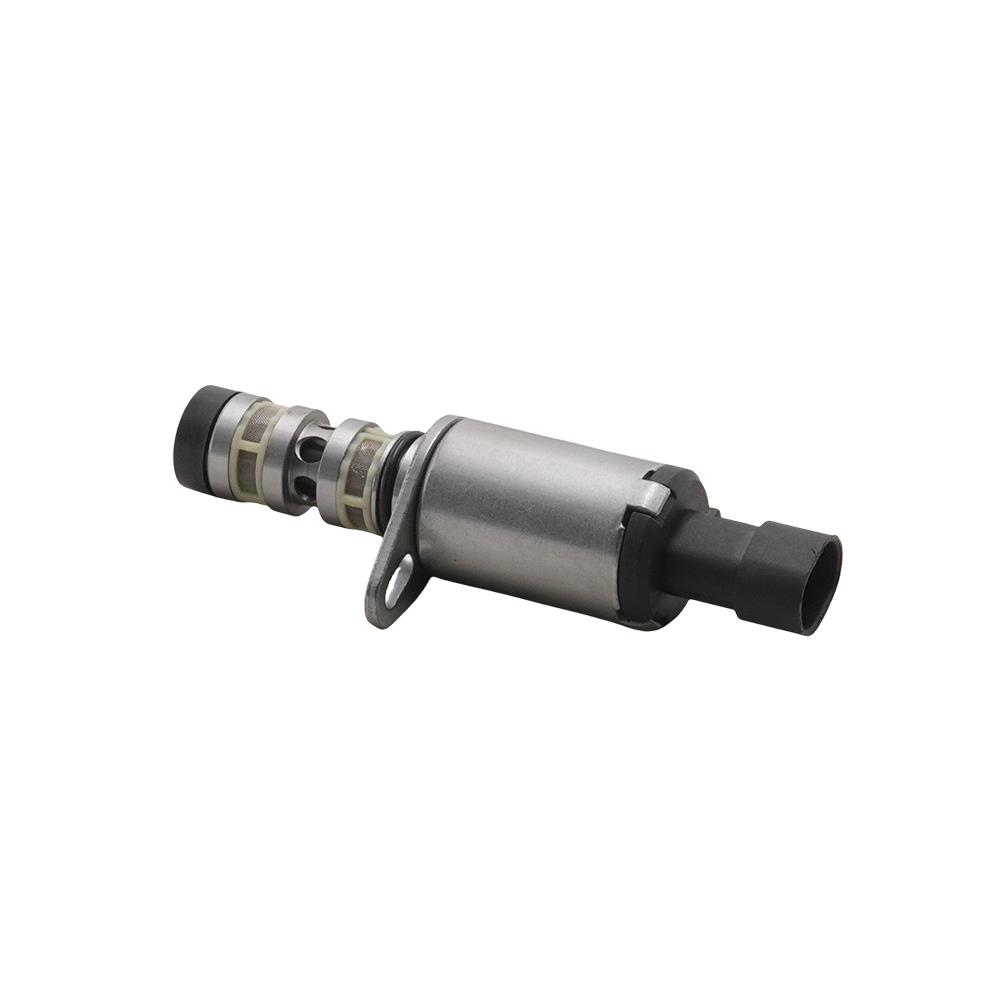

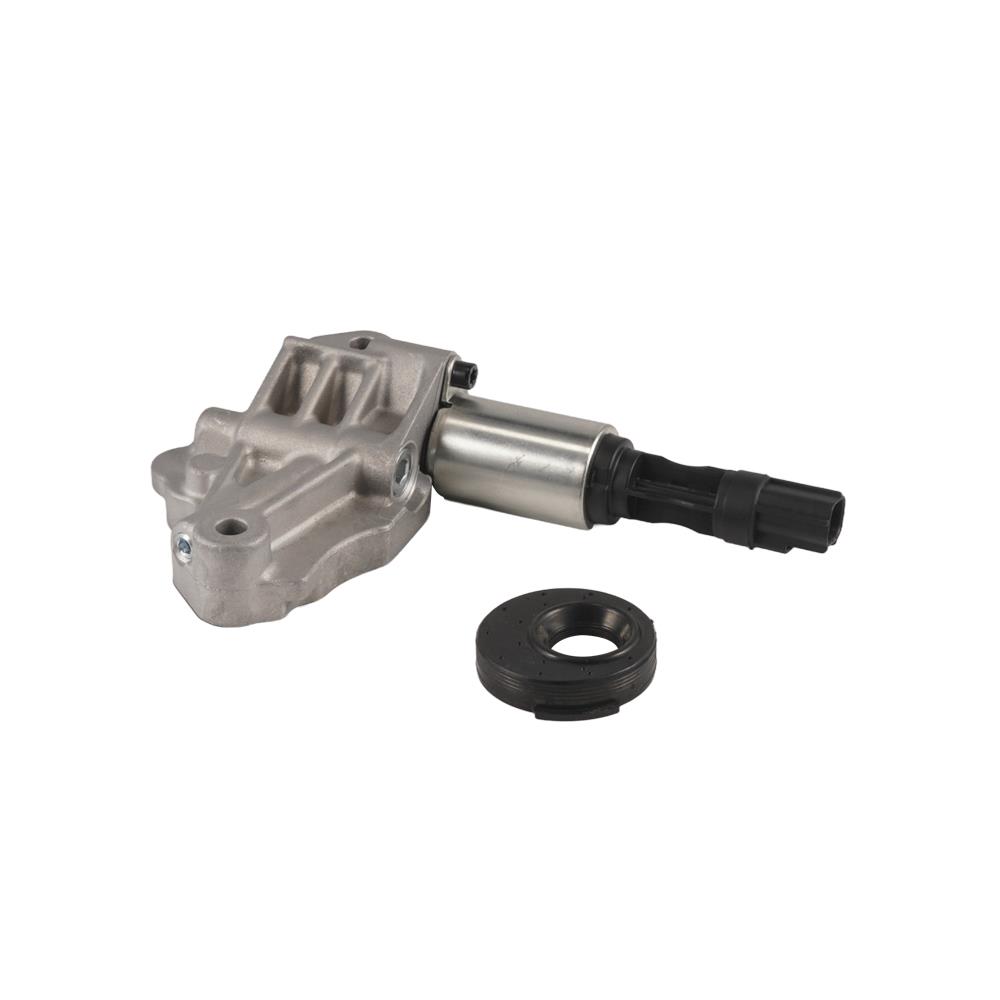

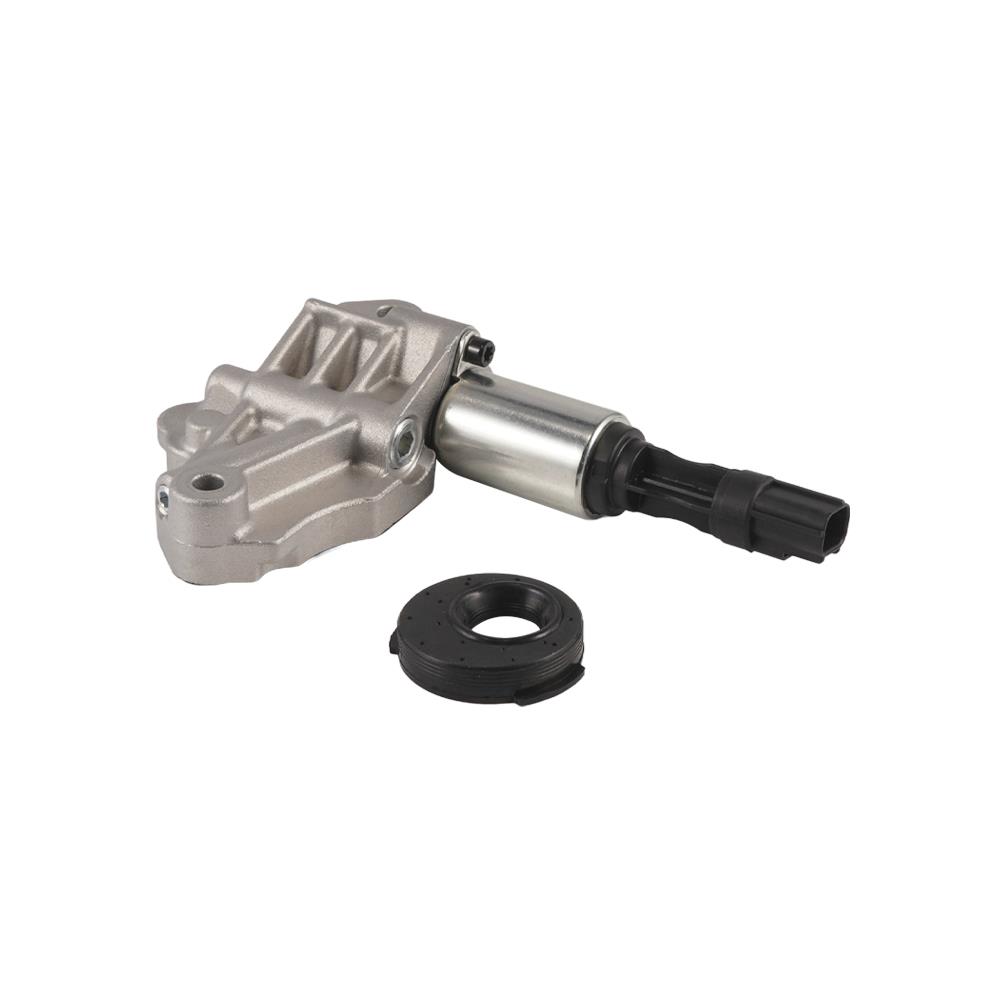

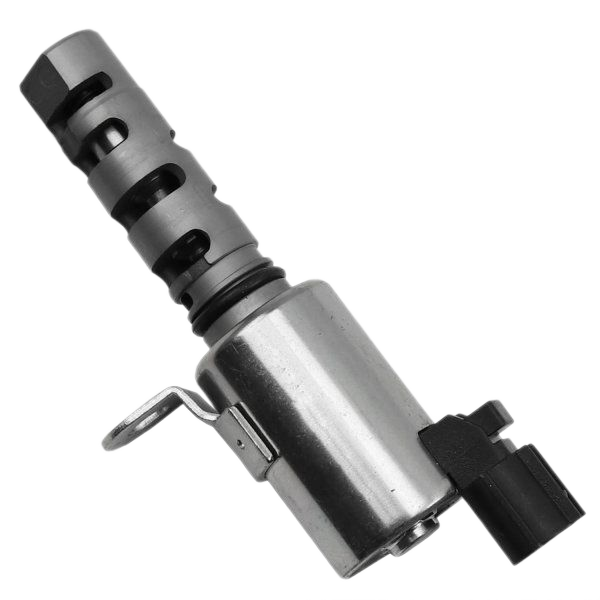

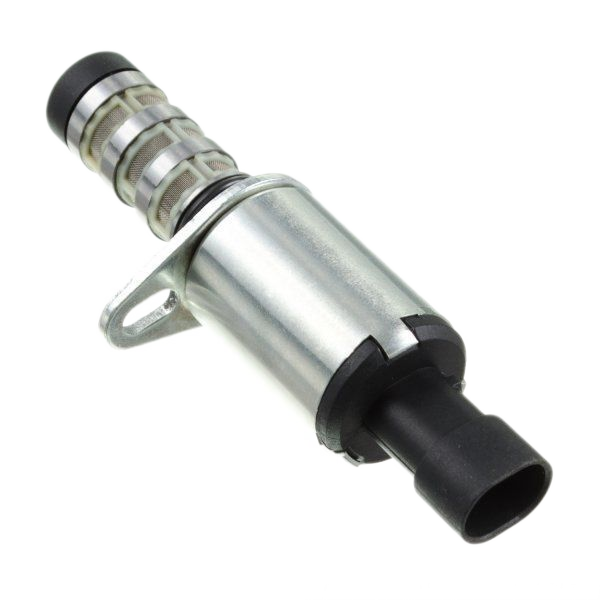

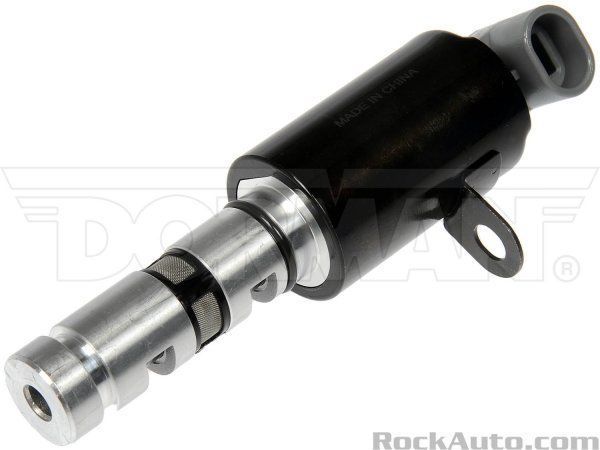

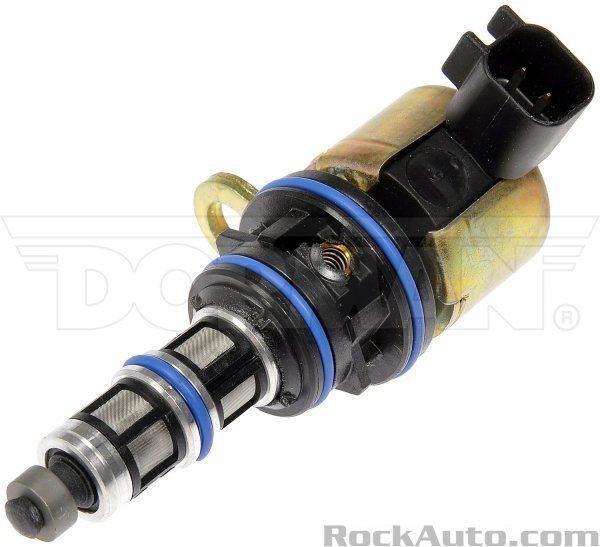

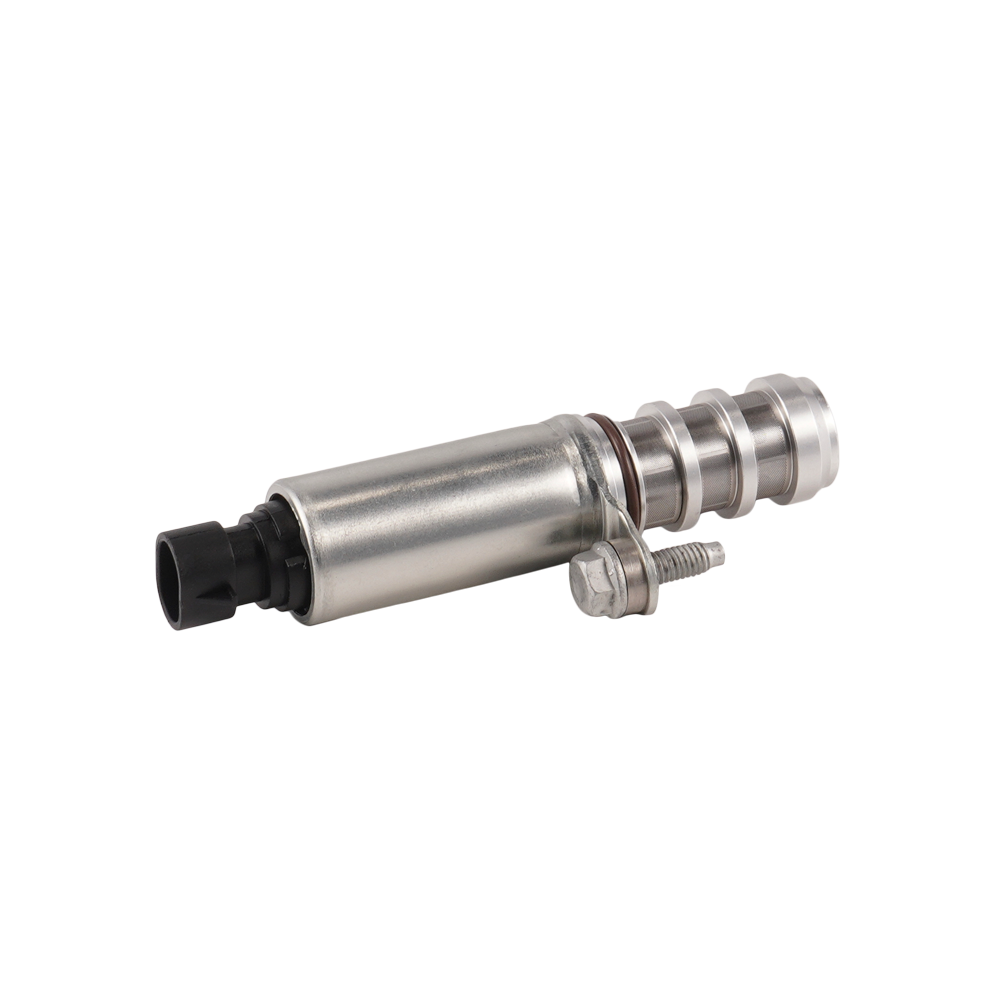

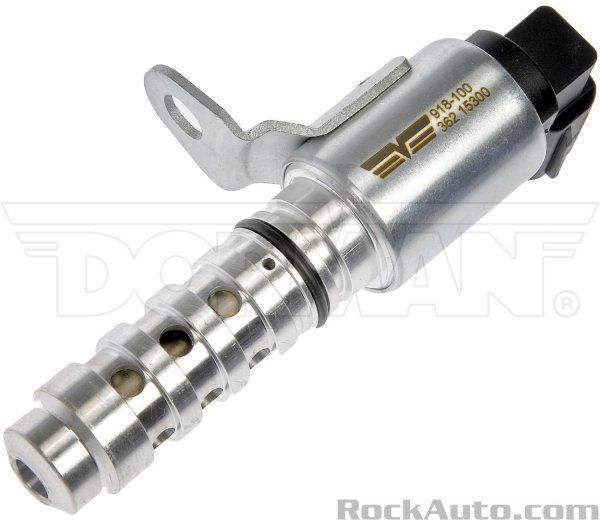

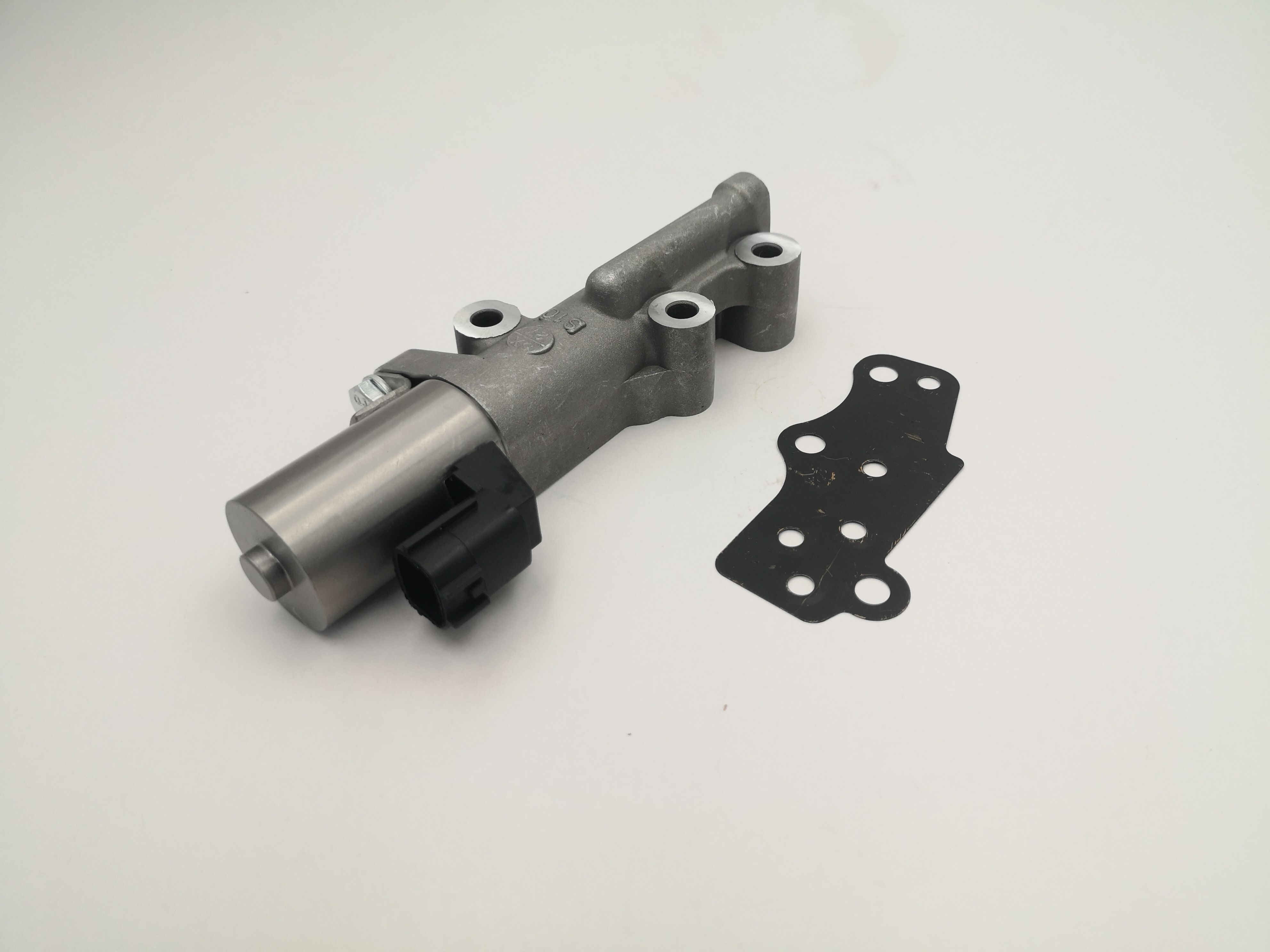

A Variable Valve Timing (VVT) solenoid is a key component in an internal combustion engine's VVT system, which optimizes engine performance, fuel efficiency, and emissions by adjusting the timing of the intake and/or exhaust valves.
Definition

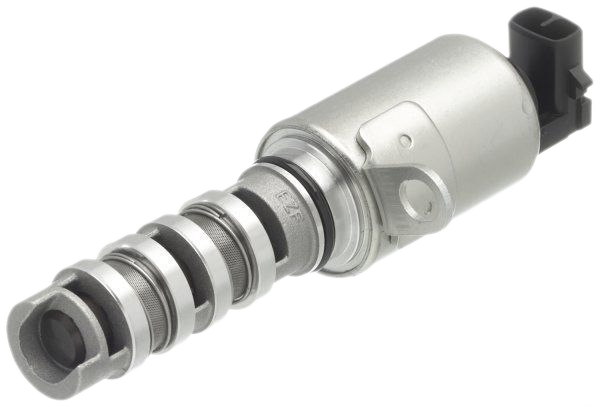

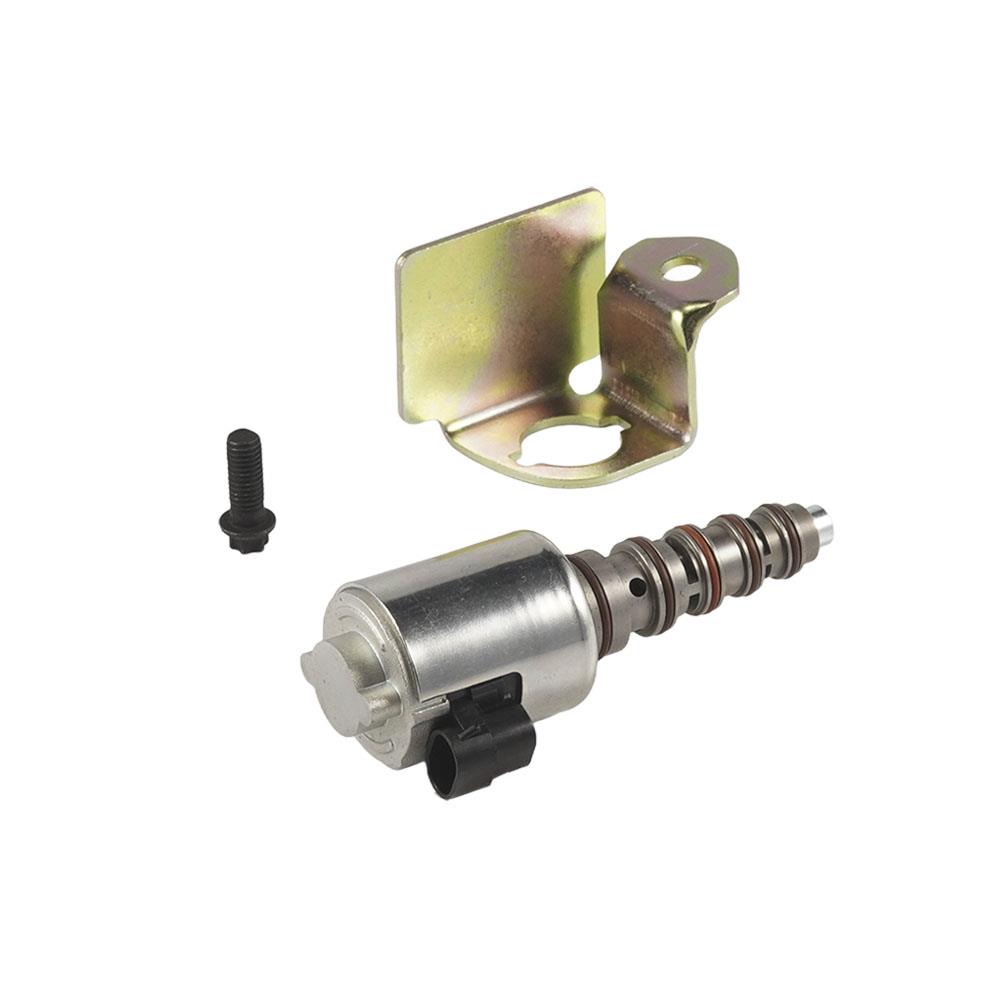

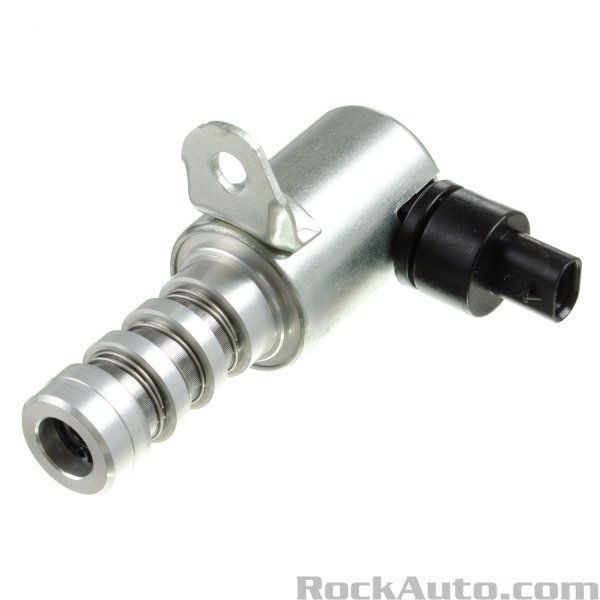

The VVT solenoid, also known as an oil control valve, is an electro-hydraulic actuator that regulates the flow of engine oil to the camshaft phaser (or actuator), which adjusts the camshaft's position to alter valve timing.
Function
- Controls Oil Flow: The solenoid receives signals from the engine control unit (ECU) based on parameters like engine speed, load, and temperature. It modulates oil pressure to the camshaft phaser, advancing or retarding valve timing.
- Optimizes Valve Timing: By adjusting when the intake and/or exhaust valves open and close, it enhances torque at low RPMs, power at high RPMs, and fuel efficiency across various conditions. For example, advancing timing at low RPMs improves torque, while retarding it at high RPMs boosts power.
- Reduces Emissions: Precise valve timing ensures more complete combustion, reducing harmful emissions like nitrogen oxides (NOx) and hydrocarbons.
- Improves Engine Efficiency: It allows the engine to adapt to driving conditions, improving fuel economy and performance while maintaining smooth operation.
How It Works
- The ECU sends electrical signals to the solenoid, which moves a plunger to open or close oil passages.
- Oil pressure then adjusts the camshaft phaser, shifting the camshaft's position relative to the crankshaft, altering valve timing.
- The solenoid operates on a duty cycle (e.g., 40% on, 60% off) to precisely control oil flow, allowing continuous or discrete timing adjustments depending on the system.
Location and Design
- Typically located near the cylinder head or camshaft, often at the front of the engine near the valve cover.
- Made of durable, heat-resistant materials with seals compatible with synthetic oils to prevent leaks and withstand high temperatures.
Common Issues
A faulty VVT solenoid can cause:
- Rough idling or stalling
- Reduced power or acceleration
- Increased fuel consumption
- Check engine light with diagnostic trouble codes (e.g., P0011, P0014)
- Rattling or ticking noises due to improper oil flow
Causes of failure include oil contamination, low oil levels, clogged passages, or electrical issues like wiring faults. Regular oil changes and high-quality oil are critical for maintenance.
