What is a Timing Cover?
A timing cover is a component in car engines that protects the timing belt, timing chain, or timing gears from dirt and debris. It helps keep these critical parts safe, ensuring the engine runs smoothly by synchronizing the movement of pistons and valves. For engines with timing chains, it also seals in engine oil for lubrication, while for timing belts, it mainly prevents damage from external factors.
Common Issues
If the timing cover fails, you might notice oil leaking from the engine area, low oil levels even after topping up, rough engine performance, or the Check Engine Light turning on. These signs suggest the cover or its gasket might be damaged, and it's important to address them to avoid bigger engine problems.
Definition and Core Function
A timing cover is defined as a protective enclosure, typically made of metal or plastic, that safeguards the timing mechanism of an internal combustion engine. This mechanism includes the timing belt, timing chain, or timing gears, which are essential for synchronizing the crankshaft and camshaft(s). This synchronization ensures that the engine's pistons and valves operate in harmony, critical for efficient combustion and engine performance.
The timing cover's primary role is to shield these components from external contaminants such as dirt, dust, and debris, which could otherwise lead to wear or failure. For engines utilizing a timing chain, the cover also serves a sealing function, containing engine oil that lubricates the chain and associated gears. This dual role is particularly vital, as oil leaks from a failed timing cover gasket can compromise lubrication, leading to chain wear or engine damage.
In contrast, engines with timing belts, which are typically made of rubber and operate in a dry environment, rely on the timing cover primarily for physical protection. The cover prevents road debris from damaging the belt, which, if compromised, could skip teeth or break, causing severe engine timing issues.
Material and Design Variations

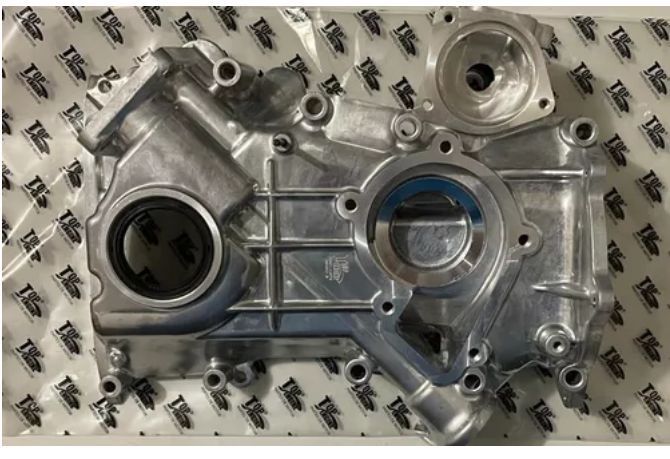

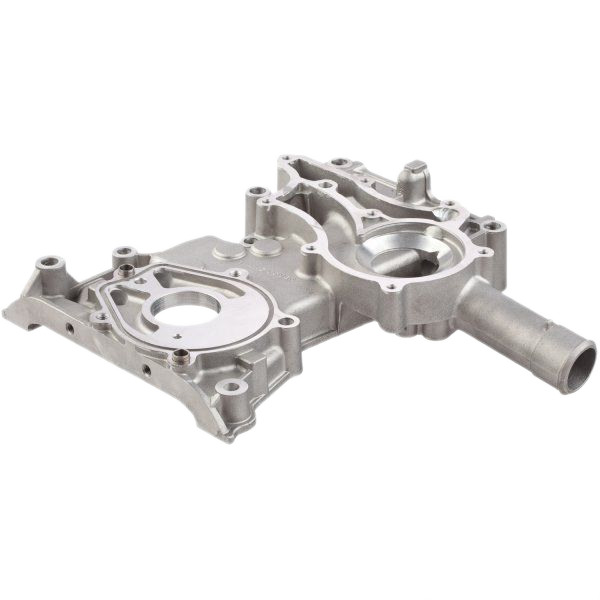

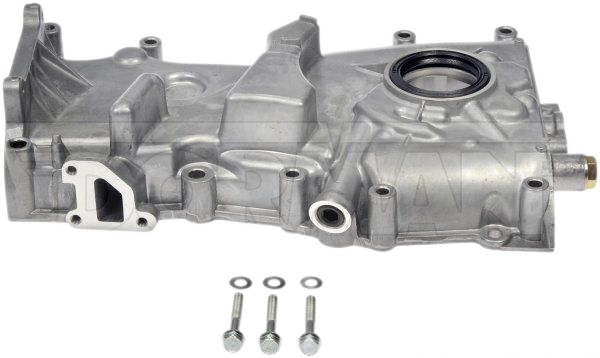

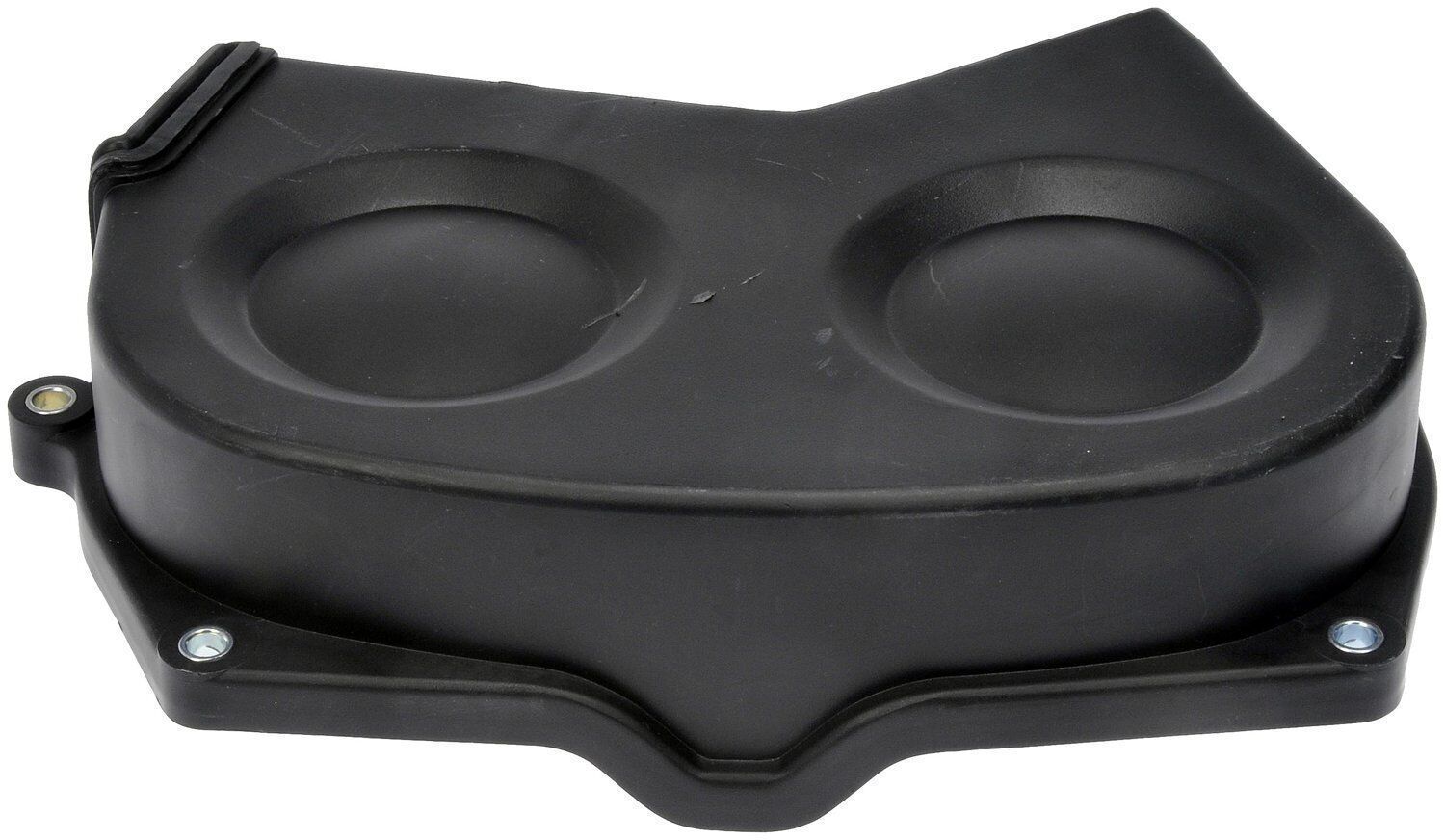

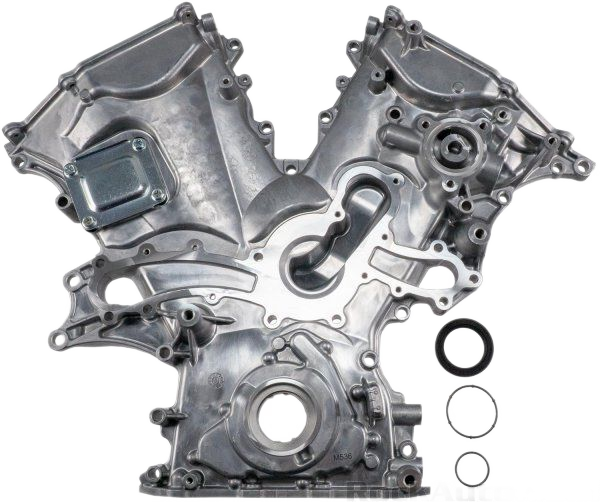

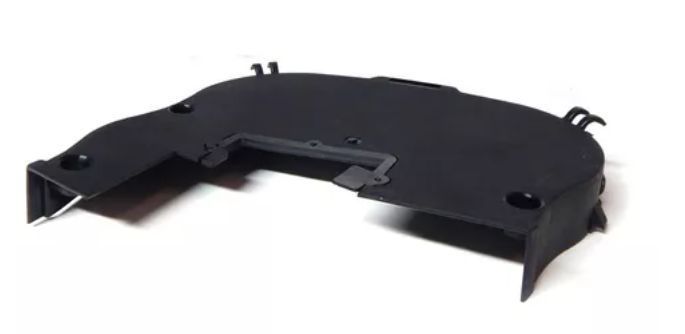

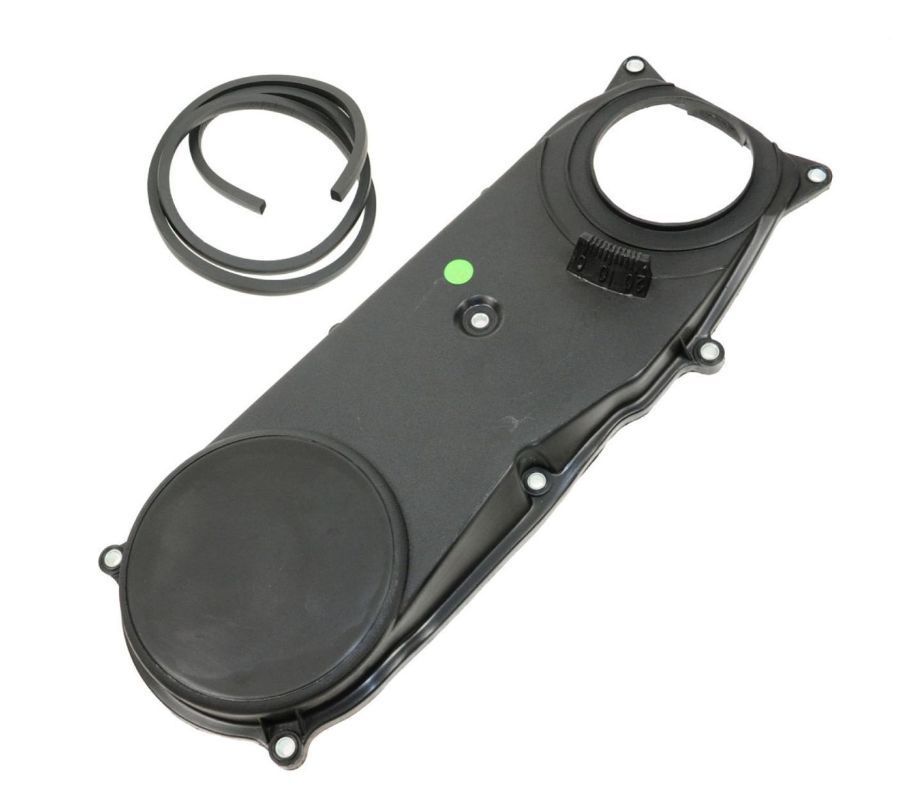

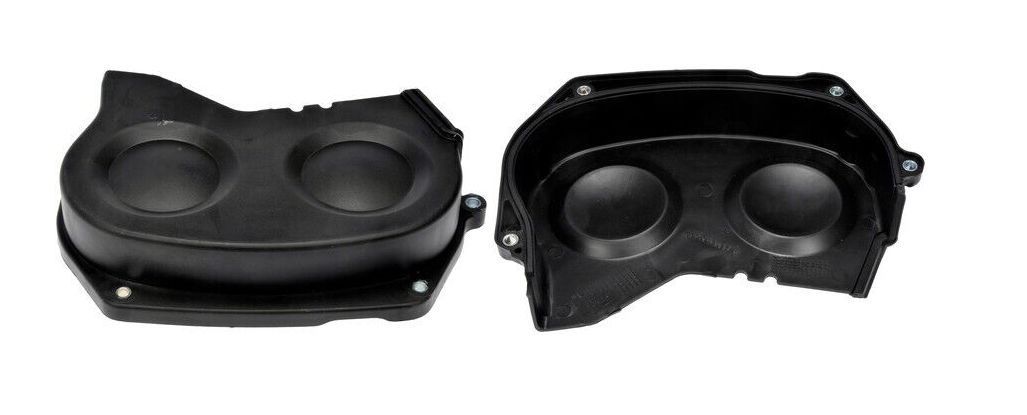

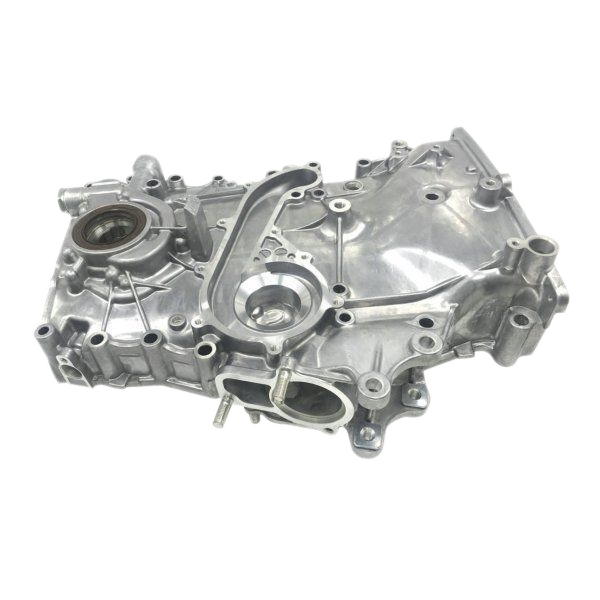

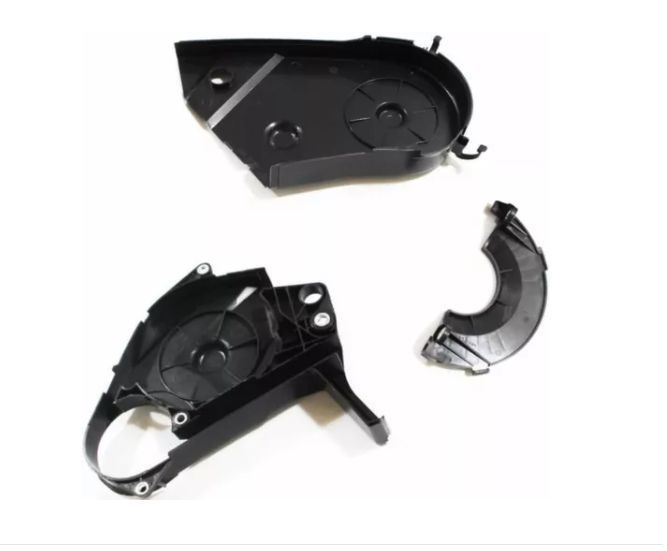

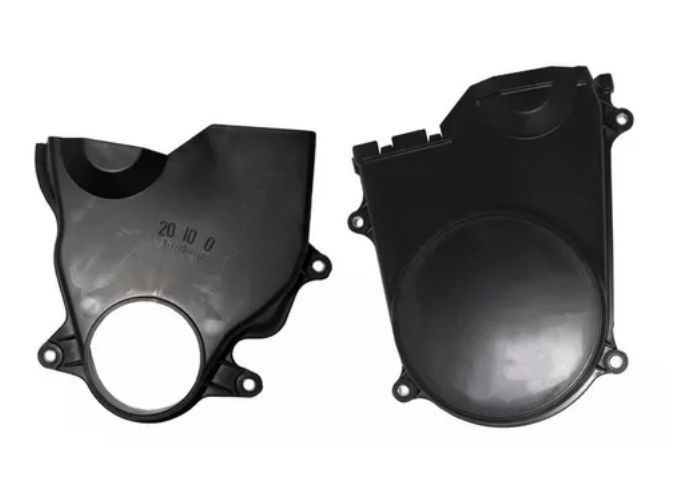

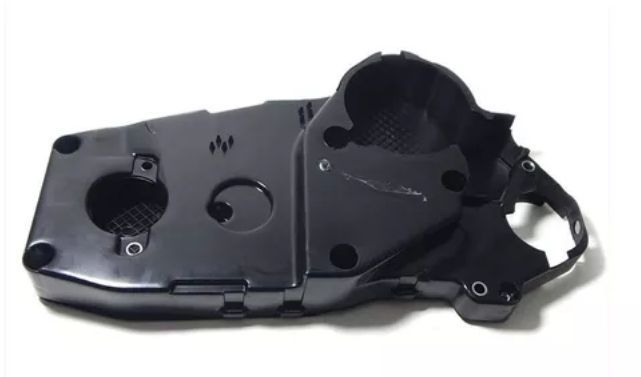

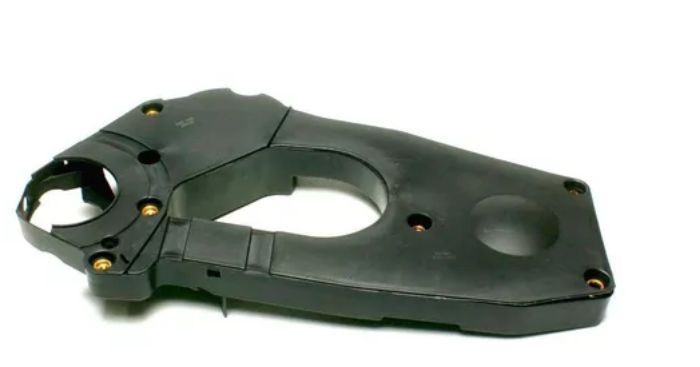

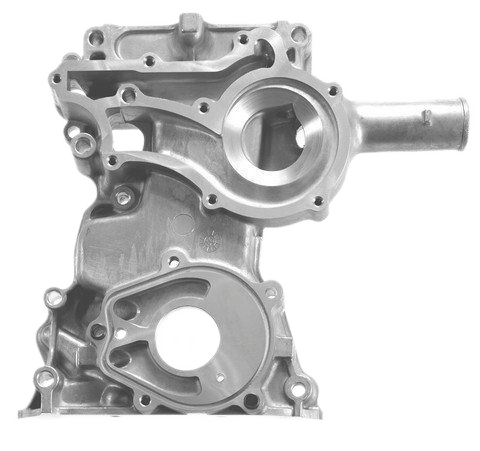

Timing covers vary in material based on the engine type and design. For timing chain systems, covers are usually metal, providing durability and a robust seal against the engine block. This is necessary given the high temperatures and pressures involved, as well as the need to contain engine oil. For timing belt systems, covers can be made of metal, plastic, or a combination, often consisting of multiple pieces to accommodate the engine's layout. Plastic covers, while lighter, may be prone to cracking under stress, particularly from engine vibrations or impact, which is a noted concern in modern vehicles.
Some designs incorporate special features, such as timing cover bolts with thick shoulders or metal bezels in bolt holes, to prevent cracking in plastic covers. These design choices aim to enhance longevity and reliability, especially in vehicles subjected to rough driving conditions.
Types of Timing Systems and Their Implications
| Type | Description | Timing Cover Role |
|---|
| Timing Chain | Metal chain, lubricated by engine oil, designed to last the engine's lifetime under normal conditions. | Seals engine front, contains oil, protects from debris. |
| Timing Belt | Rubber belt, operates dry, a wear item requiring replacement at intervals (check owner's manual). | Protects belt from damage, prevents debris entry, seals against oil leaks. |
Timing chains, being more durable, are often found in larger or high-performance engines, while timing belts are common in smaller, economy vehicles due to cost and weight considerations. The timing cover's design must align with these differences, ensuring adequate protection and sealing for each system. For instance, oil leaks in a timing belt engine can be particularly detrimental, as oil can degrade the rubber belt, necessitating simultaneous replacement of the belt, gasket, and seals.
Common Symptoms and Diagnostic Indicators
Identifying a failing timing cover is crucial for maintaining engine health. Research suggests several key symptoms, supported by automotive repair resources:
- Oil Leaks: Visible oil puddles under the engine, particularly at the timing cover's edge, often indicate a failed gasket or physical damage like cracks. This is a frequent issue, as gaskets can become brittle over time, losing their sealing capability.
- Low Oil Levels: If oil levels consistently drop below the full mark, even after topping up, it may trigger the dashboard oil warning light. Regular checks are recommended to catch this early, as low oil can lead to engine overheating and damage.
- Rough Engine Operation or Misfires: Debris entering the timing system can damage the belt or chain, causing the engine to run unevenly or misfire. This can escalate to catastrophic failure if the timing is significantly disrupted, affecting valve and piston timing.
- Check Engine Light: Oil leaks can increase engine temperature and cause vacuum loss, triggering the Check Engine Light. This symptom often correlates with other issues like rough idling or reduced power, necessitating immediate inspection.
These symptoms highlight the importance of regular maintenance, as a failing timing cover can lead to significant repair costs if ignored. For example, replacing a timing belt contaminated by oil requires not only a new belt but also new gaskets and seals, a labor-intensive process.
Causes of Timing Cover Failure
Understanding the root causes of timing cover issues can aid in prevention. Common causes include:
- Worn-Out Gaskets: Over time, gaskets become brittle and fail to seal properly, leading to oil leaks. Regular inspection and replacement are advised when leaks are noticed, as per manufacturer recommendations.
- Impact Damage: Driving over large potholes or hitting curbs can crack the timing cover, particularly if it's plastic. Good driving habits, such as slowing down over rough terrain, can mitigate this risk.
- Bolt Fastening Errors: Loose or improperly tightened bolts can cause the cover to shift, leading to cracks or gasket failure. Checking the manufacturer's torque specifications and ensuring proper installation is essential.
- Engine Vibrations: Caused by worn spark plugs, damaged mounts, or other issues, vibrations can loosen the gasket or damage the cover. Addressing vibration sources promptly can prevent secondary damage.
- Improper Maintenance: Infrequent oil changes can lead to overheating and contamination, accelerating gasket deterioration. Adhering to scheduled maintenance, including oil changes, is critical for longevity.
