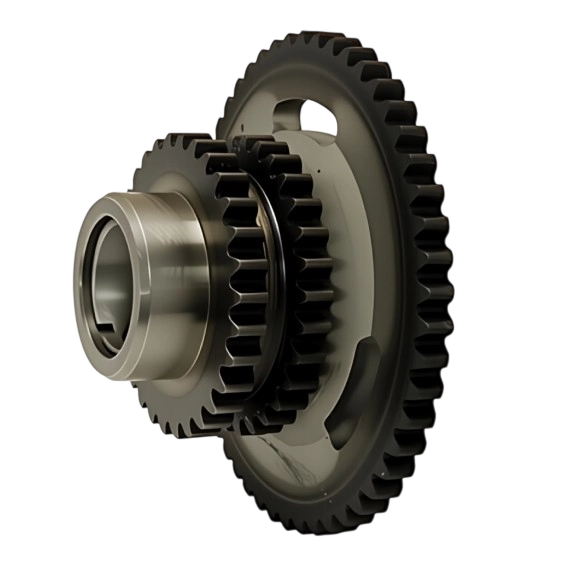

What is a Timing Chain Sprocket?
A timing chain sprocket is a component in your car’s engine that works with the timing chain to ensure the crankshaft and camshaft move in sync. This sync is vital for the engine’s valves to open and close at the right times, keeping everything running smoothly.
There are usually at least two sprockets: one on the crankshaft (crank sprocket) and one or more on the camshaft(s) (cam sprockets). The timing chain loops around them, transferring motion to control valve timing. These sprockets are made from durable materials like steel or sintered metal to handle engine stress, especially in modern engines with variable valve timing (VVT) systems, which may include advanced features like cam phasers.
Types of Timing Chain Sprockets
There are two main types of sprockets in a timing chain system:
- Crank sprocket - Connected to the crankshaft and typically twice the diameter of cam sprockets due to the massive load from piston movement
- Cam sprocket - Connected to the camshaft(s) and works in synchronicity with the crank sprocket
How Timing Chain Sprockets Work
Timing chain sprockets function by meshing with the timing chain to transfer rotational motion between engine components. The crank sprocket rotates using the movement of pistons and transforms linear energy into rotational energy, causing the crankshaft to power the timing chain that connects to the cam sprocket and camshaft. This synchronized rotation ensures that the intake and exhaust valves open and close at the proper timing relative to piston position.
Definition and Function
A timing chain sprocket is a profiled wheel with teeth designed to mesh with a timing chain, a critical component in internal combustion engines. It facilitates the synchronization of the crankshaft and camshaft(s), ensuring that the engine’s valves open and close at precise intervals relative to the piston’s position. This synchronization is essential for efficient combustion and engine performance.
Timing chain sprockets are part of a timing set that may include chains, guides, and tensioners, and must mirror original equipment (OE) design for proper engine function. A sprocket generally as a wheel with teeth that engage a chain, distinguishing it from gears (which mesh directly) and pulleys (which are smooth, except for timing pulleys). In engines, sprockets convert the linear movement of the chain into rotational motion, driving components like the crankshaft, camshafts, balance shafts, and oil pump.
In modern engines, especially those with variable valve timing (VVT), cam sprockets may include windows for valvetrain actuation and features like cam triggers or target wheels for communication with the engine control module (ECM), ensuring advanced timing adjustments for improved emissions, fuel economy, and performance.
Materials and Manufacturing
Timing chain sprockets are typically constructed from high-strength materials to withstand engine stresses. steel for performance applications due to its durability, while modern sprockets are often manufactured using the Powder Metallurgy method, which offers high repeatability but can result in porous, brittle parts due to reduced strength. This trade-off is driven by the automotive industry’s focus on reducing production costs and part weight, which can pose design challenges for high-performance engines.
Types and Placement
Most engines have at least two timing chain sprockets: the crank sprocket, attached to the crankshaft, and the cam sprocket(s), attached to the camshaft(s). The timing chain loops around these, ensuring synchronized rotation. In dual overhead cam (DOHC) engines, there may be multiple cam sprockets, and some engines include additional sprockets for balance shafts or oil pumps. its role in maintaining timing, working in tandem with the cam sprocket to generate adequate combustion.
Signs of Wear and Replacement Practices
Inspecting timing chain sprockets for wear is crucial during engine maintenance. Signs include “ovaling out” of the C-shape between adjacent teeth, users observed that teeth looking “pretty pointy” might indicate wear, though some felt they looked fine. Excessive chain slack can also signal issues, often linked to chain stretch or guide wear, suggesting a need to replace both the chain and tensioner.
The necessity of replacing sprockets when replacing the timing chain is a debated topic. Some advocates for replacement, noting that chains and sprockets are engineered together, and worn chains can cause adverse tooth wear, potentially leading to codes like P0016 or P0017 for camshaft-crankshaft correlation. Conversely, some suggest reusing sprockets if wear is minimal, especially given the high cost (e.g., $450 per large sprocket), with some mechanics reporting no issues reusing originals at high mileage.
others recommends replacing sprockets, tensioners, and guides with the chain for system stability.
