Timing Chain Guide

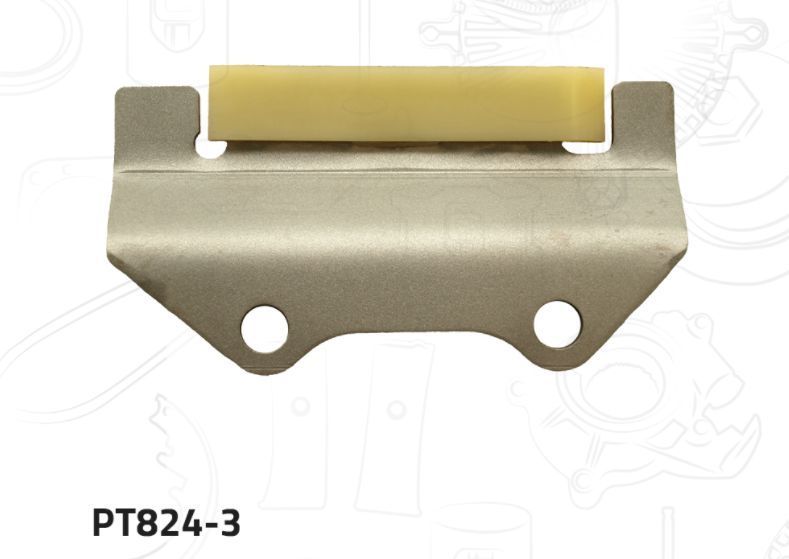

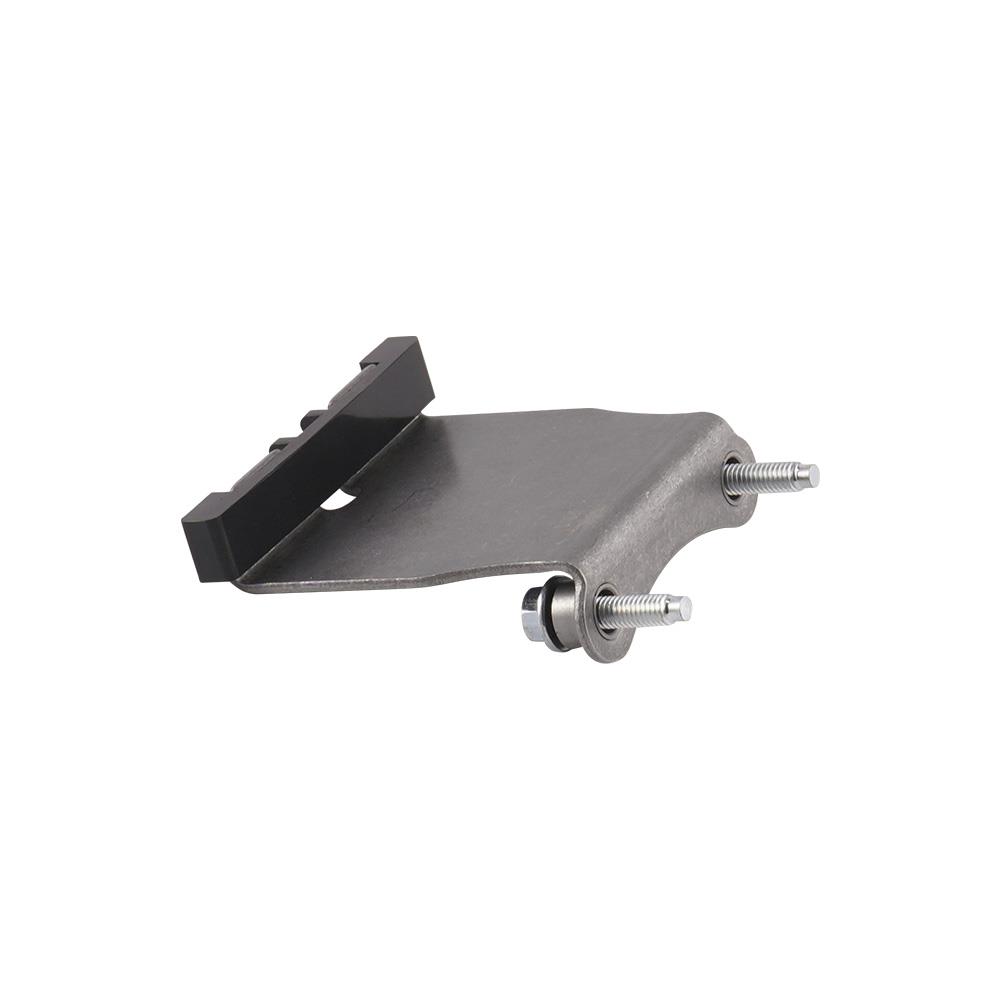

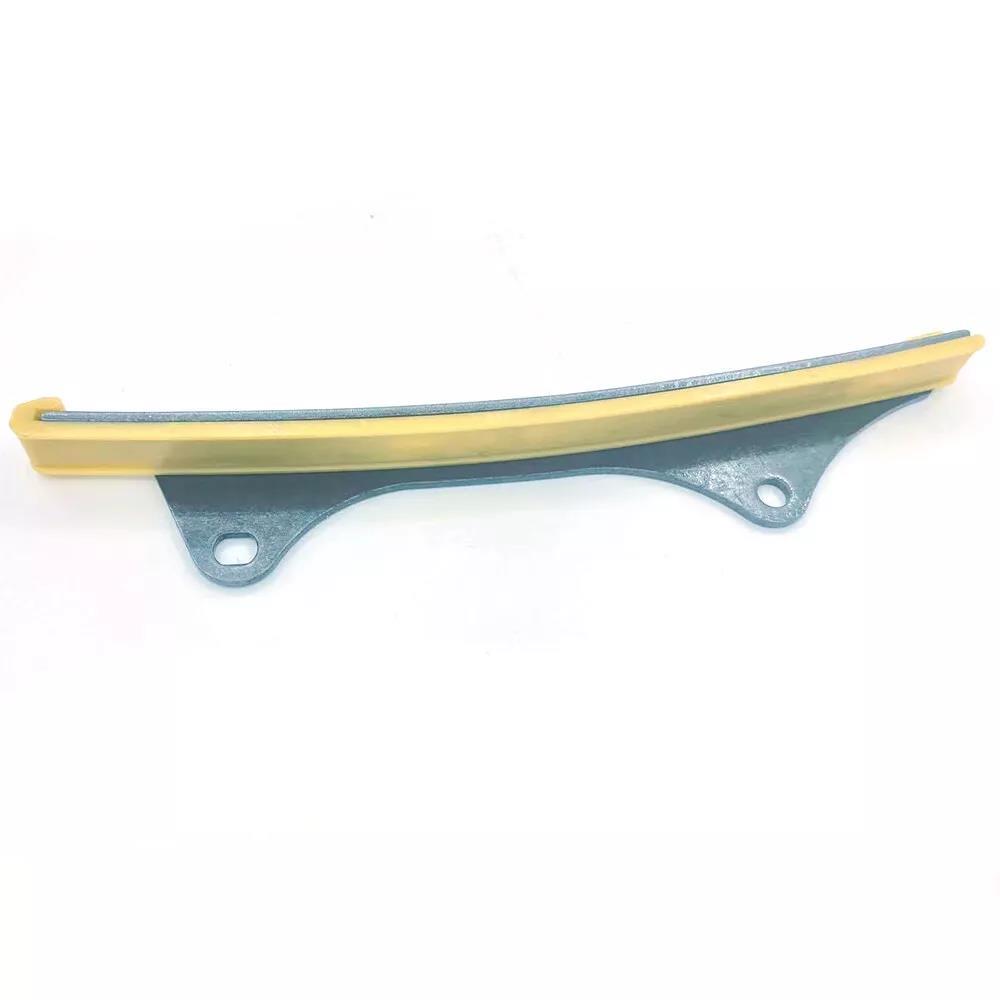

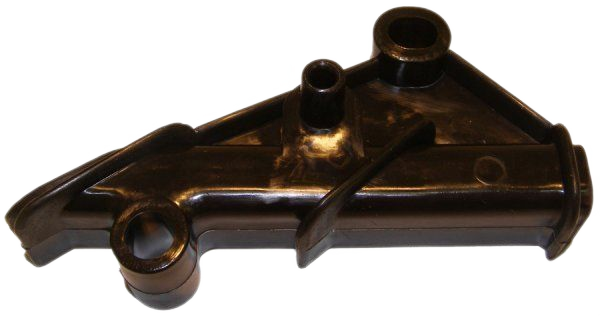

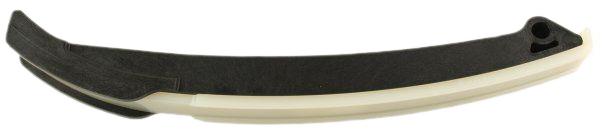

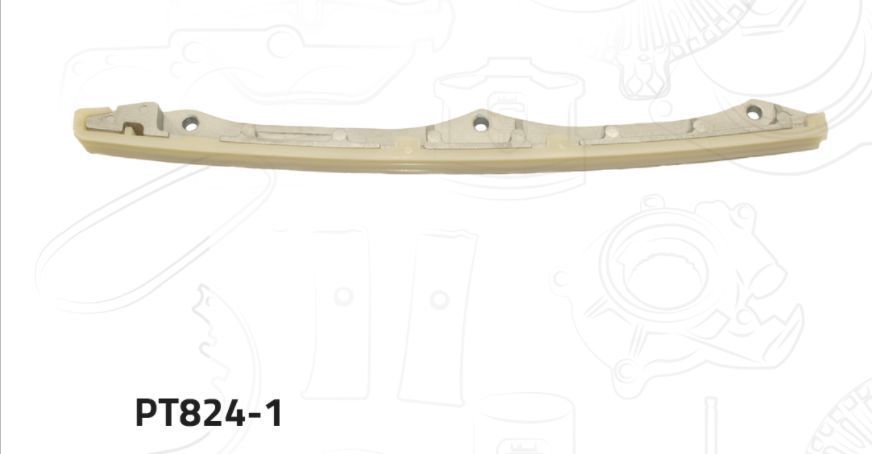

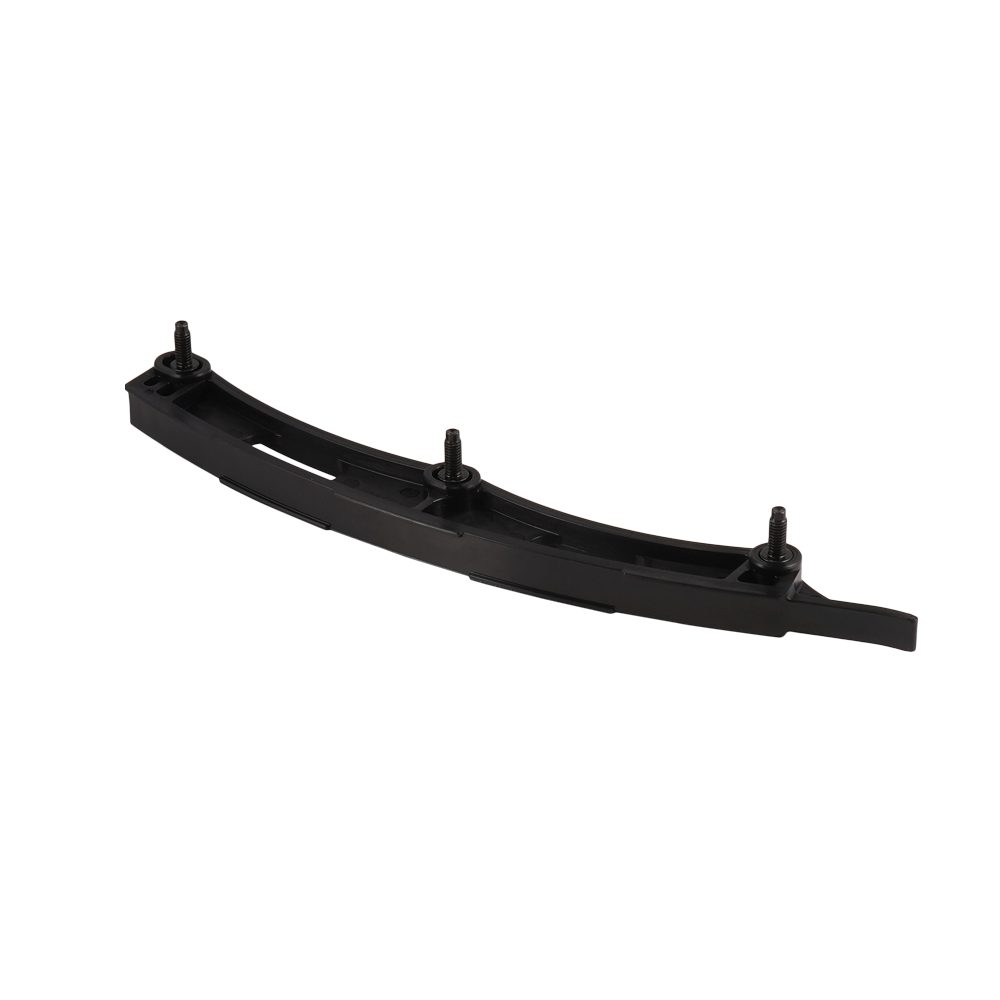

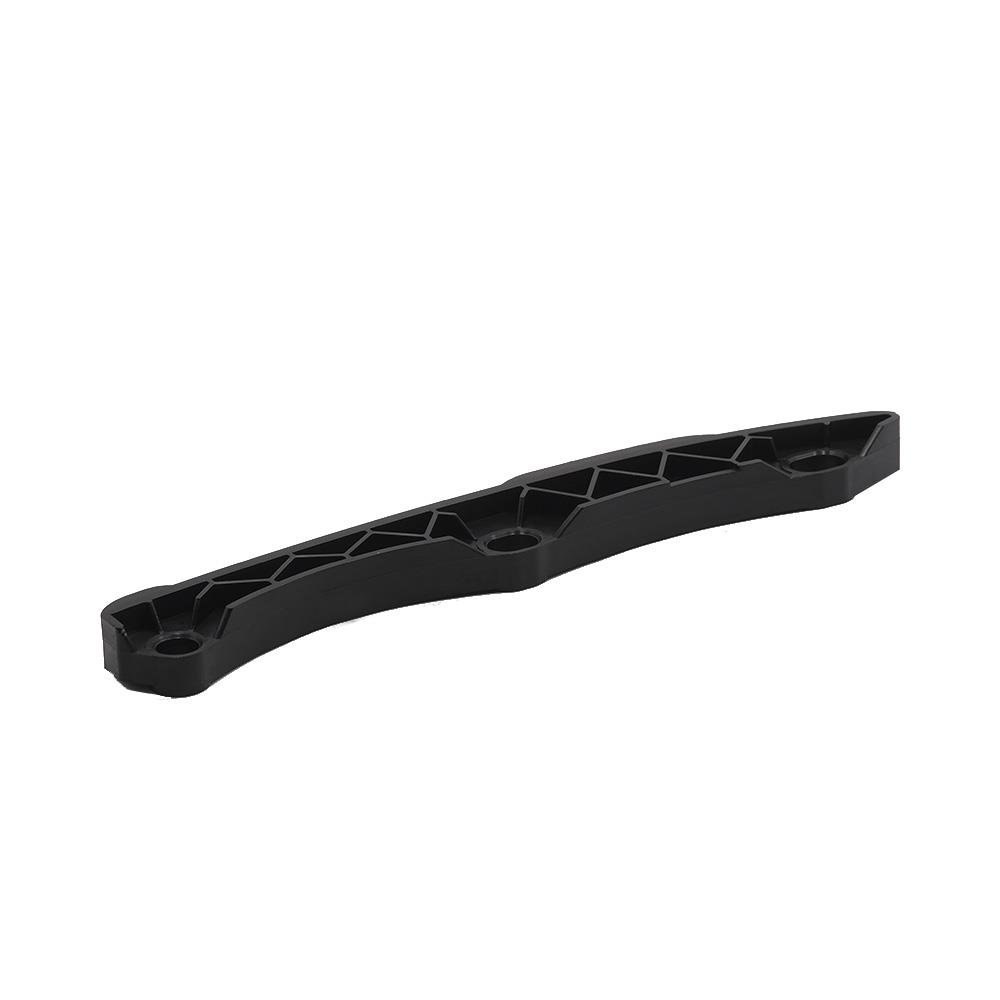

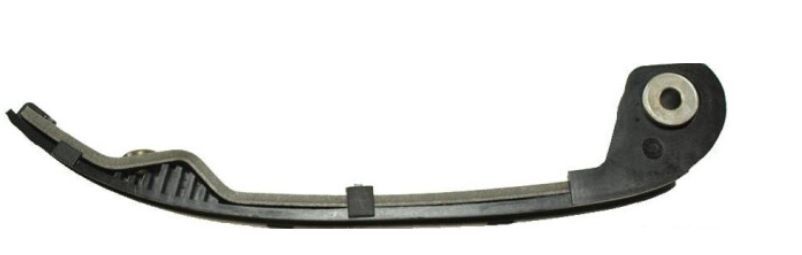

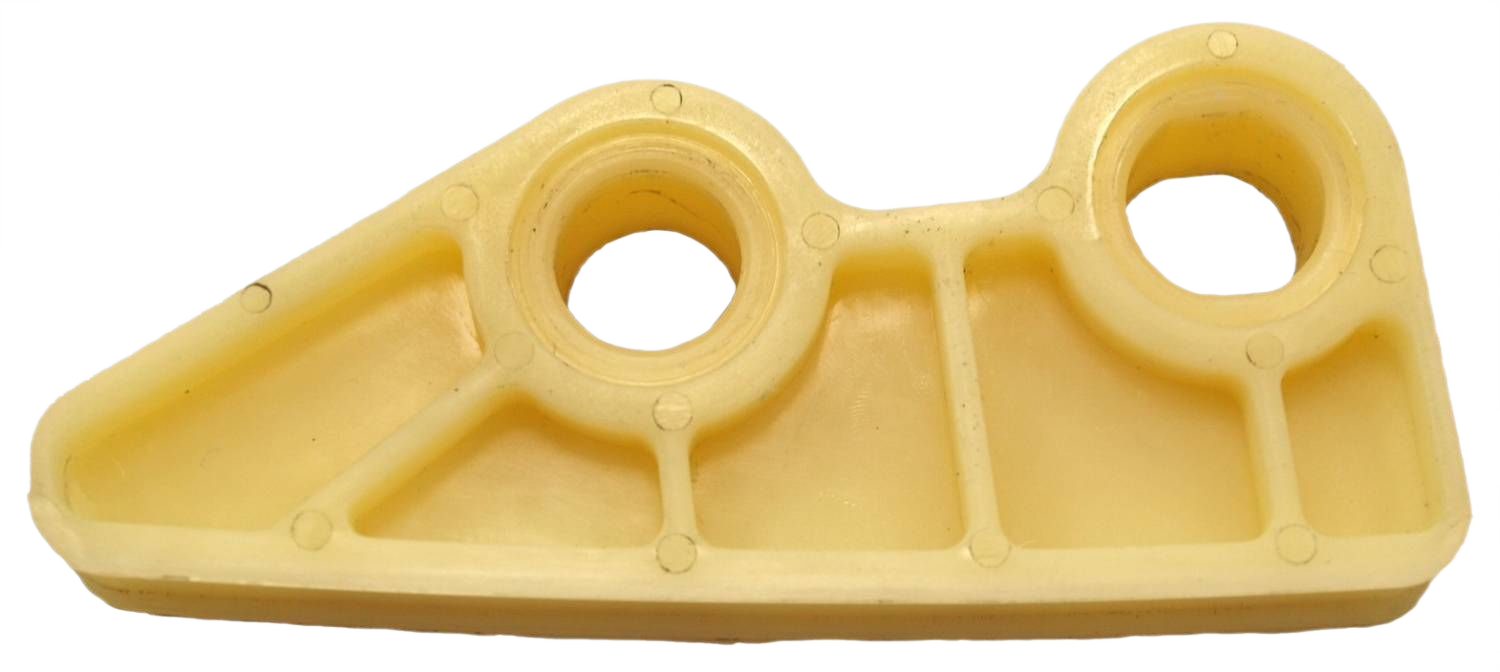

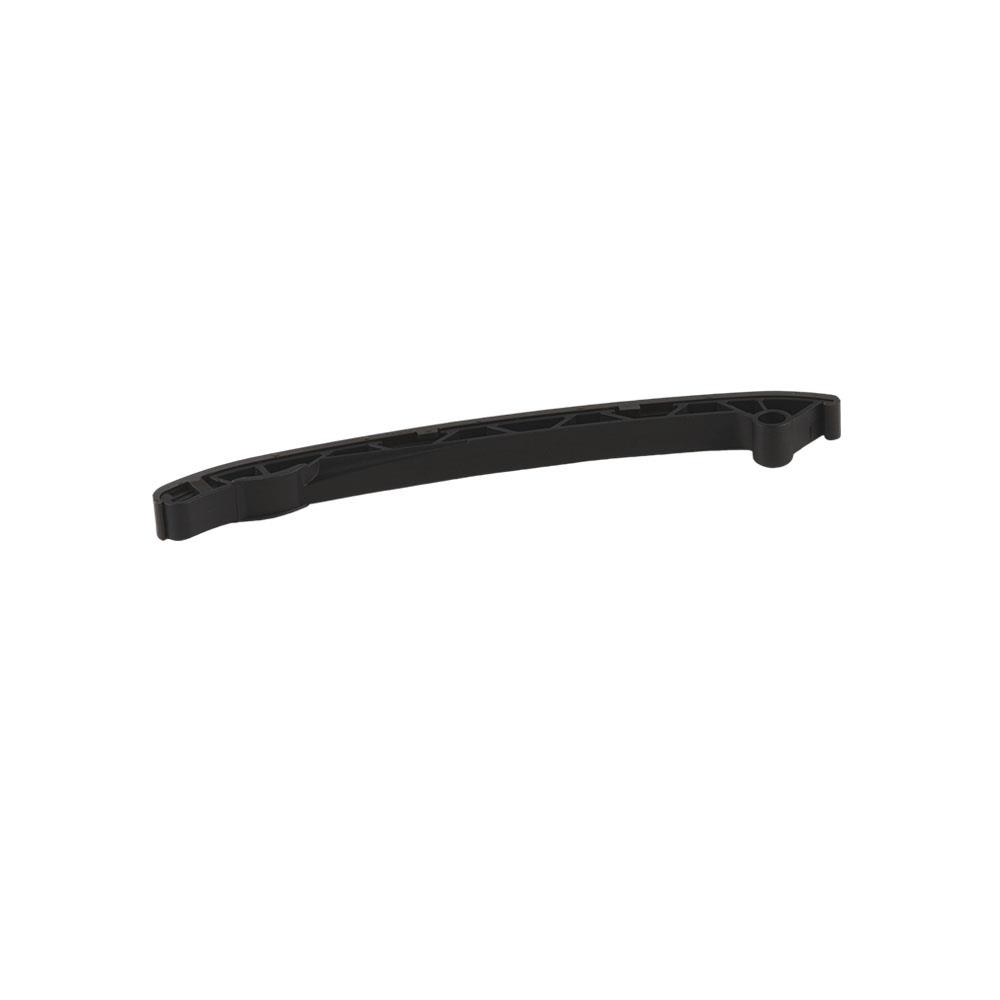

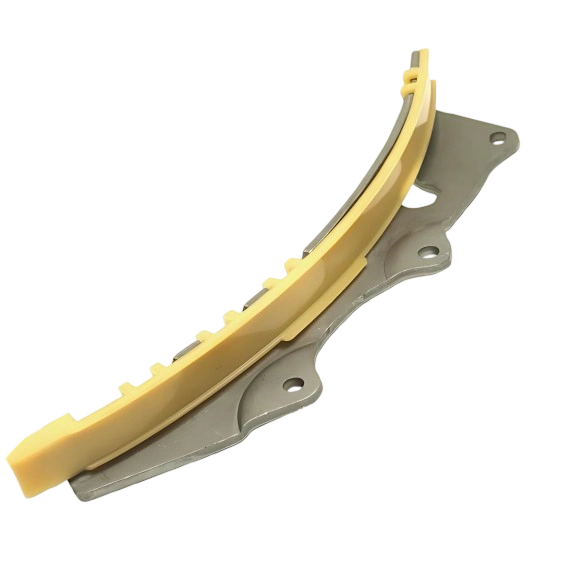

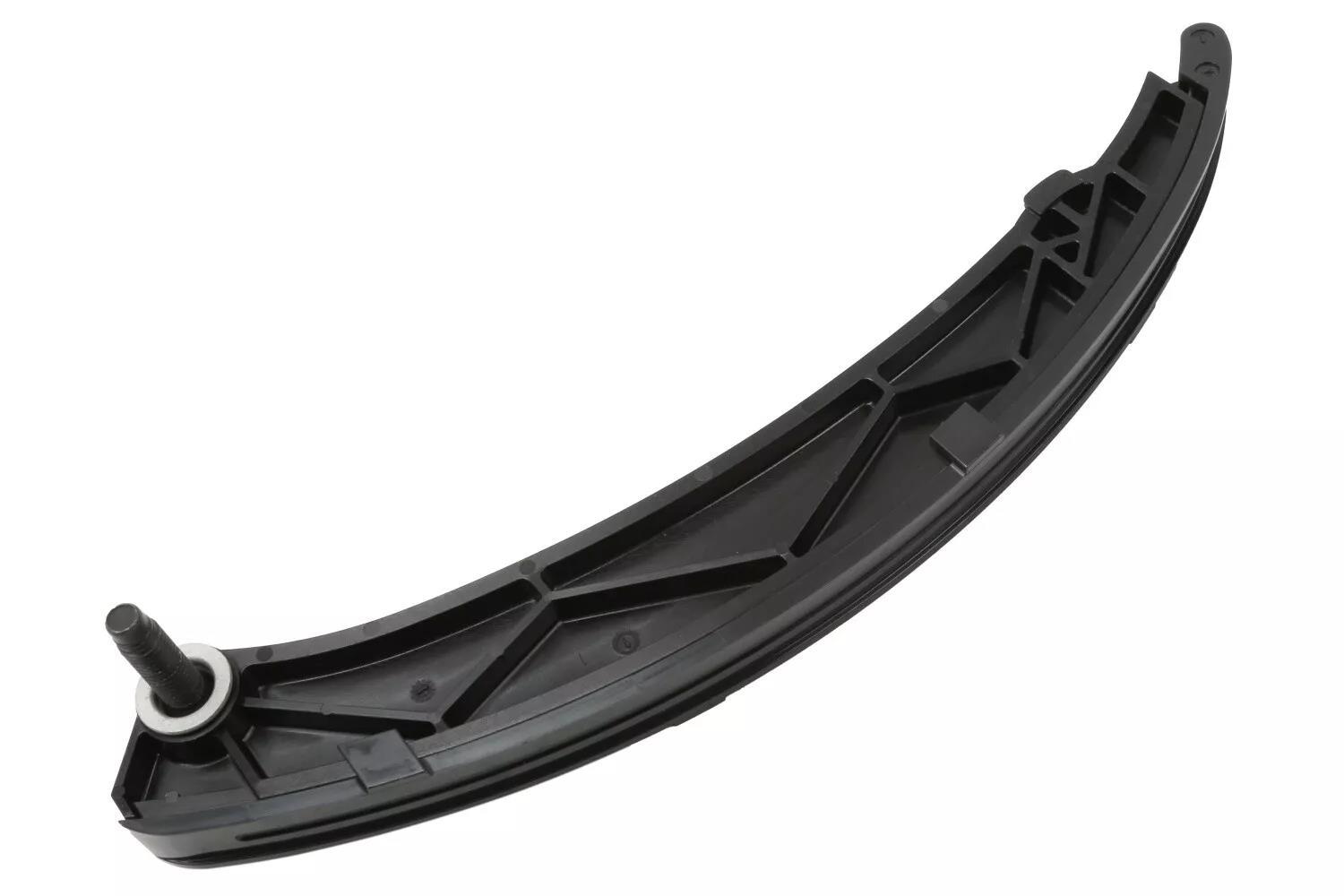

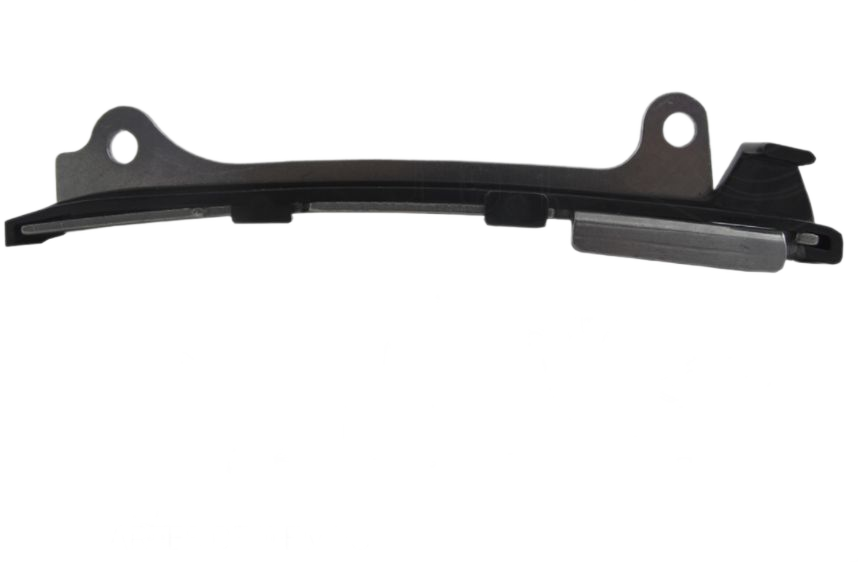

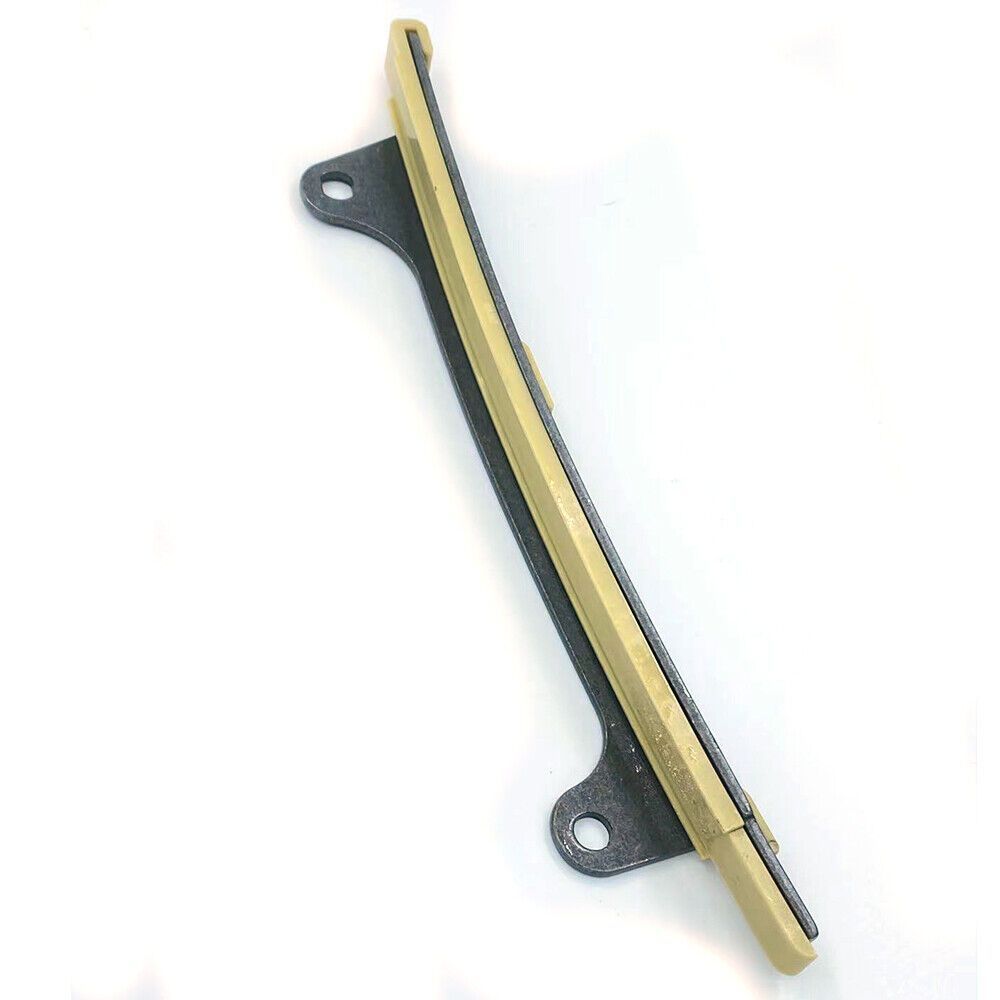

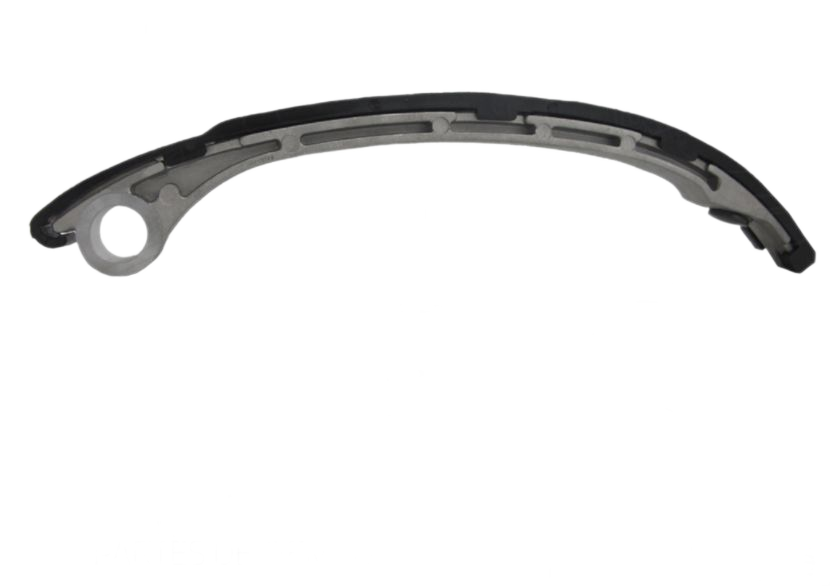

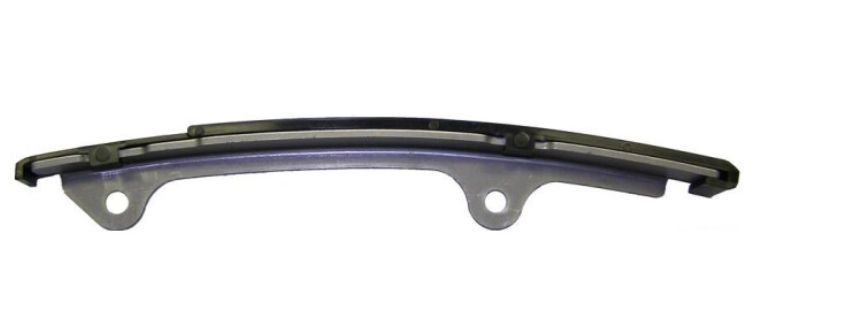

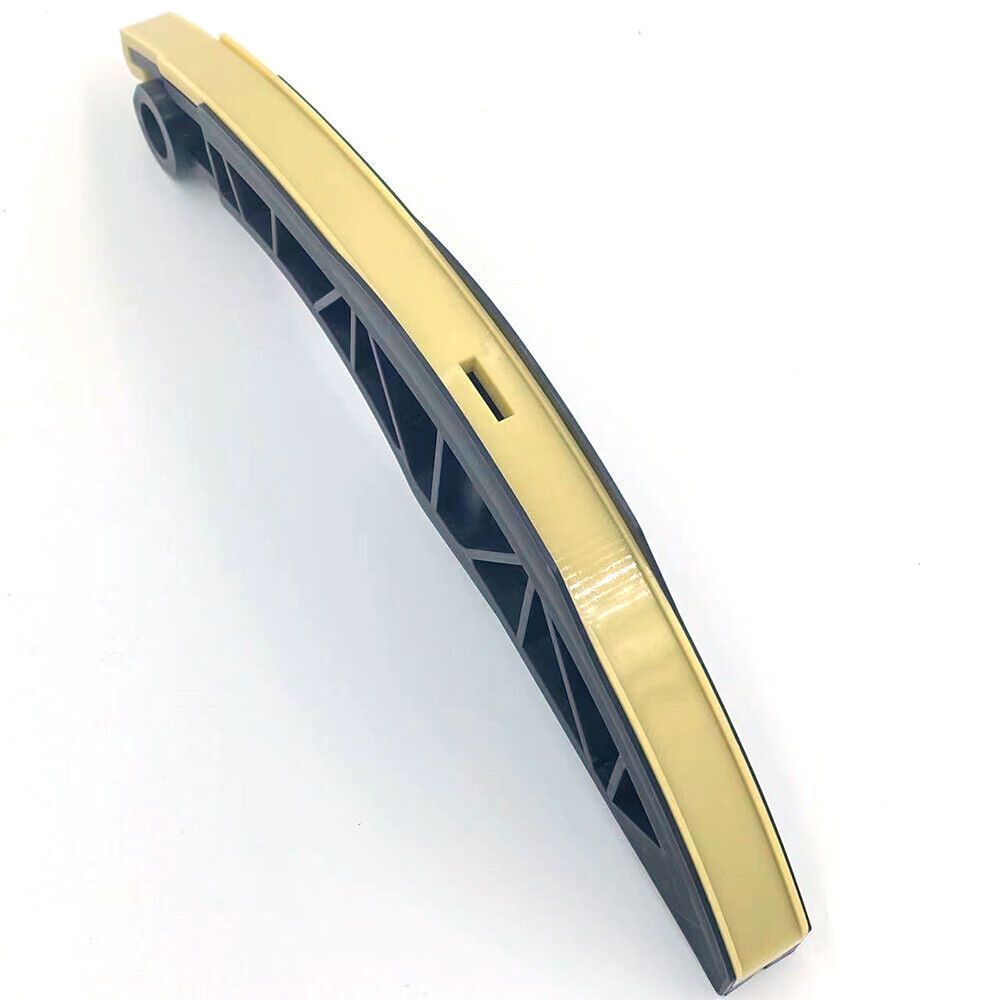

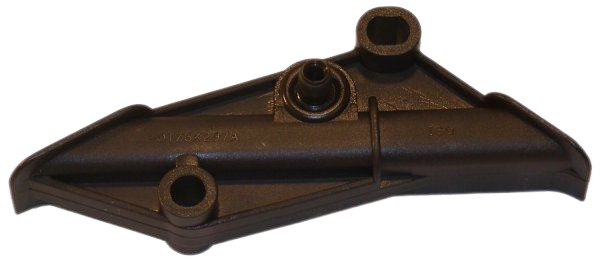

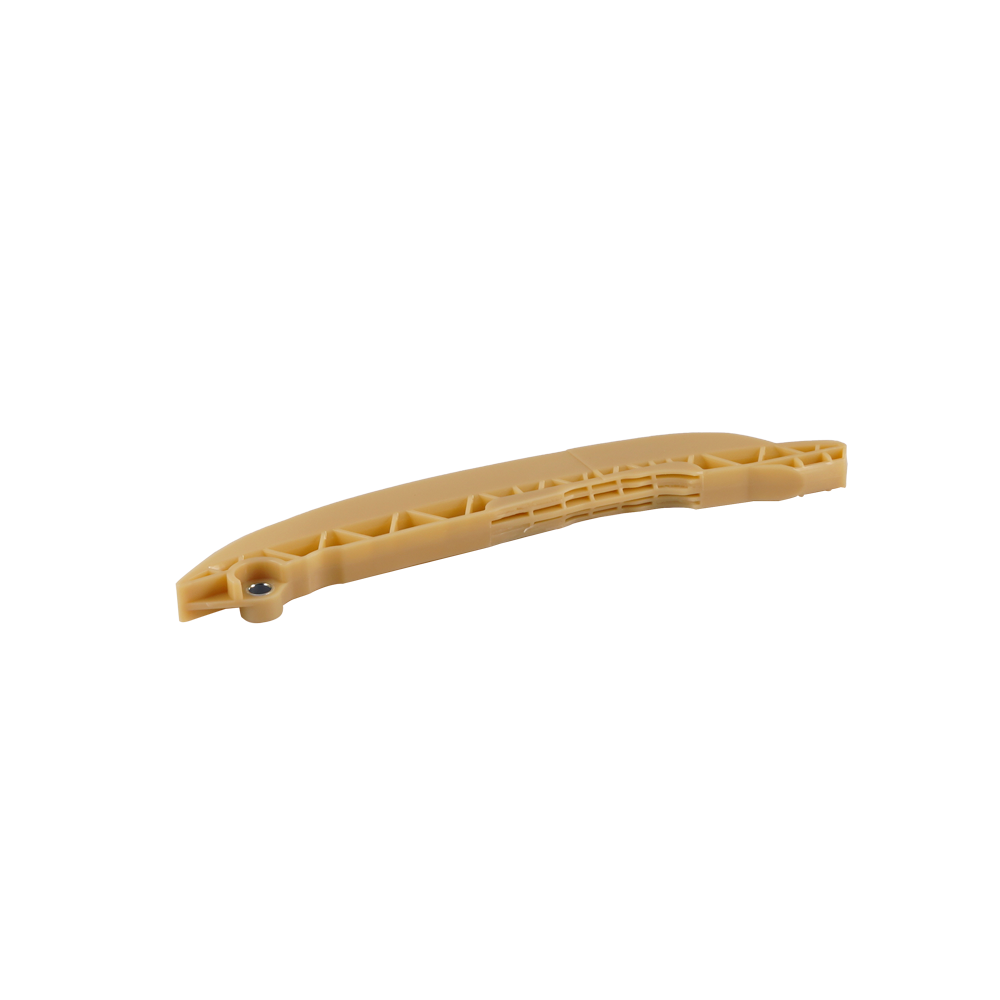

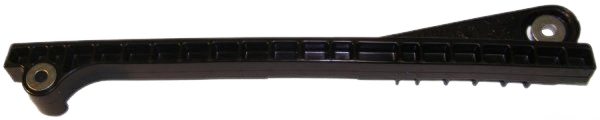

What is a Timing Chain Guide?

A timing chain guide is a component in your car's engine that keeps the timing chain in place. The timing chain connects the crankshaft and camshaft, ensuring the engine's valves open and close at the right time. The guide helps maintain tension and prevents the chain from slipping, which could lead to serious engine problems.

Why is it Important?

Without a properly functioning guide, the timing chain might jump or wear out, potentially causing the engine to run poorly or fail. It's essential for maintaining engine timing and performance, especially during speed changes.

Maintenance Tips

It's often recommended to replace the timing chain guide along with the chain and other related parts, like tensioners, during maintenance. Regular oil changes can help prevent wear on the guide and chain.

Definition and Function

A timing chain guide is designed to keep the timing chain in tension, preventing it from fluttering or slipping, especially during changes in engine speed. It serves as a track or guide for the timing chain, ensuring it maintains proper alignment and connection between the crankshaft and camshaft(s). This is crucial for the engine's valves to open and close at the correct times, facilitating efficient combustion and power delivery.

Research highlights that timing chain guides are not merely passive components but active indicators of the health of the timing chain, sprockets, and the entire engine. Abnormal wear patterns on the guides can indicate issues such as endplay in the crankshaft or camshaft, problems with tensioners, or inadequate oil pressure, making them vital for diagnosing broader engine health.

Materials and Design

Contrary to common misconceptions, timing chain guides are not made of simple plastic. They are constructed from highly engineered resins and structural fibers, designed to withstand high temperatures, mechanical forces, engine oil, harmful vapors, and thousands of heat cycles. The use of premium materials and CAD-designed components that meet or exceed OEM performance requirements, ensuring durability and reliability.

The choice of materials is significant; metal guides, while durable, could transmit engine noise to the vehicle, which is why even cast metal guides often incorporate plastic inserts where they contact the chain. This design balances durability with noise reduction, enhancing the driving experience.

Durability and Expected Lifespan

Timing chain guides are engineered to last the engine's life under normal operating conditions. However, premature wear can occur due to several factors, including lack of maintenance, high mileage, failed tensioners causing chain slap, multiple overheating incidents, or blocked oil passages. Such wear is a sign of underlying issues with the chain's path, lubricants, or tensioners, necessitating a holistic approach to maintenance.

Maintenance and Replacement

Maintenance is critical to preserving the integrity of timing chain guides. Regular oil changes are essential, as old or degraded oil can accelerate wear on both the chain and guides, leading to chain stretch (technically elongation due to wear, not actual stretching). Replacing the timing chain, guides, tensioners, and sprockets together can significantly reduce costs and enhance results, ensuring the timing system returns to like-new condition.

Cloyes: Timing Chain Guides recommends replacing the chain tensioner(s), sprocket(s), and guide(s) when replacing the chain, as these components play a vital role in system stability and accurate timing.

Consequences of Neglect

Neglecting timing chain guides can lead to significant engine issues. Potential consequences, including error codes for correlation or synchronization problems, loss of engine power, compression issues, and in severe cases, the chain skipping teeth. On multi-cam engines, this can appear as a dead miss on multiple cylinders, potentially leading to catastrophic failure.

Related Components and System Interactions

Timing chain guides interact closely with other components, such as tensioners and variable valve timing actuators. Tensioners, which use oil pressure to maintain chain tension, can age prematurely with old oil, exacerbating guide wear. Variable valve timing actuators, powered by the same oil, may also need replacement during timing chain maintenance to ensure system integrity.
