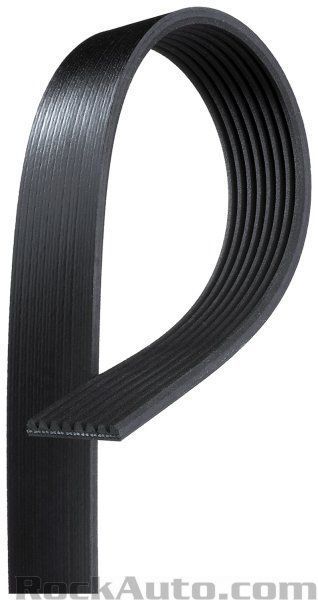

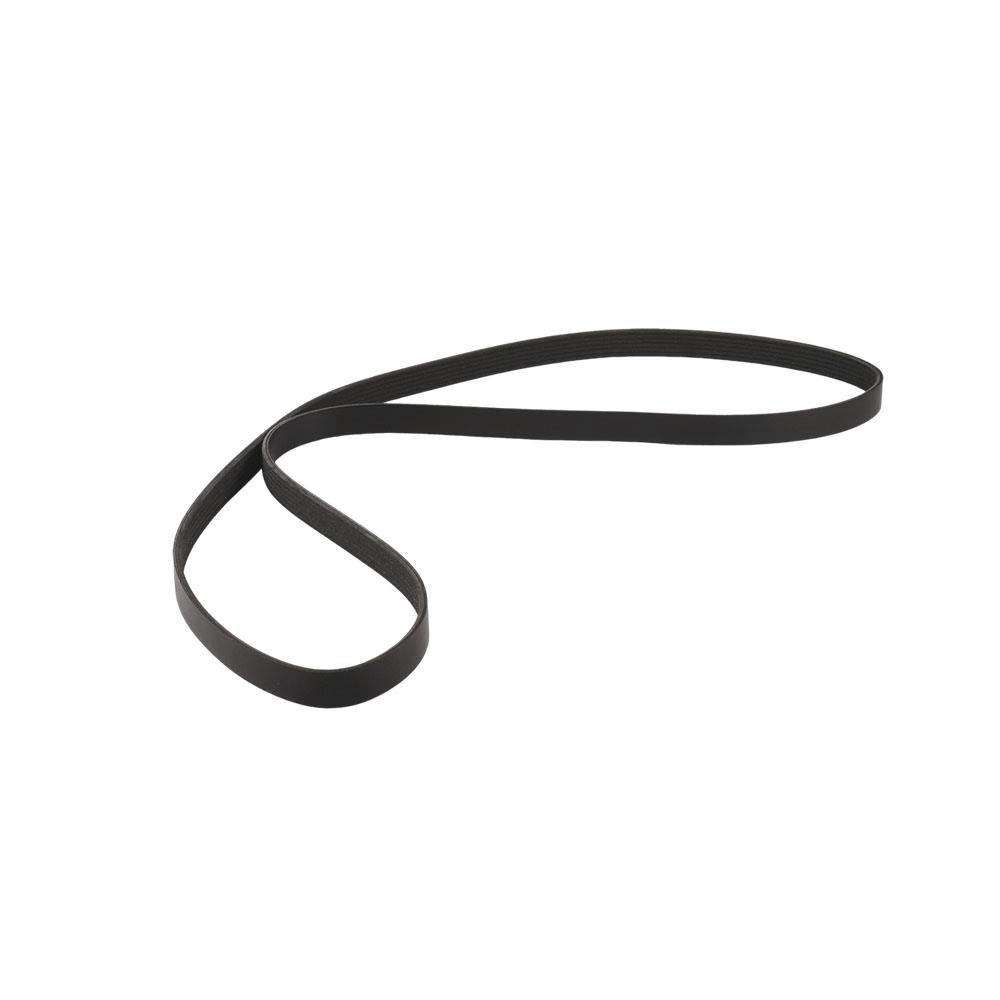

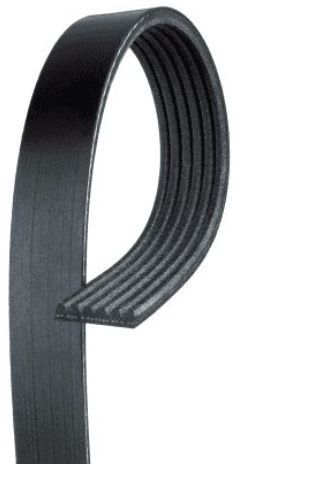

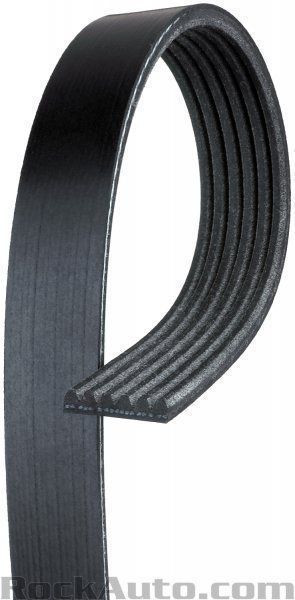

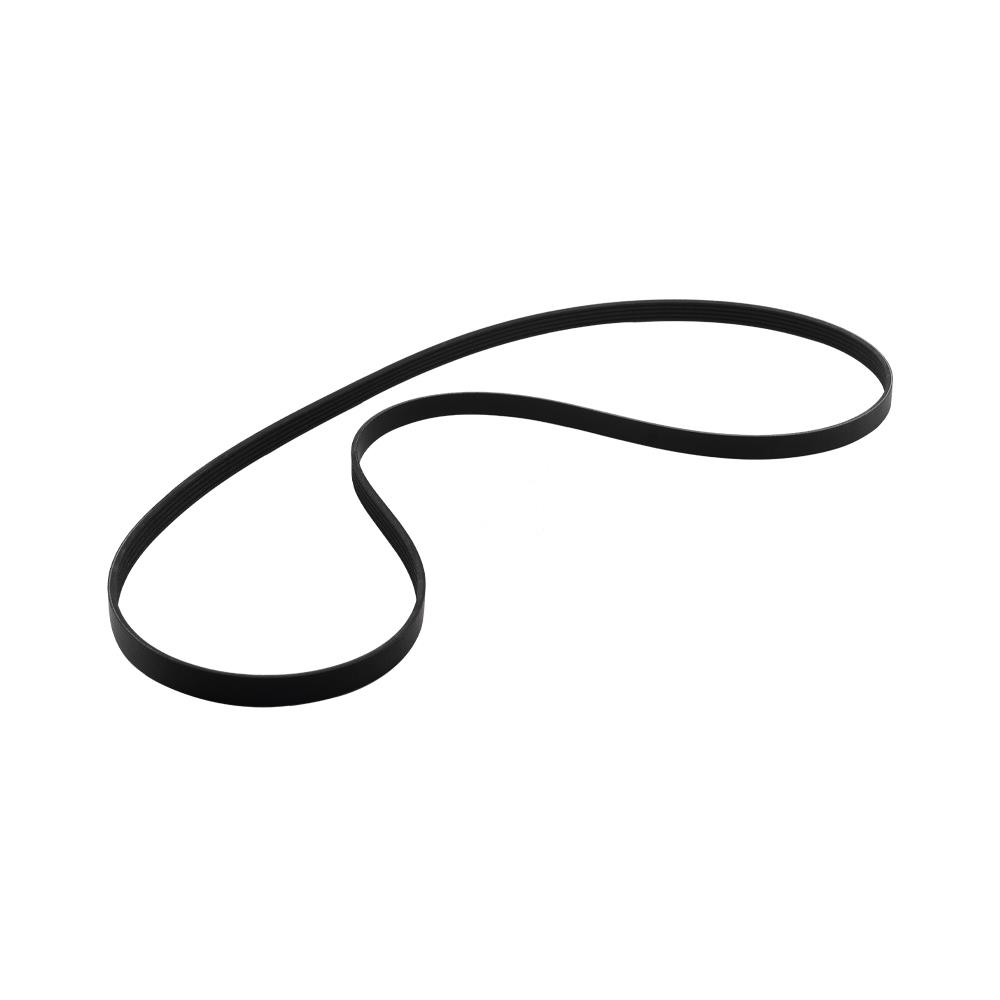

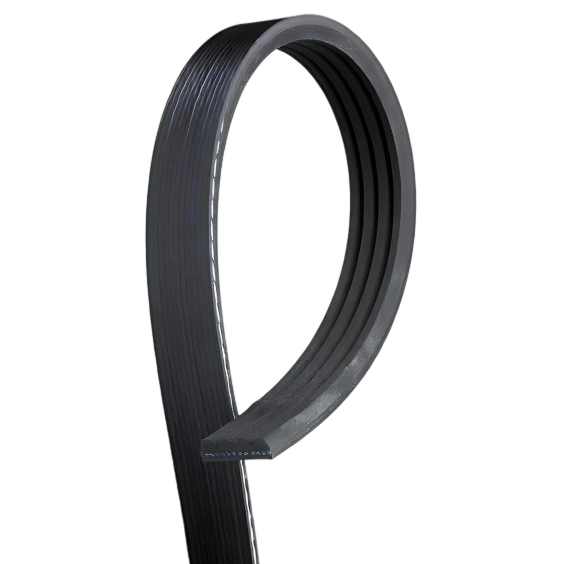

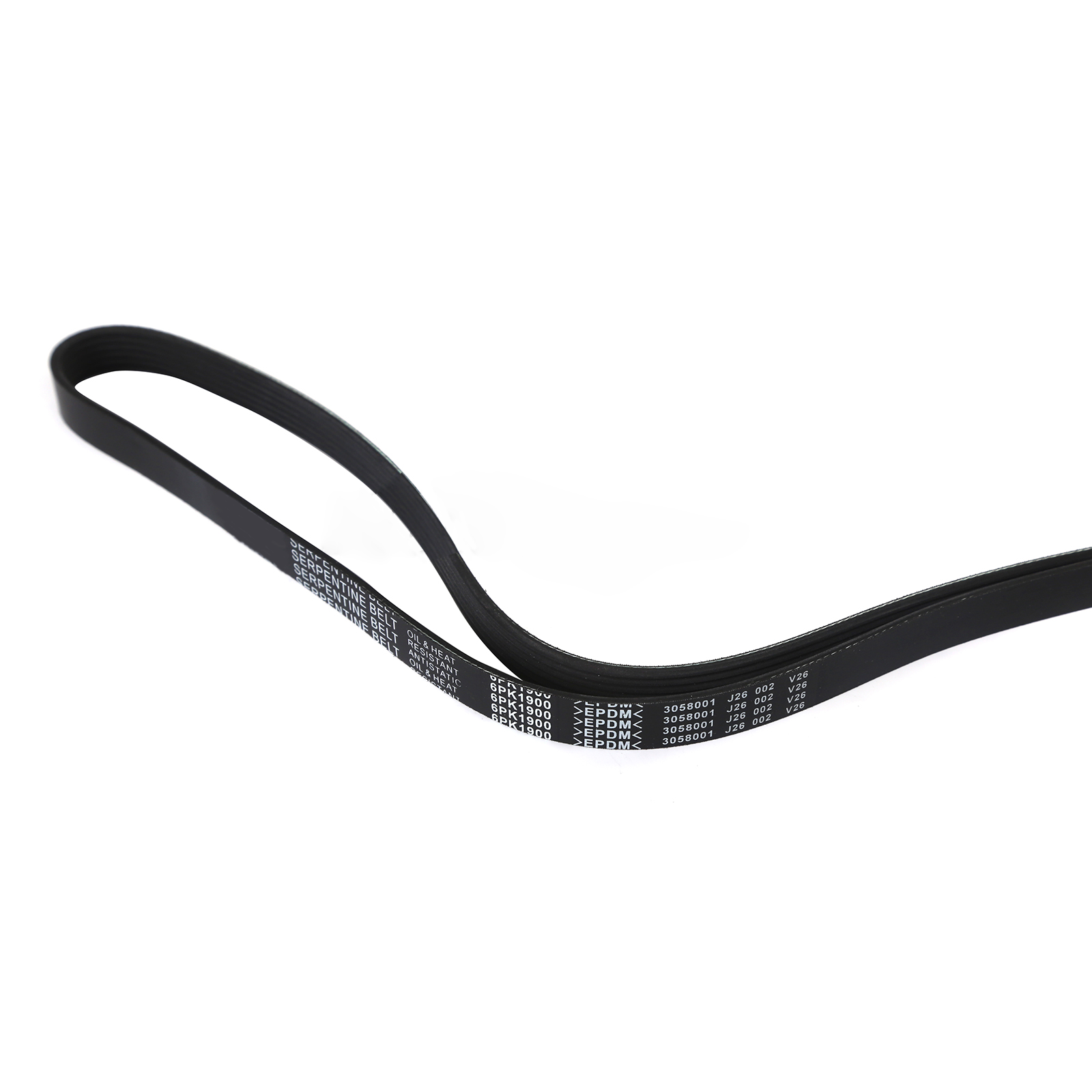

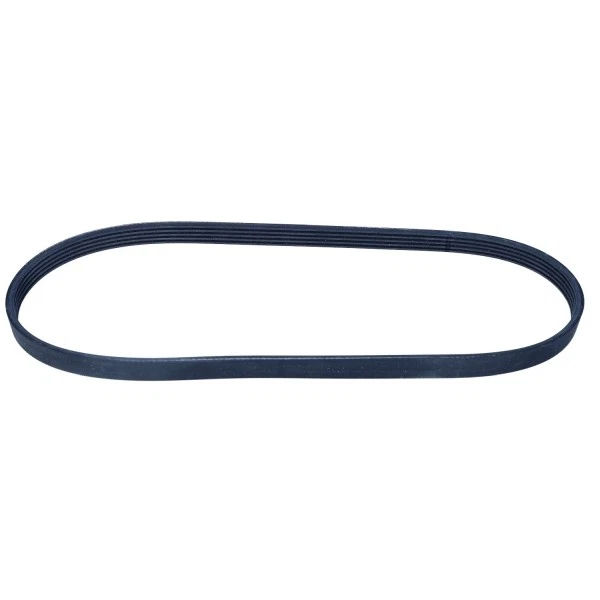

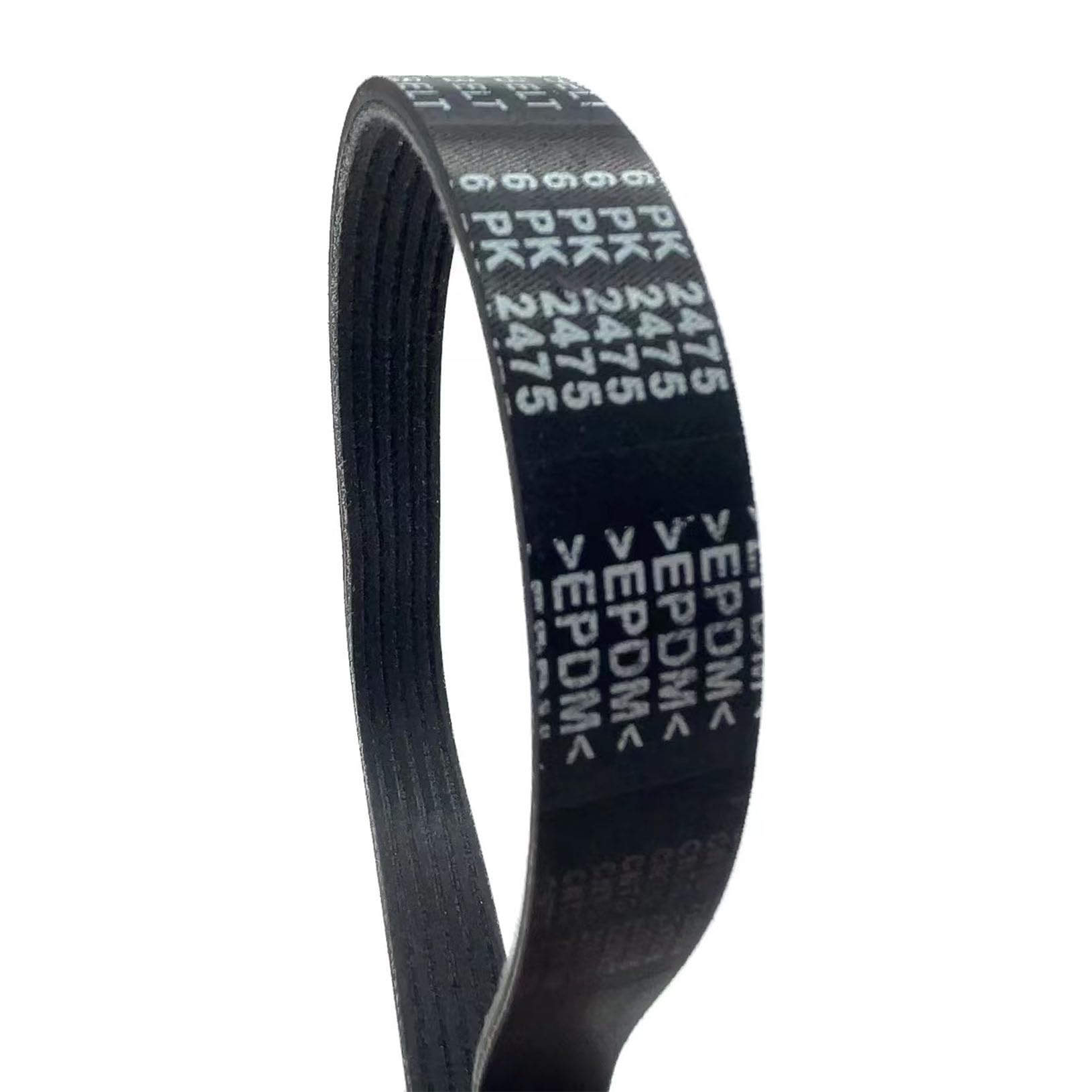

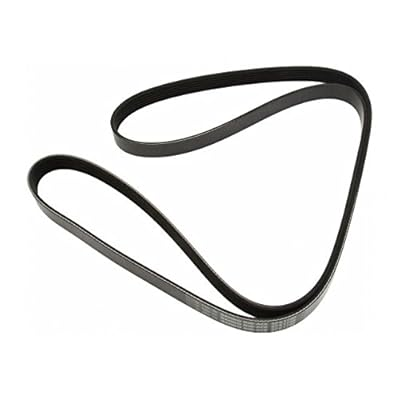

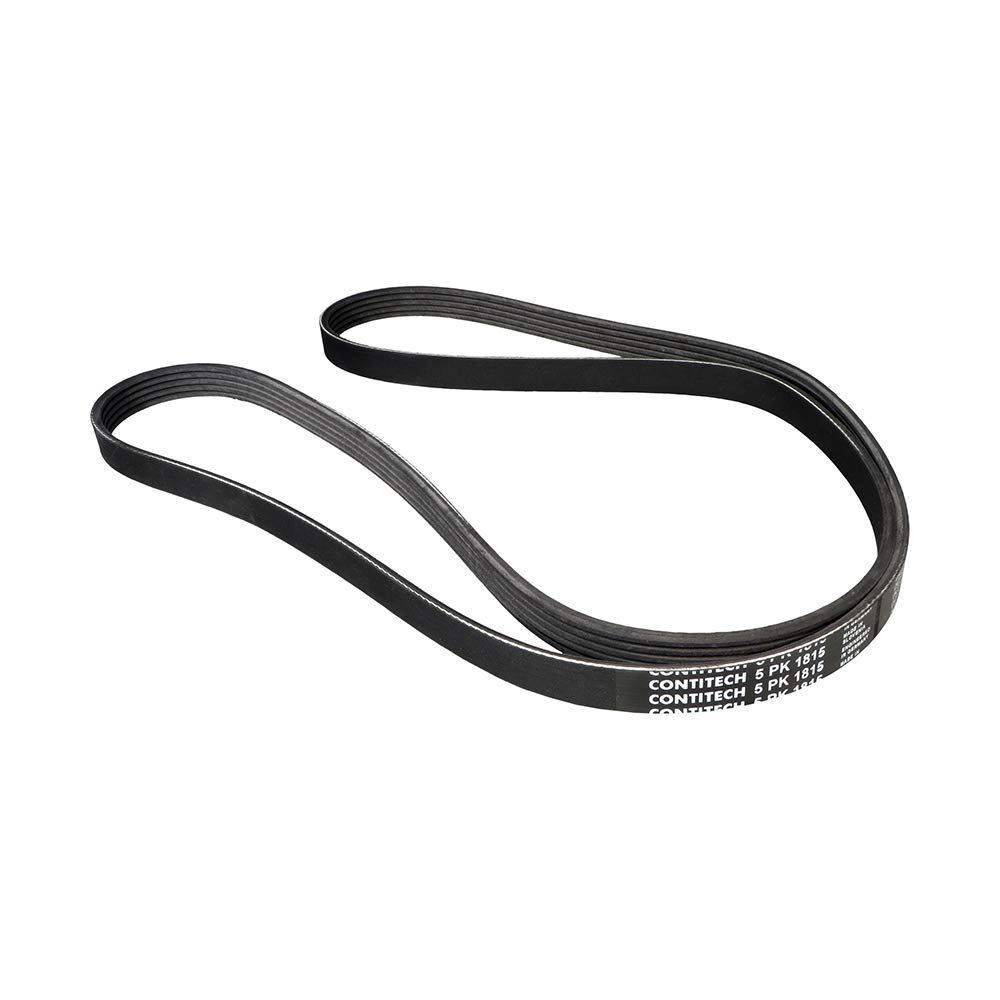

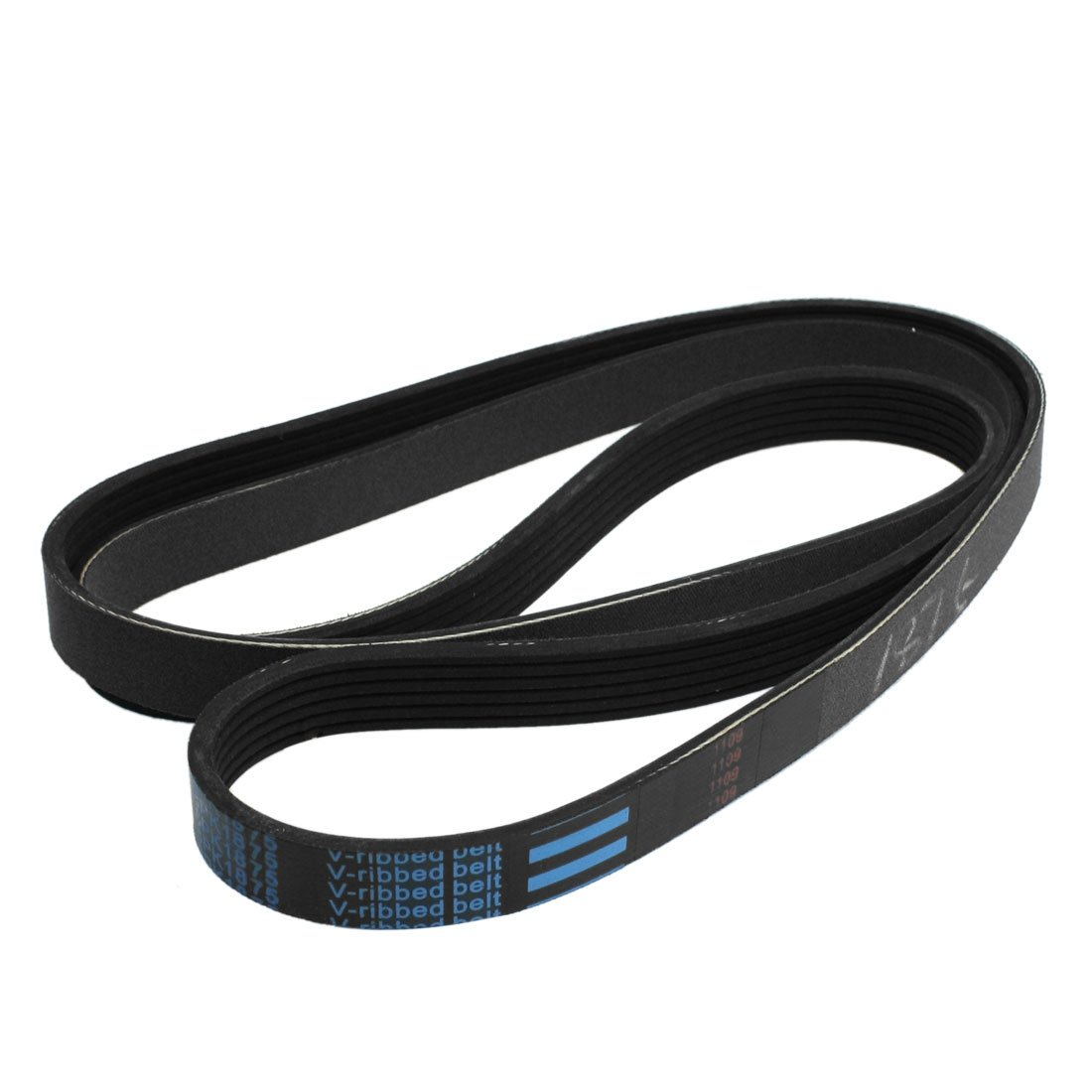

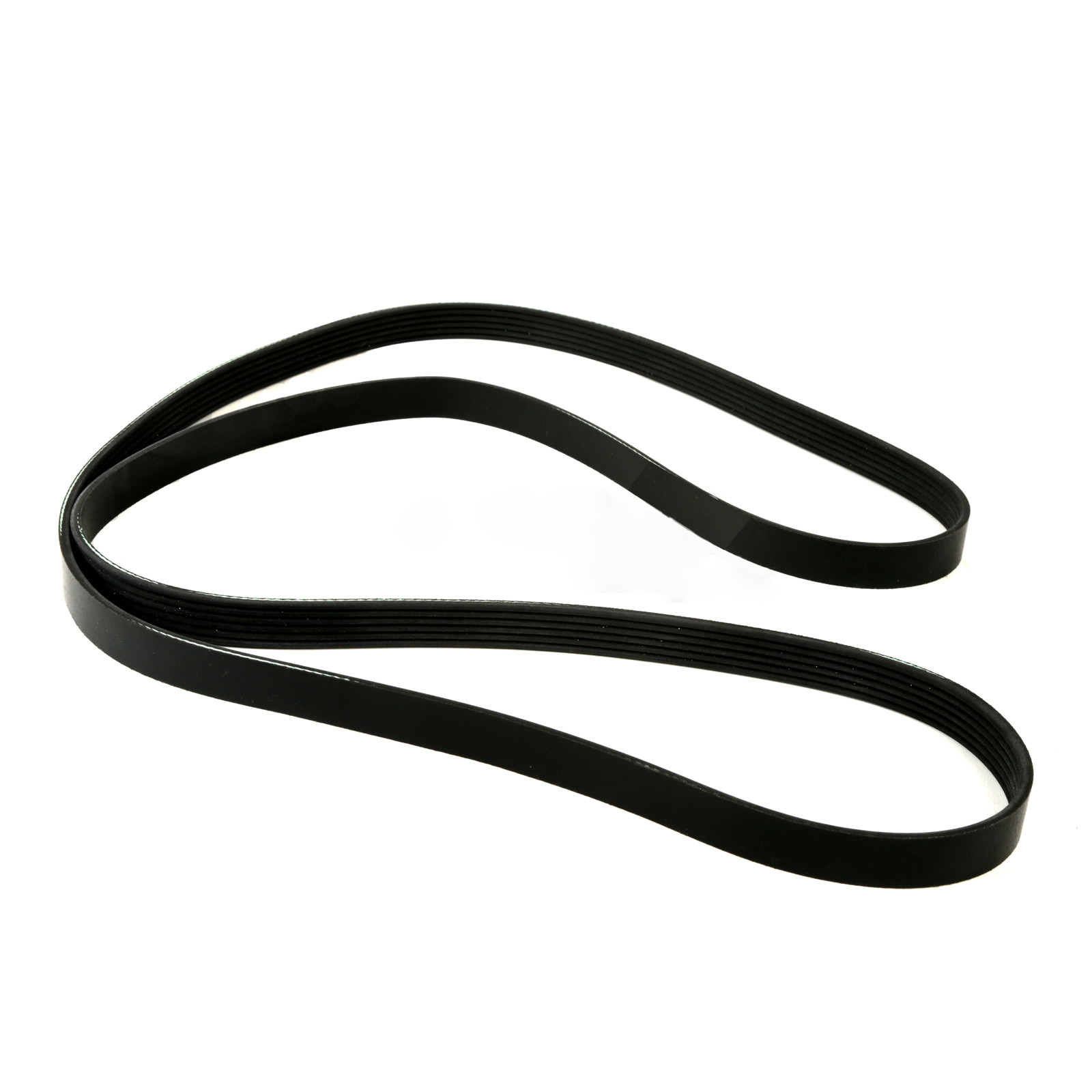

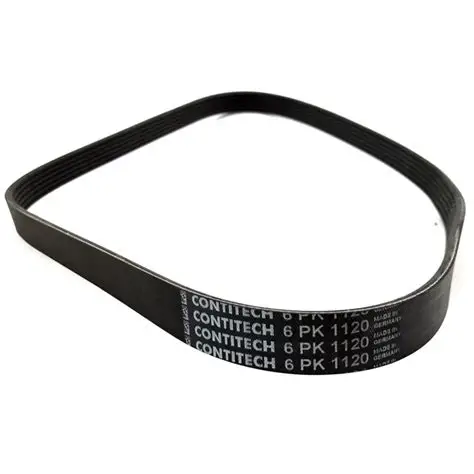

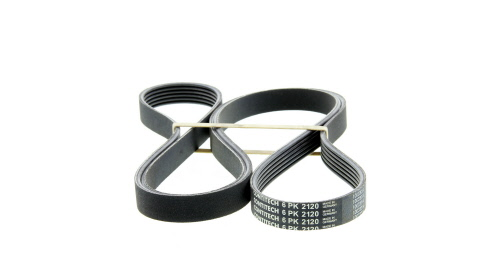

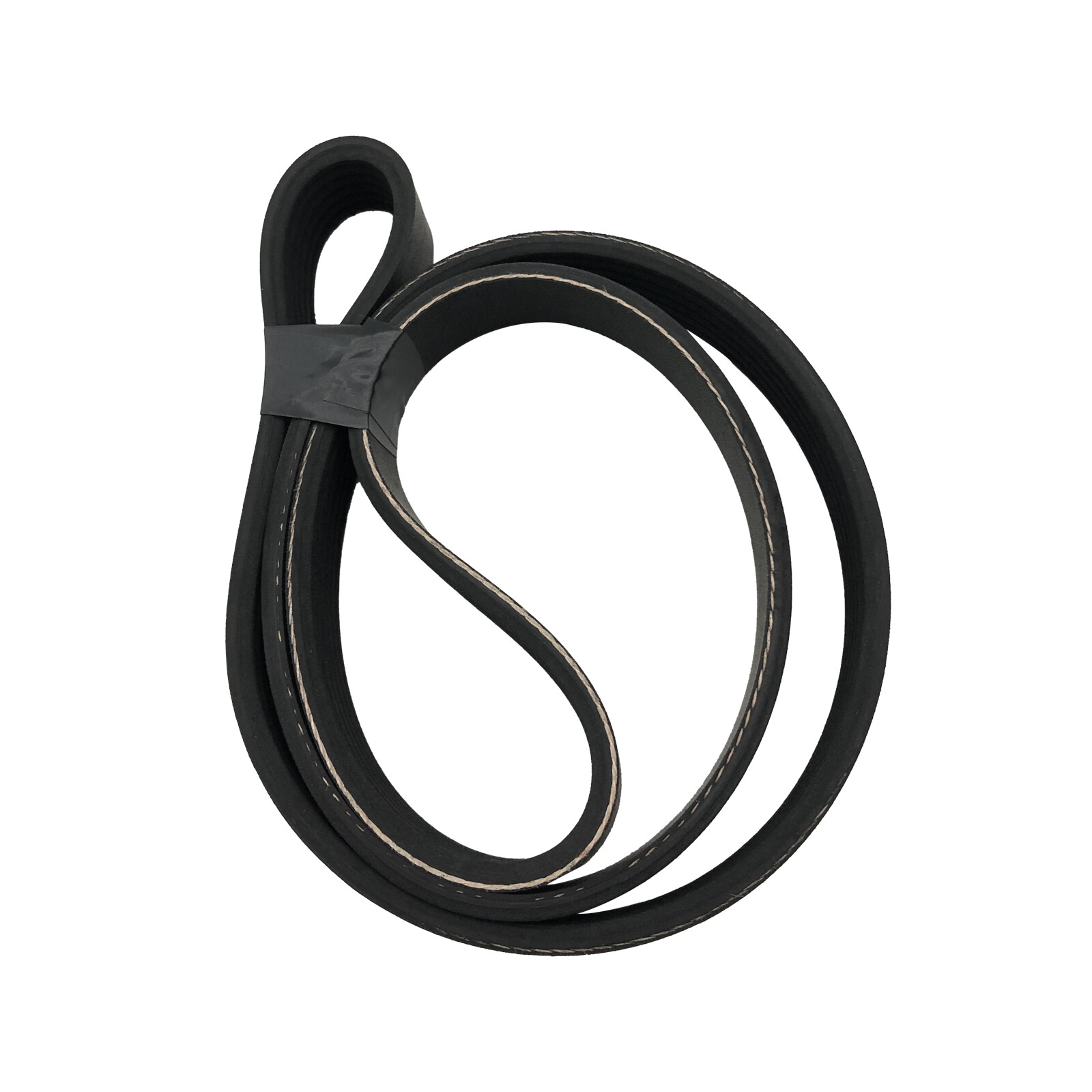

What is a Poly V Belt?
A poly v belt, also known as a ribbed or serpentine belt, is a type of belt with multiple v-shaped ribs running along its length. These ribs fit into grooves on pulleys, helping transfer power efficiently in systems like car engines or industrial machines. It’s designed to be more flexible and compact than older v-belts.
Advantages
Compared to traditional v-belts, poly v belts likely offer better power transmission, reduced noise, and longer lifespan. They can drive multiple components with one belt, making them versatile for modern applications.
Common Uses
You’ll find poly v belts in cars, driving parts like alternators and air conditioning, as well as in industries like fitness equipment, HVAC systems, and pumps. They’re built for a wide range of tasks, from light to heavy-duty.

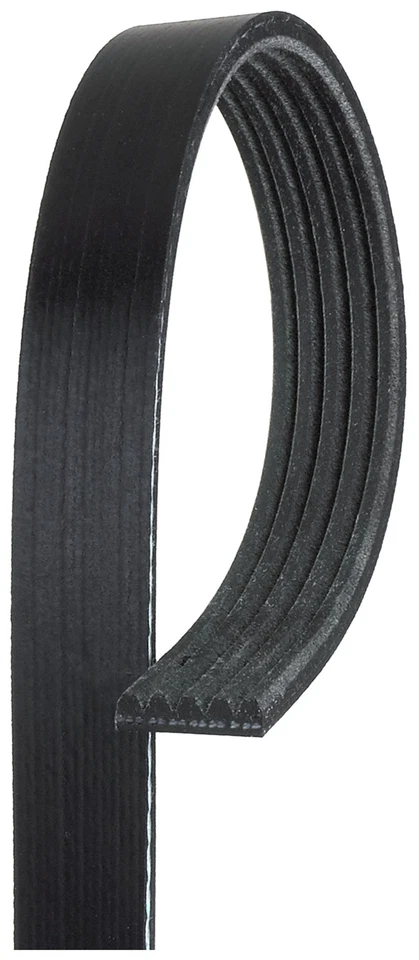

Definition and Structure
A poly v belt, also referred to as a ribbed belt, serpentine belt, or multi-ribbed belt, is a power transmission belt characterized by multiple longitudinal v-shaped ribs. These ribs run parallel to the belt’s length, fitting into corresponding grooves on pulleys to transmit torque and power through frictional engagement. Unlike traditional v-belts, which rely on wedging action between the belt sides and pulley flanges, poly v belts distribute load evenly across a larger contact surface, enhancing efficiency.
The construction typically involves a rubber or polyurethane base, reinforced with tension cords made from materials like polyester, aramid, or elastic nylon (polyamide) for strength and durability. The ribs are designed for maximum contact with the pulley, often made from high-abrasion-resistance elastomers. This monobloc design ensures even tension distribution, reducing wear and improving performance.
Technical Advantages
- Higher Efficiency: Achieving over 98% power transmission output, as noted in iso-tension and iso-geometry tests, reducing energy consumption.
- Compact Design: Minimum pulley diameters as small as 9mm (compared to 50mm for v-belts), enabling space-saving designs.
- Improved Transmission Ratio: Capable of ratios up to 1:60, versus 1:20 for v-belts, eliminating the need for stepped pulleys.
- Flexibility: Operates in flexion and counter-flexion, suitable for serpentine drives where a single belt drives multiple accessories.
- Reduced Noise and Vibration: The ribbed design ensures quieter operation, beneficial in noise-sensitive environments.
- Longevity: Up to four times longer lifespan than v-belts, due to resistance to wear, abrasion, and contaminants like oil and ozone.
These benefits stem from the larger contact surface area, which reduces belt width for the same power transfer, and the use of advanced materials like elastic nylon cords in some variants, offering up to 4% elongation for automatic tension adjustment.
Applications Across Industries
Poly v belts are versatile, covering a broad spectrum of applications:
- Automotive: Commonly used as serpentine belts to drive alternators, power steering pumps, water pumps, air conditioning compressors, and air pumps. Recent developments, such as Dayco’s latest generation belts, cater to high-load engines.
- Industrial: Found in fitness equipment, gardening tools, HVAC systems, industrial engines, energy systems, pumps, mines, quarries, paper industry, aerospace, timber industry, escalators, and refrigeration ventilation.
The ability to operate with smaller pulleys and handle high belt speeds makes them ideal for compact, high-performance systems.
Maintenance and Common Issues
While not directly part of the initial query, understanding maintenance can enhance usability. Poly v belts are known for reduced maintenance needs, with no requirement for matching (eliminating “flapping”) and rapid setup, as one poly v belt can replace up to 15 v-belts. Common issues include wear from misalignment or excessive tension, but their design mitigates these through high flexibility and durability. Regular inspection for cracks, glazing, or rib damage is advised, especially in high-load applications.
Comparative Analysis with Other Belts
| Feature | Poly V Belt | Traditional V-Belt | Flat Belt |
|---|
| Efficiency | Over 98% output | Lower, typically 90-95% | High, suitable for high speeds |
| Flexibility | High, operates in flexion/counter-flexion | Moderate, limited by design | Very high, can run on both sides |
| Pulley Diameter | As small as 9mm | Minimum 50mm | Larger, depends on application |
| Power Transmission | High, multiple accessories possible | Moderate, single accessory typically | High, but less compact |
| Noise Level | Low, quiet operation | Higher, can be noisy | Moderate, depends on speed |
| Lifespan | Up to 4x longer than v-belts | Shorter, prone to wear | Long, but less durable in harsh conditions
|
